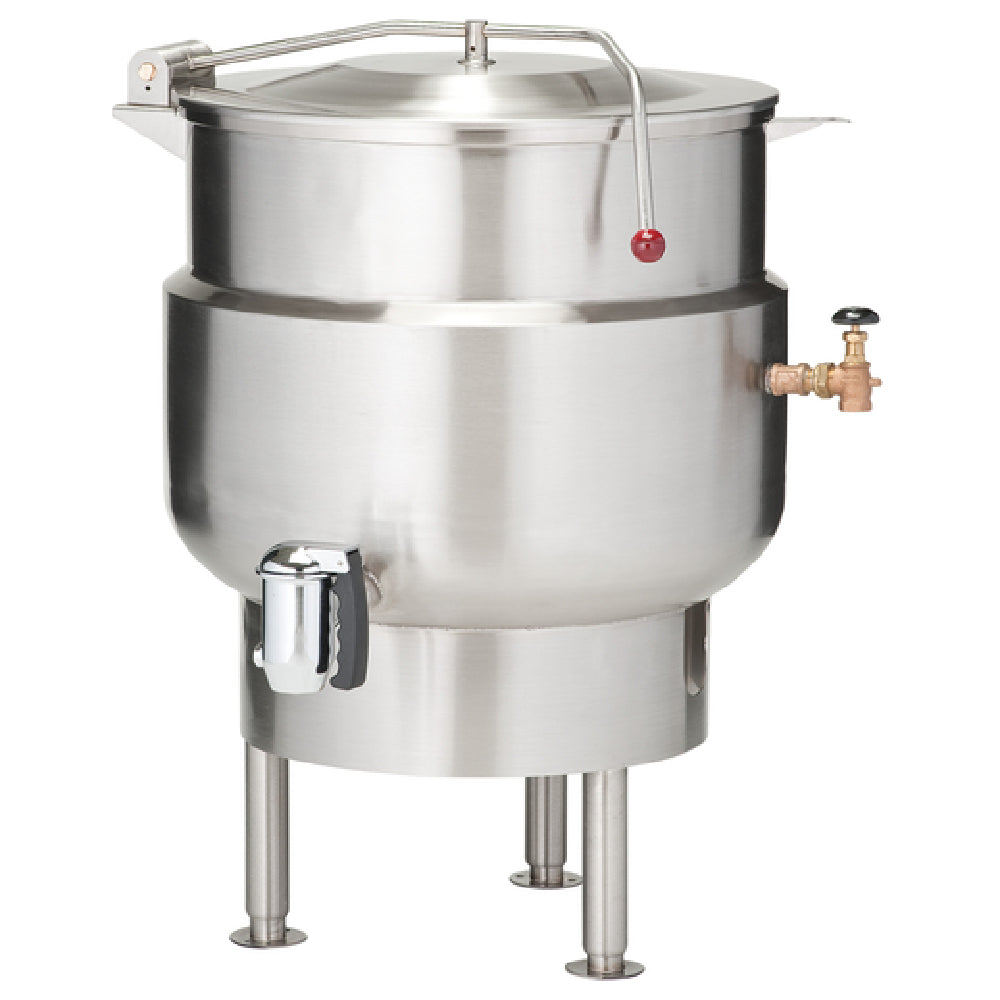

Vulcan K60DLT Direct Steam 60 Gallon Tilting 2/3 Steam Jacketed Kettle

The K60DLT is a Tilting Direct Steam Kettle from. This floor mounted kettle is constructed of stainless steel, including a 316 series steel liner. The liner includes an ellipsoidal bottom. The compression draw-off valve features a perforated strainer. True working capacity is 60 gallons. The model is 2/3 jacketed. It tilts forward at an angle of 90°.

The various steam controls include a condensate return valve strainer and a safety valve stream trap. There is a compression draw off valve with a perforated strainer. This unit is UL Listed. It is certified to NSF Standard #4.

Vulcan K60DLT Features

• Direct Steam Kettle
• 90° Manual Forward Tilt
• Material: Stainless Steel
• Capacity: 60 Gallons
• Heavy Bar Rim
• 2/3 Jacket
• 316 Series Stainless Steel Liner
• Condensate Return Line Strainer
• Safety Valve Steam Trap
• Flanged Feet
• Tubular Legs
• Embossed Gallon/Liter Markings
• Yolk Style Mount
• 1.0 BHP
• NSF
• UL Listed

Vulcan K60DLT Benefits

• Kettle tilts forward 90° to completely empty
• Ellipsoidal bottom kettle liner formed and fully welded




Overall Dimensions:

Height: 38 1/8"

Width: 45 11/16"

Depth: 46 1/2"
