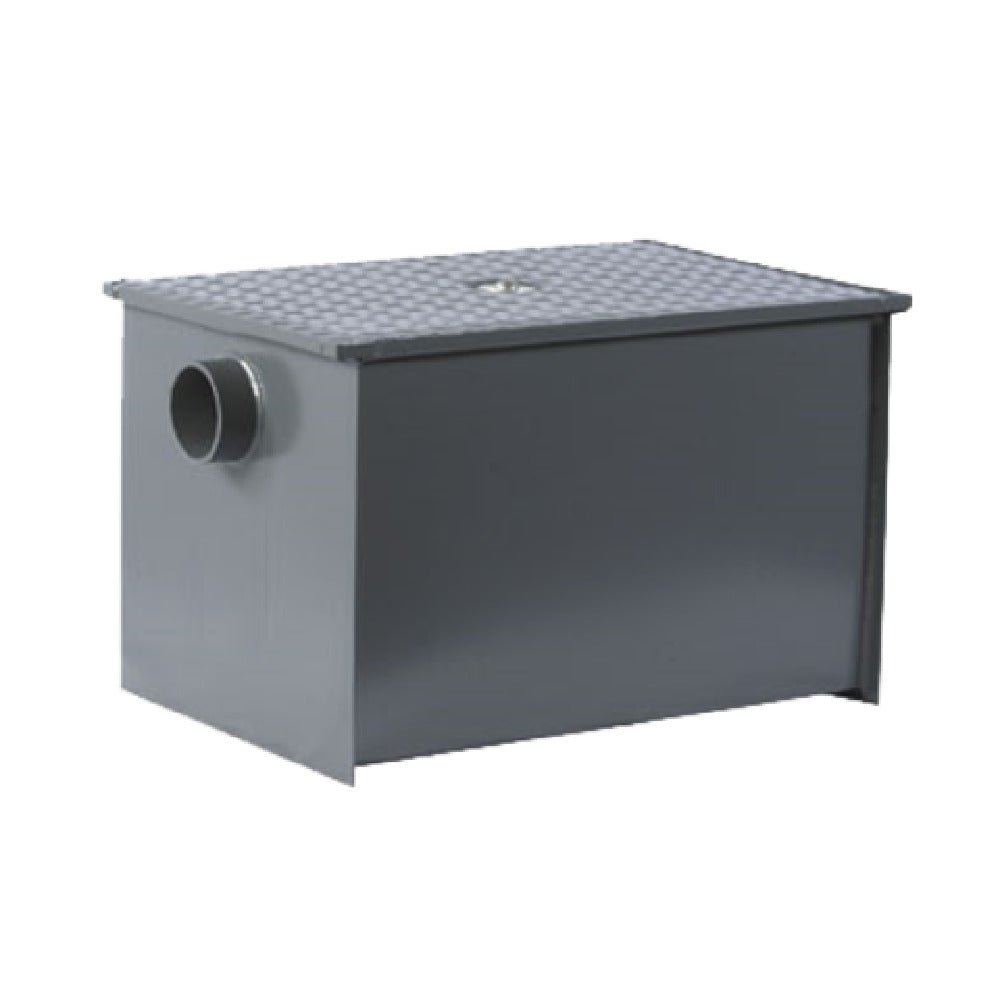

Watts WD-35 Grease Trap/Interceptor with 35 GPM Flow Rate and 70 Pound Capacity
| Ship Weight | 113 LBS |
| Product ID | 122595 |
| Manufacturer | Dormont |
| Model Number | DOR-WD-35 |
| Manufacturer Part # | WD-35 |
| Reference ID | DOR-WD-35, 122595, WD-35 |
| Base Material | Epoxy Coated Steel |
| Color(s) | Silver |
| Capacity | 70 lb. |
| Flow Rate | 35 GPM |
| Dimensions (HxWxL) | 19"x 18"x 30" |
| Inlet/Outlet Size | 3" |
| Hazardous Material | No |
| NSF Approved | No |
| UL Approved | No |
The Watts WD-35 Grease Trap/Interceptor with 35 GPM Flow Rate and 70 Pound Capacity is designed to collect all substances lighter than water, such as grease. An epoxy-coated cover is skid proof and secured by hex head center bolts. The flow control plate is constructed of integral stainless steel, and can be found on the product’s exterior. A removable baffle is included with this model.
The deep seal trap features a cleanout. The inlet and outlet measure 3". This unit has a height of 19", a width of 18", and it measures 30" in depth. The “center” point is 14" from the base and 5" from the top. There are no hub (standard) connections on this model.
Once in use, the flow restrictor slows and redirects the incoming waste. The end result is that the waste is prevented from entering the sewage system, which is a positive since it is difficult to process and leads to environmental problems.
Dormont WD-35 Features
- Grease Trap/Interceptor
- Capacity: 70 LB Grease
- Flow Rate: 30 Gallons per minute
- 3" Inlet/Outlet
- No Hub Connections
- Skidproof Cover with Gasket
- Hex Head Center Bolts
- Removable Baffle
- Color: Silver
- Deep Seal Trap w/Cleanout
- External Stainless Steel Flow Control
Overall Dimensions:
Height: 19"
Width: 18"
Depth: 30"
