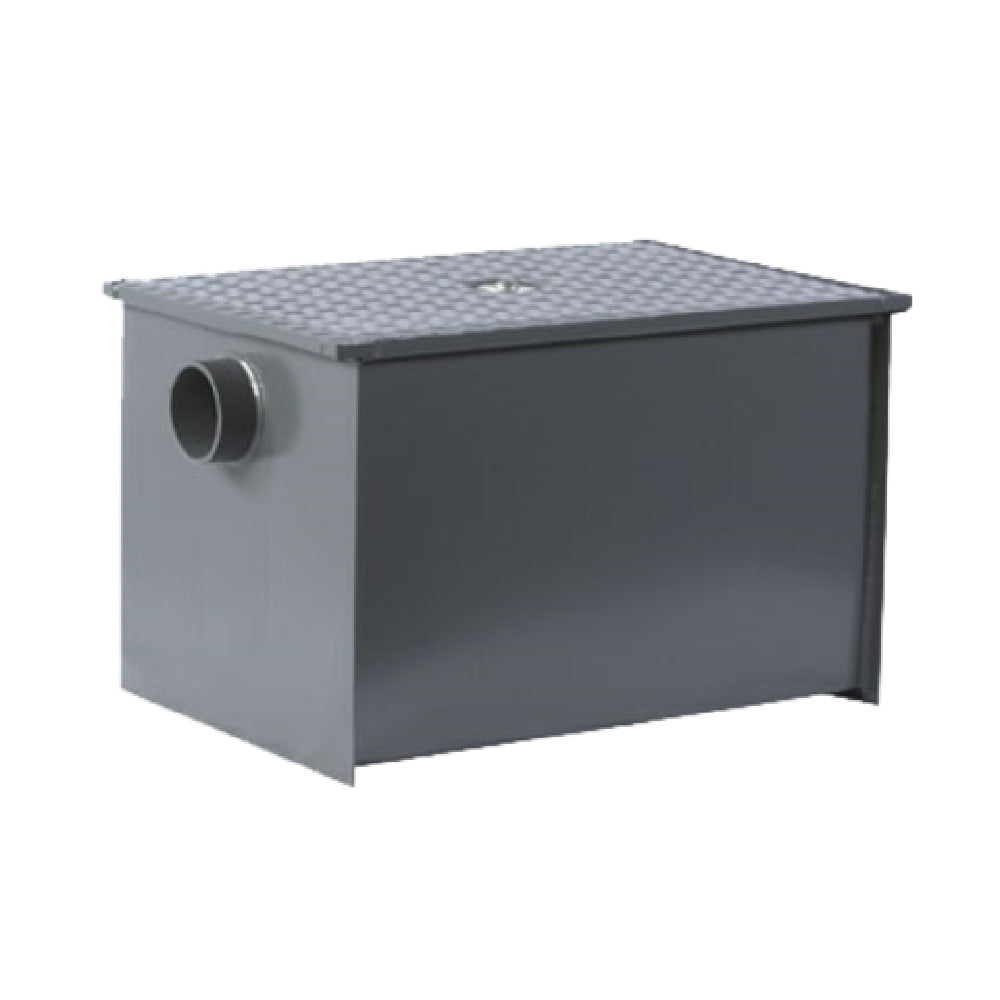

Watts WD-25 Grease Trap/Interceptor with 25 GPM Flow Rate and 50 Pound Capacity
| Ship Weight | 95 LBS |
| Manufacturer | Dormont |
| Model Number | WD-25 |
| Manufacturer Part # | WD-25 |
| Hazardous Materials | No |
| Oversized Shipping | No |
| Base Material | Epoxy Coated Steel |
| Color(s) | Silver |
| Capacity | 50 lb. |
| Flow Rate | 25 GPM |
| Dimensions (HxWxL) | 16.5"x 16.5"x 26" |
| Inlet/Outlet Size | 3" |
| NSF Approved | No |
| UL Approved | No |
The Watts WD-25 Grease Trap/Interceptor with 25 GPM Flow Rate and 50 Pound Capacity is designed to collect all substances lighter than water, such as grease. An epoxy-coated cover is skid proof and secured by hex head center bolts. The flow control plate is constructed of integral stainless steel, and can be found on the product’s exterior. A removable baffle is included with this model.
The deep seal trap features a cleanout. The inlet and outlet measure 3". This unit has a height of 16-1/2", a width of 16-1/2" and it measures 26" in depth. The “center” point is 12" from the base and 4-1/2" from the top. There are no hub (standard) connections on this model.
Once in use, the flow restrictor slows and redirects the incoming waste. The end result is that the waste is prevented from entering the sewage system, which is a positive since it is difficult to process and leads to environmental problems.
Dormont WD-25 Features
- Grease Trap/Interceptor
- Capacity: 50 LB Grease
- Flow Rate: 25 Gallons per minute
- 3" Inlet/Outlet
- No Hub Connections
- Skidproof Cover with Gasket
- Hex Head Center Bolts
- Removable Baffle
- Color: Silver
- Deep Seal Trap w/Cleanout
- External Stainless Steel Flow Control
Overall Dimensions:
Height: 16-1/2"
Width: 16-1/2"
Depth: 26"
