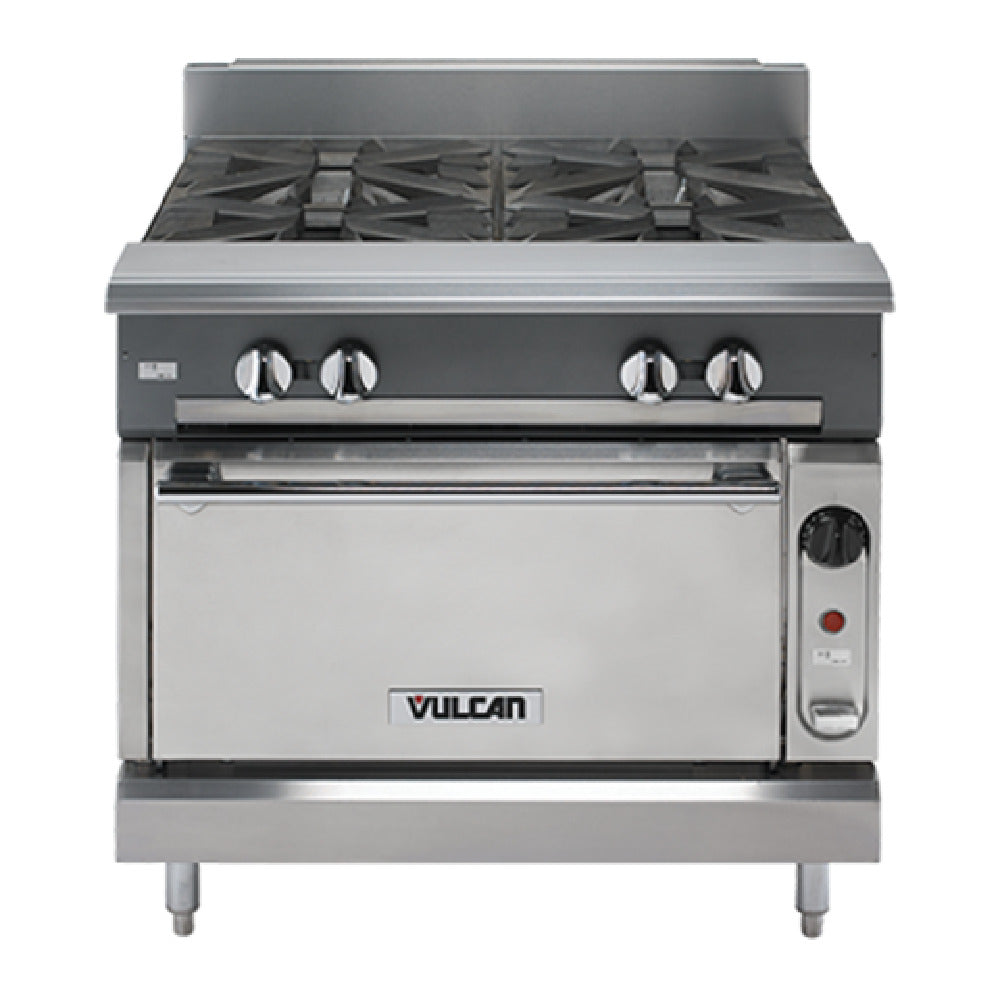

Vulcan V6B36C Liquid Propane V Series 36" Wide Convection Oven Base 6 Cast Iron Open Burner Stainless Steel Range On Legs, 242,000 BTU
|Ship Weight||730 lb|
|Manufacturer Part #||V6B36C|
|Type||Commercial Gas Range|
|Depth||36 3/4 Inches|
|Base Material||Stainless Steel|
|Base Type||Convection Oven Base|
|Oven Interior Height||13 Inches|
|Oven Interior Width||27 Inches|
|Oven Interior Depth||27 Inches|
|Burner Type||Open Burner|
|Number Of Burners||6|
|Burner Material||Cast Iron|
|CSA Design Certified||Yes|
|CSA Blue Flame Certified||Yes|
|Riser Height||4 Inches|
|Power||Gas / Electric|
|Gas Connection||1 1/4" Diameter Rear Gas Connection|
|Gas Type||Liquid Propane|
|Power Cord Length||9 ft|
|Legs||6" Adjustable Stainless Steel Legs|
|Brand Line||V Series|
The blower motor on the convection oven of this open burner range is an electric unit that runs at 115 Volts, 1-phase, and 4 Amps, and the unit comes included with a 9 ft power cord with a standard NEMA 5-15P plug. The convection oven has a porcelain interior that is 13" high x 27" wide x 27" deep. This commercial gas open burner range is CSA Blue Flame certified, CSA Design certified, and it is NSF listed for safety.
This V6B36C commercial gas open burner range operates on Liquid Propane at 32,000 BTU for the Convection oven, and 35,000 BTU per burner, for a total of 242,000 BTU. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.
This gas open burner range has a 1 1/4" diameter front gas manifold and a 1 1/4" rear gas connection. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.
V series units are all modular and interchangeable to allow you to create the perfect customized workstation, including a variety of types of ranges from open burners, hot tops, French tops, charbroilers, and griddles, to other units like refrigerated bases, cabinets, convection or finishing ovens.
The V6B36C is the heavy-duty V Series 36" wide gas-powered open burner range from Vulcan that has a Convection oven base, and 6 cast iron open burners with individual pilots and controls. This oven base range stands firmly on 6" adjustable stainless steel legs.
There is durable stainless steel construction on the front, front top ledge, sides, base, burner box, and 4" high stub riser of this open burner range that makes it durable enough to stand up to the daily usage of any commercial kitchen environment.
Vulcan V6B36C Features
- V Series heavy-duty 36" wide range
- Base Type: Convection Oven Base
- Power Type: Gas / Electric
- Base Material: Stainless Steel
- Burner Type: Open burner
- Burner Material: Cast iron
- Number of Burners: 6
- Burner BTU: 35,000
- Individual burner pilots and controls
- Oven BTU: 32,000
- Oven Interior Size: 13" high x 27" wide x 27" deep
- Oven Interior Material: Porcelain
- Gas Type: Liquid Propane
- Total BTU: 242,000
- 9 ft power cord
- Electrical specifications: 115 Volts, 1-phase and 4 Amps, NEMA 5-15P plug
- 4" stainless steel stub riser
- Gas Connection: 1 1/4" diameter rear gas connection
- Legs: 6" adjustable stainless steel legs
- CSA Blue Flame certified
- CSA Design certified
- NSF listed for safety
Vulcan V6B36C Benefits
- Energy-efficient heavy-duty burners
- Modular and interchangeable V series units allow you to create the perfect customized workstation
- Durable stainless steel and heavy-duty cast iron grates stand up to any commercial kitchen environment
Depth: 36 3/4"
Oven Interior Dimensions:
