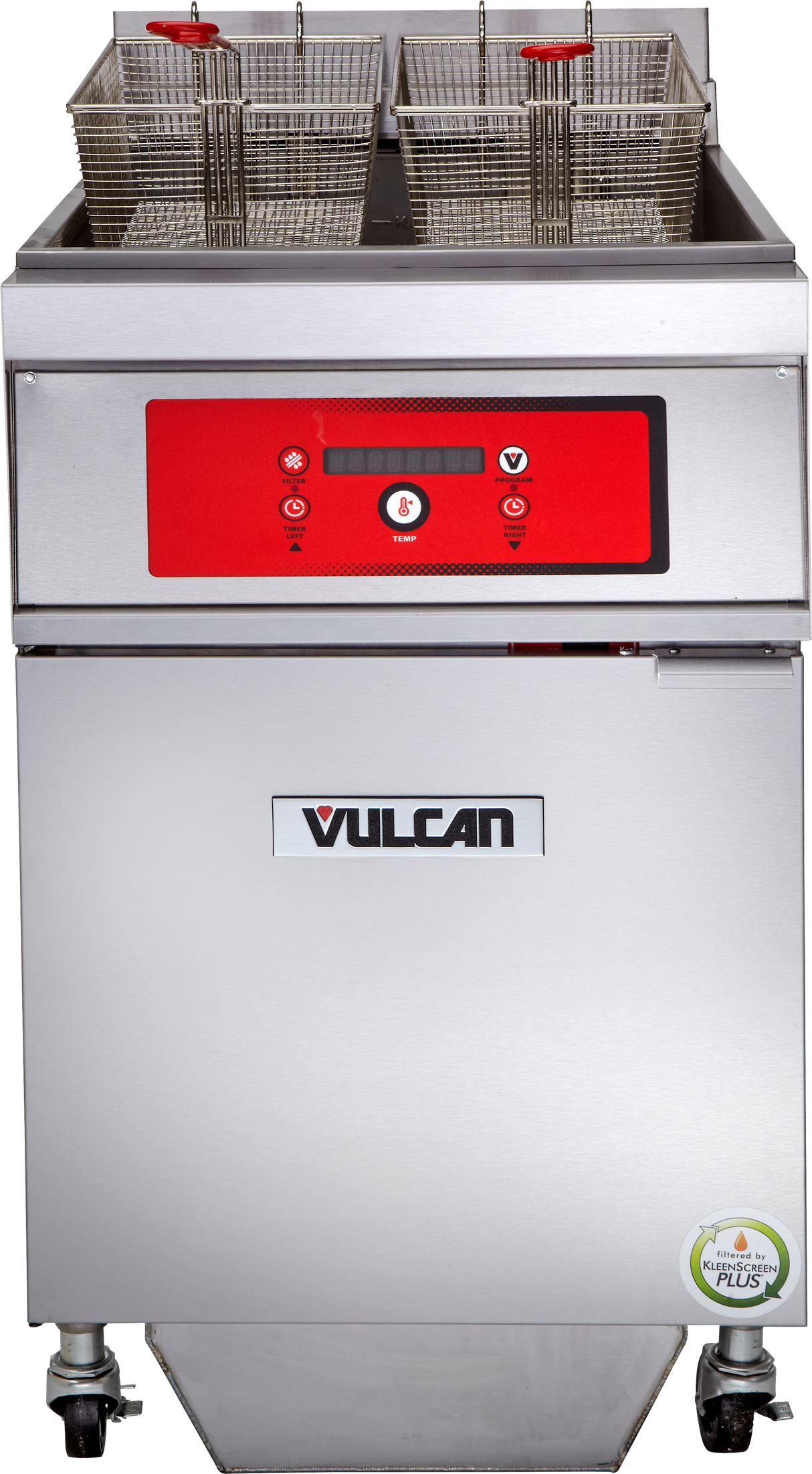

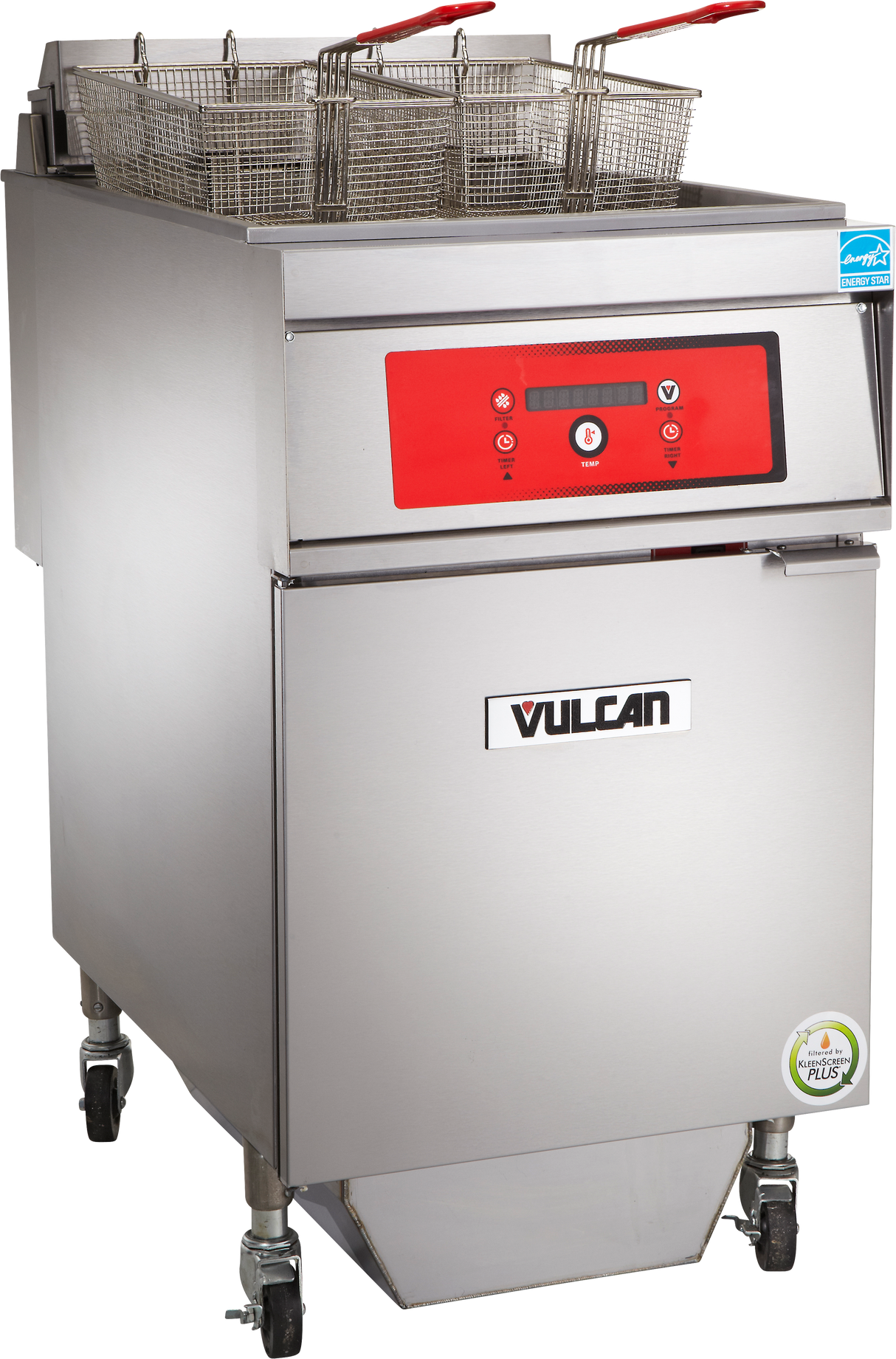

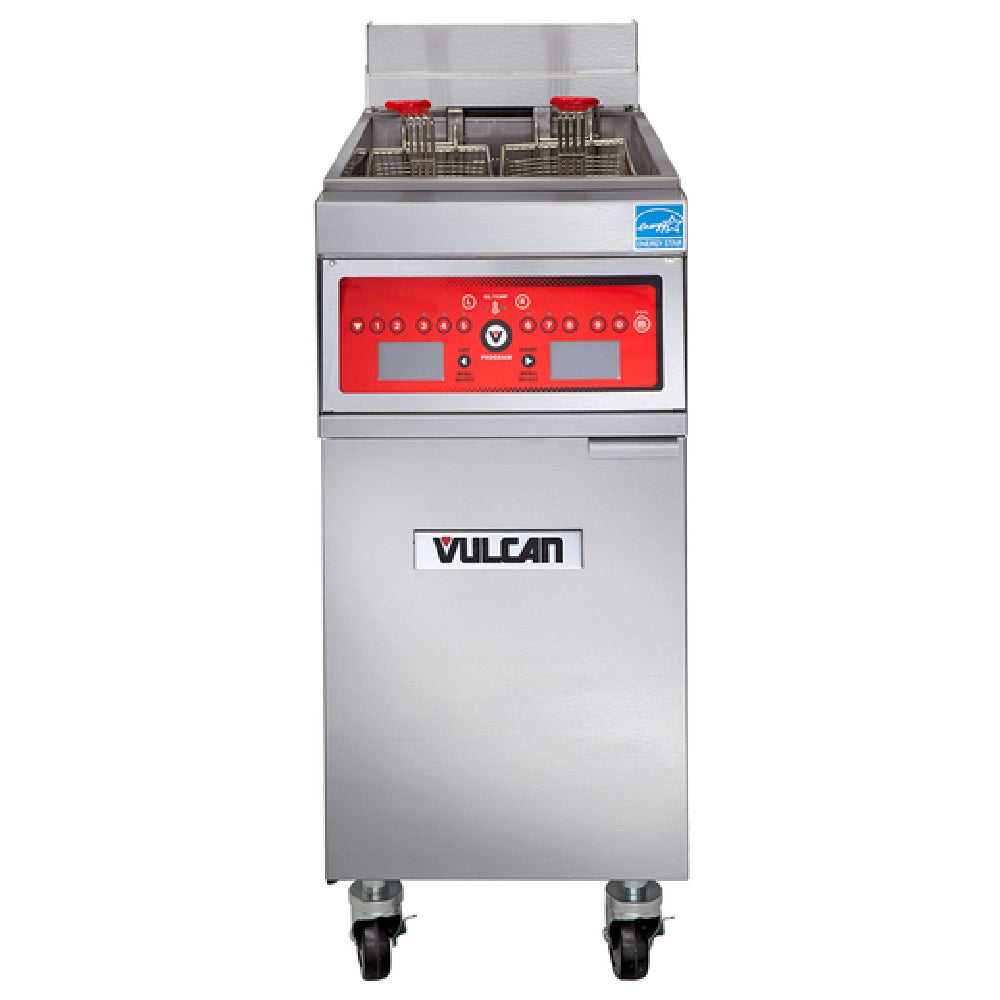

Vulcan 1ER85DF 85 lb. Electric Floor Fryer with Digital Controls and KleenScreen Filtration - 208V, 3 Phase, 24 kW
Item
#174203
Universal Item
#
MFG
#1ER85DF_208/60/3
Note: Comes with four adjustable legs and filtration system
Specification
Specifications
| Ship Weight | 204 LB |
| Manufacturer | Vulcan |
| Model Number | 1ER85DF |
| Manufacturer Part # | 1ER85DF |
| Country of Origin | United States |
| Dimensions (HxWxD) | 41-1/16" x 21" x 34-1/8" |
| Oil Capacity | 85 lbs. |
| Base Material | Stainless Steel |
| Power | Electric |
| ENERGY STAR | No |
| Control Type | Digital |
| Programmable | No |
| Built-In Filtration | Yes |
| Basket Lifts | No |
| Temperature | 200°F to 390°F |
| Number of Tanks | 1 |
| Number of Fry Baskets | 2 |
| Split Pot | No |
| Spatial Orientation | Floor Model |
| Amps | 67 |
| Hertz | 60 |
| Phase | 3 |
| Voltage | 208V |
| Wattage | 24 kW |
| Legs | 4 Adjustable Legs |
| UL Listed | Yes |
| NSF Listed | Yes |
Description
Floor Fryer
Material: Stainless Steel
Color: Silver
NSF Listed
UL Listed
Oil Capacity: 85 Pounds
Number of Fry Pots: 1
Number of Fry Baskets: 2
Volts: 208
Watts: 24
Four (4) 6" Adjustable Legs
Fry Pot Width: 19-1/2"
Fry Pot Depth: 18"
Height: 41-1/16"
Width: 21"
Depth: 34-1/8"
4' high temperature discard hose
Drain valve interlock switch (DVI) shuts off heating elements when drain valve is opened
Tank brush and clean-out rod
One touch push button switch to engage pump and motor (solid state controls)
View all Description

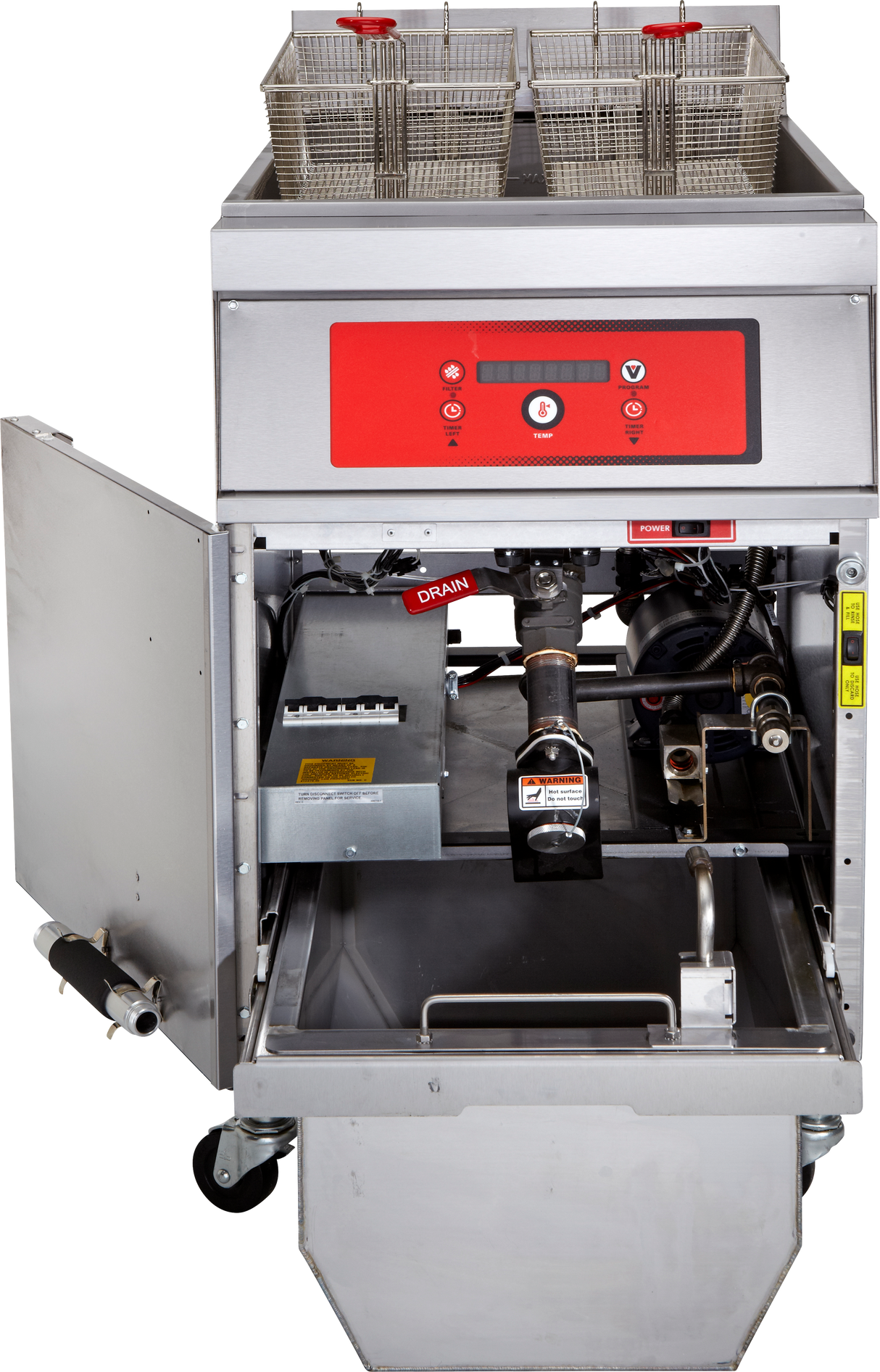

This electric floor fryer comes with a filter system accommodates one 50 lbs or one 85 lbs fryer. 1⁄3 H.P. motor and pump circulates hot frying compound at the rate of 8 gallons per minute, activated by a one touch push button switch. System provided standard with stainless steel mesh filter screen. Optional KleenScreen PLUS® envelopes filter out particulate down to .5 microns. Standard equipment comes on legs, has a tank brush and clean-out rod. Hands free oil return line connection. Drain valve interlock switch turns fryer's heating elements off when drain valve is opened. Power supply is 208 volt, 60 Hz, 3 phase.
Vulcan 1ER85DF Features
Vulcan 1ER85DF Benefits
Overall Dimensions:
Width: 21"
Depth: 34 1/8"
Height: 41 1/16"
Oil Capacity: 85 lbs.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Energy Star Qualified
This item is Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy.
CSA_C_US
This item meets the standards imposed by the Canadian Standards Association (CSA) for use in the United States of America and Canada.
