Scotsman MC2148SR-3 Prodigy ELITE Remote-Cooled 48 Inch Wide 2000 lb Small Cube Ice Maker 208-230V 3-Phase
| Ship Weight | 370 lb |
| Manufacturer | Scotsman |
| Model Number | MC2148SR-3 |
| Manufacturer Part # | MC2148SR-3 |
| Type | Ice Machines |
| Height | 29 Inches |
| Width | 48 Inches |
| Depth | 24 Inches |
| Material | Stainless Steel |
| Condenser Type | Remote-Cooled (Condenser Not Included) |
| Production Per Day | 1965 lb |
| Ice Type | Small / Half-Dice Cube (7/8" x 7/8" x 3/8") |
| Installation Type | Modular |
| Brand Line | Prodigy ELITE |
| Refrigerant | R-404A |
| Features | Bluetooth ConnectivIty, Integrated ICELINQ App |
| Water Connection | Single 3/8” FPT Inlet |
| Drain Connection | 3/4" FPT |
| AHRI Approved | Yes |
| NSF Listed | Yes |
| UL Listed | Yes |
| Made In USA | Yes |
| Power | Electric |
| Voltage | 208-230 |
| Hertz | 60 |
| Phase | 3 |
| Amps | 21.0 |
| Hardwired | Yes |
| Energy Consumption | 4.53 kWh per 100 lb |
| Potable Water Usage | 18.0 Gallons per 100 lb |
| BTUs Per Hour | 31,600 |
| Antimicrobial Protection Type | AgION |
| Modular Bin Options | BL1048S, BL1360S, BL1660S |

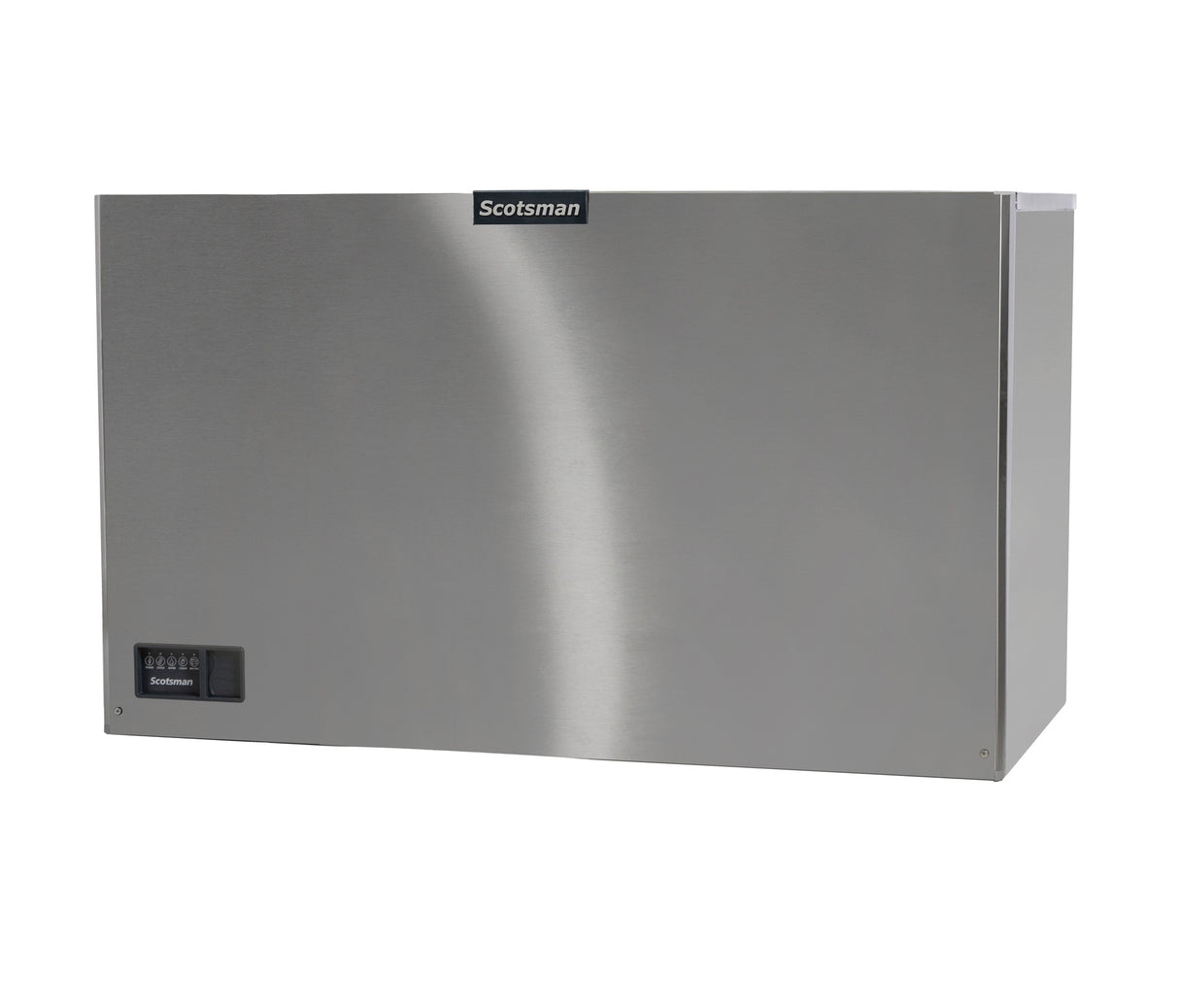

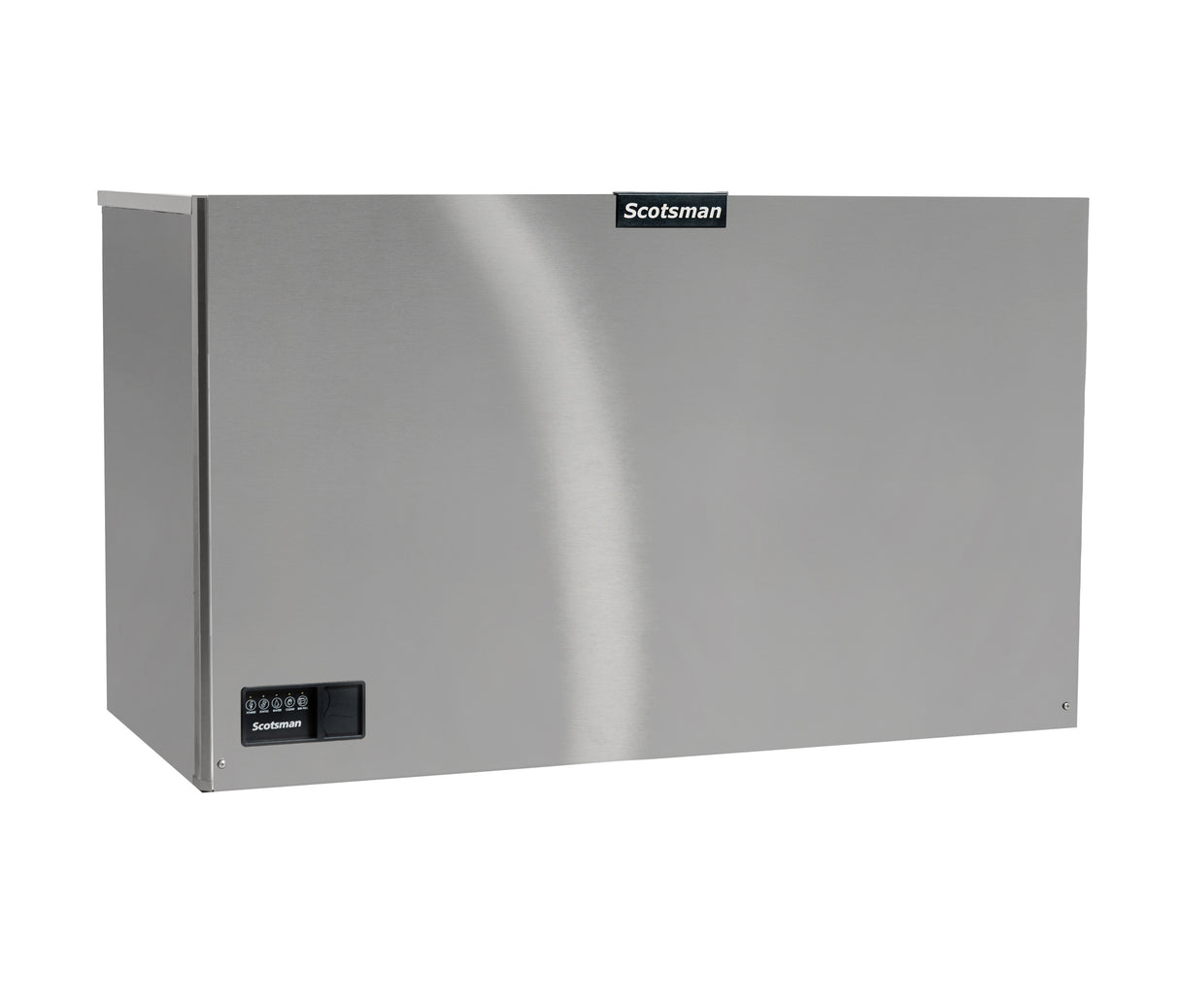

The MC2148SR-3 is the 48" wide Prodigy ELITE ice machine that makes up to 1965 lb per day of Small-sized or "Half-Dice" cube ice with a remote-cooled condenser (condenser available separately) and now has programming and diagnostic features that you can access via Bluetooth on your mobile device. This modular ice machine head does not include a bin or a dispenser which are available separately.
This remote-cooled Prodigy ELITE ice maker requires a separate condenser unit that operates at 208-230 Volts, 60 Hz, 3-phase and 21.0 Amps and hardwiring is required. It is always best to have all plumbing and electrical connections made by qualified personnel who will follow all of the proper plumbing, electrical, sanitary, and other safety codes and guidelines. This ice machine uses a remote condenser (condenser available separately) and it operates with R-404A refrigerant.
There is a stainless steel finish on this ice machine and it features an external bin full indicator light, AutoAlert indicating lights, WaterSense adjustable purge control that helps you optimize your water consumption, one-touch cleaning, harvest assist, and it uses AgION antimicrobial protection to guard internal surfaces.
This ice machine makes Small-sized / Half-Dice cube ice that are approximately 7/8" x 7/8" x 3/8" cubes, the perfect size for everything from fountain beverages to blended drinks.
The ICELINQ App provides you with tools to help you optimize performance with real-time diagnostics, troubleshooting support, the ability to make simple settings adjustments, and it gives you guided cleaning instructions with an interactive, step-by-step guide and a way to quickly access warranty information, parts lists, manuals, and more.
This ice maker is proudly designed, engineered, and assembled in the USA. The unit is AHRI certified, NSF listed, and UL listed in the United States and Canada for safety. Each unit is quality checked before leaving Scotsman's plant in Fairfax, South Carolina.
Scotsman MC2148SR-3 Features
- 48" wide Prodigy ELITE ice machine
- Exterior Material: Stainless Steel
- ICELINQ App interaction via Bluetooth
- Ice Type: Small Cube / Half-Dice (7/8" x 7/8" x 3/8")
- Ice Production: 1965 lb of ice per day
- Condenser Type: Remote-Cooled (condenser available separately)
- Refrigerant: R-404A
- Electrical specifications: 208-230 Volts, 60 Hz, 3-phase and 21.0 Amps, hardwiring required
- External bin full indicator light
- AutoAlert indicating lights
- WaterSense adjustable purge control
- One-touch cleaning
- Harvest assist
- UL listed in the United States and Canada
- Designed, engineered, and assembled in the USA
- AgION antimicrobial protection guards internal surfaces
- NSF listed for safety
- AHRI certified
Scotsman MC2148SR-3 Benefits
- Bluetooth connection and ICELINQ App provides tools to help optimize performance
- Produces clear cubes that are perfect for everything from fountain beverages to blended drinks
- Durable stainless steel finish
Overall Dimensions:
Height: 29"
Width: 48"
Depth: 24"
Ice Production: 1965 lb/24 hours
