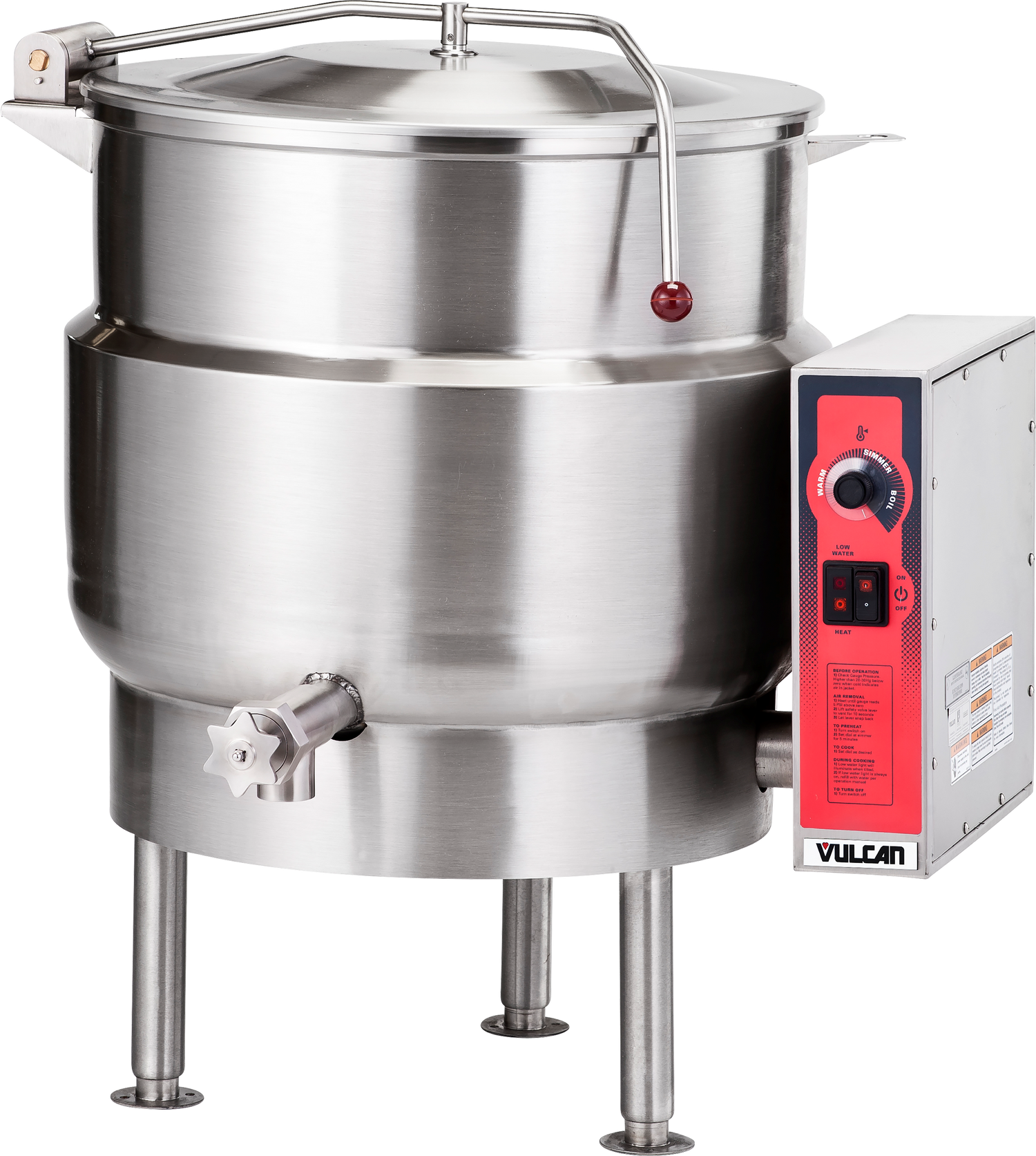

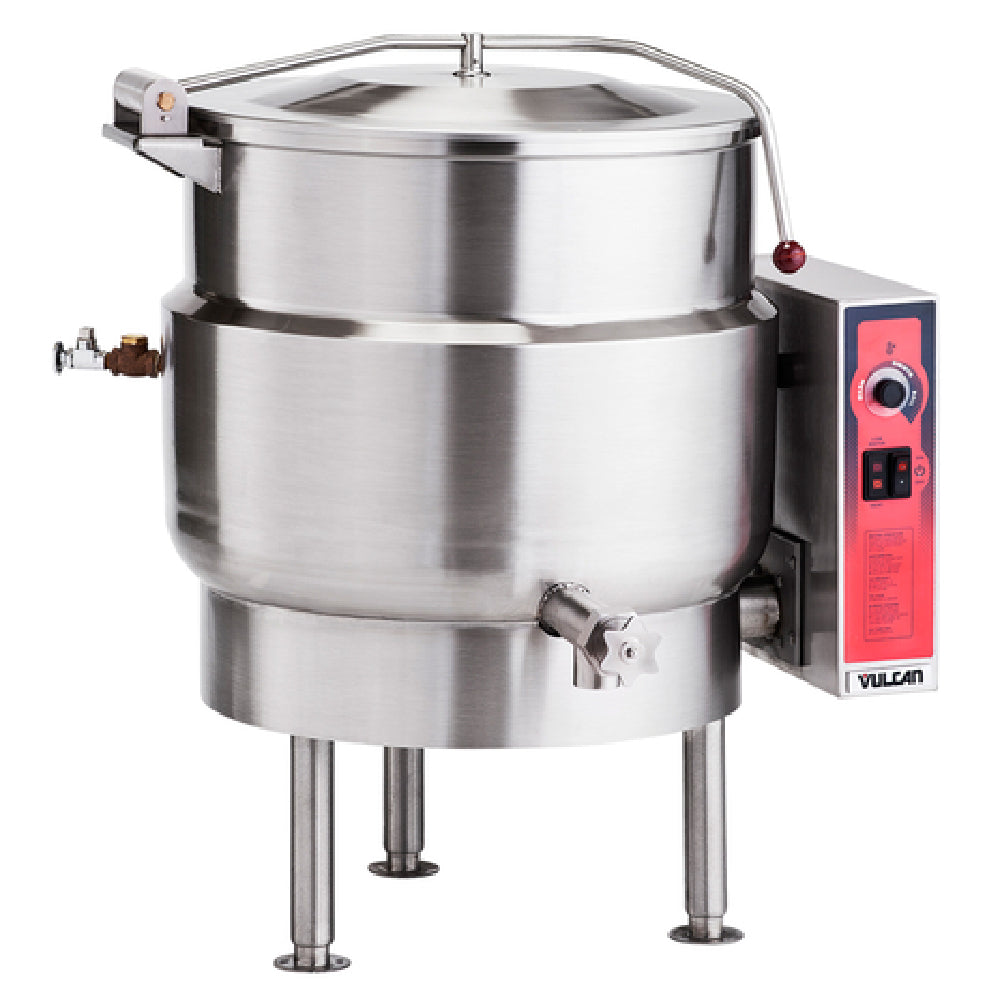

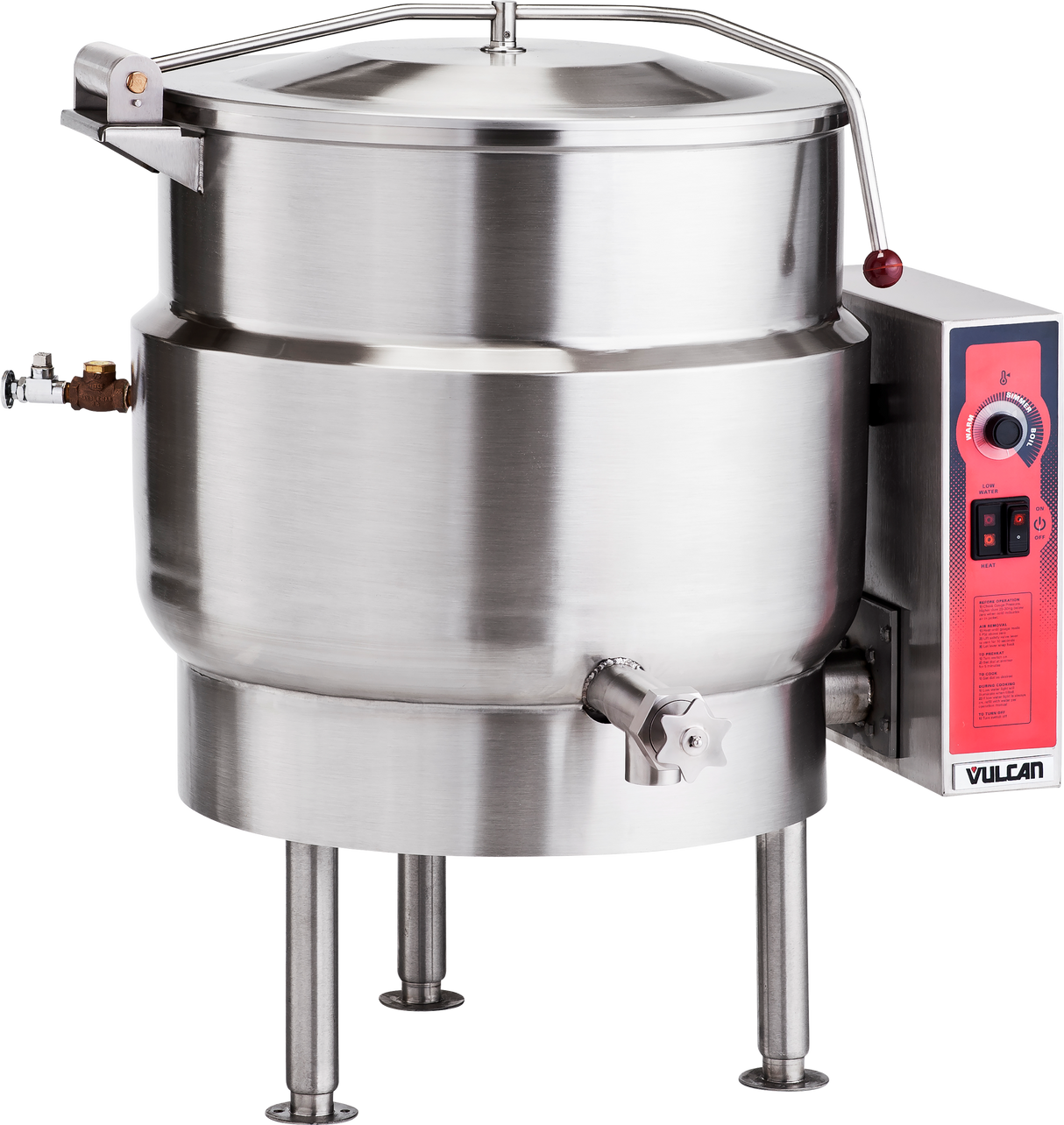

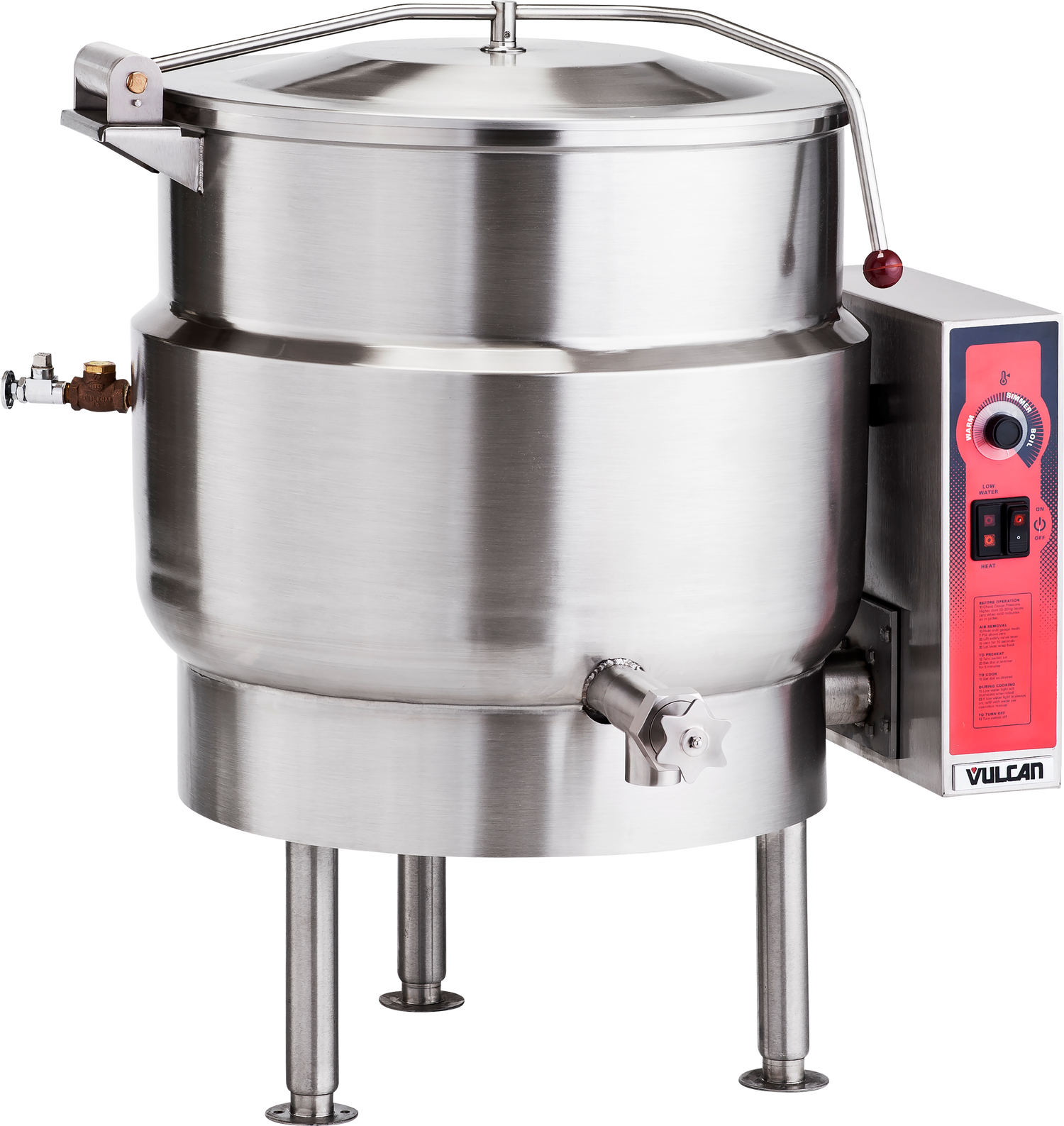

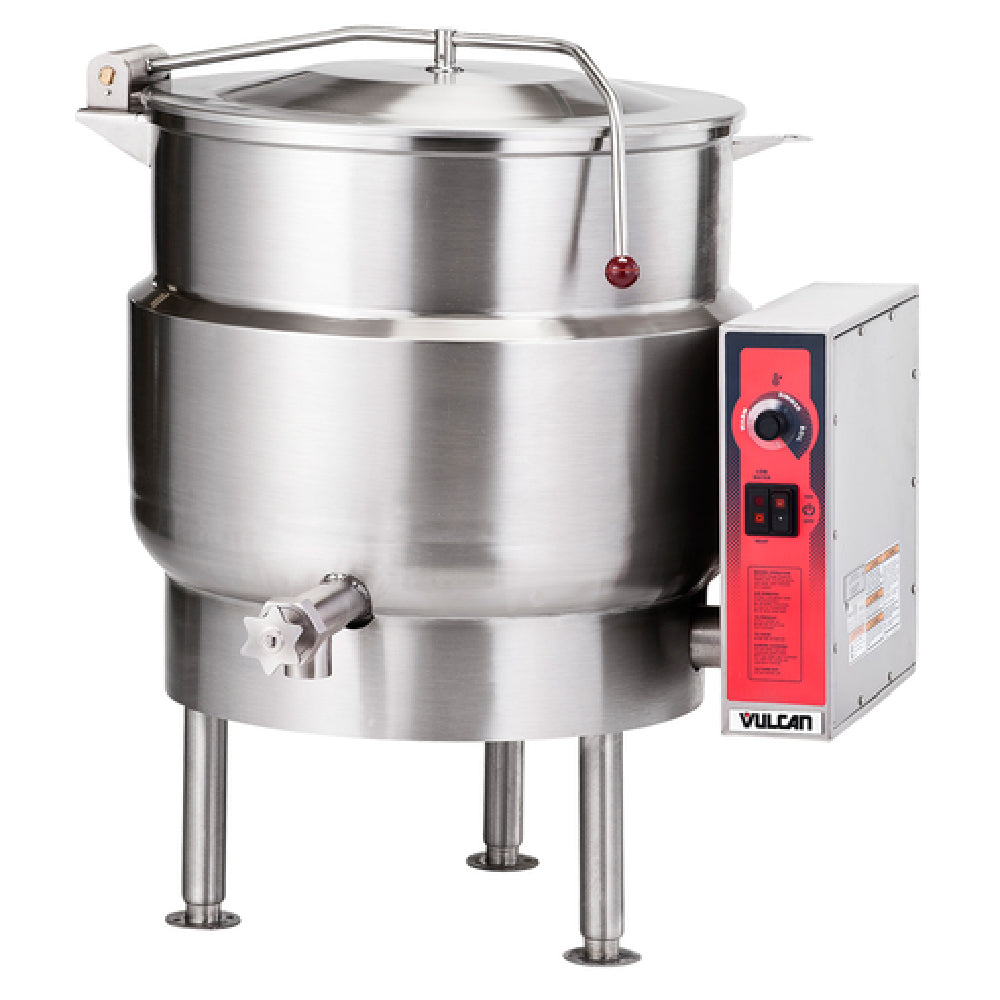

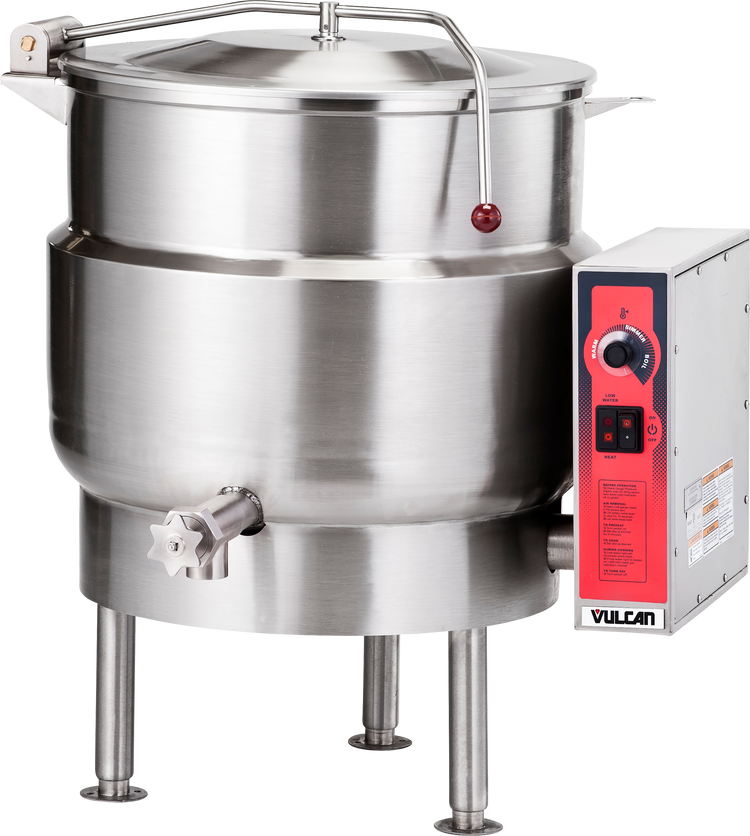

The Vulcan K40EL_240/60/1 Stationary Kettle is a commercial-grade electric cooking vessel designed for precise, large-scale liquid preparation. Featuring a 40-gallon true working capacity, it integrates a 2/3 jacketed construction with a durable 316 series stainless steel liner and an ellipsoidal bottom for efficient heat transfer. Equipped with a spring-assisted hinged cover with a heavy-duty pivot assembly, it ensures ease of operation during intense kitchen workflows. The kettle includes a 2-inch compression draw-off valve with perforated strainer and a faucet bracket positioned 130° right of the draw-off for streamlined pouring. Built on a tri-leg stainless steel base, this unit combines resilience and stability suitable for high-demand foodservice environments. Its advanced design and technical specifications optimize continuous operation, making it ideal for large-volume catering, institutional kitchens, and food processing facilities seeking reliable, heavy-duty equipment.
Vulcan K40EL_240/60/1 Features
The Vulcan K40EL_240/60/1 electric stationary kettle offers a robust 40-gallon capacity, ideal for mid-volume foodservice applications requiring consistent product quality. Its 316 stainless steel liner and partial jacketed construction provide durability and corrosion resistance, supporting long-term operation. The spring-assisted hinged cover ensures quick, safe access for cleaning and maintenance, minimizing downtime. Integrated perforated strainers and a strategically placed faucet bracket facilitate efficient discharge and workflow integration. Designed for high-volume commercial kitchens, this kettle supports precise temperature control and easy servicing, making it versatile for various liquid preparation tasks and large-scale food production.
- Capacity: 40 gallons for large batch processing
- Material: 316 stainless steel liner with ellipsoidal bottom for durability
- Ease of Maintenance: Spring-assisted hinged cover simplifies cleaning access
- Application Fit: Suitable for institutional and cafeteria kitchen workflows
- Construction: Heavy-duty stainless steel with tri-leg base for stability
Designed for commercial kitchens requiring reliable, high-capacity liquid cooking and dispensing.
Vulcan K40EL_240/60/1 Technical Specs
The Vulcan K40EL_240/60/1 model operates on a 240V, 60Hz power supply across a single-phase circuit, drawing approximately 28.4 amps with a wattage of around 6.8 kW, suitable for installed electrical infrastructure. Its construction uses high-grade stainless steel, comprising a 316 series liner and a durable exterior with a tri-leg base for balance and stability. The unit measures 37.7 inches in width, 35.25 inches in depth, and stands 37.1 inches tall, weighing 255 lbs. It features a partial jacketed design for efficient heat retention and supports continuous operation in demanding foodservice environments. Certification for UL and cULus standards ensures safety and compliance, with a product handling capacity of 40 gallons, supported by a 2/3 jacket design and full NSF approval. Maintenance includes disassembly of the hinged lid and routine cleaning of the stainless steel surfaces, with a typical shipping window of 10-12 weeks.
- Electrical Requirements: 240V, 60Hz, single-phase, 28.4A, 6.8 kW
- Cooling Method: Not applicable—electric heat source
- Construction & Finish: 316 stainless steel for longevity and cleanliness
- Dimensions: 37.7" W x 35.25" D x 37.1" H
- Weight: 255 lbs
- Temperature Range: Designed for high-temperature cooking, maximum safe temp up to operational limits
- Usage Compatibility: Compatible with standard 240V electrical systems, suitable for continuous liquid boiling and dispensing
- Cleaning & Maintenance: Disassembly of hinged cover, routine stainless cleaning, and inspection of draw-off valve
- Certifications: UL, cULus, NSF approval for commercial kitchen equipment
- Assembly Required: Fully assembled, plug-in ready upon installation
- Electrical Compatibility: Requires 240V, 60Hz, single-phase power supply
- Plumbing Connection: 2" compression draw-off valve with perforated strainer for smooth drainage
- Clearance: 4 inches around for ventilation and maintenance access
- Drainage: Includes a perforated strainer and discharge valve for efficient use
- Installation: Mounted on a stable tri-leg base for secure placement in high-volume kitchens
What is a commercial electric kettle
A commercial electric kettle is a heavy-duty foodservice appliance designed for large-volume liquid heating, boiling, and dispensing in institutional and industrial kitchens. The Vulcan K40EL_240/60/1 model, an advanced electric stationary kettle, features a 40-gallon capacity with a 316 stainless steel liner, supporting continuous operation and easy maintenance in high-demand settings. Installed in large cafeterias, catering operations, and food processing facilities, it ensures efficient batch cooking and beverage preparation, making it essential for facilities requiring reliable, large-scale liquid handling.
Top commercial kettles for large-volume foodservice settings
Built for dependable operation, the Vulcan K40EL_240/60/1 offers robust construction and precise temperature control, ideal for high-capacity institutional kitchens. Designed for medium workload kitchen workflows, it supports large-batch liquid cooking and serving tasks, making it suitable for catering, school cafeterias, and hospital foodservice operations. Together with Vulcan, this model ensures operational efficiency and longevity in demanding environments.
- Operation Type — suitable for institutional large-volume kitchens
- Kitchen Type — ideal for foodservice establishments with moderate throughput
- Foodservice Category — suited for cafeteria, catering, and hospital use
- Workload Qualifier — optimized for medium-volume, continuous operation
- Use Case — supports large batch cooking and liquid preparation
Why Choose Vulcan K40EL_240/60/1
Why Choose Vulcan K40EL_240/60/1? This model stands out with its durable 316 stainless steel construction, large 40-gallon capacity, and innovative hinged cover for simplified cleaning and maintenance. Its partial jacketed design ensures efficient heat retention and reliable performance, supporting high-volume foodservice needs. Its certified safety and NSF approval make it a trusted choice for demanding commercial kitchens seeking dependable, restaurant-ready equipment.
- Self-contained design for straightforward installation and operation
- Heavy-duty stainless steel construction enhances longevity
- Large capacity suitable for institutional foodservice workflows
- Hinged lid facilitates quick cleaning and routine maintenance
- Certified to meet safety standards for high-volume operation
