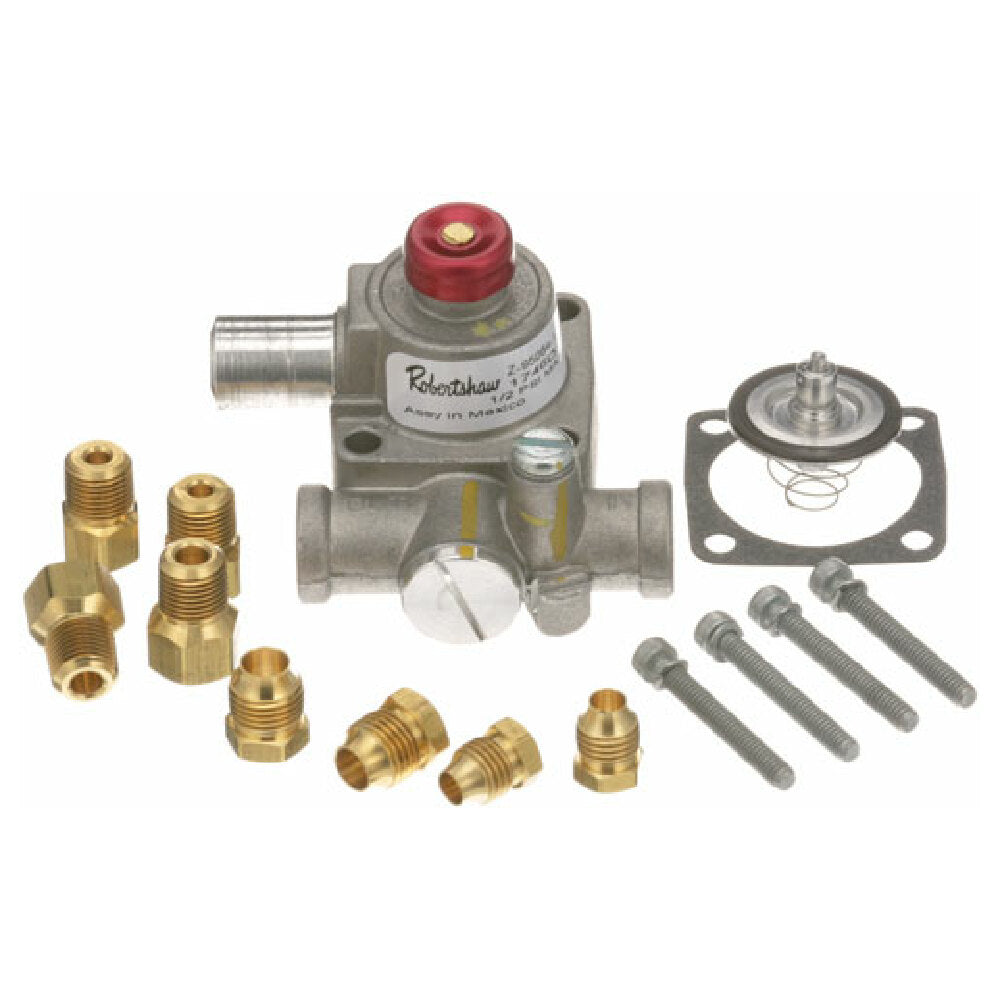

The Vulcan Hart 14202 Magnet Head Kit is a specialized component designed for commercial kitchen equipment, specifically serving Franklin Chef oven series models. Crafted by Vulcan Hart, this magnet head is engineered for precise pilot in/out functionality, featuring a J Type design with 1/8" Fpt connections. Its robust construction includes adapters, screws, and a gasket, all optimized for durability and reliable performance in high-demand foodservice environments. Ideal for repair, maintenance, and ensuring consistent oven operation, this kit addresses pilot system integrity with exact dimensions and compatibility specifications, supporting efficient and safe oven operation within busy culinary establishments.
Top AllPoints 14202 Features
The Vulcan Hart 14202 Magnet Head Kit offers precise pilot control, robust material quality, and simplified installation for commercial oven maintenance. Its durable design ensures long-term performance under frequent use, while the included adapters and gasket facilitate seamless integration with Franklin Chef ovens. Suitable for repair technicians and foodservice operators, it enhances system reliability and reduces downtime through easy replacement of critical pilot components.
- Functionality: Provides reliable pilot in/out control for Franklin Chef ovens
- Material Durability: Manufactured with high-grade components for longevity
- Ease of Maintenance: Includes adapters, screws, and gasket for straightforward installation
- Compatibility: Designed for oven series Gra & Grax & Grc with serial numbers 1000000 to 1008568 and 1017255 and after
- Workflow Benefit: Supports efficient oven repairs and reduces operational disruptions
Ideal for service providers and repair technicians maintaining Franklin Chef oven series kitchens
AllPoints 14202 Technical Specs
The Vulcan Hart 14202 Magnet Head Kit features a compact profile with dimensions of 2.5 inches in height, width, and 3.25 inches in depth, with a weight of 0.7 lbs. It is constructed from durable materials appropriate for commercial appliance repair, with stainless steel or similar high-grade alloy components—though specific construction details are focused on longevity and corrosion resistance. The kit includes a Gasket Only Z-089 # 32-1831, compatible adapters (1/4" cct and 3/16" cct screws), and fitment for oven models manufactured in the United States. Its design allows straightforward disassembly and reassembly during routine maintenance, with a focus on pilot in/out functionality. The product is non-hazardous, with no hazardous materials involved, and ships typically within 4 to 5 days, ensuring timely replacement for critical oven components.
- Dimensions: 2.5 inches high x 2.5 inches wide x 3.25 inches deep
- Weight: 0.7 lbs
- Material: High-grade durable alloy, corrosion-resistant
- Compatibility: Franklin Chef oven series Gra & Grax & Grc, serial numbers 1000000 to 1008568 and 1017255 and after
- Installation: Includes necessary adapters, screws, and gasket for seamless replacement
- Electrical requirements: Not specified, designed for pilot system control
- Construction & finish: Durable metal alloy, corrosion-resistant
- Operation temperature range: Suitable for typical oven environment temperatures
- Cleaning & maintenance: Replaces pilot head components efficiently, minimal disassembly needed
- Compatibility considerations: Ensures fitment with specified oven serials and models
What is a commercial magnet head kit
A commercial magnet head kit is a critical component used in oven pilot systems, providing control over ignition and flame stability. The Vulcan Hart 14202 Magnet Head Kit functions as an in/out pilot magnet switch, enabling precise operation within Franklin Chef oven series models. It is designed for installation during repair or maintenance, supporting consistent ignition performance and safety in high-volume foodservice environments such as restaurants and catering facilities. With exact dimensions, adapters, and gasket, this component ensures durable, reliable pilot system operation, making it essential for proper oven functioning and ease of service in professional kitchens.
Top magnet head kits for foodservice environments
Designed for commercial oven maintenance, the Vulcan Hart 14202 Magnet Head Kit from AllPoints provides durable pilot control, supporting efficient oven repair in medium-volume kitchen operations. Built for longevity and precise fit, it is ideal for restaurant-service environments requiring dependable pilot system performance. AllPoints 14202 ensures reliable ignition, making it well-suited for restaurant and catering kitchen workflows.
- Operation Type — for oven pilot system repairs in foodservice kitchens
- Kitchen Setting — suitable for compact commercial restaurant spaces
- Foodservice Category — ideal for restaurant, catering, and culinary institutions
- Workload Qualifier — supports moderate throughput maintenance tasks
- Use Case — replacement component in Franklin Chef oven series for reliable ignition control
Why Choose AllPoints 14202?
Specifically engineered for durability and precise fit, the AllPoints 14202 Magnet Head Kit offers a reliable solution for Franklin Chef oven pilot systems. Its robust construction minimizes replacement frequency, and the included adapters streamline installation. This model’s design improves operational efficiency by ensuring consistent ignition functionality, surpassing standard generic replacements with trusted quality and exact compatibility for high-demand commercial environments.
- Compact footprint with precise pilot control enhances repair efficiency
- High-quality materials extend lifespan and resist corrosion in busy kitchens
- Inclusive design simplifies installation and reduces downtime
- Compatible with a wide serial number range of Franklin Chef ovens
- Optimized for commercial kitchen equipment repair workflows
