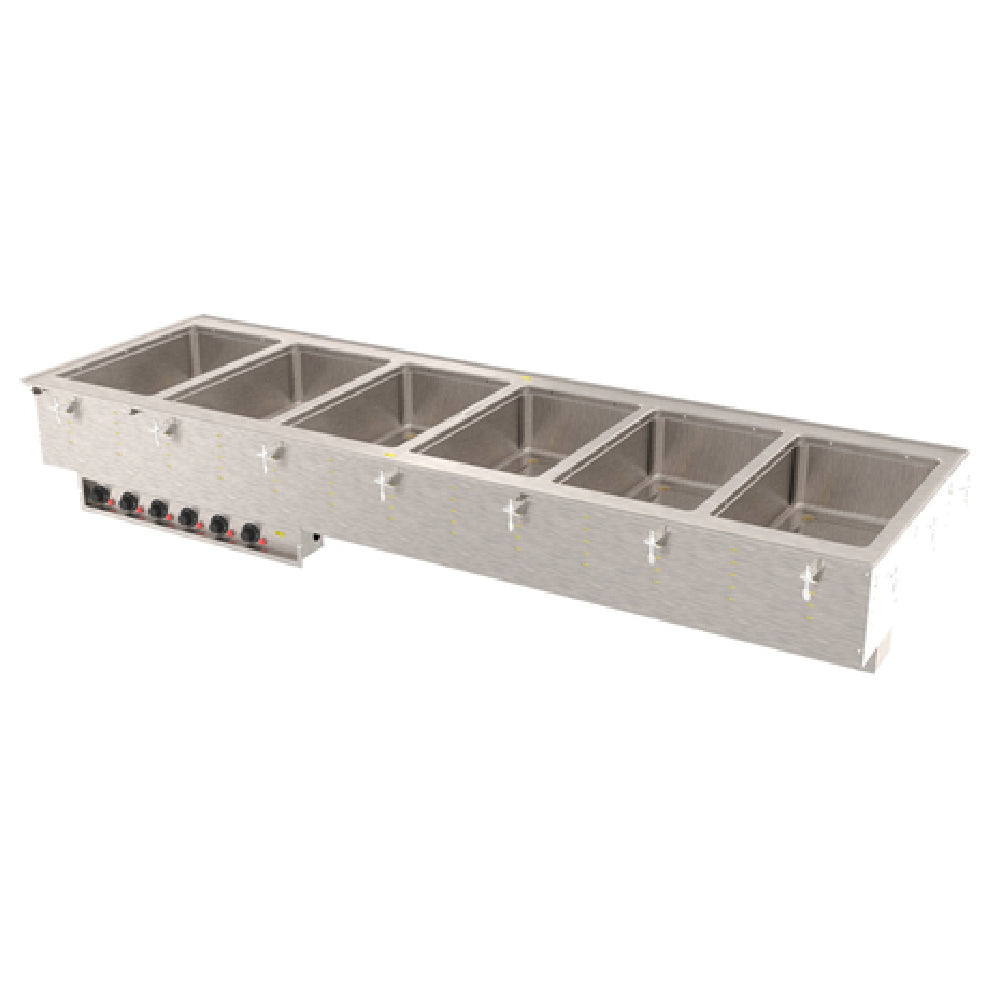

The Vollrath 3640981HD Hot Food Well Unit Drop-In Electric is a commercial-grade foodservice equipment designed for precise hot food holding applications. Constructed of stainless steel with six insulated wells measuring 12" x 20" each, it provides consistent temperature management in high-volume environments such as cafeterias, buffets, and institutional kitchens. The unit features thermostatic controls for individual well temperature regulation, wet operation for efficient heat retention, and an auto-fill system that ensures continuous operation. Its overall dimensions are 81-1/4" wide by 26" deep with a height of 21-1/2", fitting standard cutouts of 80-1/2" width by 25-1/4" depth. Equipped with a stainless steel top and exterior housing, this model emphasizes durability, easy maintenance, and reliable performance in demanding foodservice settings. The inclusion of a copper manifold drain with individual shutoffs simplifies sanitation and drainage management, making it a robust solution for hot food presentation and holding.
Top Vollrath 3640981HD Features
The Vollrath 3640981HD Hot Food Well Unit offers six insulated 12" x 20" stainless steel wells with individual thermostatic controls, optimized for precise temperature adjustments. Its stainless steel construction and marine-grade material provide durability under frequent use, while the wet operation design ensures consistent heat transfer. Designed for drop-in installation, it accommodates high-volume commercial kitchens with easy drainage via a copper manifold. Maintenance is straightforward with drip-free flange and accessible drain shutoffs, suitable for busy foodservice workflows. Ideal for food counters requiring consistent hot holding, this unit supports efficient meal service and product presentation.
- Function & Performance: Six insulated wells with independent thermostats for precise control
- Durability Traits: Marine-grade 316 stainless steel construction withstands frequent use
- Ease-of-Use & Maintenance: Drip-free flange with accessible individual well shutoffs
- Real-World Fit: Drop-in installation suited for high-volume commercial kitchens
- Workflow Benefit: Reliable hot food holding supports streamlined service operations
Recommended for mid-volume foodservice operations requiring precise heating and easy maintenance.
3640981HD Technical Specs
The Vollrath 3640981HD features a 6000-watt electric heating system operating at 208-240V, single-phase, with a current draw of 21.6-25.0 amps. The unit is designed for wet operation only, utilizing a self-contained stainless steel construction for durability. It includes six 20 gauge/316 marine-grade stainless steel insulated wells, each measuring 12" x 20", mounted on an 81-1/4" wide by 26" deep stainless steel top. The overall unit height is 21-1/2" and weighs approximately 249 lbs. The control panel houses individual thermostatic controls, a power indicator light, and cord with a NEMA 6-50P plug. The product is NSF, cULus listed, and made in the USA, ensuring compliance with industry standards. Dimensions for cutout installation are 80-1/2" by 25-1/4", and the unit is designed for wet operation, providing consistent heat retention. The drain system includes a 1" copper manifold with individual well shutoffs for simplified sanitation and maintenance.
- Electrical Requirements: 208-240V, 60Hz, single-phase, 21.6-25.0 amps, 6000 watts
- Dimensions and Installation: 81-1/4" W x 26" D x 21-1/2" H with 80-1/2" x 25-1/4" cutout
- Construction & Finish: Stainless steel exterior with marine-grade stainless steel wells
- Drain & Drainage: 1" copper manifold drain with individual shutoffs
- Operation & Controls: Thermostatic controls in panel, auto-fill system, power indicator
- Certifications & Compliance: NSF, cULus, made in USA
- Electrical Compatibility & Plumbing: Must have a dedicated 208-240V power outlet, proper drainage setup with copper manifold
- Clearance & Ventilation: Minimum 6" clearance on sides for airflow and maintenance access
- Drainage & Sanitation: Include access to drain shutoffs for cleaning and sanitation
- Installation Requirements: Precise cutout size of 80-1/2" W x 25-1/4" D, with 7/8" corner radius
- Preparation & Maintenance: Regular cleaning of stainless steel surfaces with compatible cleaners
What is a commercial hot food well unit?
A commercial hot food well unit is a specialized foodservice appliance designed for holding hot food items at safe serving temperatures. The Vollrath 3640981HD model, a drop-in electric well system, features six insulated stainless steel wells with thermostatic controls, tailored for high-volume catering, buffet lines, or hospital kitchen applications. It is installed directly into counter surfaces, providing efficient heat distribution and uniform presentation. This unit is suited for mid-volume foodservice settings that require precise temperature regulation, reliable operation, and easy sanitation, making it an ideal solution for maintaining hot food quality during service periods.
Top commercial hot food well units for high-capacity foodservice settings
Designed for durable performance and precise control, the Vollrath 3640981HD is optimized for mid-volume foodservice environments requiring reliable hot holding. This electric drop-in unit features marine-grade stainless steel construction and independent thermostatic controls, making it suitable for busy cafeterias, buffet lines, and institutional kitchens. Its self-contained design and integrated drainage streamline operation, supporting efficient workflow and sanitation in demanding commercial kitchens.
- Operation Type — suitable for high-traffic cafeteria service lines
- Kitchen Type — ideal for institutional and large-scale catering kitchens
- Foodservice Category — focused on hot food presentation and holding
- Workload Qualification — supports moderate throughput in busy environments
- Use Case — maintains hot food temps during extended service periods
Why Choose Vollrath 3640981HD?
The Vollrath 3640981HD distinguishes itself through its marine-grade stainless steel construction, individual thermostatic controls, and comprehensive drain system, offering superior durability and operational efficiency. Its drop-in design with precise dimensions maximizes space utilization, while its NSF and cULus certifications ensure industry compliance. This model’s reliable wet operation makes it suitable for continuous use in demanding commercial kitchens, providing consistency and sanitation benefits not found in conventional models.
- Compact footprint for efficient counter space utilization
- Marine-grade stainless steel withstands heavy use and cleaning
- Independent thermostats for precise temperature regulation
- Integrated drain system simplifies sanitation processes
- Designed for reliable wet operation in high-volume settings
