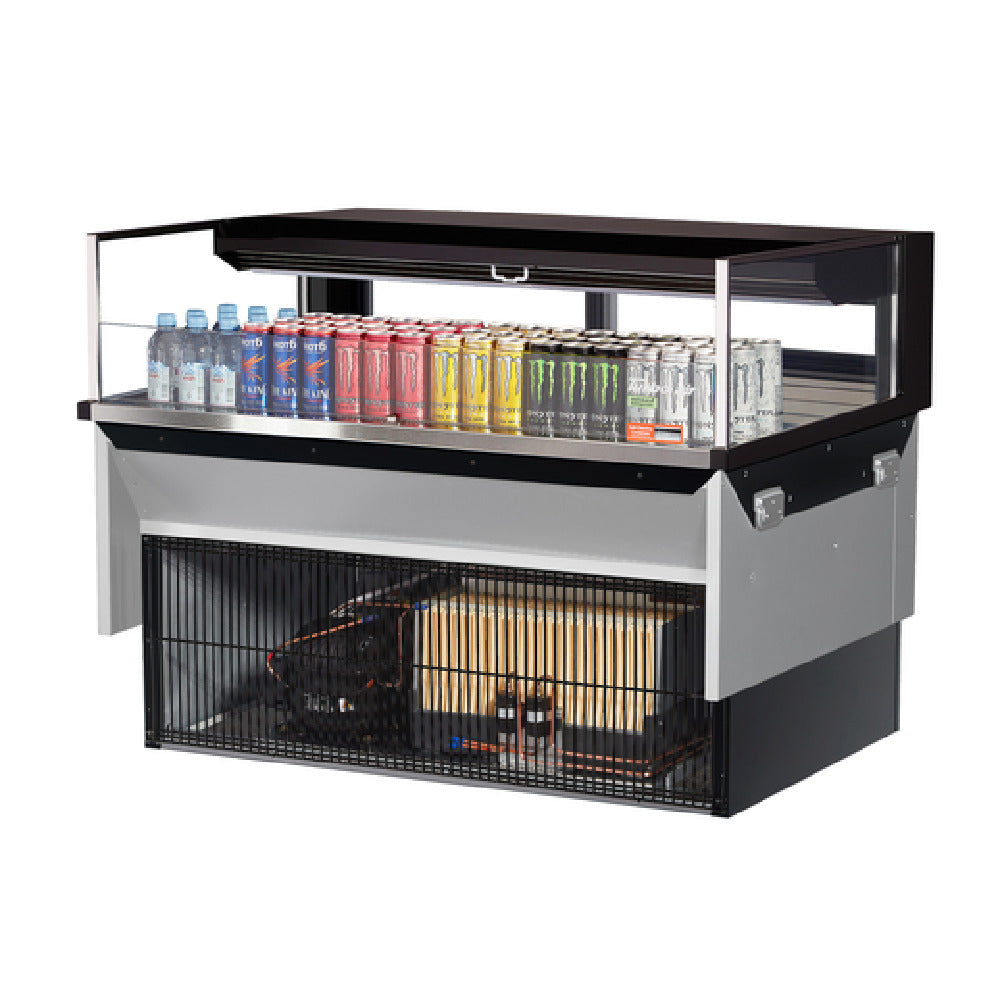

The Turbo Air TOM-48L-UFD-W(B)-1SI-N Drop-In Horizontal Open Display Case Low Profile is a commercial-grade refrigerated display unit designed for streamlined food presentation in busy foodservice environments. Featuring a 6.3 cubic foot capacity and measuring 47-7/8" W x 33-3/4" D x 37-3/4" H, this low-profile unit incorporates self-contained refrigeration with a self-cleaning condenser, ensuring efficient and low-maintenance operation. The model is equipped with tempered glass front shield and side walls for optimal product visibility, rear sliding glass doors for easy access, and stainless steel interior surfaces for durability and sanitation. This display case is powered by dual 3/4 HP motors, utilizes R290 hydrocarbon refrigerant, and operates within a 115V/60/1 power supply, tailored for precise temperature control and energy efficiency in food presentation settings.
Top Turbo Air TOM-48L-UFD-W(B)-1SI-N Features
This drop-in horizontal open display case provides precise temperature regulation with digital thermostats and defrost control, offering consistent product freshness. Its self-cleaning condenser maintains optimal refrigeration without routine manual cleaning, reducing maintenance time. The stainless steel interior enhances durability and cleaning, while the tempered glass shields maximize product visibility, ideal for prepackaged foods, desserts, and beverages in retail spaces or restaurant counters.
- Capacity: 6.3 cu. ft. for versatile food display requirements
- Material Durability: Stainless steel interior withstands frequent cleaning and usage
- Maintenance: Self-cleaning condenser simplifies routine upkeep
- Design Fit: Low profile design for countertop or deck installations
- Workflow Benefit: Rear sliding glass doors facilitate quick restocking and cleaning
Ideal for high-traffic retail counters or restaurant display areas requiring reliable, easy-to-maintain refrigeration
Turbo Air TOM-48L-UFD-W(B)-1SI-N Technical Specs
The Turbo Air TOM-48L-UFD-W(B)-1SI-N features self-contained refrigeration with dual 3/4 HP motors operating on an energy-efficient 115V/60/1 electrical system, drawing approximately 13.6 amps. It employs R290 hydrocarbon refrigerant within an air-cooled system, ensuring environmentally friendly operation. The unit's dimensions are 47-7/8" W x 33-3/4" D x 37-3/4" H, with a weight of 520 lbs. Constructed with stainless steel interior surfaces and tempered glass sides, it supports a temperature range suitable for fresh food display. The product includes rear sliding glass doors for versatile access, a digital electronic thermostat with defrost control, and a solar digital thermometer for precise temperature monitoring. Designed for durability, it comes with cETLus and ETL-Sanitation approvals, with operation optimized for moderate workload environments such as commercial kitchens and retail counters.
- Electrical Requirements: 115V/60/1, 13.6 amps, 2 x 3/4 HP motors
- Cooling Method: Air-cooled refrigeration with self-cleaning condenser
- Refrigeration Type: Self-contained hydrocarbon system using R290 refrigerant
- Dimensions: 47-7/8" W x 33-3/4" D x 37-3/4" H
- Construction & Finish: Stainless steel interior, tempered glass shields
- Weight: 520 lbs including structure and refrigeration components
- Temperature Range: Suitable for perishable food display, operating within safe cold ranges
- Certifications: cETLus and ETL-Sanitation approved
- Electrical Compatibility: Must be plugged into 115V receptacle with NEMA 5-20P plug
- Airflow Clearance: Adequate space around for ventilation and maintenance
- Drainage: Includes provisions for condensate drainage
- Cleaning Routine: Accessible interior surfaces and self-cleaning condenser ease sanitation

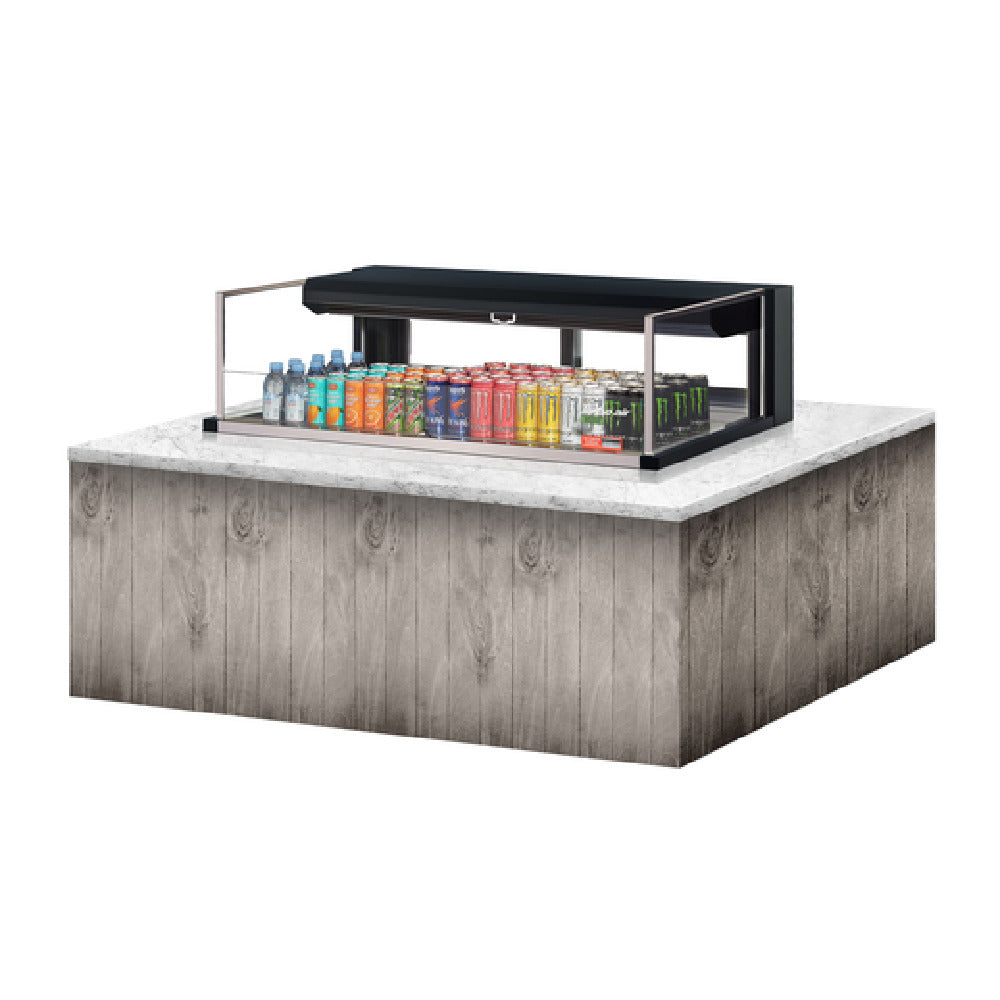

- Installation Site: Deck-mounted or counter-integrated for efficient workflow
What is a commercial display case?
A commercial display case is an enclosed refrigeration unit designed for food presentation in retail, restaurant, or catering environments. This model from Turbo Air, the TOM-48L-UFD-W(B)-1SI-N, is a drop-in horizontal open display case featuring tempered glass sides, stainless steel interior, and self-contained refrigeration suitable for mid-volume foodservice operations. It is installed in counters or decks for efficient product visibility and accessibility, ideal for displaying prepackaged foods, beverages, or desserts with temperature control and easy maintenance in retail and hospitality spaces.
Top Refrigerated Display Cases for Foodservice Operations
Designed for moderate-volume retail and restaurant use, Turbo Air TOM-48L-UFD-W(B)-1SI-N offers reliable refrigeration, durable construction, and a compact footprint tailored for efficient food presentation. Its aluminum and stainless steel surfaces ensure food safety, while easy access and self-cleaning features optimize daily workflows. This model is suitable for commercial kitchens and retail counters requiring consistent temperature control and quick restocking.
- Operation Type — Ideal for medium-demand food display areas
- Kitchen Type — Suitable for compact commercial foodservice spaces
- Foodservice Category — Perfect for retail counters and back-of-house use
- Workload Qualifier — Efficient for moderate throughput display needs
- Use Case — Suitable for presenting prepackaged foods and beverages
Why Choose Turbo Air TOM-48L-UFD-W(B)-1SI-N?
Turbo Air's TOM-48L-UFD-W(B)-1SI-N stands out among commercial refrigerated display cases with its self-contained hydrocarbon refrigeration system, durable stainless steel interior, and low-profile deck design. Unlike competitors, its self-cleaning condenser reduces maintenance, while the tempered glass panels enhance product visibility. Its compact form supports integration in tight spaces, improving presentation efficiency and sanitation in busy foodservice environments.
- Self-contained refrigeration simplifies installation and reduces setup time
- Energy-efficient hydrocarbon system minimizes operational costs
- Streamlined low-profile design optimizes countertop compatibility
- Durable stainless steel interior withstands frequent cleaning and handling
- Enhanced visibility with tempered glass improves product presentation
