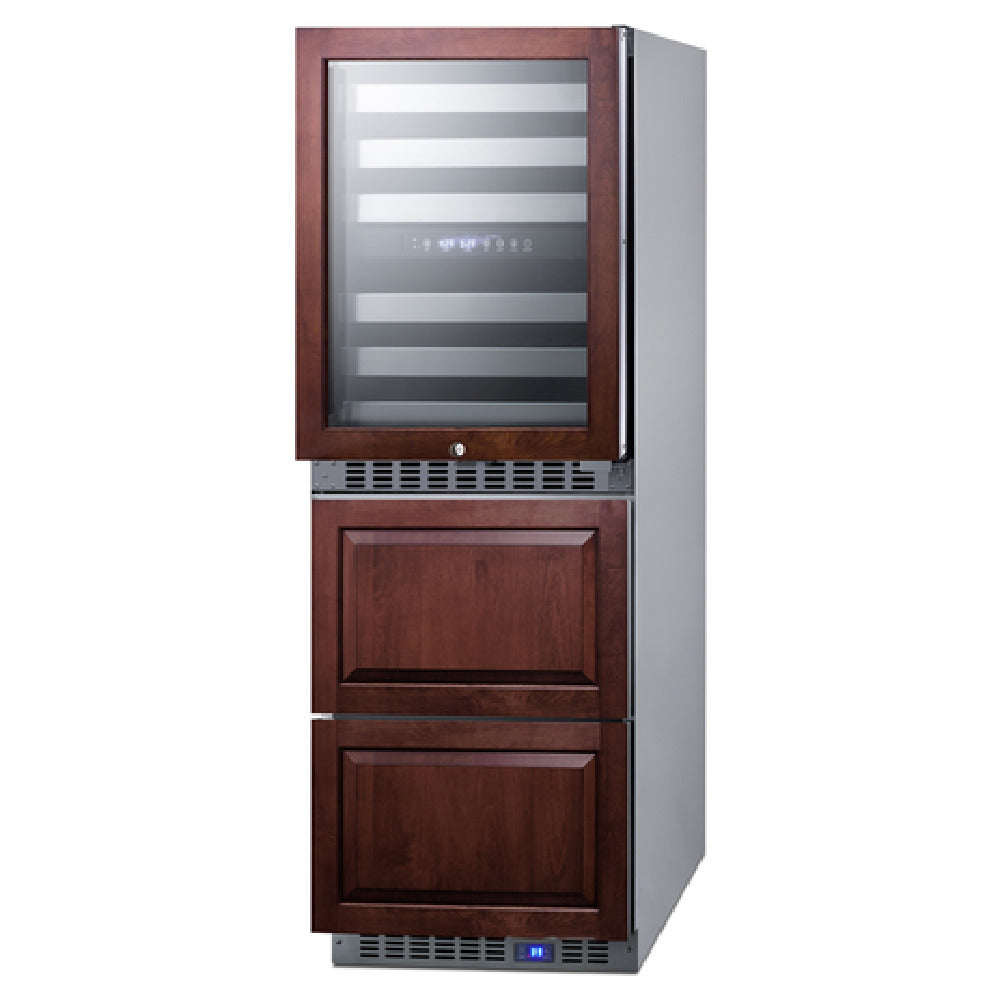

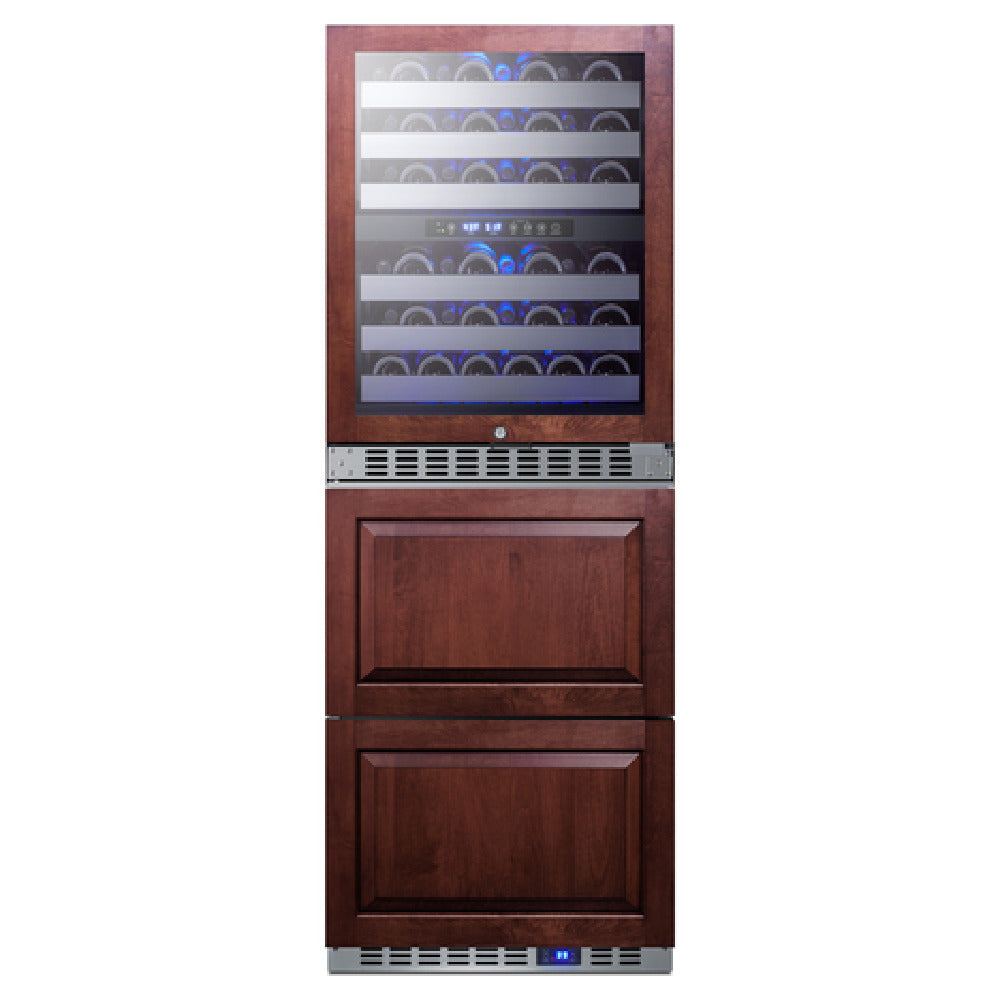

The Summit SWCDAR24PNR Dual Zone Wine Cellar/All-Refrigerator Reach-in One-section is a commercial-grade wine storage solution designed by Summit Commercial. This unit features a self-contained, bottom-mounted refrigeration system and a stainless steel exterior, providing reliable temperature control for wine and beverage preservation. Equipped with dual temperature zones—41°F to 50°F for the upper and 50°F to 64°F for the lower—this wine cellar is ideal for precise wine aging and serving. With a capacity of approximately 46 bottles, it offers a combination of clarity and temperature versatility within a compact 23.63-inch width, suitable for professional and bar environments demanding consistent quality and temperature management in a single accessible unit.
Top Summit SWCDAR24PNR Features
Designed for commercial wine and beverage storage, the Summit SWCDAR24PNR emphasizes dual temperature zones with digital thermostats, facilitating distinct preservation conditions. The unit includes a reversible right hinged glass door, wire shelves, and refrigerator drawers for customizable organization. Its self-contained, bottom-mounted refrigeration ensures easy maintenance and uniform airflow, suitable for medium-volume wine service and beverage displays in restaurants or bars. The stainless steel construction enhances durability, while interior LED lighting provides clear visibility of stored products. The unit integrates seamlessly into spaces requiring precise climate control with minimal footprint.
- Capacity: Holds approximately 46 bottles for efficient storage
- Material: Stainless steel exterior offers durability and corrosion resistance
- Design: Reversible glass door simplifies installation and accessibility
- Usability: Digital thermostat allows precise temperature adjustments
- Cooling System: Self-contained, bottom-mounted refrigeration ensures reliable operation
Suitable for professional wine storage, beverage service, or display in commercial kitchens and bars
Summit SWCDAR24PNR Technical Specs
The Summit SWCDAR24PNR operates with a self-contained, bottom-mounted refrigeration system powered by a 115V/60Hz single-phase circuit, drawing 1.25 amps for the wine cellar and 0.8 amps for the refrigerator components. It maintains precise temperature zones—41°F to 50°F in the upper and 50°F to 64°F in the lower—optimized for wine preservation and beverage freshness. The unit’s construction features a stainless steel exterior with dimensions of 23.63 inches in width, 23.5 inches in depth, and 65.63 inches in height, with an approximate shipping weight of 320 lbs. It employs R600a hydrocarbon refrigerant for energy-efficient cooling, with interior and exterior fans for uniform temperature distribution. The unit is suitable for installation in built-in, custom, or freestanding configurations and requires clearance for airflow and maintenance routines. Included features like wire shelves, refrigerator drawers, and LED lighting improve workflow convenience and ease of access. Its dimensions and construction make it compatible with standard commercial kitchen setups, and it is designed for high durability and reliable performance in professional environments.
- Electrical Requirements: 115V/60Hz, 1.25 amps for wine cellar, 0.8 amps for refrigeration
- Cooling Method: Self-contained, bottom mounted
- Refrigeration Type: Hydrocarbon, R600a refrigerant
- Dimensions: 23.63" W x 23.5" D x 65.63" H
- Weight: 320 lbs (ship weight)
- Construction & Finish: Stainless steel exterior
- Temperature Range: 41°F to 50°F (upper), 50°F to 64°F (lower)
- Storage Features: Glass door, wire shelves, refrigerator drawers
- Usage Compatibility: Suitable for built-in or freestanding installation, ample clearance needed for airflow
- Maintenance: Easy-to-access components, automatic defrost, interior & exterior fan
What is a commercial wine cellar cabinet
A commercial wine cellar cabinet is a specialized refrigeration unit designed for storing wine bottles at precise temperatures in professional settings. A typical model, such as the Summit SWCDAR24PNR, features dual temperature zones, digital thermostats, and durable construction for reliable long-term storage. Installed in wine bars, restaurants, or retail spaces, these units facilitate optimal wine aging and presentation, supporting high-volume or moderate-volume wine service environments, with capacity for around 46 bottles and features that ensure consistent climate control throughout the storage cycle.
Top Commercial Wine Cellar Cabinets for Beverage and Wine Storage
Built with high-quality materials and precise temperature controls, the Summit SWCDAR24PNR is ideal for medium-volume wine storage in professional kitchens and hospitality venues. It offers reliable dual-zone refrigeration, long-term durability, and seamless integration for commercial beverage service in various foodservice settings.
- Moderate workload — suitable for restaurant and bar environments
- Commercial space optimized — compact footprint fits tight installations
- Wine preservation — dual temperature zones for aging and serving
- Consistent performance — self-contained, bottom-mounted refrigeration
- Professional storage — stainless steel exterior and reversible glass door
Why Choose Summit SWCDAR24PNR
Compared to similar units, the Summit SWCDAR24PNR stands out through its durable stainless steel exterior, dual-zone digital temperature control, and flexible installation options. Its self-contained refrigeration system offers reliable performance, and the reversible hinge enhances accessibility in various kitchen layouts, making it an efficient choice for professional wine storage and beverage presentation in commercial settings.
- Compact footprint fits tight commercial space planning
- Reversible glass door simplifies installation direction
- Dual temperature zones optimize storage versatility
- Energy-efficient hydrocarbon refrigerant enhances sustainability
- Durable stainless steel exterior withstands heavy use
