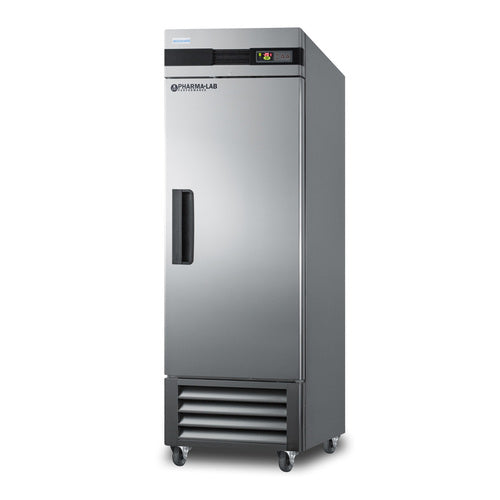

Summit AFS23ML 28 Inch Pharma-Lab All-Freezer Medical 23 cu ft - One-section

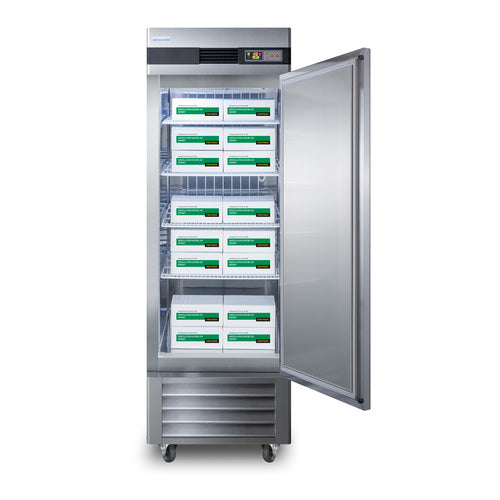

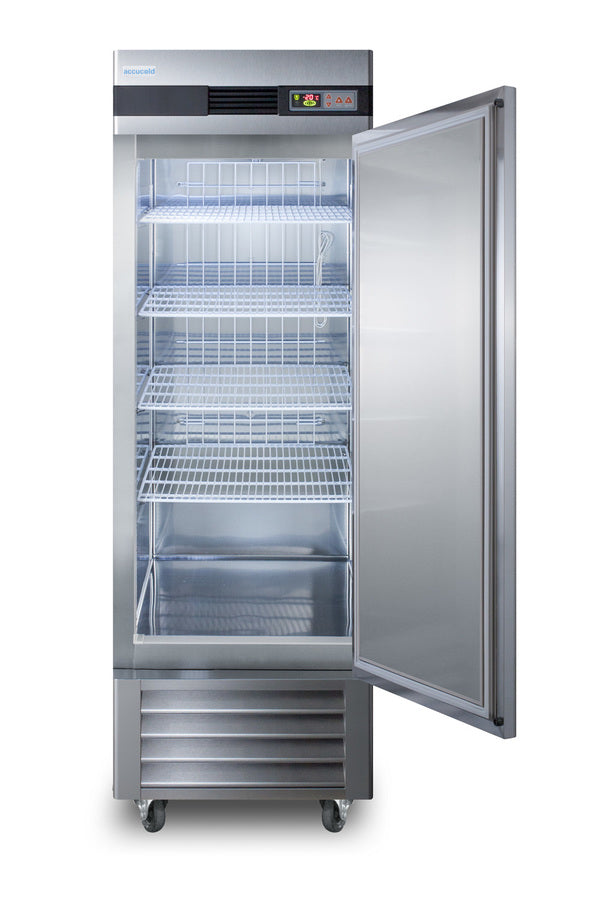

The Summit AFS23ML Performance Series Pharma-Lab All-Freezer Reach-in One-section is a commercial-grade freezer designed for precise temperature control in medical and laboratory settings. This model features a 23 cubic foot capacity within a 28-inch wide body, equipped with a full hinged solid door that includes a 90° stay-open function and self-closing mechanism. Its all stainless steel interior and exterior ensure durability and ease of sanitation, while the bottom-mounted self-contained refrigeration system using R290a hydrocarbon refrigerant guarantees eco-friendly operation. Operating within a temperature range of -30°C to -15°C, it supports reliable storage of sensitive pharmaceutical and laboratory items. The unit’s forced-air cooling, digital thermostat, interior lighting, and frost-free defrost system optimize workflow efficiency and maintenance, making it suitable for high-precision environments requiring consistent low-temperature storage.

Top Summit AFS23ML Features

The Summit AFS23ML Pharma-Lab All-Freezer combines advanced temperature regulation with durable stainless steel construction, facilitating high-volume pharmaceutical storage. Its self-contained refrigeration and digital thermostat enable accurate, stable temperatures, while the adjustable wire shelves support flexible interior organization. The unit’s caster wheels facilitate mobility within laboratory or medical facilities, and the frost-free design minimizes maintenance downtime. Perfect for mid-volume medical storage, this all-freezer offers reliable performance and streamlined workflow for critical storage environments.

• Performance: Precise temperature control from -30°C to -15°C for sensitive items
• Durability: All stainless steel interior and exterior withstand rigorous use

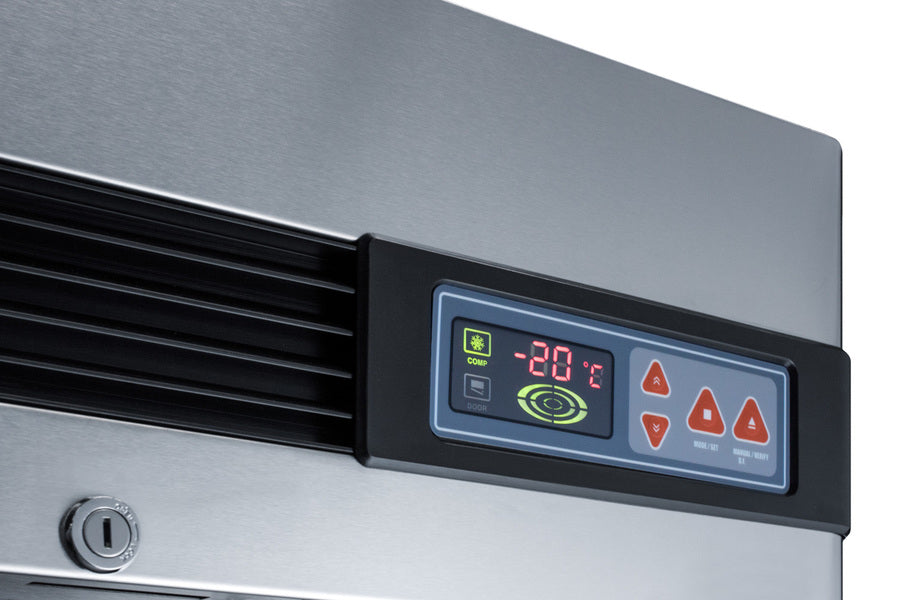

• Ease-of-use: Digital thermostat with audible and visual alarms for safety
• Maintenance: Frost-free defrost reduces cleaning needs and downtime

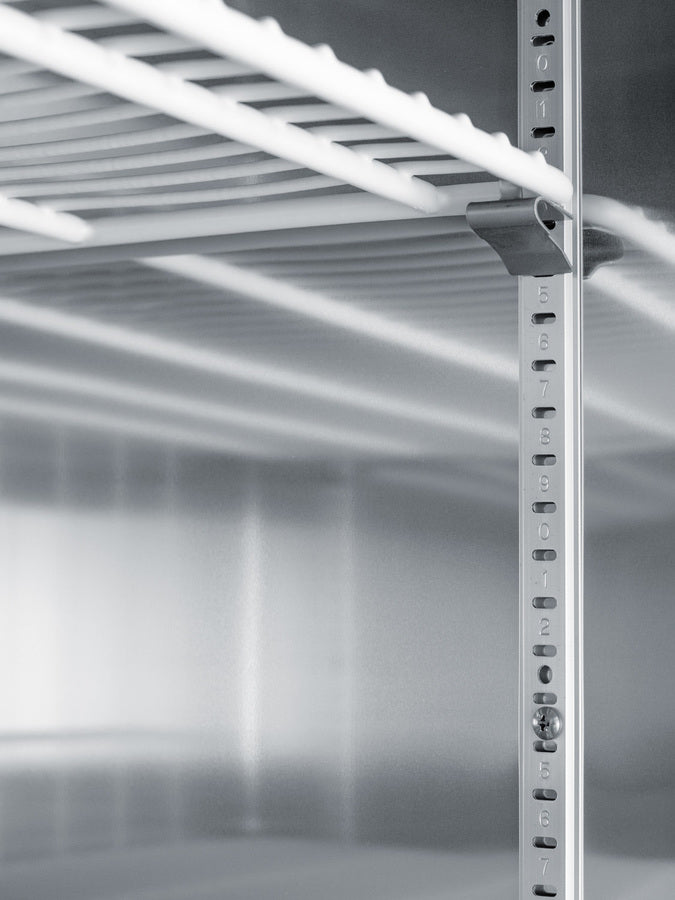

• Workflow compatibility: Adjustable wire shelves and casters support flexible installation

Designed for medical facilities requiring dependable, laboratory-grade cooling solutions

Summit AFS23ML Technical Specs

The Summit AFS23ML operates on a 115V/60Hz single-phase electrical supply, drawing approximately 8.0 amps and providing sufficient power for continuous refrigeration. Its bottom-mounted, self-contained refrigeration system uses environmentally friendly R290a hydrocarbon refrigerant, ensuring energy-efficient performance. The unit’s dimensions are 27.5 inches in width, 31 inches in depth, and 83.75 inches in height, with a total weight of 325 lbs. The all stainless steel finish extends across interior and exterior surfaces, facilitating sanitation and corrosion resistance. Its temperature operating range of -30°C to -15°C supports precise pharmaceutical storage, complemented by ETL sanitation listing for compliance. The solid hinged door, with its locking feature and stay-open capability, enhances operational security, while four 6-inch casters (including two locking) simplify mobility for lab or medical use. Maintenance involves routine cleaning of the stainless steel surfaces and orderly shelf reorganization, with no disassembly required for frost-free defrost cycles. Integration in clinical or laboratory environments benefits from its robust construction, precise temperature control, and reliable refrigeration system.

• Electrical Requirements: 115V/60Hz, 8.0 amps, single-phase
• Cooling Method: Air-cooled, bottom-mounted self-contained system
• Refrigeration Type: Hydrocarbon, self-contained
• Capacity: 23 cu. ft., suitable for medium-volume pharmaceutical storage
• Dimensions: 27.5 W x 31 D x 83.75 H inches
• Construction & Finish: All stainless steel interior and exterior
• Temperature Range: -30°C to -15°C, supporting accurate cold storage
• Food Safety & Sanitation: ETL sanitation approved, corrosion-resistant materials
• Mobility & Installation: Four 6-inch casters (2 locking), easy to reposition within laboratory spaces
• Maintenance & Cleaning: Frost-free defrost system, stainless surfaces ease sanitation routines

What is a commercial freezer?

A commercial freezer is a high-capacity refrigeration unit designed for precise cold storage of perishable and sensitive materials. The Summit AFS23ML model serves as an all-freezer solution for laboratory and pharmaceutical environments, incorporating self-contained, environmentally friendly refrigeration and a frost-free system. Installed in lab or medical facilities, it ensures consistent temperatures within a range of -30°C to -15°C, supporting clinical storage needs through advanced temperature regulation, durable construction, and reliable airflow. This freezer optimizes workflow for high-accuracy storage in moderate throughput settings, making it ideal for hospitals, research labs, and pharmaceutical distribution centers.

Top Medical Freezer for Laboratory and Pharmaceutical Storage

The Summit AFS23ML medical freezer offers robust build quality, precise temperature control, and clear operation suited for laboratory and pharmaceutical storage in moderate workload environments. Its all stainless steel construction, eco-friendly hydrocarbon refrigerant, and frost-free cooling provide dependable, safety-compliant storage ideally suited for healthcare and research applications.

• Operation Type — suitable for moderate-volume lab storage
• Kitchen Type — designed for clinical and research facilities
• Foodservice Category — specialized for pharmaceutical and medical environments
• Workload Qualifier — optimized for medium throughput storage demands
• Use Case — ideal for temperature-sensitive medical inventories and pharmaceuticals

Why Choose Summit AFS23ML

Summit AFS23ML stands out with its all stainless steel design, precise temperature regulation, and frost-free operation, surpassing typical laboratory freezers. Its self-contained refrigeration, extensive capacity, and mobility features enhance operational efficiency in medical and lab settings. Its eco-friendly refrigerant and ETL sanitation listing further ensure performance and compliance in critical environments.

• Compact footprint with full hinged door design for space efficiency
• All stainless steel construction for enhanced durability and sanitation
• Self-contained, hydrocarbon refrigeration for eco-friendly operation
• Frost-free design minimizes maintenance and operational downtime
• Accurate temperature control supporting sensitive medical storage
