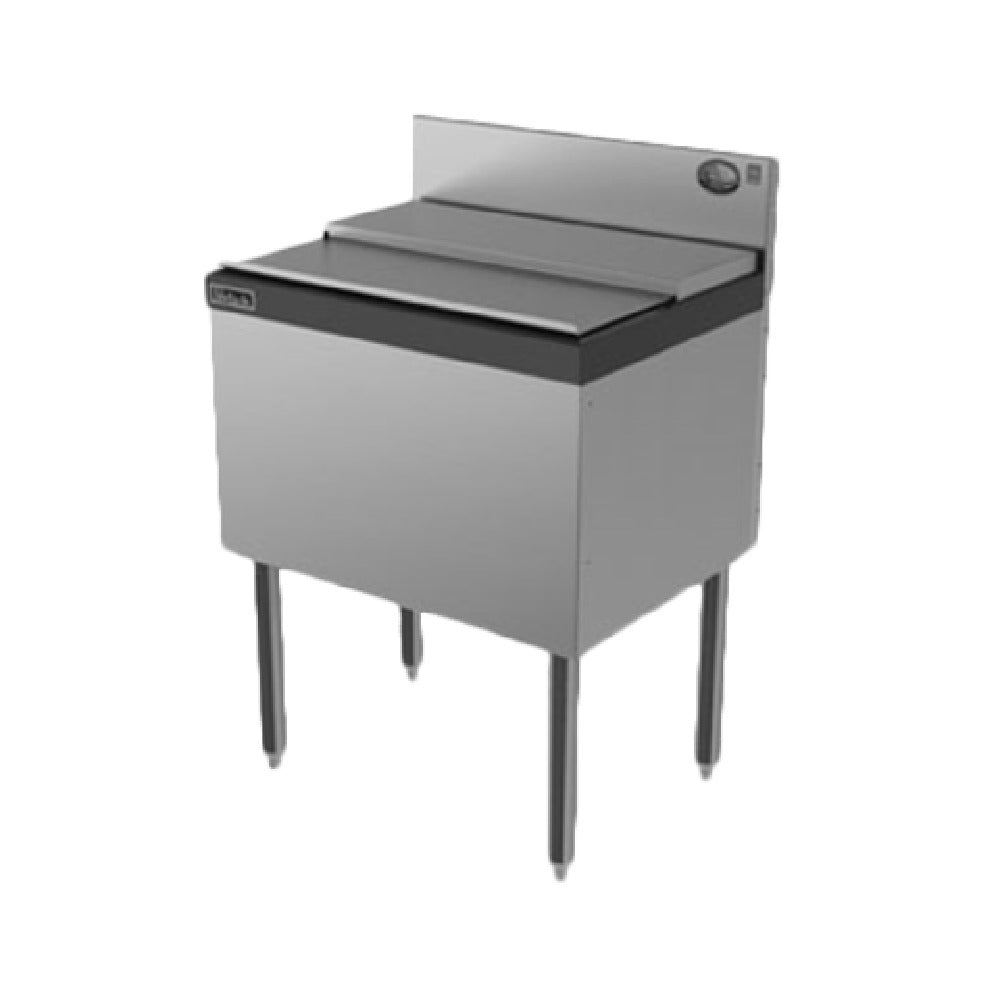

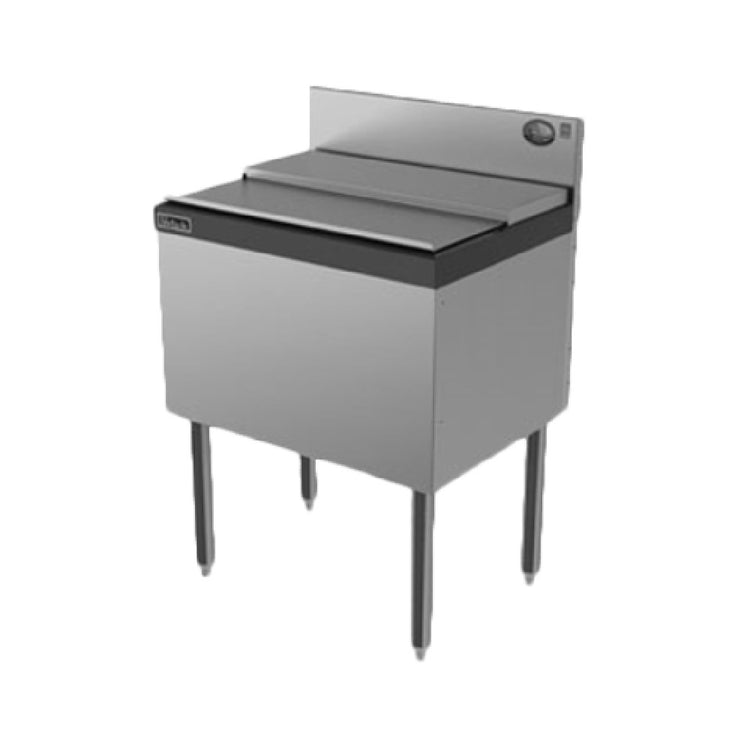

The Perlick TSD42IC10 TSD Series Underbar Ice Bin and Cocktail Unit is a commercial-grade refrigeration component designed for high-performance bar and beverage service environments. This modular, self-contained unit features a 42-inch wide stainless steel construction combined with galvanized steel back and sides for durability. Equipped with a concealed 10-circuit aluminum cold plate beneath a 10-inch deep stainless steel ice bin, it provides an approximate 100-pound ice capacity, optimized for efficient workflow. Its integrated cooling system ensures consistent temperature control, essential for maintaining ice integrity during peak service times. With a 6-inch backsplash and a 1-inch return, it offers spill management, supporting sanitary operation and easy cleanup. This ice bin is ideal for busy bars, restaurants, and hospitality venues seeking reliable, hygienic, and space-efficient underbar refrigeration solutions.
Top Perlick TSD42IC10 Features
The Perlick TSD42IC10 underbar ice bin integrates a modular cold plate system with stainless steel construction, delivering precise temperature management for bar service. Designed for moderate workflows, it supports quick maintenance with its accessible components. Its galvanized steel back and sides extend operational durability, making it suited for intensive use. The 10-circuit aluminum cold plate ensures rapid cooling across a broad surface area, ideal for high-volume beverage preparation. Its dimensions facilitate seamless integration into standard bar layouts, optimizing workspace and workflow efficiency.
- Capacity: 100-lb. ice capacity supports busy service periods
- Material: Stainless steel front & sides, galvanized steel back for durability
- Cooling system: 10-circuit aluminum cold plate concealed underneath
- Design: Modular configuration for flexible installation
- Ease-of-maintenance: Accessible components simplify cleaning and servicing
Suitable for high-traffic bar areas needing reliable ice storage and circulation capabilities
Perlick TSD42IC10 Technical Specs
The Perlick TSD42IC10 features a self-contained refrigeration system with an electrical requirement of 115V, 60Hz, single-phase, drawing approximately 8.2 amps and consuming around 0.96 kWh daily. Its construction utilizes high-grade stainless steel and galvanized materials, providing a robust, corrosion-resistant frame. The unit’s dimensions include a width of 42 inches, a depth ranging from 24 to 27 inches, and a height of 36.5 inches, with a weight of 160 pounds. It employs an air-cooled refrigeration method, suited for moderate temperature environments with a maximum operating temperature of 40°F. The integrated NSF-approved components facilitate cleaning and sanitation, while the unit’s design supports easy drain access via a 1/2-inch NPS male drain outlet. Installed with stainless steel legs and adjustable feet, it ensures stability and ergonomic height adjustment, supporting daily operational needs with minimal downtime.
- Electrical Requirements: 115V, 60Hz, single-phase, 8.2A, 0.96 kWh/day
- Cooling Method: Air-cooled refrigeration
- Refrigeration Type: Self-contained system
- Production Capacity: Approximately 100 lbs of ice per 24 hours
- Construction & Finish: Stainless steel and galvanized steel exterior
- Dimensions: 42" W x 24" D x 36.5" H
- Weight: 160 lbs
- Temperature Range: Operates up to 40°F maximum
- Drain: 1/2" NPS male drain outlet for effortless sanitation
- Legs & Feet: 1-5/8" tubular stainless steel legs with 1" adjustable thermoplastic feet
Electrical and plumbing connections should allow for seamless integration with existing bar utilities. Proper clearance for airflow and maintenance access must be maintained, and the drain should be appropriately positioned for routine cleaning. This model is calibrated for reliable ice storage and quick replenishment when installed with proper ventilation and drainage support.
What is a commercial underbar ice bin and cocktail unit?
A commercial underbar ice bin and cocktail unit is a specialized refrigeration component designed to store and dispense ice for beverage service in hospitality environments. These units are typically built with durable stainless steel and galvanized steel components, featuring integrated cooling systems such as self-contained refrigeration and cold plates. The Perlick TSD42IC10, for example, is installed underbar to maximize space efficiency and support moderate throughput applications, making it ideal for bars, restaurants, and hospitality settings where quick access to ice and flexible configuration are required for high-volume drink preparation.
Top Commercial Underbar Ice Bin and Cocktail Units for Hospitality Settings
Top underbar ice bin and cocktail units deliver reliable built quality, efficient ice storage, and space-saving design for hospitality operations. Perlick TSD42IC10 is a durable model optimized for moderate workflows, offering space-efficient integration in bar settings, with reliable cold plate refrigeration for consistent ice quality in high-volume service environments.
- Operation Type — ideal for moderate-traffic bar environments
- Kitchen Type — suitable for compact commercial spaces
- Foodservice Category — supports bar and beverage service needs
- Workload Qualifier — designed for moderate throughput
- Use Case — supports quick ice access for mixed drinks and cocktails
Why Choose Perlick TSD42IC10?
Perlick TSD42IC10 stands out with its robust stainless steel construction, modular cold plate system, and space-efficient design tailored for commercial bar operations. Its concealed cold plate ensures consistent icy temperatures, supporting reliable ice storage in high-demand settings. The unit’s durable materials and NSF approval contribute to long-term sanitation and low maintenance, differentiating it from competing models with less integrated cooling components or reduced capacity.
- Compact footprint with 42-inch width for efficient bar layouts
- Self-contained refrigeration simplifies installation and servicing
- Heavy-duty stainless steel and galvanized steel frame for durability
- Modular design allows flexible integration into various bar configurations
- Concealed 10-circuit aluminum cold plate provides uniform cooling
