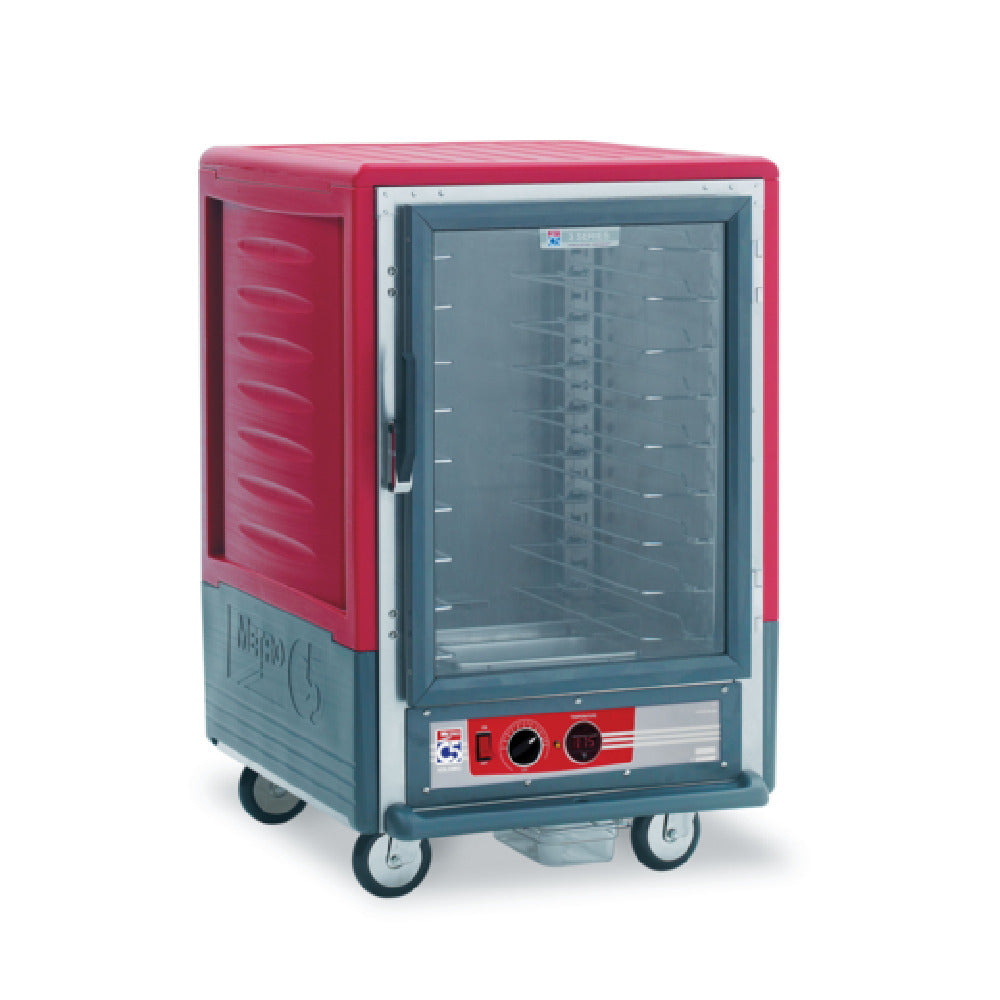

The Metro C535-HFC-UA C5™ 3 Series Heated Holding Cabinet with Red Insulation Armour™ is a commercial-grade mobile heated cabinet designed for optimal food holding and temperature management in busy foodservice environments. This unit features an insulated aluminum and polymer exterior with a clear polycarbonate door for visibility, providing thermal efficiency and durability. Equipped with bottom-mounted electric heaters and adjustable slide centers on 1-1/2" increments, it offers precise temperature control up to 200°F. Its spacious one-compartment design accommodates multiple pan configurations—either eight 18" x 26" or sixteen 12" x 20" x 2-1/2" pans—ideal for high-volume holding needs. The unit’s mobility is enhanced by 5" casters, including two with brakes, ensuring flexible kitchen workflow integration. Overall, the Metro C535-HFC-UA combines advanced insulation with precise temperature regulation for reliable service in restaurants, catering, or institutional settings.
Top Metro C535-HFC-UA C5™ 3 Series Heated Holding Cabinet Features
The Metro C535-HFC-UA is engineered for high-volume foodholding applications, featuring durable insulated construction, precise thermostat controls up to 200°F, and adjustable wire slides on 1-1/2" centers to optimize workflow. Its clear polycarbonate door allows quick visual inspection, facilitating food safety and service efficiency within commercial kitchens and catering operations.
- Insulated aluminum and polymer exterior: Ensures thermal retention and durability in daily use
- Adjustable slide centers on 1-1/2" increments: Facilitates versatile pan configuration and easy load access
- Removable bottom-mounted control module: Simplifies maintenance and calibration
- Mobile design with 5" casters (2 with brakes): Enables smooth maneuverability in dynamic kitchen layouts
- Capacity for 8 or 16 pans: Supports medium throughput in high-volume foodservice environments
Ideal for institutions requiring flexible, reliable heat retention for prepared foods.
Metro C535-HFC-UA C5™ 3 Series Technical Specs
The Metro C535-HFC-UA is a self-contained heated cabinet operating on 120V/60Hz, with a single-phase power supply drawing 16.7 amps and consuming 2000 watts. It features bottom-mounted electric heaters and is constructed from aluminum and polymer with a clear polycarbonate door, providing a robust, food-safe environment. The unit measures 27.63" W x 31.5" D x 44" H and weighs approximately 138 lbs. It employs adjustable slides on 1-1/2" centers for flexible pan placement, accommodating either eight 18" x 26" or sixteen 12" x 20" x 2-1/2" pans. Designed for operational efficiency, it supports temperatures up to 200°F, with a standard NSF and cULus certification for commercial foodservice compliance. The insulation maximizes energy retention, and the unit's construction ensures easy cleaning and side-access maintenance.
- Electrical requirements: 120V, 60Hz, 1-phase, 16.7A, 2000W
- Cooling method: Air-cooled with insulated enclosure
- Construction materials: Aluminum exterior with polymer finish; food-safe internal surfaces
- Dimensions: 27.63"W x 31.5"D x 44"H
- Weight: 138 lbs (unit weight)
- Temperature range: Up to 200°F operating temperature
- Storage capacity: Supports 8 or 16 pans (18" x 26" or 12" x 20")
- Certification: NSF and cULus compliant
- Cleaning & maintenance: Removable control module, accessible side panels
Electrical compatibility: Requires 120V outlet with NEMA 5-20P plug
Installation clearance: Adequate airflow for optimal operation, recommended ventilation
Operational environment: Suitable for commercial kitchens, catering, and institutional foodservice
Mobility needs: Fitted with 5" casters, including brakes for secure positioning
Pan configuration: Adjustable wire slides on 1-1/2" centers for varied pan sizes
What is a commercial heated cabinet
A commercial heated cabinet is a specialized foodservice appliance designed to maintain hot foods at safe serving temperatures. It provides consistent heat distribution through insulated walls and integrated heating elements. The Metro C535-HFC-UA supports flexible pan arrangements and mobility, making it suitable for restaurant, catering, and institutional use. It is often installed in high-volume kitchens requiring reliable food holding, with features like adjustable slides and clear doors facilitating efficient operation and monitoring.
Top heated cabinet for foodservice environments
The Metro C535-HFC-UA offers rugged construction, precise temperature control, and versatile pan capacity, making it ideal for mid-volume restaurant service and catering operations. Designed for moderate throughput, it ensures food remains hot and ready for serving while supporting efficient workflow in commercial kitchen settings. The inclusion of stainless steel elements and adjustable features assures durability and adaptability in demanding foodservice applications. Metro’s model C535-HFC-UA is built to meet the needs of busy food operations requiring reliable hot holding equipment.
- Commercial heated cabinet designed for mid-volume kitchens
- Built with durable aluminum & polymer exterior
- Operates on 120V/2000W supply for reliable performance
- Mobility enabled with 5" casters for flexible placement
- Supports customizable pan configurations for high-volume holding
Why choose Metro C535-HFC-UA C5™ 3 Series Heated Holding Cabinet
Metro’s C535-HFC-UA distinguishes itself through its insulated construction, adjustable slide centers, and portable design, providing consistent heat retention and workflow efficiency. Its rugged aluminum exterior ensures longevity in demanding environments, while the removable control module simplifies maintenance. The unit’s capacity and precise temperature control make it a reliable solution for medium-volume foodholding, outperforming standard units with enhanced insulation and ergonomic features.
- Self-contained design: simplifies installation and reduces space requirements
- Red Insulation Armour™: enhances thermal efficiency and energy savings
- Full-height clear polycarbonate door: allows for quick food monitoring
- Adjustable slide centers: enable versatile pan arrangements for workflow optimization
- Mobile with brakes: provides stable, flexible placement in busy kitchens
