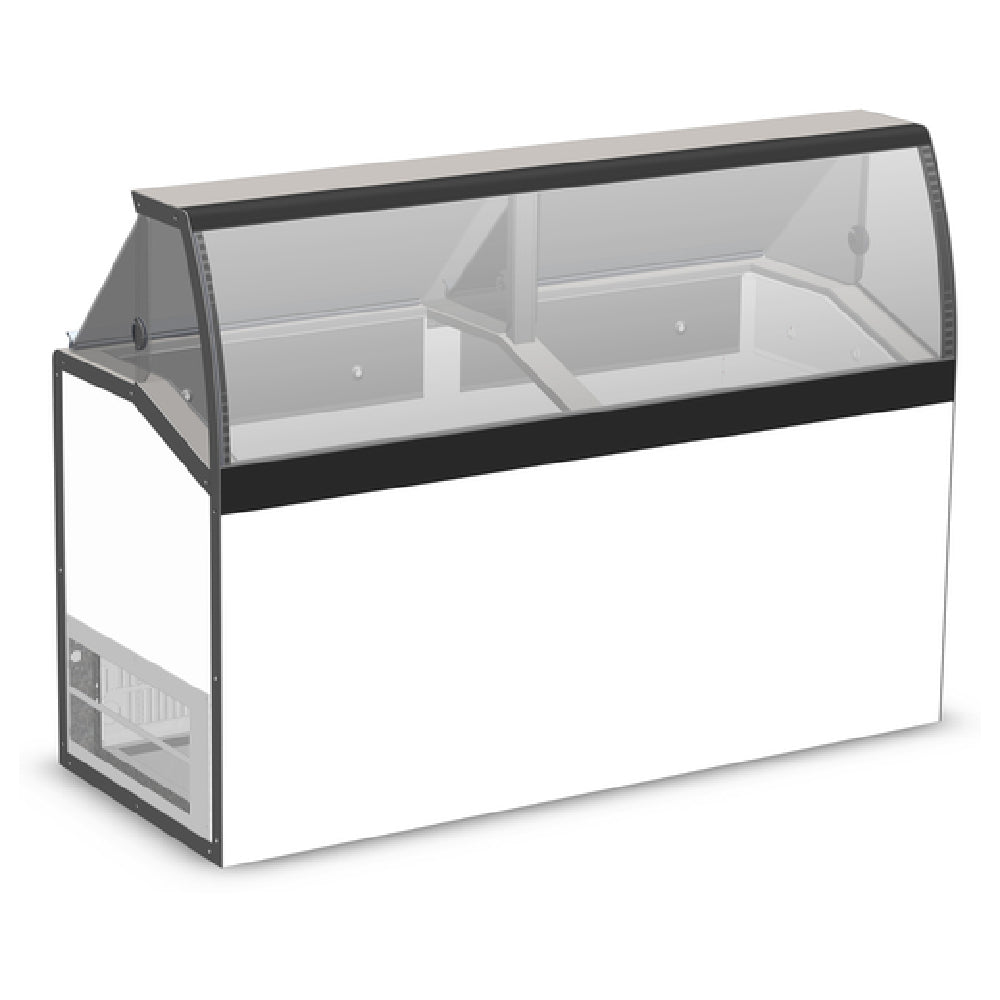

The Master-Bilt DD-66LCG Ice Cream Dipping and Display Cabinet is a commercial-grade refrigeration unit designed for high-efficiency frozen dessert presentation in professional foodservice environments. Crafted with painted galvanized steel both inside and out, this model features a curved glass top display for optimal product visibility. With a height of 50 inches and a stainless steel serving deck, it provides ergonomic access for operators. The unit accommodates (12) 3-gallon cans, offering streamlined storage of ice cream or similar frozen products. Its temperature range of 5°F to -5°F ensures precise temperature control, suitable for maintaining product integrity during high-volume service. Powered by a 5/6 HP compressor at 115V 60Hz single-phase with a 7.2-amp draw, it meets rigorous industry standards for reliability and performance. This display case is ideal for mid-volume commercial ice cream applications, with a robust build designed for extended use in restaurant, cafeteria, or specialty dessert settings.
Master-Bilt DD-66LCG Features
The DD-66LCG offers a robust display solution for high-volume ice cream sales, combining durable painted galvanized steel construction with a curved glass top that ensures clear product visibility. Its integrated LED interior lighting enhances presentation, while the stainless steel serving deck provides easy access and ergonomic workflow. Designed for straightforward cleaning and maintenance, the cabinet supports reliable temperature regulation within a precise 5°F to -5°F range, ensuring product freshness. Suitable for cafes, dessert shops, or retail facilities, it supports efficient high-volume ice cream operations with its capacity for (12) 3-gallon cans and additional 3-gallon storage. The unit’s construction and technical features optimize workflow and product presentation in demanding commercial environments.
- Capacity: (12) 3-gallon can display with 3-gallon storage
- Material: Galvanized steel interior and exterior for durability
- Lighting: LED interior lighting for enhanced product visibility
- Design: Low-glass curved top for easy access and viewing
- Temperature Control: Precise 5°F to -5°F range for consistent product maintenance
Ideal for retail ice cream shops, dessert counters, or cafeteria operations requiring efficient product display and storage.
Master-Bilt DD-66LCG Technical Specs
The Master-Bilt DD-66LCG is a self-contained refrigerated display case with a compact footprint designed for versatile installation in commercial settings. It operates with a 5/6 HP compressor powered by 115V 60Hz single-phase electrical connections, drawing approximately 7.2 amps. The unit features air-cooled refrigeration to maintain a stable temperature environment, with a precise control range from 5°F to -5°F. It can handle a production capacity of approximately (12) 3-gallon cans, supportable for medium-volume dessert service. Constructed predominantly with painted galvanized steel, it features a curved glass top for optimal visibility and an all-white exterior finish. The cabinet’s weight is 545 lbs, with dimensions of 69.25" width, 27.5" depth, and 50" height, making it suitable for various countertop or built-in applications. The unit is UL and cULus certified, with UL EPH classification, ensuring compliance with safety standards. Maintenance involves straightforward cleaning with disassembly of interior components, and its design facilitates efficient workflow in busy commercial kitchens.
- Electrical Requirements: 115V, 60Hz, 1-phase, 7.2 amps, 5/6 HP motor
- Cooling Method: Air-cooled refrigeration system
- Refrigeration Type: Self-contained unit with remote condenser options available
- Construction & Finish: Painted galvanized steel exterior and interior panels
- Dimensions & Weight: 69.25" W x 27.5" D x 50" H, 545 lbs
- Temperature Range: 5°F to -5°F for optimal product preservation
- Electrical Compatibility: 115V, 60Hz, single-phase connection for straightforward installation
- Ventilation Needs: Air-cooled refrigeration requires adequate airflow clearance
- Space Requirements: Minimum 2-inch clearance behind for ventilation and maintenance access
- Cleaning & Access: Disassembly of interior panels facilitates thorough cleaning
- Workflow Integration: Compatible with high-volume dessert service counters or traditional display areas
What is a commercial ice cream display case?
A commercial ice cream display case is a refrigeration unit designed for professional foodservice environments to store and showcase frozen desserts effectively. These units typically feature precise temperature control, durable construction, and visibility-enhancing glass panels. The Master-Bilt DD-66LCG model is installed in retail, cafeteria, or dessert shop settings, providing a reliable platform for high-volume ice cream presentation. It has a capacity for (12) 3-gallon cans, allowing for efficient storage and easy accessibility. Perfect for mid-volume applications, it maintains consistent temperatures from 5°F to -5°F, supporting freshness and product integrity during extended service periods.
Top commercial ice cream display cases for high-volume dessert service
Constructed with premium materials, the Master-Bilt DD-66LCG is ideal for medium-volume kitchen environments requiring reliable, restaurant-ready ice cream display solutions. Its durable galvanized steel build, precision temperature control, and integrated lighting optimize workflow and product visibility in busy foodservice settings. Designed for consistent performance and easy maintenance, it supports efficient high-volume dessert operations with its capacity and robust design.
- Operation Type — suitable for ice cream parlors and dessert bars
- Kitchen Type — ideal for cafes and quick-service restaurants
- Foodservice Category — perfect for ice cream and frozen dessert display
- Workload Qualifier — supports moderate throughput in retail environments
- Use Case — high-volume presentation with reliable temperature control
Why Choose Master-Bilt DD-66LCG
Master-Bilt DD-66LCG distinguishes itself with durable construction, a precise temperature range, and a sleek low-glass design that enhances product presentation in commercial settings. Its all galvanized steel construction ensures longevity and easy maintenance, while the curved glass top maximizes visibility. Compared to standard units, this model’s ergonomic design and integrated lighting improve workflow efficiencies. Its reliable self-contained refrigeration system supports consistent performance, making it suitable for mid-volume ice cream service spaces seeking a dependable and visually appealing display solution.
- Compact footprint with a 69.25" width for versatile installation
- All galvanized steel enhances durability and ease of cleaning
- Curved glass top maximizes product visibility for retail appeal
- Precise 5°F to -5°F temperature control preserves product quality
- Self-contained refrigeration simplifies setup and service
