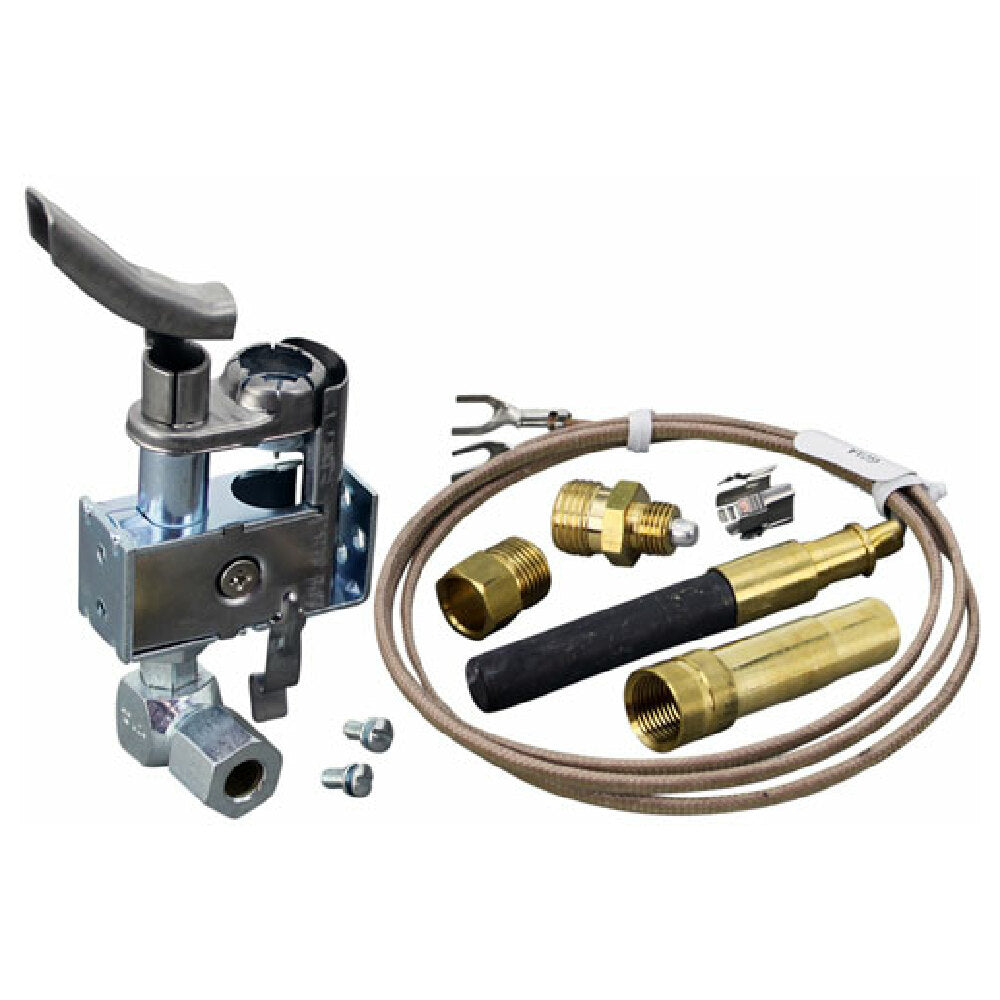

The Frymaster 810-0156 Pilot Generator Assembly is a high-precision ignition component designed for commercial foodservice equipment, particularly in gas-fired appliances. Manufactured by Frymaster, this pilot generator features a 1/4" tube size and a right flame pattern, optimized for reliable ignition in propane and natural gas systems. Equipped with a Pg9 thermopile and a 36-inch lead wire, it ensures consistent flame sensing and safe operation. This assembly supports precise flame detection and efficient ignition, making it suitable for use in fryer and cooking equipment where dependable pilot operation is critical for safety and performance. Designed with durable materials and exact specifications, it facilitates easy installation and maintenance within foodservice kitchens, providing a technically robust solution for commercial operators requiring precise pilot control.
Top Frymaster 810-0156 Features
The Frymaster 810-0156 Pilot Generator Assembly delivers reliable ignition for gas appliances by integrating a durable thermopile, precise flame sensing, and compatibility with natural and propane systems. Its robust construction ensures longevity in busy commercial kitchens, supporting seamless operation. The assembly's compact design simplifies installation and routine maintenance, enhancing workflow efficiency in high-demand foodservice environments. Its precise flame pattern and high-quality materials make it an ideal solution for commercial fryers and cooking stations needing consistent ignition performance.
- Supports reliable ignition with a 1/4" tube size
- Constructed with durable materials for long-term use in commercial kitchens
- Easy-to-service assembly with straightforward installation
- Optimized for natural and LP gas equipment with precise flame detection
- Supports safe and consistent ignition in high-volume foodservice operations
Perfect for commercial fryers and gas cooking appliances that require dependable pilot ignition
Frymaster 810-0156 Technical Specs
The Frymaster 810-0156 Pilot Generator Assembly features a 36-inch lead wire for flexible installation, supporting natural gas or propane with models compatible with an orifice size of #26-1879 for natural gas and #26-1680 for LP. Its construction includes a thermopile with a Pg9 connector, facilitating easy replacement and troubleshooting. This component is designed with a compact profile of 1.5 inches in height, 4 inches in width, and 4 inches in depth, ensuring compatibility with various gas control modules. Weighing only 0.3 lbs, it offers lightweight durability suitable for frequent servicing in commercial kitchens. The device is manufactured in Mexico and supported by Frymaster’s industry-standard design practices, including precise flame pattern alignment and corrosion-resistant materials. It requires no special certification but ensures safety and reliable performance in gas-fired foodservice equipment.
- Electrical Requirements: No electrical connection; thermopile generates energy from flame heat
- Support for Natural and LP gas systems
- Material Build: High-grade thermopile with corrosion-resistant components
- Dimensions: 4" W x 4" D x 1.5" H
- Operating Range: Suitable for standard commercial kitchen temperatures
- Connection Type: Pg9 thermopile with 36" lead wire
- Electrical compatibility: Not applicable, thermopile generates voltage from flame heat
- Gas connection: Supports natural and propane gas with specified orifice sizes
- Installation clearance: Minimum 2 inches around assembly for maintenance access
- Maintenance: Disassembly requires minimal tools for quick replacement
- Ambient temperature tolerance: Designed for operation within standard commercial kitchen environments
- Durability: Corrosion-resistant materials suitable for humid kitchen atmospheres
What is a commercial pilot generator assembly
A commercial pilot generator assembly is a critical component in gas-fired foodservice appliances used to produce a reliable ignition source through thermocouple technology. It typically includes a thermopile, flame sensor, and ignition wiring, supporting safe and consistent operation of gas burners and fryers. The Frymaster 810-0156 Pilot Generator Assembly, specifically, is installed within gas control systems to ensure proper flame sensing, enabling safe ignition sequences in commercial kitchen equipment. Designed for durability and precise performance, it is installed in appliances such as fryers and ranges to maintain operational safety and efficiency in foodservice facilities, especially in settings requiring continuous or high-volume cooking processes.
Top Gas Appliance Pilot Components for High-Volume Foodservice
Designed for high-demand commercial kitchens, this pilot generator assembly by Frymaster ensures consistent ignition in gas-fired foodservice equipment, supporting safe operation and minimal downtime. Frymaster 810-0156 is built for durability and precision, ideal for high-volume fryers and cooking stations that depend on reliable flame sensing and ignition. Its robust thermopile and easy installation support efficient workflow and safety standards in busy hospitality environments.
- Operation in busy kitchens with high appliance turnover
- Suitable for compact commercial spaces requiring space-efficient components
- For gas-fired appliances such as fryers and ranges
- Supports moderate throughput with dependable ignition
- Optimal for settings needing quick installation and servicing
Why Choose Frymaster 810-0156 Pilot Generator Assembly
The Frymaster 810-0156 Pilot Generator Assembly offers a durable, reliable solution featuring high-quality thermopile technology and a compact, easy-to-maintain design that sets it apart from generic alternatives. Its robust construction ensures consistent performance in demanding commercial kitchen conditions, enhancing safety and operational efficiency across gas appliances. Its compatibility with natural and propane systems and straightforward installation process make it a practical choice for professional foodservice environments seeking dependable pilot ignition components.
- Self-contained design simplifies replacement and maintenance
- Manufactured in Mexico with high-precision standards
- Compact footprint fits a range of gas appliances
- Supports both natural and LP gas systems for versatility
- Built with corrosion-resistant materials for longevity in humid kitchens
