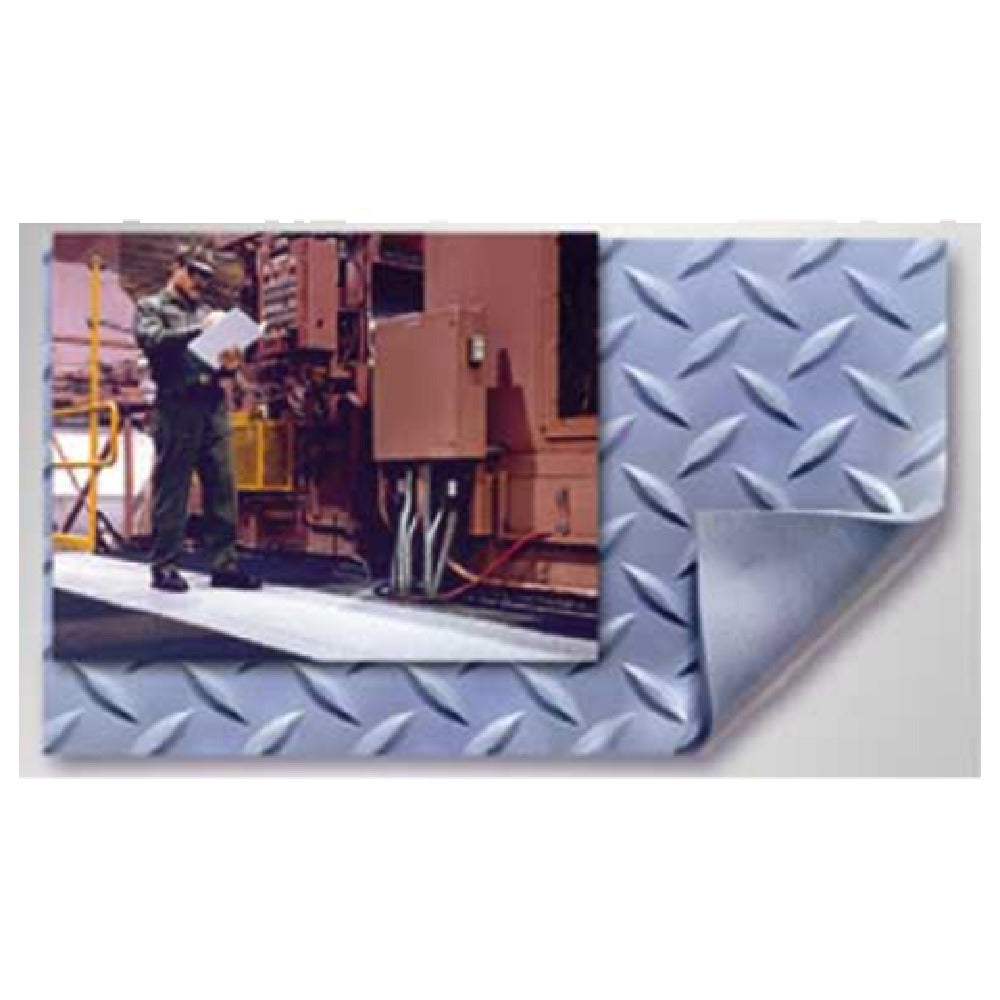

The Cactus Mat 1060R-3 Military Diamond Switchboard 3' X 75' Roll 3/16" Thick is a durable commercial switchboard mat designed for high-voltage applications in industrial and military settings. Crafted from 3/16" thick resilient material, this switchboard provides essential insulation and protection against electrical hazards. Its resistance to oil, ozone, fire, and corona ensures reliable performance under demanding conditions. Tested at 15,000 volts across its entire surface and dielectric rated at 30,000 volts, this product meets MIL-DTL-15562G Type III standards, making it suitable for high-voltage environments and critical infrastructure protection. The gray finish enhances visibility and compatibility in diverse operational environments, supporting safe and efficient electrical workflows in large-scale industrial facilities.
Top Cactus Mat 1060R-3 Features
The Cactus Mat 1060R-3 switchboard roll is engineered for industrial electrical applications within commercial facilities. It offers superior dielectric insulation, enhanced resistance to environmental factors, and easy deployment in high-voltage areas. Its large 3' x 75' size allows for extensive coverage, ideal for grounding and isolation in complex wiring systems. With proven durability and high-voltage proof testing, it supports safe operational workflows, reducing risk and downtime in heavy-duty environments.
- High-voltage resistance: Insulated for up to 30,000 volts dielectric testing
- Extreme durability: Resistant to oil, ozone, fire, and corona damage
- Large coverage: 3' x 75' continuous roll simplifies installation
- Efficient insulation: 3/16" thick material ensures reliable electrical protection
- Easy maintenance: Resistant surface minimizes cleaning and replacement needs
Ideal for high-voltage electrical applications in industrial and military environments.
1060R-3 Technical Specs
The Cactus Mat 1060R-3 switchboard features a rugged construction designed for demanding environments. It is built with durable insulating material, measuring 3/16" thick and extending 3 feet in width along a 75-foot roll. The product weighs 238 lbs, demonstrating its substantial build quality. It is tested at 15,000 volts across entire surfaces and dielectric tested at 30,000 volts, conforming to MIL-DTL-15562G Type III standards. The gray finish provides high visibility and compatibility with various industrial setups, ensuring ease of integration into high-voltage electrical systems. Its resistance to oil, ozone, fire, and corona enhances longevity and safety for continuous operation. The product is designed for fixed installation, requiring minimal maintenance in high-stress environments and supporting reliable electrical safety protocols.
- Voltage rating: Tested at 15,000 volts across the entire surface
- Material composition: 3/16" thick resistant composite with high durability
- Dimensions: 900" wide x 36" deep x 0.19" height
- Weight: 238 lbs for robust handling and installation
- Construction finish: Gray color for visibility in industrial settings
- Installation needs: Suitable for permanent mounting in switchgear areas
What is a commercial switchboard?
A commercial switchboard is a high-voltage electrical insulation and protection product designed to manage and safeguard complex wiring systems in industrial or military environments. It is installed in switchgear or high-voltage distribution systems, providing insulation, grounding, and fault protection. The Cactus Mat 1060R-3 switchboard is typically used in facilities requiring reliable high-voltage insulation over expansive areas, such as large manufacturing plants, military installations, and power distribution centers. Its robust construction and high dielectric strength make it ideal for supporting and enhancing electrical safety and operational efficiency in demanding workloads and environments.
Top switchboard solutions for industrial high-voltage safety and insulation
High-quality industrial switchboards like the Cactus Mat 1060R-3 support reliable high-voltage insulation, durability under harsh conditions, and seamless integration into electrical infrastructure. Designed for medium workloads in large-scale facilities, they ensure operational safety and efficiency in high-voltage environments. Cactus Mat 1060R-3 is optimized for industrial applications, providing long-term protection and insulation in demanding electrical systems.
- Medium-voltage application — suitable for large industrial facilities
- Industrial electrical systems — supports high-voltage safety and insulation
- Power distribution setups — manages extensive wiring and grounding
- Maintenance-ready design — resistant to environmental wear and tear
- Long-term durability — withstands exposure to chemicals and extreme conditions
Why Choose Cactus Mat 1060R-3?
Designed with rugged durability and high dielectric performance, the Cactus Mat 1060R-3 switchboard offers superior electrical protection compared to standard insulations. Its MIL-spec testing and resistance to environmental damage ensure longevity and safety in critical applications. The extensive size and ease of installation support efficient workflows in demanding industrial environments, making it a reliable choice for high-voltage insulation needs.
- Self-contained design: Ensures reliable high-voltage insulation over large areas
- High resistance standards: Proven performance against fire, ozone, oil, and corona
- Industrial-grade construction: Heavy-duty 3/16" thick material with durable finish
- Meet MIL standards: Certified to MIL-DTL-15562G Type III for military applications
- Optimized for high-voltage safety: Proof tested at 15,000 volts for operational assurance
