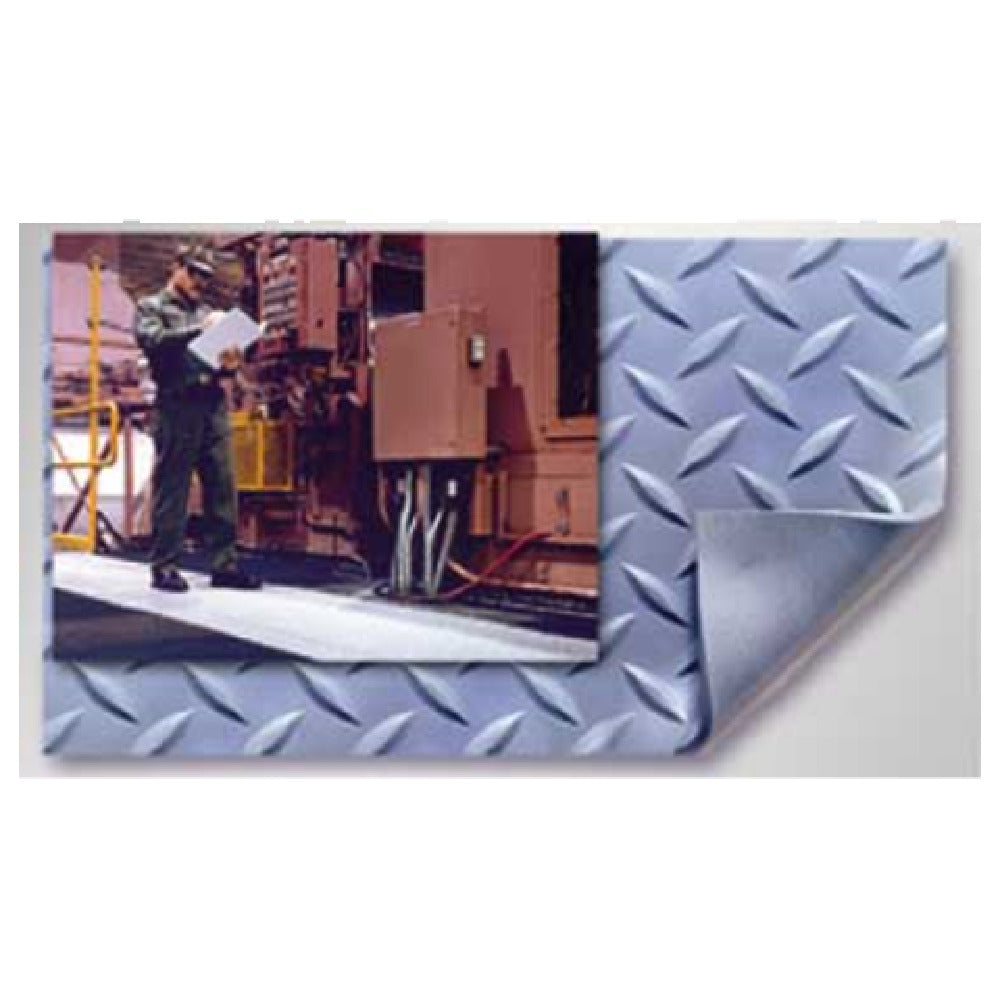

The Cactus Mat 1060F-3 Military Diamond Switchboard is a high-performance protective flooring solution designed for demanding industrial and military applications. Crafted from durable materials and measuring 3 feet in width with a thickness of 3/16 inches, it provides excellent resistance to oils, ozone, fire, and corona discharge. This switchboard is insulated for high voltage environments, undergoes proof testing at 15,000 volts across its entire surface, and dielectric testing at 30,000 volts, ensuring reliability in critical electrical setups. Engineered to meet military standards, it is suitable for high-voltage switchgear rooms and harsh operational environments, delivering exceptional durability and operational safety in high-voltage infrastructure settings.
Top Cactus Mat 1060F-3 Features
The Cactus Mat 1060F-3 Military Diamond Switchboard offers advanced dielectric performance combined with chemical and environmental resistance. Its construction supports high-voltage insulation, making it ideal for use under heavy electrical loads in demanding environments. The surface withstands exposure to industrial contaminants, and its proven insulation characteristics facilitate safe high-voltage operation, reducing maintenance needs. Designed for integration into military and industrial high-voltage systems, it ensures continued operational safety and reliability.
- High-voltage insulation: Tested up to 30,000 volts for electrical safety
- Durable resistance: Oil, ozone, fire, and corona resistant construction
- Heavy-duty material: 3/16-inch thick insulating surface for lasting protection
- Size and compatibility: 3 feet wide, suitable for large switchgear applications
- Ease of maintenance: Insulated surface minimizes contamination and cleaning effort
Suitable for high-voltage infrastructure projects requiring durable, insulating switchboards.
1060F-3 Technical Specs
The Cactus Mat 1060F-3 switchboard features a robust construction with a thickness of 3/16 inches, designed for high-voltage insulation and environmental resilience. It measures 36 inches in depth and has an operational weight of 4 pounds per unit. The surface is resistant to oil, ozone, and fire, making it suitable for installation in high-voltage switchgear rooms and industrial settings. It undergoes proof testing at 15,000 volts and dielectric testing up to 30,000 volts, ensuring safety and performance in demanding environments. Its material composition supports high-voltage applications while resisting chemical exposure, including sulfuric acid, and maintains integrity across a wide temperature range. The switchboard is non-returnable, shipped typically within 1-2 days, and conforms to military standards without certification markings.
- Electrical Requirements: Insulated for high-voltage, withstands proof testing at 15,000V
- Material & Construction: 3/16" thick insulating surface, durable resistant coating
- Size & Weight: 36" deep, weighs 4 lbs per unit, gray finish
- Durability & Resistance: Oil, ozone, fire, and corona resistant, sulfuric acid tolerant
- Testing & Certification: Dielectric tested at 30,000 volts, meets military standards
- Usage & Compatibility: Suitable for high-voltage switchgear, industrial environments
What is a commercial switchboard ?
A commercial switchboard is a high-voltage electrical distribution component used in industrial, military, or utility settings to safely route and control electrical power. It provides insulation, protection, and operational safety for high-voltage circuits, often installed in control rooms or switchgear environments. The Cactus Mat 1060F-3 Military Diamond Switchboard is specifically engineered for demanding high-voltage applications, featuring dielectric testing and resistant coatings to ensure reliable operation in harsh environments. Typically used in high-voltage infrastructure, it withstands exposure to industrial contaminants, supports insulation integrity, and improves overall electrical safety in demanding operations environments.
Top high-voltage switchboards for industrial applications
High-voltage switchboards like the Cactus Mat 1060F-3 are built for reliable performance in demanding electrical infrastructure. Designed for industrial environments, military installations, and high-voltage switchgear, these products offer maximum durability, insulation integrity, and environmental resistance. Manufactured by Cactus Mat, model 1060F-3 is ideal for heavy-duty applications, supporting safe distribution and high-voltage insulation, ensuring operational safety in facility power management and critical systems.
- Operational in demanding environments—resistant to oil, ozone, fire
- Built for high-voltage insulation—proof tested at 15,000V, dielectric at 30,000V
- Fabricated with durable 3/16" thick insulating surface
- Designed for high-voltage switchgear room installation
- Supports industrial-grade safety and high-voltage reliability
