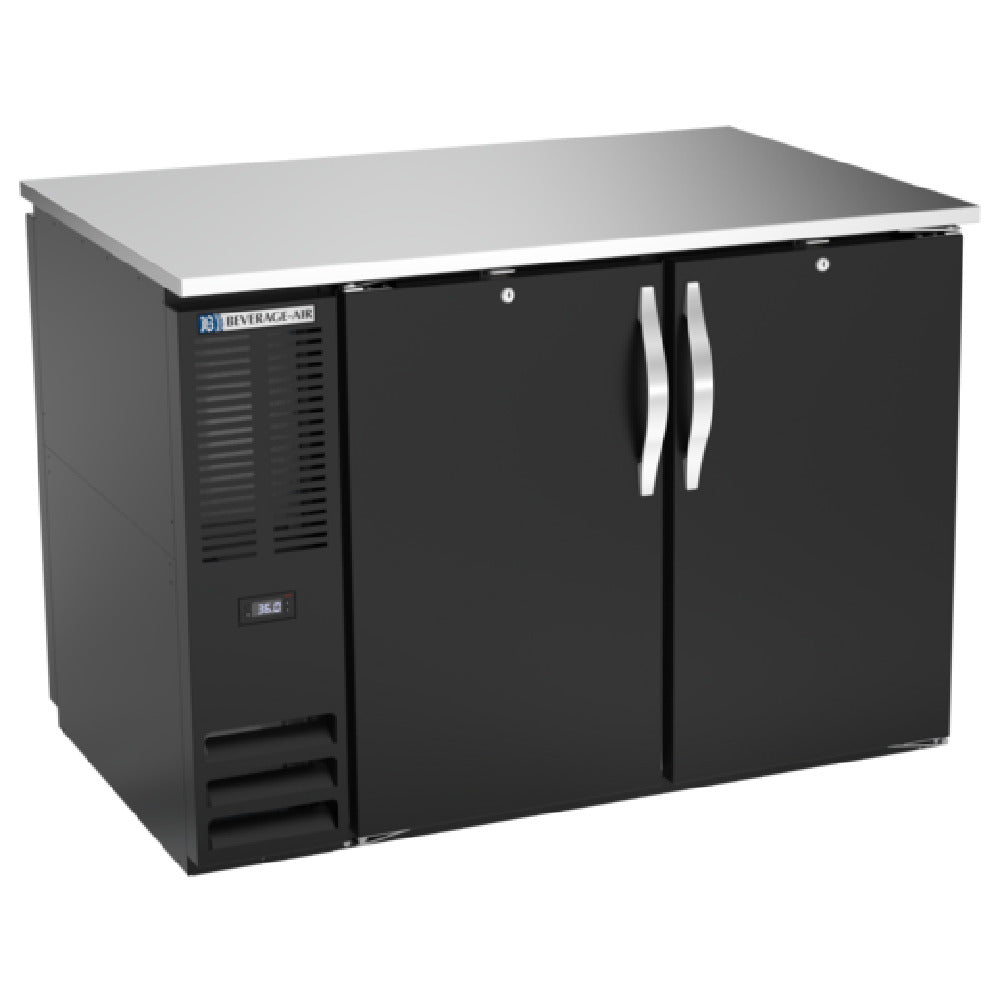

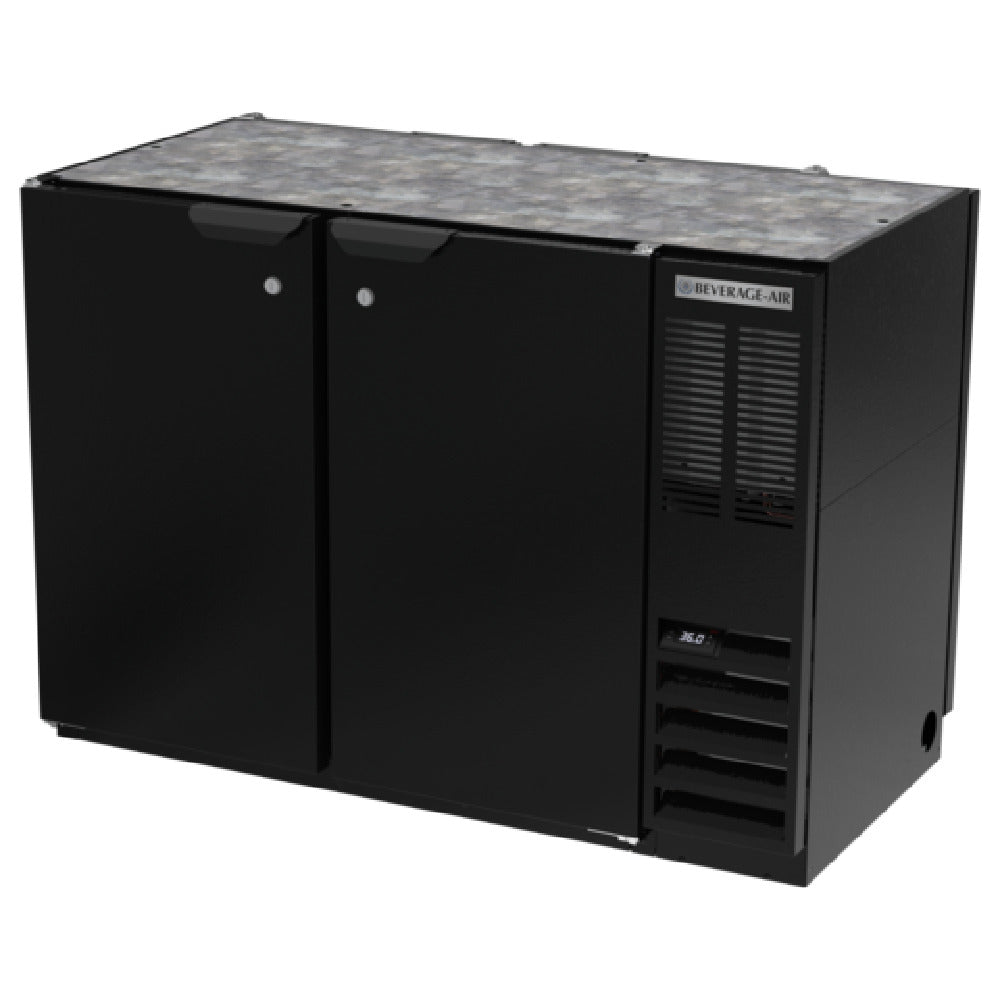

The Beverage Air BB48HC-1-PT-B Refrigerated Pass-Thru Back Bar Refrigerator Two-section is a commercial refrigeration unit designed for high-efficiency beverage storage and display in hospitality environments. Measuring 48 inches in width and 34 inches in height, it provides a 13.6 cu. ft. capacity optimized for beverage service areas. The unit features four solid, lockable doors, four epoxy-coated steel shelves, and a galvanized steel interior with stainless steel flooring, ensuring durability and easy sanitation. Right-mounted self-contained refrigeration with R290 hydrocarbon refrigerant offers environmentally conscious cooling, with a 1/3 HP compressor delivering reliable temperature maintenance. Made in the USA, this model combines robust construction with precise temperature control suitable for busy bar and hospitality settings.
Top Beverage Air BB48HC-1-PT-B Features
The Beverage Air BB48HC-1-PT-B offers a commercial-grade pass-thru configuration with side-mounted self-contained refrigeration, ensuring efficient workflow in bar service areas. Its galvanized interior and stainless steel flooring simplify cleaning and enhance durability, while epoxy-coated steel shelves withstand demanding use. The unit’s four lockable solid doors facilitate secure storage, and interior LED lighting improves product visibility. Designed for mid-volume beverage operations, it fits seamlessly into back bar setups, supporting consistent product presentation and sanitation standards.
- Optimized capacity: 13.6 cu. ft. beverage storage across two sections
- Durable construction: Galvanized steel interior and stainless steel flooring
- Ease of maintenance: Removable epoxy-coated shelves simplify cleaning
- Secure storage: Four lockable solid doors with lockable handle hardware
- Effective cooling performance: R290 hydrocarbon refrigerant with 1/3 HP compressor for consistent temperature control
Ideal for commercial bars, restaurants, and hospitality venues seeking reliable, front-to-back beverage refrigeration.
BB48HC-1-PT-B Technical Specs
This two-section back bar cabinet integrates a self-contained, side-mounted refrigeration system utilizing R290 hydrocarbon refrigerant, which offers environmentally friendly cooling with a 1/3 HP compressor. The unit operates on standard commercial electrical requirements of 115V, 60Hz, and single-phase power, with compatible electrical connections ensuring straightforward installation. It maintains a precise operating temperature range suitable for beverage storage in busy service areas, with a net weight of 306 pounds. The exterior features a sleek black finish, offering UV and corrosion resistance, while interior components are built for longevity and sanitation compliance. Dimensions of 48 inches width, 27.38 inches depth, and 34 inches height make it suitable for compact back bars, with a freight classification of 150 for shipping logistics. The unit includes four epoxy-coated steel shelves, a galvanized top, and four lockable solid doors, making it ideal for mid-volume beverage service environments.
- Electrical Requirements: 115V, 60Hz, single-phase, 6.4A, 735W
- Cooling Method: Air-cooled self-contained refrigeration
- Refrigeration Location: Side-mounted, self-contained unit with R290 hydrocarbon refrigerant
- Capacity: 13.6 cubic feet of refrigerated storage
- Construction & Finish: Black exterior with galvanized top and interior, stainless steel flooring
- Temperature Operating Range: Designed for optimal beverage storage conditions
- Dimensions: 48" W x 27.38" D x 34" H
- Weight: 306 lbs
- Energy Consumption: 735W, typically consumes under 3 kWh/day
- Cleaning & Maintenance: Removable epoxy steel shelves, accessible condenser for cleaning
What is a commercial back bar refrigeration unit
A commercial back bar refrigeration unit is a specialized beverage storage appliance installed behind bar counters to optimize workflow and product presentation. The Beverage Air BB48HC-1-PT-B offers a two-section, pass-thru design with durable construction, environmental refrigerant, and precise temperature control, ideal for installation in high-volume bar and restaurant environments. It enhances operational efficiency by allowing cross-traffic access and maintains product quality with its environmentally friendly cooling system, making it suitable for mid-volume beverage service applications at hospitality venues.
Top Refrigerated Pass-Thru Back Bar Refrigeration for Hospitality Operations
This commercial back bar refrigeration unit features a robust self-contained design by Beverage Air BB48HC-1-PT-B, optimized for mid-volume beverage storage in hospitality settings. Built with durable galvanized and stainless steel components, it offers reliable cooling, superior sanitation, and seamless workflow integration for busy bars and restaurants.
- Operation Type — optimized for moderate throughput beverage service
- Kitchen Type — suitable for compact commercial bar setups
- Foodservice Category— ideal for hospitality and restaurant back bars
- Workload Qualifier — supports consistent beverage storage in busy environments
- Use Case — facilitates efficient front-and-back bar operations
Why Choose Beverage Air BB48HC-1-PT-B?
Compared to similar models, this Beverage Air unit combines durable construction with environmentally friendly refrigeration and pass-thru convenience, offering seamless workflow and secure storage. Its galvanized interior, lockable doors, and ease of maintenance support operational efficiency and sanitation, making it a reliable choice for commercial beverage refrigeration in hospitality environments.
- Compact footprint with 48-inch width for versatile installation
- Self-contained, side-mounted refrigeration with eco-friendly R290 refrigerant
- Heavy-duty epoxy-coated shelves for demanding daily use
- Lockable solid doors ensure secure beverage storage
- UL and cULus listed for safety and compliance in commercial applications
