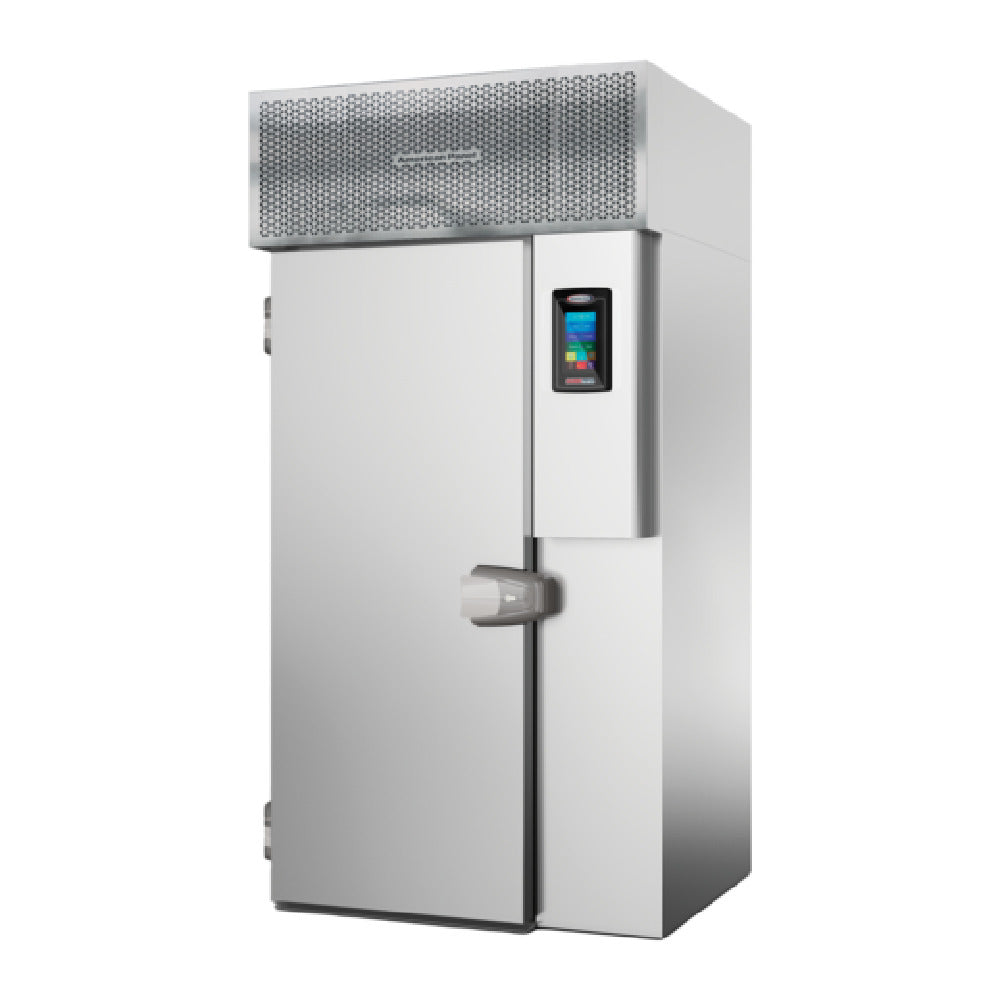

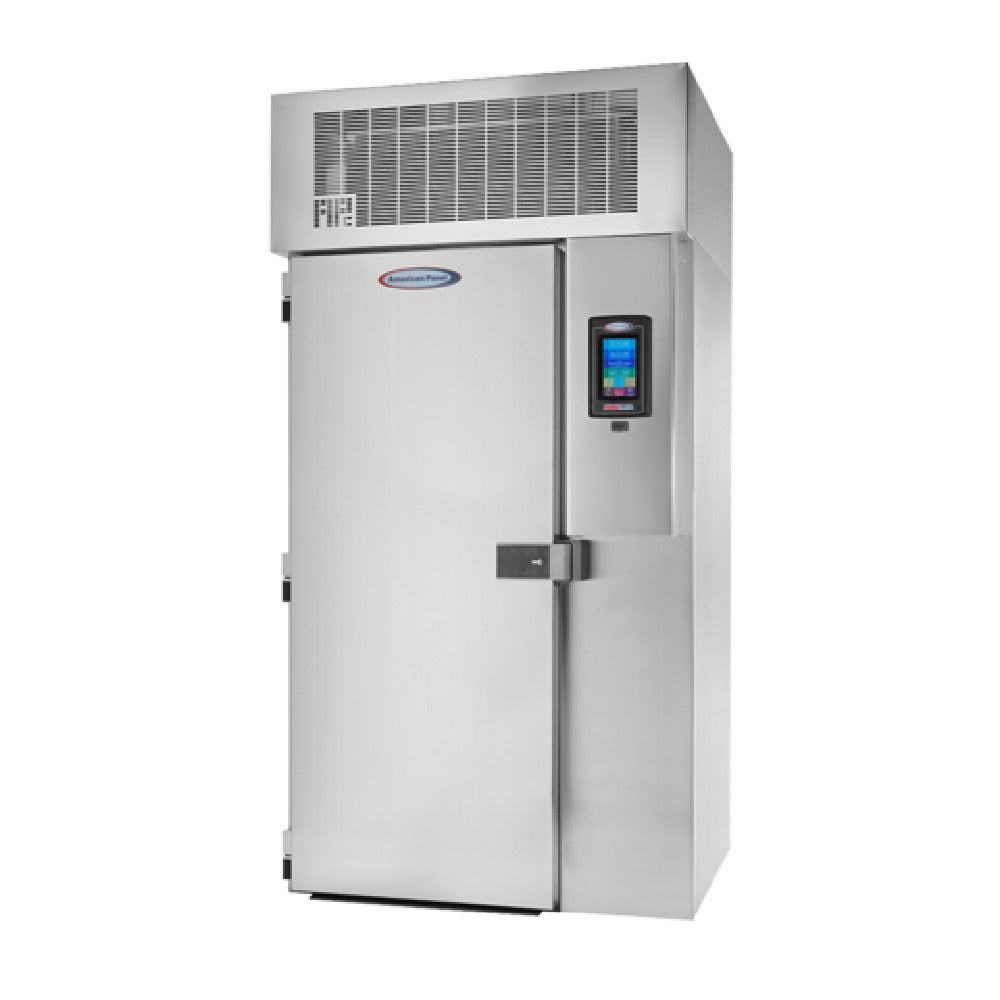

The American Panel AP20BCF200-3 HURRiCHiLL™ Blast Chiller/Shock Freezer Roll-in is a commercial-grade refrigeration unit designed for precise and rapid temperature management in professional foodservice environments. As a self-contained, roll-in model, it accepts a mobile rack (not included) capable of holding either twenty 12" x 20" x 2.5" or ten 18" x 26" pans, enabling efficient product handling. It boasts a blast chill capacity of 200 lbs. from 160°F to 38°F within 90 minutes, and a shock freezer function capable of freezing 120 lbs. from 160°F to 0°F in 240 minutes, making it suitable for high-volume kitchens that require quick cold chain recovery and food safety adherence. Constructed with stainless steel interior and exterior, this unit ensures durability and ease of maintenance, while its 7" LCD touch screen interface facilitates precise programming. The model operates on 208V/60Hz/3-phase electrical supply, drawing 19.5 amps, with a rated 2-1/2 HP compressor, and is fully field wired to a 30 amp circuit. It is UL Classified, NSF approved, and designed for long-term reliability in demanding commercial settings.
Top American Panel AP20BCF200-3 Features
The American Panel AP20BCF200-3 blast chiller and shock freezer combine high-capacity performance with durability in a stainless steel roll-in model favored by professional kitchens. Its self-contained refrigeration system ensures seamless operation, while the acceptance of a mobile rack maximizes workflow efficiency. Designed for moderate throughput, it is ideal for high-volume foodservice operations needing rapid chill and freeze cycles. Equipped with a user-friendly LCD touch controller and a heated food probe, it simplifies programming and food safety monitoring. The unit’s robust construction supports daily sanitation and maintenance routines essential for commercial environments.
- Capacity: Holds (1) mobile rack for 20 or 10 pan configurations
- Durability traits: Stainless steel interior and exterior for corrosion resistance
- Ease-of-use: 7" LCD touch screen with Quick Start features
- Real-world fit: Compatible with common pans, streamlining workflow in busy kitchens
- Workflow benefit: Field-wired for simplified electrical integration and reliable operation
Best for commercial kitchens seeking rapid chill and freeze processes with durable, high-capacity equipment.
American Panel AP20BCF200-3 Technical Specs
The American Panel AP20BCF200-3 features self-contained refrigeration with air-cooled technology, operating on a 208V/60Hz/3-phase electrical supply, consuming 19.5 amps and delivering 2-1/2 HP of cooling capacity. The unit measures 47.25 inches in width, 42 inches in depth, and 93.88 inches in height, with a weight of 1220 lbs. Its construction comprises stainless steel for both interior and exterior surfaces, ensuring durability and compliance with food safety standards. The blast chiller/freezer handles capacity up to 200 lbs. for blast chilling and 120 lbs. for freezing, with operation temperature ranges from 160°F down to 38°F for chilling, and from 160°F down to 0°F for freezing. The unit includes a heated food probe and a 7-inch LCD controller for precise adjustments. It is UL Classified and NSF approved, supporting sanitation and safety protocols. Typical shipping time ranges from 4 to 6 weeks, and the model is designed to meet demanding commercial kitchen needs with reliable long-term performance.
- Electrical requirements: 208V, 60Hz, 3-phase, 19.5 amps, 2-1/2 HP
- Cooling method: Self-contained air-cooled refrigeration
- Refrigeration type: Self-contained
- Product capacity: 200 lbs. blast chill / 120 lbs. freeze in specified times
- Construction & finish: Stainless steel interior and exterior for durability
- Dimensions: 47.25" W x 42" D x 93.88" H
- Weight: 1220 lbs.
- Temperature range: 160°F to 38°F for chill, 160°F to 0°F for freeze
- Food safety materials: Food-safe stainless steel, easy to sanitize
- Certification: UL Classified, NSF
- Electrical setup: Must be connected to a 30-amp circuit for optimal operation
- Drainage and airflow: Clearances of 4 inches recommended for airflow and drainage
- Cleaning routine: Non-corrosive cleaning compatible with stainless steel
- Maintenance access: Disassembly of panels for routine sanitation
- Placement consideration: Suitable for under-counter or floor-mounted installation in busy kitchens
What is a commercial blast chiller freezer?
A commercial blast chiller freezer is a specialized refrigeration unit designed to rapidly reduce food temperatures in professional kitchen environments. This process preserves food quality, extends shelf life, and ensures safety standards by swiftly chilling hot products or freezing prepared items. The American Panel AP20BCF200-3 combines high-capacity blast chilling and shock freezing functions within a durable, self-contained roll-in design. It is installed in food production areas such as restaurants, institutions, and catering kitchens, where quick temperature transitions are critical for maintaining food integrity and safety—ideal for high-volume foodservice settings requiring dependable, efficient performance.
Top commercial blast chiller freezer for mid-volume foodservice operations
Designed for moderate throughput kitchens, the American Panel AP20BCF200-3 is a robust roll-in blast chiller and shock freezer built for efficient high-volume food processing. Its durable stainless steel construction and integrated touch interface enable precise, consistent cooling and freezing in institutional and restaurant settings. Perfectly suited for mid-volume operations handling large prep workloads, it enhances workflow with reliable rapid chill and freeze cycles, supporting food safety and operational efficiency.
- Operation type — ideal for medium-volume kitchen workflows
- Kitchen setting — suitable for institutional and commercial restaurant spaces
- Foodservice category — optimized for high-volume prep and storage
- Workload qualifier — supports moderate throughput food processing
- Use case — efficient rapid cooling and shock freezing in busy kitchens
Why Choose American Panel AP20BCF200-3
American Panel AP20BCF200-3 stands out with its durable stainless steel build, self-contained refrigeration, and precise digital controls, offering consistent performance in demanding environments. Its high-capacity blast chilling and shock freezing capabilities optimize food safety and quality, while the roll-in design facilitates quick integration into existing kitchen workflows. Designed for long-term reliability, it provides an efficient solution for professional foodservice establishments seeking dependable, high-capacity refrigeration equipment.
- Self-contained refrigeration simplifies installation and maintenance
- Built with corrosion-resistant stainless steel for longevity
- High-capacity design supports large volume processing
- User-friendly LCD touchscreen streamlines operation
- Robust construction tailored for commercial kitchen use
