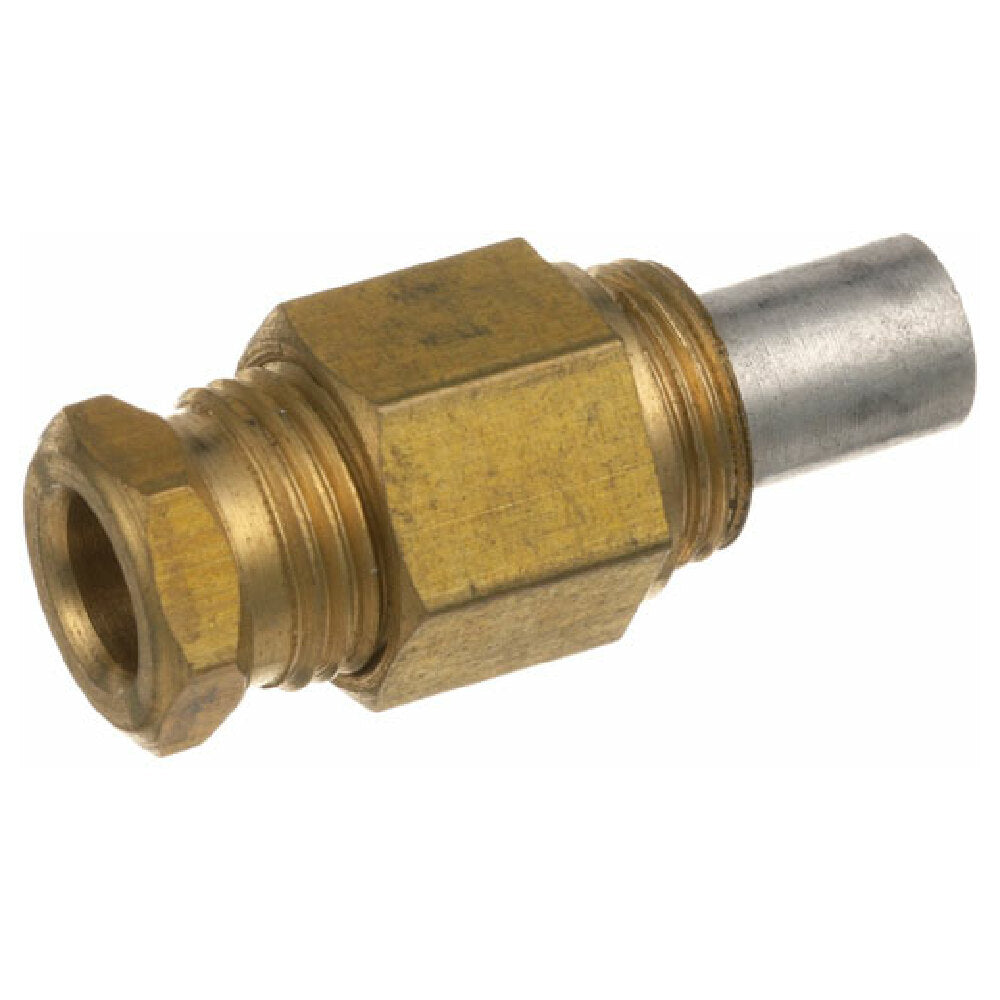

The Grindmaster X049A Orifice (lp) 1/4 .012 is a precision-engineered pilot orifice designed specifically for use with liquid propane (LP) gas applications in commercial foodservice equipment. Manufactured by Grindmaster, this orifice features a 1/4" compression connection with a .012" orifice diameter, making it suitable for maintaining optimal gas flow and ensuring consistent burner performance. It is engineered for direct integration into LP gas devices such as grills, fryers, and broilers, providing reliable fuel regulation in heavy-duty kitchen environments. Its core function is to facilitate precise gas delivery, critical for safe and efficient operation of commercial appliances. The orifice's flat, counter-bored design enhances durability and ease of installation, serving as a vital component in maintaining accurate gas pressure tailored to industry-standard equipment specifications.
Top AllPoints X049A Features
The AllPoints X049A pilot orifice is tailored for commercial kitchen operations, ensuring precise gas flow in LP-powered appliances. Its flat, counter-bored design provides durability against high temperatures and frequent maintenance. Compatible with a variety of commercial fryers, griddles, and broilers, it simplifies gas regulation and replacement, supporting optimal workflow continuity. Crafted with high-quality materials for long-term performance, this orifice aids in maintaining consistent burner output for foodservice applications requiring reliable fuel regulation.
- Optimized gas flow for consistent burner performance
- High-durability stainless steel construction withstands heat
- Easy to install and maintain in commercial appliances
- Compatible with LP gas appliances such as fryers and griddles
- Size and orifice diameter precisely manufactured for reliable operation
Ideal for replacing worn orifices in LP gas equipment to ensure safety and performance
AllPoints X049A Technical Specs
The AllPoints X049A pilot orifice is constructed from durable materials suitable for sustained use in high-temperature commercial environments. It features a 1/4" compression connector, with an orifice diameter of .012", designed for accurate gas flow regulation in LP gas appliances. The orifice weighs approximately 0.1 lbs and is produced in the United States. Its flat, counter-bored design ensures a secure fit and ease of installation, compatible with a range of equipment including American Permanent Ware griddles, Cecilware fryers, Nieco broilers, and Pitco fryers. The component operates within industry-standard safety parameters and is designed for straightforward replacement during routine maintenance. Its compact dimensions (0.25" height, 0.25" width, 1.5" depth) facilitate seamless integration into existing systems, supporting efficient appliance performance.
- Electrical Requirements: None (gas regulation component)
- Material: Stainless steel for high-temperature resistance
- Diameter: .012 inches orifice opening
- Connection Type: 1/4" compression fitting
- Weight: 0.1 lbs; lightweight for easy handling
- Dimension: 0.25" (H) x 0.25" (W) x 1.5" (D)
- Origin: United States manufacturing
- Design Features: Flat, counter-bored for secure installation
Usage Integration Scenarios
- Gas line compatibility: Fits standard 1/4" LP gas supply connections
- Appliance compatibility: Ideal for fryers, griddles, and broilers
- Routine maintenance: Easy replacement during scheduled gas system checks
- Installation environment: Suitable for high-heat, commercial kitchen conditions
- Operational safety: Designed to meet precise gas flow requirements for safety compliance
What is a commercial pilot orifice?
A commercial pilot orifice is a precision component used in gas appliances to regulate the flow of LP or natural gas to burners. It is installed in the gas line or valve assembly, controlling fuel delivery to ensure consistent flame and heat output. The Grindmaster X049A orifice, specifically, features a 1/4" compression connection with a .012" orifice diameter, making it suitable for restaurant-grade equipment such as fryers and griddles. It is commonly employed in commercial kitchens for maintaining reliable and safe operation of gas-powered appliances, enabling precise control over fuel flow tailored to equipment specifications and performance requirements. This component is best suited for mid-volume foodservice settings that demand consistent appliance operation and safety compliance.
Top gas regulator components for commercial kitchens
The Grindmaster X049A orifice by AllPoints offers reliable gas regulation for mid-volume foodservice applications, fitting installation environments such as restaurant fryers and griddles. Designed for operation in commercial kitchen workflows, it ensures safe, consistent burner performance with a durable, easy-to-maintain structure. Ideal for use in device replacement and adjustment tasks within busy foodservice settings, the X049A supports seamless appliance integration and operational efficiency in LP gas systems.
- Suitable for medium-output commercial kitchen appliances
- Constructed for durability in high-temperature environments
- Compatible with standard 1/4" LP gas fittings
- Designed for straightforward installation and replacement
- Supports safe, consistent fuel delivery for quality cooking
