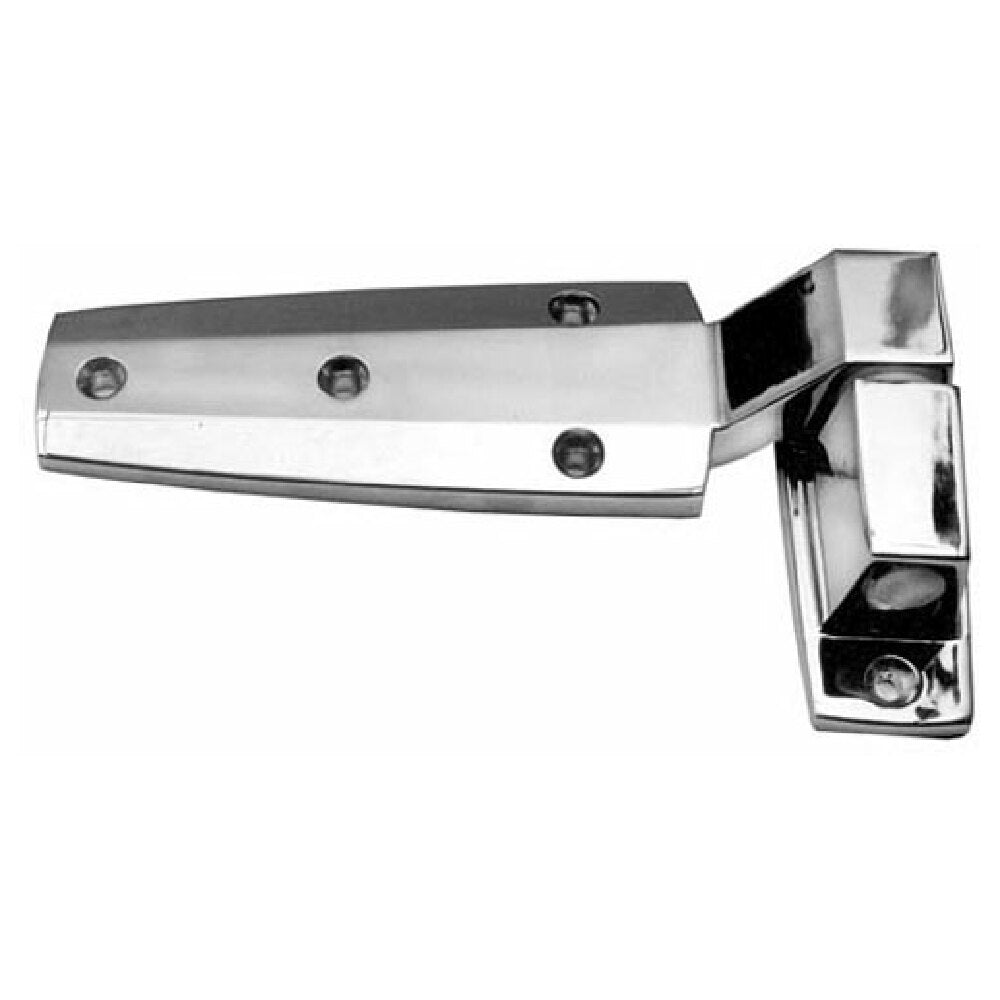

The Vulcan Hart VH138057-14 Hinge Assy is a high-precision, commercial-grade hinge system manufactured by Vulcan Hart, designed for durable and reliable installation in foodservice equipment. This reversible cam rise lift-off hinge features die-cast Zamack construction with a polished chrome finish, optimized for commercial kitchen environments. Key specifications include a 5-1/2" x 10" outside diameter, with strap hole centers at 5-1/16" and flange hole centers at 4-1/2". Its detailed design supports replacement of the standard Kiel Series 9300l and facilitates spring cartridge addition. Designed for precise operation and longevity, this hinge assembly ensures smooth door movement and easy maintenance, making it suitable for foodservice applications demanding consistent performance and rugged materials.
Top AllPoints VH138057-14 Features
This hinge assembly offers a professional-grade, reversible cam rise lift-off mechanism with die-cast Zamack construction and polished chrome. Its flush offset design ensures seamless door alignment. Ideal for commercial foodservice equipment, it simplifies door installation and maintenance through its lift-off feature. The precise dimensions enable easy integration with various appliance models, supporting consistent door operation in high-use settings. Engineered for durability, it withstands frequent cycles while maintaining smooth, reliable function across diverse kitchen workflows.
- Functionality: Supports smooth hinge action with lift-off capability for quick door removal
- Material Durability: Die-cast Zamack alloy with corrosion-resistant polished chrome finish
- Ease of Maintenance: Reversible design facilitates straightforward door servicing and replacement
- Compatibility: Fits standard Kiel Series 9300l applications with specific dimension parameters
- Workflow Efficiency: Designed for quick assembly, minimizing downtime during repairs or reconfiguration
Ideal for replacing worn hinges or upgrading door functionality in commercial foodservice environments.
AllPoints VH138057-14 Technical Specs
The AllPoints VH138057-14 hinge assembly presents a robust construction with a height of 1.5 inches, width of 3 inches, and depth of 10 inches. Weighing 2.82 lbs, it is crafted from high-quality die-cast Zamack with a polished chrome finish suitable for heavy use in commercial kitchens. The hinge is designed for straightforward installation, featuring a standardized flange hole spacing of 4-1/2" and strap hole centers at 5-1/16". It supports the replacement of existing Kiel Series 9300l hinges, with dimensions tailored for compatibility with a broad range of commercial appliances. This hinge’s mechanical construction ensures dependable operation within temperatures typical for foodservice environments, and its corrosion-resistant material promotes long-term sanitation and ease of cleaning.
- Dimensions: 3" W x 10" D x 1.5" H, compatible with standard door openings
- Weight: 2.82 lbs for ease of handling during installation
- Material: Die-cast Zamack alloy with polished chrome exterior for corrosion resistance
- Replacement Compatibility: Fits Kiael Series 9300l hinges with precise hole center measurements
- Operation Conditions: Suitable for typical foodservice temperatures, durable for high-cycle use
- Electrical Requirements: Not applicable
- Construction & Finish: Die-cast Zamack, polished chrome
- Food Safety: Non-porous material compatible with standard cleaning procedures
- Installation: Standard flange hole spacing for easy integration into existing assemblies
- Maintenance: Reversible design with lift-off feature for quick door servicing
What is a commercial hinge assembly
A commercial hinge assembly is a mechanical component designed for frequent use and reliable performance in foodservice equipment, such as oven doors, refrigeration units, and access panels. The Vulcan Hart VH138057-14 Hinge Assy is a precision-engineered, lift-off hinge with a reversible cam rise action, made of corrosion-resistant die-cast Zamack with a chrome finish. Installed in commercial kitchen environments, this hinge supports smooth door operation and ease of maintenance, especially useful for high-turnover foodservice settings where durability and quick repairs are essential. It is ideal for standard applications requiring precise dimensions and robust construction for long-term, restaurant-ready performance.
Top Commercial Hinges for Foodservice Settings
Constructed for reliable operation in moderate workload foodservice environments, the Vulcan Hart VH138057-14 hinge assembly by AllPoints provides durable, corrosion-resistant performance with precise fit for commercial kitchen applications
- Operation_type — Suitable for moderate throughput kitchens
- Kitchen_type — Ideal for compact commercial spaces
- Foodsservice_category — Supports restaurant and cafeteria doors
- Workload_qualifier — Designed for consistent daily use
- Use_case — Facilitates efficient door removal and maintenance
Why Choose AllPoints VH138057-14?
The AllPoints VH138057-14 hinge assembly distinguishes itself with a high-quality die-cast Zamack construction and a polished chrome finish, offering superior corrosion resistance compared to standard hinges. Its lift-off capability enables quick door servicing, reducing downtime and labor costs. Engineered for compatibility with Kiel Series 9300l hinges, it ensures a seamless fit for a variety of commercial refrigeration and equipment doors. The durable design supports frequent cycles, maintaining reliable operation in busy foodservice environments without sacrificing sanitation or ease of maintenance.
- Compact design optimizes space for tight kitchen layouts
- Self-contained assembly simplifies installation and replacement
- Chewable ice compatible for foodservice equipment applications
- Restaurant-ready, built for high-cycle durability
- Enhanced corrosion resistance extends service life in busy kitchens
