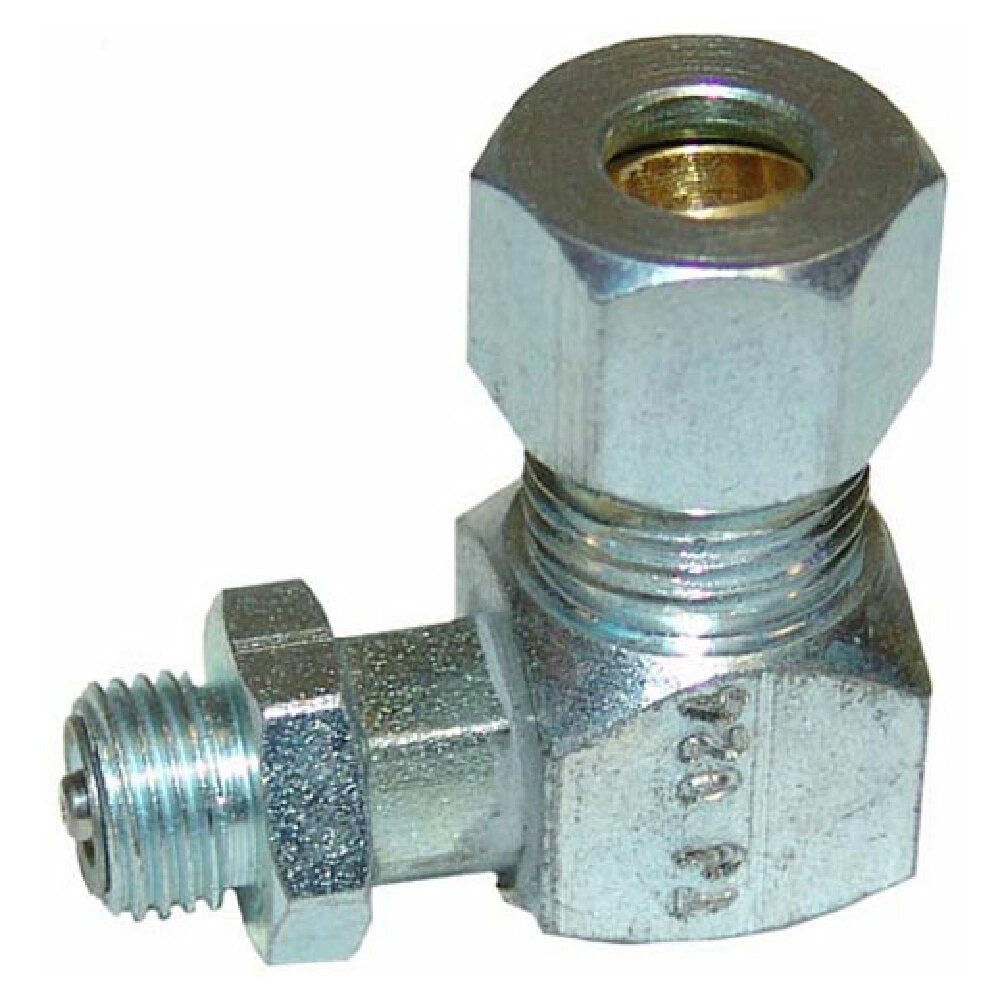

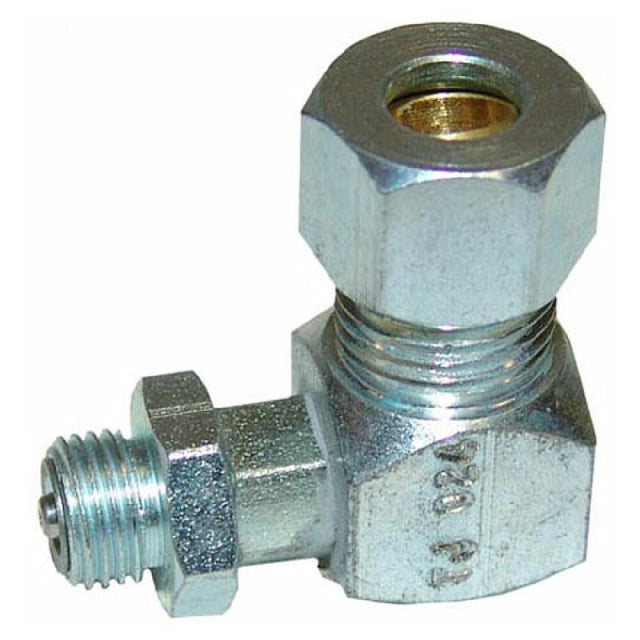

The White Rodgers TJ024 Orifice Elbow (nat) with a 5/16" diameter and 32 threads (#77) is a precision-engineered component designed for commercial gas appliances. Manufactured by White Rodgers, this orifice elbow facilitates accurate pilot and main burner ignition in appliances such as fryers and other foodservice equipment. Its durable brass construction ensures corrosion resistance and longevity, enabling dependable operation in high-demand kitchens. The model features a 1/4" connections compatible with standard gas lines, making it suitable for use in professional cooking setups requiring precise gas flow regulation and reliable performance within fryers, broilers, and gas-powered cooking equipment.
Top AllPoints TJ024 Features
The AllPoints TJ024 Orifice Elbow offers essential functionality for commercial kitchen applications, applying precise gas flow control to help maintain consistent burner performance. Constructed from durable materials such as brass, it ensures long-term reliability and resistance to corrosion. Its 5/16-32 threading allows for straightforward installation and maintenance in high-volume fryer setups and gas-powered appliances. Designed for expert use, it enhances workflow efficiency by ensuring secure connections and minimal downtime in busy foodservice environments.
- Function: Ensures precise gas flow for stable burner ignition and operation
- Durability: Made from corrosion-resistant brass for long-term use
- Ease-of-use: Features standard 5/16-32 threading for quick installation
- Compatibility: Fits common gas line connections in commercial fryers
- Workflow benefit: Facilitates reliable, safe operation in high-demand kitchens
Ideal for professional fryer maintenance, replacement, or retrofit projects requiring dependable gas flow regulation.
White Rodgers TJ024 Technical Specs
The White Rodgers TJ024 Orifice Elbow features a 5/16-32 threaded connection for secure gas line attachment and a 1/4" connection inlet designed for compatibility with commercial fryers and gas appliances. Crafted from high-quality brass, it provides corrosion resistance and durability in demanding kitchen environments. The product weighs only 0.1 lbs, with dimensions of 1" in height, width, and depth, supporting space-efficient installation. Its operating range is suited for typical gas appliances, and it requires no electrical power or complex maintenance routines. Designed for easy disassembly and replacement, this orifice elbow ensures minimal downtime during routine service or repairs.
- Connection: 5/16-32 threaded inlet for standardized gas line fitting
- Material: Brass construction for corrosion resistance and longevity
- Dimensions: 1" height, width, and depth, lightweight at 0.1 lbs
- Operating Range: Suitable for standard gas pressure applications in commercial kitchens
- Installation: Designed for quick disassembly and ease of maintenance
What is a commercial orifice elbow
A commercial orifice elbow is a specialized gas fitting component used in foodservice equipment to regulate and direct gas flow to burners or pilot lights. Typically made from durable materials like brass, it ensures precise gas delivery essential for consistent appliance performance. Installed within gas-powered commercial kitchen devices such as fryers, it provides reliable operation and safe connections. The White Rodgers TJ024 orifice elbow, specifically, features a 5/16" inlet and 32-thread configuration, making it suitable for various high-demand foodservice environments that require accurate gas regulation for safe, efficient operation.
Top gas fitting components for foodservice equipment
A high-quality orifice elbow ensures secure gas flow in mid-volume commercial kitchens. White Rodgers TJ024, designed for reliable operation in fryers, delivers consistent ignition and burner stability in busy foodservice settings. Its patent brass construction and standard threading facilitate simple installation, supporting efficient workflow and routine maintenance in restaurant-ready applications.
- Operation Type — suitable for medium-demand commercial kitchens
- Kitchen Type — compact spaces with high throughput
- Foodservice Category — essential for fryer and gas appliance repair
- Workload Qualifier — designed for moderate operational cycles
- Use Case — replacement component for high-volume fryer gas systems
Why Choose AllPoints TJ024
Unlike generic fittings, the AllPoints TJ024 Orifice Elbow is engineered for precision, durability, and ease of maintenance in commercial kitchens. Its brass construction withstands rigorous use, while the standardized threading simplifies installation. This component guarantees dependable gas delivery, contributing to safer, more efficient appliances and minimizes downtime during repairs or upgrades.
- Compact footprint designed for space-constrained installations
- Made from corrosion-resistant brass for longevity
- Standard 5/16-32 threading for widespread compatibility
- Designed for reliable, restaurant-ready operation
- Built for routine disassembly and maintenance efficiency
