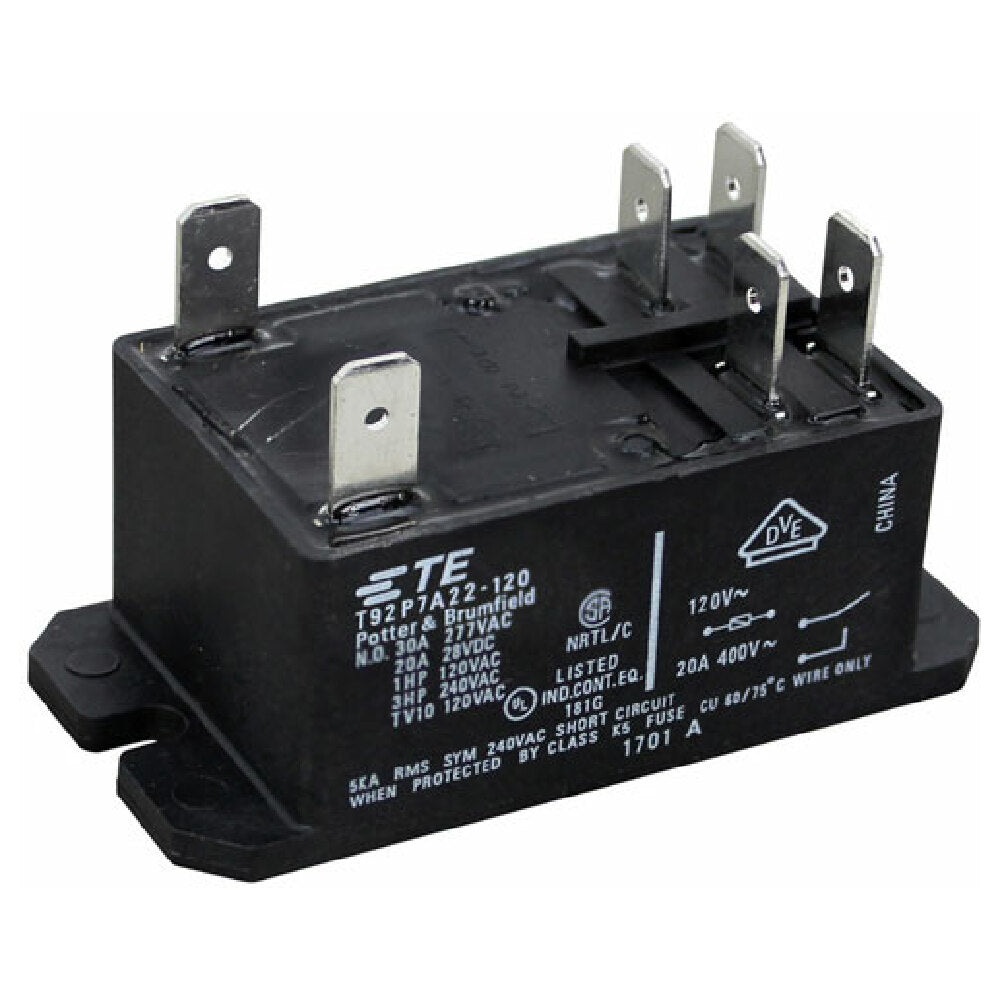

Hobart PS2649 Relay 1.7 Inch 120V Coil 20A/400V for Hobart Dishwasher

The Winston Products PS2649 Relay is a robust industrial relay designed for commercial dishwashing equipment, notably compatible with Hobart dishwashers. This relay features 6 tab terminals, a 120V coil, and multiple voltage/amp ratings—including 20A/400V and 30A/277VAC—making it suitable for controlling high-power dishwasher functions in foodservice environments. Its durable construction ensures reliable operation in demanding commercial kitchen applications, promoting efficient cleaning cycles and equipment longevity. As a key component in dishwashing automation, the PS2649 relay enhances operational consistency and safety standards within busy restaurant, institutional, or catering operations.

Top AllPoints PS2649 Features

The PS2649 relay from AllPoints offers precise control and durability, essential for commercial dishwashing systems. Its 6-tab terminal design simplifies installation, while the robust coil withstands various voltages for versatile use. Engineered for steady operation under frequent cycling, this relay supports HACCP-compliant workflows and reduces downtime through simple maintenance procedures.

• Reliable switching for commercial dishwasher circuits
• Constructed with corrosion-resistant materials for longevity
• Tool-free terminal connections facilitate quick replacements
• Designed to fit standard 6-tab configurations in dishwashers
• Supports 120V coil with high current ratings for robust performance

Ideal for foodservice operations requiring dependable relay control for Hobart dishwashers, the PS2649 ensures consistent functionality during daily workflows.

What is a commercial relay?

A commercial relay is a switching device used in industrial kitchen equipment to control high-current appliances. The Winston Products PS2649 Relay specifically manages dishwasher motor and heating functions by connecting power circuits and providing automatic control. Installed within undercounter dishwasher assemblies, it offers precise, reliable operation aligned with NSF and UL certifications, suitable for mid-volume restaurant kitchens, institutional catering, and foodservice environments focused on sanitation and operational efficiency.

Top relay controls for mid-range kitchens

This relay is built for steady, consistent operation in small prep kitchens and compact foodservice setups. Its durable design supports moderate workflows typical in regional kitchens and institutional foodservice environments, ensuring dependable control of dishwashing cycles with minimal maintenance.

• Steady operation — suited for small prep kitchens
• Compact footprint — fits tight commercial spaces
• Commercial dishwashing — essential in restaurant and cafeteria settings
• Moderate throughput — supports up to 200 can cycles per day
• Manual and automatic control integration for daily workflows

AllPoints PS2649 Technical Specs

The Winston Products PS2649 relay features a 120V coil with 20A/400V and 30A/277VAC ratings, ensuring robust performance in dishwashing systems. Its small dimensions—1.7” wide, 2.3” deep, and 1.5” high—facilitate easy integration into existing electrical panels. Made from corrosion-resistant materials, this relay is designed for installation in commercial dishwashers and meets relevant safety and sanitation standards, including Proposition 65 compliance. Weighing only 0.18 pounds, it is lightweight yet engineered for durability in demanding kitchen environments. Its terminal configuration allows for tool-free replacement, simplifying routine maintenance. The relay is suitable for use in standard NSF-rated dishwashers and features reliable electrical and mechanical performance with a lifespan optimized for repetitive daily cycles.

• Electrical Requirements: 120V, 50/60Hz, single-phase, 20A/400V or 30A/277VAC
• Construction & Finish: Corrosion-resistant components, durable plastic housing
• Certifications: NSF, PROP 65
• Dimensions: 1.7" W x 2.3" D x 1.5" H
• Weight: 0.18 lbs
• Installation & Maintenance: Compatible with standard 6-tab mounting, tool-free terminal connection, accessible for quick replacement
• Operation Environment: Suitable for indoor use within waterproof or ventilated dishwasher panels
• Usage Compatibility: Supports automatic control of motor and heating functions in dishwashers
• Operating Range: Designed to withstand typical kitchen electrical environments
• Safety & Compliance: Meets UL standards and NSF sanitation guidelines

• Requires minimal clearance for installation within dishwasher panels
• Connections ideal for commercial dishwashing electrical wiring
• Supports HACCP workflows with reliable switching performance
• Suitable for installation in control panels with standard circuit wiring
• Designed for easy testing and replacement as part of maintenance routines

Why Choose AllPoints PS2649?

The PS2649 relay from AllPoints stands out due to its self-contained, rugged design, ensuring long-term reliability in foodservice dishwashing operations. Its high-current ratings and corrosion-resistant construction facilitate seamless integration into commercial dishwashers, supporting efficient workflows and sanitation standards. Compared to generic relays, it offers certified safety, precise control, and easy maintenance, making it preferred for restaurant-ready dishwashing systems and institutional kitchen setups.

• Certified NSF and PROP 65 compliant for foodservice applications
• Compact, self-contained design simplifies installation and replacement
• Durable, corrosion-resistant materials enhance longevity in moist environments
• High current ratings support reliable operation of dishwashing loads
• Lightweight form factor reduces installation complexity within control panels
