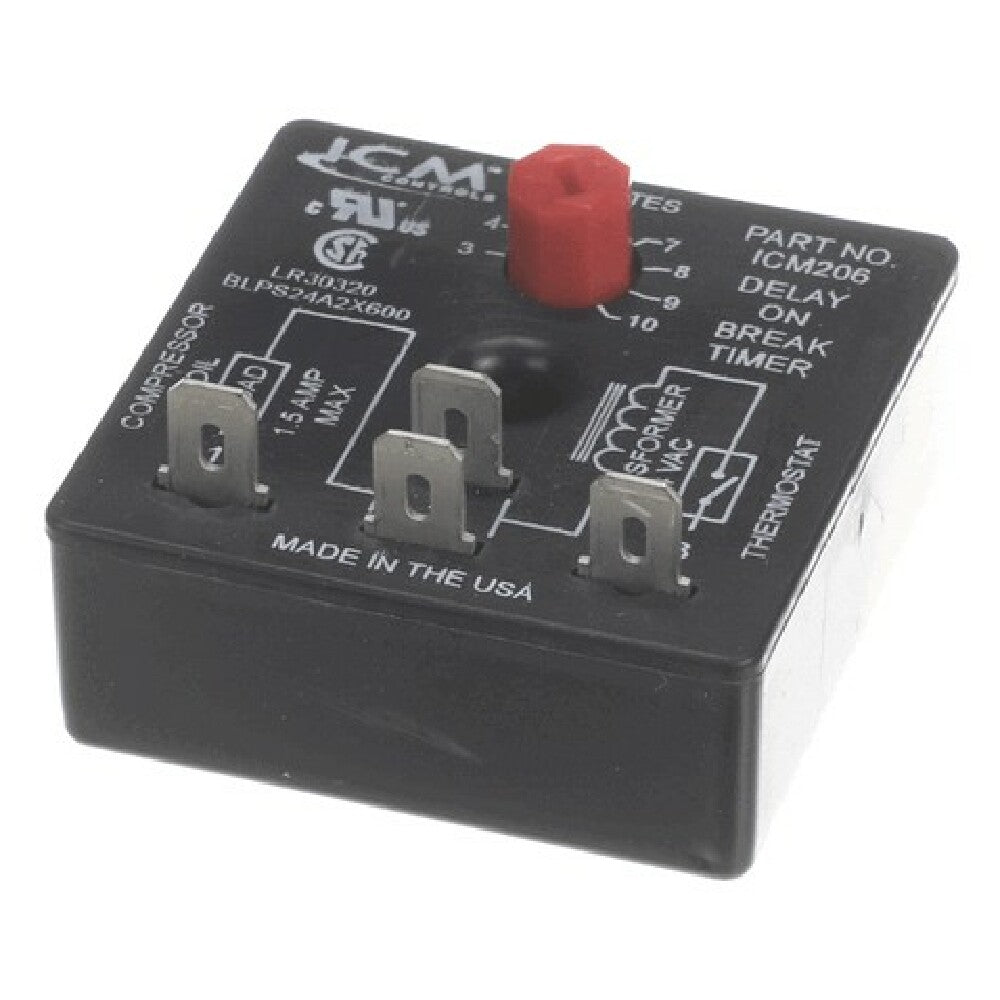

The Aaon Inc. P45120 Relay Td 300 Sec 24v is a high-precision electrical relay designed for commercial applications, offering reliable performance in automated control systems. As a product of Aaon Inc., it features a 24-volt coil with a dedicated 300-second “On” delay, ensuring precise timing in process automation. Its compact form factor (2\" width x 2.1\" depth x 1.15\" height) allows seamless integration within various commercial HVAC and refrigeration control panels, serving industries that demand dependable relay functionality for climate management, refrigeration, and industrial automation. The P45120 relay's durable construction and exact specifications support consistent operation in demanding commercial environments.
Top AllPoints P45120 Features
The P45120 relay provides precise timing with a 300-second activation window, suitable for controlling system start/stop sequences. Constructed with durable materials to withstand frequent switching and environmental exposure, it facilitates maintenance with accessible terminals. Commonly integrated into HVAC control panels and refrigeration units, it ensures operational efficiency. Its compact design simplifies installation in confined electrical enclosures, enhancing workflow reliability for service technicians and system integrators.
- Functionality: Accurate 300-second relay activation for process control
- Durability: Built with robust electrical contacts and high-grade insulation
- Ease-of-Use: Quick installation with screw terminal connections
- Application Fit: Ideal for HVAC and refrigeration system controls
- Workflow Integration: Compact footprint supports retrofit and new installations
Suitable for commercial HVAC and refrigeration system controls requiring precise timing
P45120 Technical Specs
The P45120 relay operates at a coil voltage of 24 volts with a standard frequency of 50/60 Hz, designed for direct control through existing systems. Its typical application involves switching loads up to 10A, with a self-contained design that mounts easily within electrical panels. The relay's case is constructed from durable plastic, providing electrical insulation and heat resistance up to 85°C (185°F). Its compact size (2\" W x 2.1\" D x 1.15\" H) and lightweight (0.1 lbs) facilitate straightforward installation. The relay's long-lasting contacts and high-quality internal components support reliable switching and minimal maintenance. It is rated for continuous operation under typical commercial environmental conditions, with a shelf life aligned with industrial standards.
- Electrical Requirements: 24V AC/DC coil voltage, 50/60Hz, up to 10A load capacity
- Construction & Finish: Plastic housing with high-grade metal contacts
- Dimensions: 2\" W x 2.1\" D x 1.15\" H
- Operating Range: Functional in temperatures up to 85°C (185°F)
- Material Safety: Non-hazardous, suitable for electrical panel integration
- Cooling Method: Self-contained, no external cooling
Installation scenarios include electrical panel wiring, relay module replacements, and integration within control boards requiring precise timing and switching. Compatibility with 24V DC/AC power supplies, secure screw terminals, and clear mounting provisions support consistent performance in demanding commercial environments.
What is a commercial relay?
A commercial relay is an electrically operated switch used in industrial and building automation systems to control electrical circuits remotely. The Aaon Inc. P45120 relay is a reliable OEM component designed for precise timing functions, specifically with a 300-second delay, ideal for HVAC, refrigeration, and industrial automation applications. It is installed in control panels and automation systems, managing system startup sequences and process controls in commercial kitchens, cold storage facilities, or manufacturing plants. Its robust construction and specific timing capacity make it suitable for medium-duty workload applications requiring consistent relay performance.
Top relay solutions for HVAC and refrigeration in commercial foodservice
The P45120 relay provides durable operation and precise timing for medium-volume control applications in commercial foodservice environments. Aaon Inc. P45120 ensures dependable performance in HVAC and refrigeration systems, supporting automation workflows in industrial kitchens and cold storage facilities. It is engineered for reliable control, with a focus on operational longevity and precise delay functions, making it suitable for restaurant-ready and commercial kitchen equipment operation.
- Operation Type — suitable for moderate-duty HVAC and refrigeration control
- Kitchen Setting — designed for compact commercial kitchens and cold storage
- Application Category — optimal for climate control and process automation systems
- Workload Qualifier — supports medium throughput control sequences
- Use Case — managing timed system start/stop in foodservice equipment
Why Choose AllPoints P45120?
The AllPoints P45120 relay distinguishes itself with robust design and precise timing features that enhance automation reliability. Its compact form factor and high-quality internal components support seamless integration into existing control systems, reducing downtime and maintenance efforts. Compared to other relays, it delivers consistent performance and longevity under demanding industrial conditions, making it an excellent choice for commercial kitchen and refrigeration control applications.
- Compact footprint supports easy retrofit in control panels
- High-grade materials ensure durability in harsh environments
- Precise 300-second timing improves automation accuracy
- Reliable switching capacity minimizes operational disruptions
- Designed for commercial-grade HVAC and refrigeration systems
