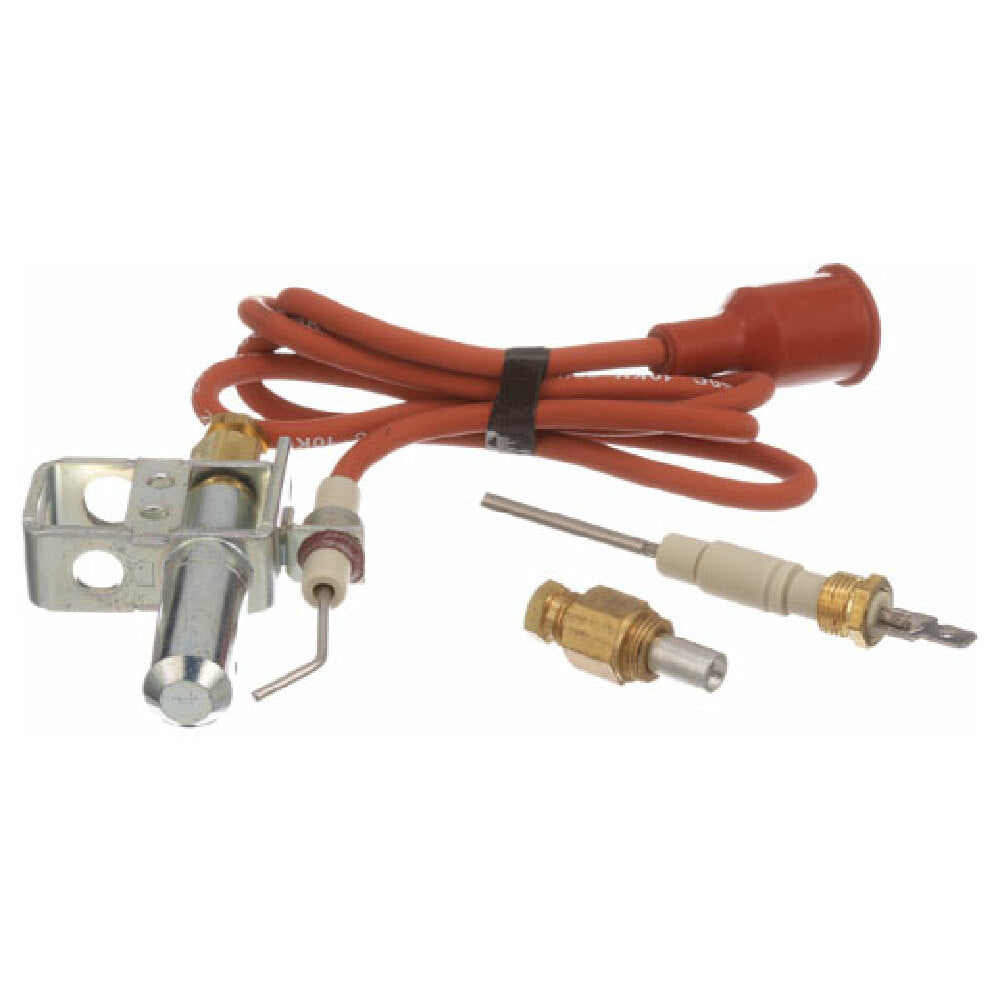

The Middleby Marshall M6398 Ignitor Pilot is a precision-fabricated component essential for ensuring reliable ignition in commercial foodservice equipment. Manufactured by Middleby Marshall, this pilot assembly features a 1/4" tube size with a flame pattern oriented to the left, designed for seamless integration with natural gas and liquid propane systems. Equipped with an igniter and a 35" spark lead wire, it includes a high-quality boot and a flame sensor (part #44-1015), facilitating efficient flame detection and ignition control in high-demand kitchen environments. This robust pilot assembly provides critical ignition functionality for commercial conveyor ovens and specialized cooking units, offering technical consistency and durability in demanding foodservice operations.
Top AllPoints M6398 Features
Designed for commercial oven maintenance and ignition systems, the AllPoints M6398 Ignitor Pilot offers precise flame control with a durable, corrosion-resistant construction. It provides reliable ignition in high-use kitchen workflows, featuring a 1/4" tube diameter, left-side flame pattern, and a reliable flame sensor. Its compatibility with natural gas and LP systems ensures smooth integration for various cooking equipment, supporting intensive daily throughput. This pilot assembly simplifies troubleshooting and replacement due to its standardized design and high-quality materials, maintaining operational efficiency in busy culinary environments.
- Flame pattern: Left-side flame orientation with precise ignition
- Tube size: 1/4" diameter for universal compatibility
- Construction: High-grade durable materials resist corrosion and wear
- Ease of maintenance: Modular design simplifies replacement and troubleshooting
- Application fit: Suitable for conveyor ovens and specialized baking equipment
Effective for commercial oven ignition systems requiring reliable pilot operation.
AllPoints M6398 Technical Specs
The AllPoints M6398 Ignitor Pilot is engineered for dependable performance within standard electrical parameters, compatible with typical commercial gas oven systems. It features a flame sensor (part #44-1015) and a wire spark lead extending 35 inches for flexible installation. Constructed from corrosion-resistant materials and designed for longevity in high-temperature environments, it supports gas combustion systems requiring a 1/4" tube connection and left flame pattern. The assembly weighs 0.38 lbs and measures 3" high, 1.75" wide, and 3.25" deep, with an operating temperature range suitable for typical culinary applications. Its design ensures compatibility with natural gas and liquid propane setups, supporting efficient ignition and flame stability under continuous operation.
- Electrical requirements: Standard gas ignition voltage with flame sensor support
- Material finish: Robust, corrosion-resistant construction in high-temperature environments
- Connection type: 1/4" tube for universal installation compatibility
- Dimensions: 3" (H) x 1.75" (W) x 3.25" (D)
- Weight: 0.38 lbs for easy handling and replacement
- Operational environment: Suitable for oven and cooking equipment in commercial kitchens
- Electrical connection: Compatible with standard gas ignition circuits
- Ventilation needs: Requires proper airflow for ignition reliability
- Installation clearance: Clear space around ignition assembly per manufacturer guidelines
- Maintenance access: Designed for quick removal in routine service
- System integration: Adequate wiring spacing supports seamless circuit connection
What is a commercial ignitor pilot?
A commercial ignitor pilot is a high-precision combustion component used to initiate and sustain gas flame in industrial-grade culinary equipment. Typically installed in oven and burner systems, the pilot provides a reliable ignition source, ensuring safety and consistent operation in high-volume foodservice settings. The Middleby Marshall M6398 Ignitor Pilot features a 1/4" tube diameter, left flame pattern, and integrated flame sensor, making it suitable for self-contained gas systems in busy commercial kitchens. Its robust design supports continuous use in conveyor ovens, broilers, and other specialized cooking appliances, supporting optimal flame stability and operational safety in high-throughput environments.
Top commercial Ignitor Pilots for high-volume foodservice operations
Designed for reliable ignition in demanding commercial foodservice setups, the middleby marshall m6398 ignitor pilot offers durable construction and precise flame control suited for continuous operation in high-output kitchens. AllPoints M6398 enhances operation efficiency and safety in food preparation workflows, especially in conveyor oven applications. Suitable for high-volume restaurant kitchens and institutional cooking environments.
- Operation Type — high-capacity conveyor and oven systems
- Kitchen Setting — large-scale commercial kitchen environments
- Foodservice Category — conveyor ovens and gas appliance support
- Workload Qualifier — consistent ignition for moderate throughput
- Use Case — reliable flame initiation in continuous cooking workflows
Why Choose AllPoints M6398?
The AllPoints M6398 Ignitor Pilot distinguishes itself from standard components through its superior construction and compatibility with various gas systems. Its 1/4" tube design, durable flame sensor, and left-side flame pattern facilitate seamless integration into multiple oven models. The high-quality materials and straightforward installation process improve operational uptime, while its corrosion-resistant features ensure longevity in high-temperature cooking environments. This assembly enhances overall equipment reliability and safety, making it an ideal choice for demanding commercial kitchens seeking dependable ignition solutions.
- Compact footprint: Fits diverse oven and burner configurations efficiently
- Material durability: Built from corrosion-resistant, high-temperature materials
- Enhanced safety: Flame sensor supports reliable ignition control
- Self-contained design: Simplifies installation and routine maintenance
- Optimized for commercial use: Supports continuous operation in high-volume settings
