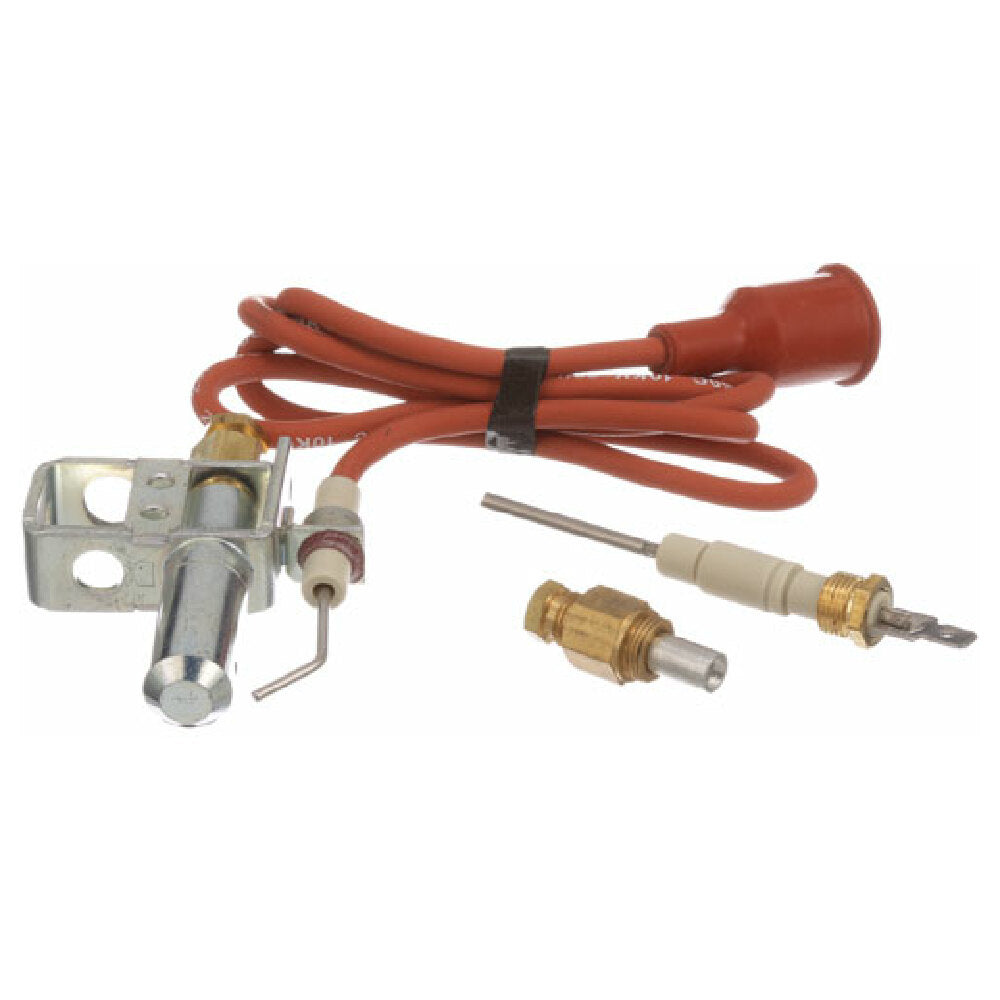

The Johnson Controls J987DDW Ignitor Pilot is a high-precision, factory-configured pilot assembly designed for reliable ignition in commercial heating systems. Manufactured by Johnson Controls, this ignitor pilot features a durable 1/4" tube with a flame pattern oriented to the left, integrated igniter with a 35-inch spark lead, and includes a protective boot. It also incorporates a flame sensor (Part # 44-1015) to enhance safety and system stability. With its robust construction and specialized components, it delivers consistent pilot lighting performance in commercial HVAC and industrial applications, ensuring efficient burner operation and fuel economy.
Top Johnson Controls J987DDW Features
The J987DDW ignitor pilot is designed for integration into commercial combustion systems requiring precise ignition and flame sensing. Its durable factory assembly ensures quick replacement and dependable operation within modern HVAC or industrial burners. The left-pattern flame and 35" spark lead facilitate straightforward installation in tight spaces, while the flame sensor guarantees safety and optimized fuel consumption. Its 1/4" tube diameter aligns with standard piping, supporting reliable fuel flow control.
- Robust ignition performance in industrial heating systems
- Constructed with durable metal materials for long service life
- Easy replacement via factory-mounted assembly
- Compatible with 1/4" fuel tubes for versatile installation
- Provides certified flame sensing and ignition spark delivery
Ideal for HVAC and industrial burner setups requiring precise ignition control.
Johnson Controls J987DDW Technical Specs
The Johnson Controls J987DDW ignitor pilot operates with a 24V electrical supply in typical commercial systems, featuring a 35" wire spark lead and flame sensor integration for enhanced safety. Its construction incorporates high-grade metal components designed to withstand operational temperatures typical of industrial and HVAC environments. The unit’s compact dimensions (3" height x 1.75" width x 3.25" depth) and lightweight build (0.38 lbs) facilitate straightforward installation and service in confined spaces. Its durable materials and flame sensing capability promote consistent ignition, minimizing downtime and ensuring system efficiency. The component is designed for use with gas-fired burners, supporting precise flame control and reliable ignition in commercial heating applications.
- Electrical requirements: 24V, single-phase, suitable for commercial control panels
- Wire and lead configuration: 35" spark lead for flexible installation
- Material construction: Metal body with corrosion-resistant finish
- Dimensions: 3" H x 1.75" W x 3.25" D; weight 0.38 lbs
- Flame sensor inclusion: Flame sensor part # 44-1015 with system safety benefits
What is a commercial pilot ignition assembly
A commercial pilot ignition assembly is a crucial component used in gas-fired heating systems to reliably ignite the main burner and maintain safe operation. The Johnson Controls J987DDW Ignitor Pilot is an example designed specifically for industrial and HVAC applications, featuring a flame sensor, ignition spark delivery, and durable construction. These assemblies are typically installed in heating units such as boilers, water heaters, and industrial burners, where precise ignition control ensures operational efficiency and safety. The J987DDW unit's compact size and integration capabilities make it suitable for a wide range of commercial environments, supporting consistent system startup and flame stability in moderate to high-duty settings.
Top Commercial Pilot Ignition Systems for Industrial Heating
Commercial pilot ignition systems provide reliable flame starting solutions for industrial burners and HVAC equipment. The AllPoints J987DDW model by Johnson Controls, designed for moderate workload environments, ensures fast ignition and safety monitoring. Installed in systems such as boilers and water heaters, it offers durable performance and easy maintenance for commercial kitchens, manufacturing plants, and heating facilities.
- Operation type — suitable for industrial burner ignition systems
- Kitchen setting — used in commercial HVAC and industrial environments
- Foodservice category — supports boiler and water heater safety controls
- Workload qualifier — optimized for moderate-volume applications
- Use case — enhances burner ignition reliability and system safety
Why Choose AllPoints J987DDW?
The AllPoints J987DDW ignitor pilot distinguishes itself through its factory-configured assembly featuring a durable flame sensor, precise ignition spark, and compatibility with standard 1/4" fuel tubes. Its robust metal construction and compact design ensure long-lasting performance in demanding industrial settings. Unlike generic ignitors, this model offers quick replacement, system safety integration, and proven reliability, supporting efficient fuel use and consistent burner operation.
- Self-contained design simplifies installation and maintenance
- Constructed with corrosion-resistant metals for longevity
- Supports flame sensing for enhanced safety compliance
- Optimized for standard commercial burner setups
- Compact footprint fits in tight industrial control cabinets
