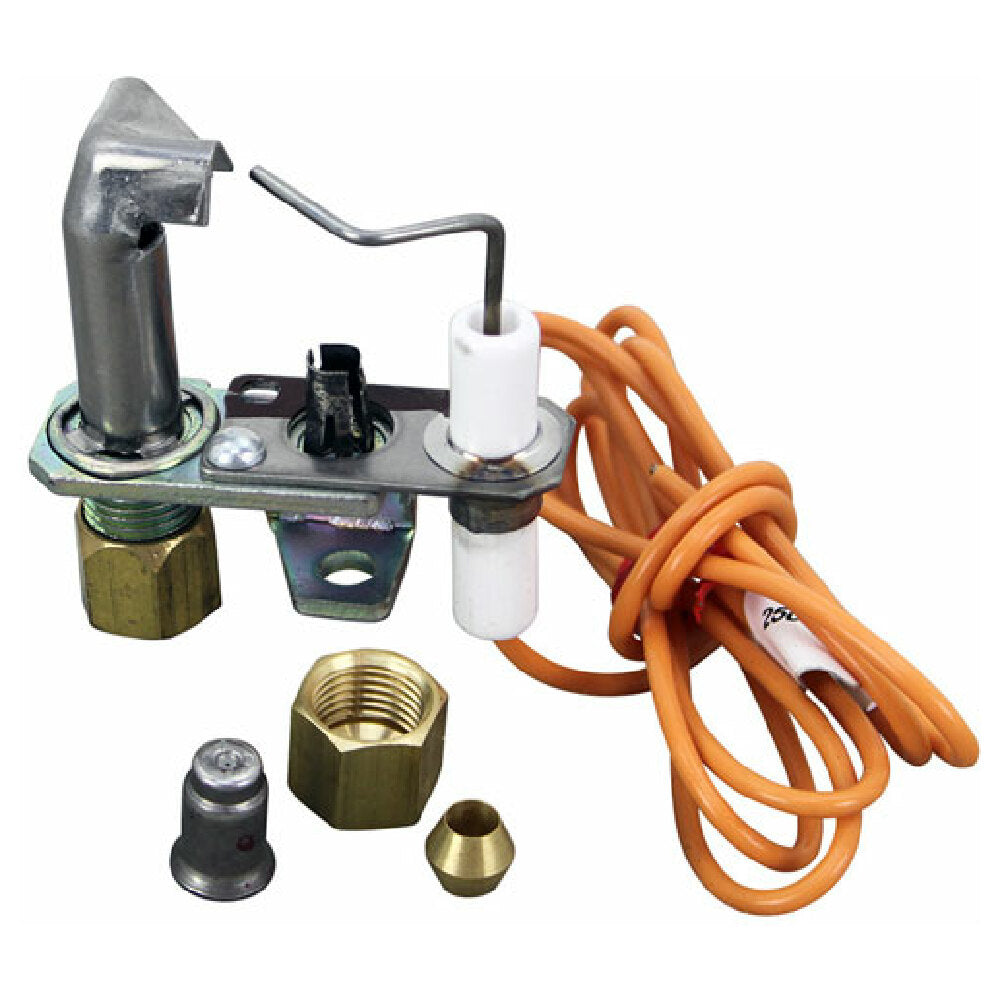

The Garland GL1758901 Pilot Assy W/lead is a critical component in commercial gas appliance ignition systems, specifically designed for use with Garland ovens and convection models such as the Eco Ico Tg and Us Range Series CG Performer II. This factory-installed pilot assembly features a durable right-pattern flame igniter with a 3/16" tube size, integrated with a 24-inch wire for reliable electrical connectivity. It accommodates both natural and LP gas with Orifice # 26-1554, enabling seamless operation across multiple fuel types. Its engineering ensures consistent ignition performance, essential for maintaining safe and efficient oven operation in commercial foodservice environments.
Top AllPoints GL1758901 Features
This pilot assembly delivers precise ignition with a flame pattern optimized for reliable lighting in commercial gas ovens. Engineered with corrosion-resistant materials, it offers long-term durability suitable for busy kitchen settings. Its compact design simplifies installation and maintenance, reducing downtime. Compatible with Garland and Johnson Control modules, it integrates seamlessly into existing gas appliances, ensuring workflow efficiency. The 24" wire length allows flexible placement within oven assemblies, supporting diverse kitchen layouts.
- Efficient ignition performance: Flame pattern ensures reliable startup every cycle
- Corrosion-resistant construction: Durable materials prolong lifespan in hot, humid environments
- Easy installation & maintenance: Compatible with standard ignition terminals, minimizes service time
- Flexible wiring length: 24-inch wire facilitates versatile appliance configurations
- Fuel versatility: Supports both natural and LP gas with designated orifice sizes
Designed for technical integration in commercial gas appliances requiring dependable ignition components
Garland GL1758901 Technical Specs
This pilot assembly from Garland operates with standard gas igniter requirements, featuring a precise flame pattern right igniter for simplified ignition in commercial ovens. The unit weighs just 0.3 lbs and measures 0.88" in width, 3.5" in depth, and 0.5" in height, making it suitable for installation within confined spaces. Made in Mexico, the assembly is constructed from corrosion-resistant materials appropriate for frequent use in high-temperature environments. The design supports both natural and LP gas through the included orifice, with a dedicated flame pattern to ensure uniform ignition. The assembly includes a 24" wiring harness, allowing straightforward electrical connection to control modules, notably Johnson Control G67ag-3, when used with UL-listed or ETL-sanctioned equipment. This pilot assembly is static hazard-free and designed for straightforward replacement and maintenance in high-demand commercial kitchens.
- Electrical requirements: Compatible with standard gas ignition modules, with 24" wiring
- Materials and finish: Corrosion-resistant components, suitable for hot, humid kitchen environments
- Dimensions: 0.88" W x 3.5" D x 0.5" H, lightweight at 0.3 lbs
- Gas compatibility: Supports natural and LP gas via Orifice # 26-1554
- Installation clearances: Suitable for confined spaces, facilitated by flexible wiring and durable mounting
What is a commercial pilot assembly
A commercial pilot assembly is an essential ignition component used in gas-fired appliances such as ovens and convection units, providing a reliable flame source for safe and consistent operation. The Garland GL1758901 Pilot Assy W/lead is specifically designed for industrial kitchen applications, including Garland Eco Ico Tg and Series Cg Performer II ovens, installed in high-usage environments like restaurant kitchens and institutional foodservice. It features a right-pattern flame igniter and supports both natural and LP gas systems, optimized for continuous operation and easy maintenance in commercial settings.
Top Gas Pilot Assemblies for Commercial Foodservice Settings
Reliable ignition in commercial kitchens, the Garland GL1758901 ensures efficient operation in oven applications involving moderate workloads. Crafted with durable materials and compatible with various control modules, it is ideal for installations requiring consistent flame ignition in restaurant and institutional environments. Designed to support medium-volume operations with easy maintenance and precise performance, allPoints GL1758901 is suited for high-demand commercial gas appliances.
- Operation Type — suitable for oven ignition in commercial kitchens
- Kitchen Setting — designed for restaurant and institutional foodservice
- Application Category — essential for gas-fired oven systems in foodservice
- Workload Qualifier — supports moderate throughput with reliable ignition
- Primary Use Case — ensures safe, consistent flame ignition during continuous oven operation
Why Choose AllPoints GL1758901
The AllPoints GL1758901 Pilot Assy offers a robust and reliable solution compared to standard ignition components, featuring a corrosion-resistant design, flexible wiring, and seamless integration with popular control modules. Its compact footprint and durable construction improve operational efficiency, reduce maintenance time, and ensure consistent ignition performance in demanding commercial oven environments.
- Self-contained design with easy replacement features
- Built with corrosion-resistant materials for prolonged durability
- Flexible wiring supports diverse installation setups
- Compatible with Johnson Control and other control modules
- Optimized for restaurant-ready, high-demand oven applications
