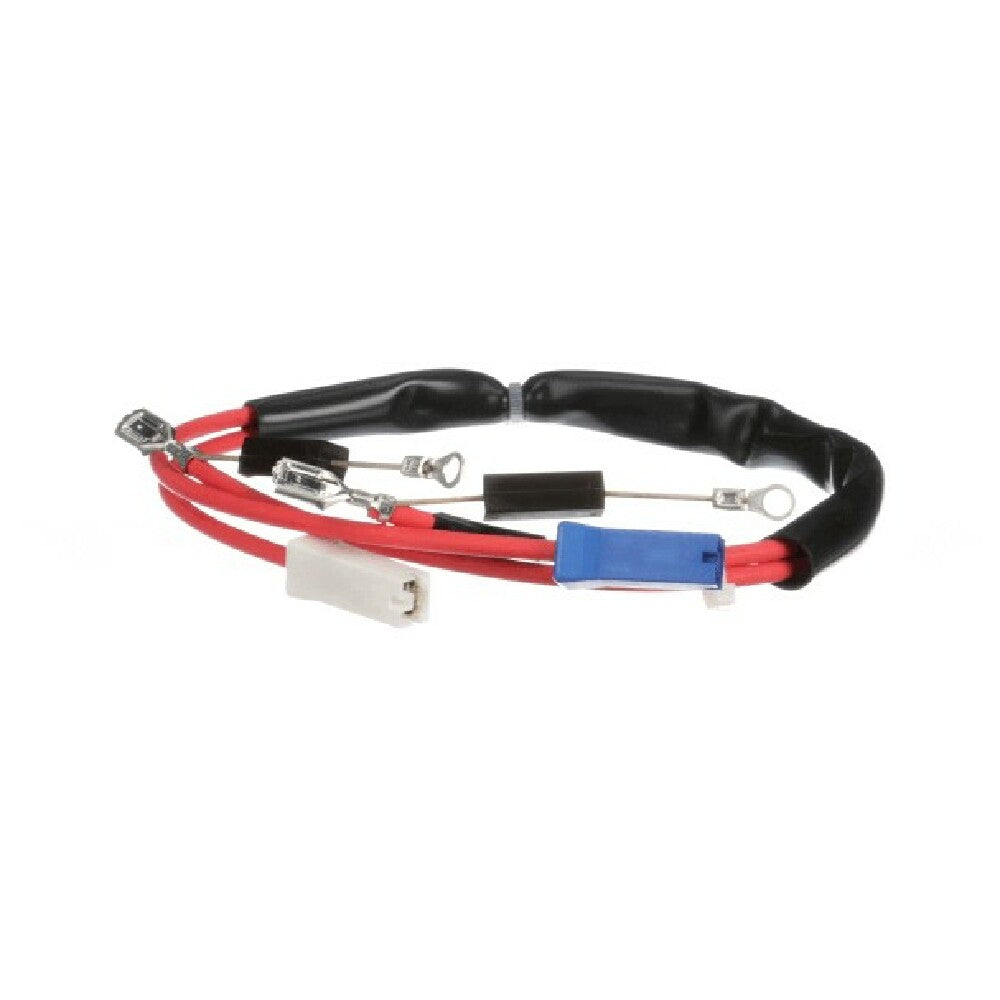

The Sharp Microwave FW-QZA117WRK0 High Voltage Rectifier is an OEM electronic component designed for high-voltage applications within microwave oven power systems. Manufactured by Sharp Microwave, this rectifier converts alternating current into direct current, essential for powering magnetron tubes in commercial microwave units. Its precise technical specifications include a width of 4.75 inches, height of 1.7 inches, and depth of 5.65 inches, supporting reliable operation in demanding restaurant and foodservice equipment environments. Engineered for durability and efficiency, it targets professionals involved in microwave repair, maintenance, and commercial kitchen equipment integration, offering a high-performance solution to electrical rectification challenges in high-volume foodservice operations.
Top Sharp Microwave FW-QZA117WRK0 Features
This high voltage rectifier is tailored for commercial microwave systems requiring stable high-voltage conversion. Designed with robust electronic components, it ensures maximum durability under continuous operation. Its compact form factor simplifies installation within constrained appliance compartments, while facilitating straightforward maintenance and replacement. Ideal for enabling consistent magnetron performance, it integrates seamlessly into microwave power supplies, improving reliability in busy foodservice kitchens. Its corrosion-resistant construction enhances longevity in environments exposed to heat and humidity, making it suitable for day-to-day industrial microwave applications.
- High-voltage conversion performance, supports 3000V DC output
- Constructed from durable, heat-resistant semiconductor materials
- Compact design simplifies installation and replacement
- Designed for microwave power supply modules in commercial kitchens
- Supports continuous high-voltage operation with minimal performance loss
Recommended for microwave power supply repair and upgrade projects in restaurant and cafeteria settings.
Sharp Microwave FW-QZA117WRK0 Technical Specs
This OEM high voltage rectifier operates with a standard voltage of 3000V DC, supporting a stable conversion process in microwave oven applications. It features a compact profile with dimensions of 4.75 inches in width, 1.7 inches in height, and 5.65 inches in depth, weighing approximately 0.73 lbs. Crafted from heat-resistant materials, it offers reliable performance across typical operating temperature ranges, suitable for self-contained microwave power modules. Its construction includes corrosion-resistant components, ensuring longevity in high-temperature, high-humidity environments typical of commercial kitchens. Designed for easy installation, it requires minimal maintenance and fits into existing microwave power assemblies for efficient workflow integration.
- Electrical Requirements: 3000V DC support for high-voltage applications
- Cooling Method: Air-cooled for heat dissipation during continuous operation
- Construction & Finish: Robust semiconductor housing, corrosion-resistant finish
- Dimensions: 4.75" W x 1.7" H x 5.65" D
- Weight: 0.73 lbs, designed for easy handling and installation
- Usage Compatibility: Compatible with microwave power supply modules in restaurant and cafeteria kitchens
Electrical Compatibility & Installation: Requires appropriate mounting within microwave assemblies, supports 3000V DC circuits
Cooling & Maintenance: Air-cooled, minimal cleaning needed, easy replacement
Material & Durability: Heat-resistant semi-conductor, corrosion-resistant casing
Operational Environment: Supports typical foodservice microwave conditions, operating range up to 230°F
Dimensional Considerations: Fits into standard OEM microwave chassis for seamless integration
What is a commercial high voltage rectifier
A commercial high voltage rectifier is an electronic device used to convert alternating current into direct current at high voltages for industrial applications such as microwave oven power supplies. The Sharp Microwave FW-QZA117WRK0 High Voltage Rectifier is engineered specifically for microwave magnetron operation, playing a vital role in supplying stable DC voltage within commercial microwave ovens. Installed within undercounter or countertop microwave units, this rectifier supports consistent high-voltage power delivery, making it ideal for mid-volume foodservice settings like hotels, cafeterias, and institutional kitchens requiring reliable microwave functionality.
Top industrial rectifiers for microwave and foodservice applications
Industrial microwave high voltage rectifiers like the FW-QZA117WRK0 by AllPoints are built for dependable operation in commercial kitchen environments. Their robust construction, precise high-voltage support, and seamless integration into microwave power modules make them suitable for mid-volume foodservice operations, including institutional, hospital, and cafeteria settings. Designed for operation in typical microwave workloads, these rectifiers ensure consistent magnetron performance with minimal maintenance effort.
- Operation for medium-duty commercial microwave appliances
- Ideal for compact foodservice spaces and cabinetry
- Essential component for restaurant-ready microwave systems
- Supports moderate throughput, reliable high-voltage conversion
- Optimized for undercounter and countertop microwave repair
Why Choose AllPoints FW-QZA117WRK0
Compared to standard high voltage rectifiers, the AllPoints FW-QZA117WRK0 offers enhanced durability, precise high-voltage output, and straightforward installation tailored for microwave power modules. Its construction emphasizes reliability in demanding commercial environments, supporting consistent microwave performance in busy foodservice settings. This model's compact footprint and corrosion-resistant design set it apart for efficient, long-term operation without complex maintenance issues.
- Compact design for easy integration in standard microwave units
- Robust seals and materials withstand high-temperature environments
- Supports high-voltage stability critical for magnetron longevity
- Engineered for reliable, everyday microwave repair applications
- Supports standard OEM power supply configurations
