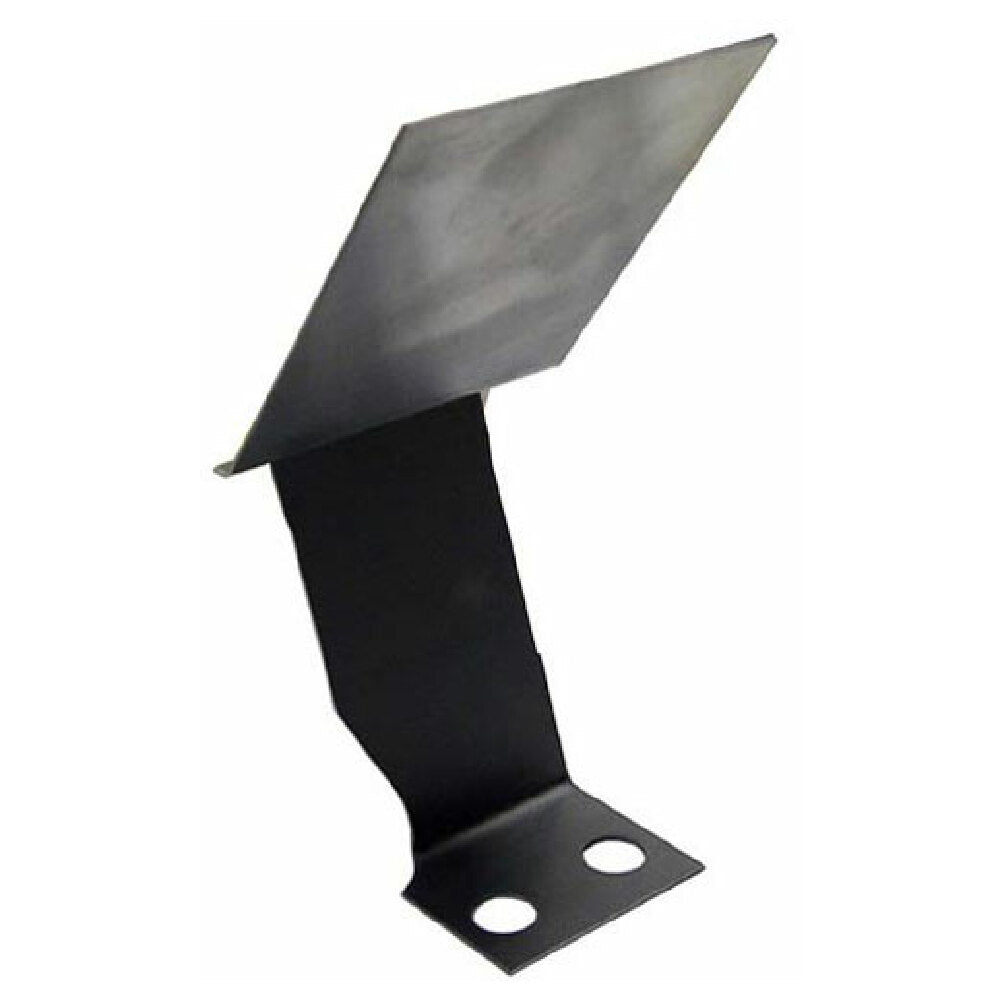

The Frymaster FM814-0034 Target Assy is a commercial-grade side deflector designed for use with fryers, specifically models such as Gf40, J3f, J65x, Jcfx, and Dean Fryer systems. Engineered by Frymaster, a leading manufacturer in foodservice equipment, this assembly features a durable 2-hole mount configuration that facilitates seamless replacement and compatibility with existing ceramic target assemblies. Its precise construction ensures stable heat deflection, optimized oil flow, and longevity under high operational temperatures, making it suitable for high-volume frying environments in professional kitchens and foodservice operations. The FM814-0034 assembly provides a reliable solution for maintaining consistent fryer performance and ease of maintenance in busy commercial settings.
Top Frymaster FM814-0034 Features
This Target Assy offers a robust 2-hole side deflector mount, providing secure installation and compatibility with older ceramic targets. Manufactured from corrosion-resistant materials, it withstands frequent cleaning and high heat exposure. Its design simplifies replacement within existing fryers, reducing downtime. Ideal for high-demand commercial kitchens, it ensures uniform heat distribution and consistent frying quality. The assembly's precise dimensions and sturdy construction optimize workflow integration and extend equipment lifespan.
- Durable 2-hole mount: ensures reliable fixture stability under heavy use
- Corrosion-resistant materials: withstands frequent cleaning and high temperatures
- Easy to replace: compatible with old ceramic targets and assemblies
- Optimized for Dean Fryer systems: fits multiple fryer models for streamlined maintenance
- Precise dimensions: 2.88" W x 5.13" D x 3.75" H for perfect fit in commercial fryers
Ideal for replacing worn or outdated deflector assemblies in high-capacity foodservice kitchens
Frymaster FM814-0034 Technical Specs
The FM814-0034 Target Assy is constructed from durable materials with a weight of 0.2 lbs, designed specifically for high-temperature environments. It features a 2-hole mounting system compatible with Dean Fryer and Frymaster models such as Gf40 and J3f. Since it is manufactured in the United States, it adheres to strict quality standards. The assembly’s dimensions—3.75 inches in height, 2.88 inches in width, and 5.13 inches in depth—facilitate easy integration into existing fryer setups. Its corrosion-resistant composition promotes longevity, and its simple design allows straightforward cleaning and maintenance routines.
- Material: Corrosion-resistant metal alloy
- Weight: 0.2 lbs per assembly
- Dimensions: 2.88" W x 5.13" D x 3.75" H
- Mounting: 2-hole side deflector compatible with Dean and Frymaster fryers
- Manufacture location: United States
- Operating environment: High-temperature, food processing setting
The assembly requires no electrical connections and is designed for straightforward disassembly for cleaning or replacement. Installation should consider adequate clearance for oil flow and airflow to ensure optimal performance. Compatibility with existing ceramic targets and assemblies enables rapid repairs and minimal service interruptions.
- Electrical requirements: Not applicable
- Compatibility: Dean Fryer, Frymaster Gf40, J3f, J65x, Jcfx models
- Maintenance: Regular cleaning with compatible cleaning agents, easy disassembly
- Installation: Bolted via two-hole mount, no electrical connections required
- Usage environment: High-temperature oil fryers in commercial kitchens
What is a commercial deflector assembly?
A commercial deflector assembly is a critical component within fryer systems used to direct heat and oil flow for optimized cooking performance. Specifically, the Frymaster FM814-0034 Target Assy functions as a side deflector mounted with a 2-hole system, facilitating effective heat distribution and debris deflection. Installed in fryer models such as Gf40 and J3f, it ensures consistent cooking by maintaining uniform temperatures and protecting internal components from residue buildup. Suitable for high-volume foodservice kitchens, this assembly enhances operational efficiency, simplifies maintenance, and prolongs equipment lifespan without requiring electrical connections, making it essential for reliable fryer performance.
Top Commercial Fryer Parts for Foodservice Operations
Designed for workplace efficiency, the AllPoints FM814-0034 Target Assy provides durable, high-performance deflector components suitable for medium-volume foodservice environments. Ideal for integrated fryer systems, it ensures consistent heat management, rapid replacement, and stable operation in commercial kitchens with moderate throughput needs.
- Operation Type — medium-volume restaurant fry stations
- Kitchen Type — compact commercial food prep areas
- Foodservice Category — commercial fryers for fast-paced service
- Workload Qualifier — moderate throughput frying operations
- Use Case — replacement for aging or worn ceramic targets
Why Choose AllPoints FM814-0034 Target Assy?
The AllPoints FM814-0034 Target Assy stands out due to its robust 2-hole mount design and compatibility with multiple fryer models, ensuring reliable performance and straightforward maintenance. Its corrosion-resistant construction and precise dimensions streamline installation and extend service life relative to standard ceramic-based solutions. This assembly enhances operational efficiency by maintaining consistent heat flow and simplifying repair workflows, making it a preferred choice for busy commercial kitchens seeking durability and reliability.
- Self-contained, corrosion-resistant assembly for longevity in high-heat environments
- Designed for quick replacement, minimizing fryer downtime
- Universal fit with Dean and Frymaster fryers for versatile use
- Compact footprint for seamless integration into existing setups
- Constructed from materials with high temperature tolerance and durability
