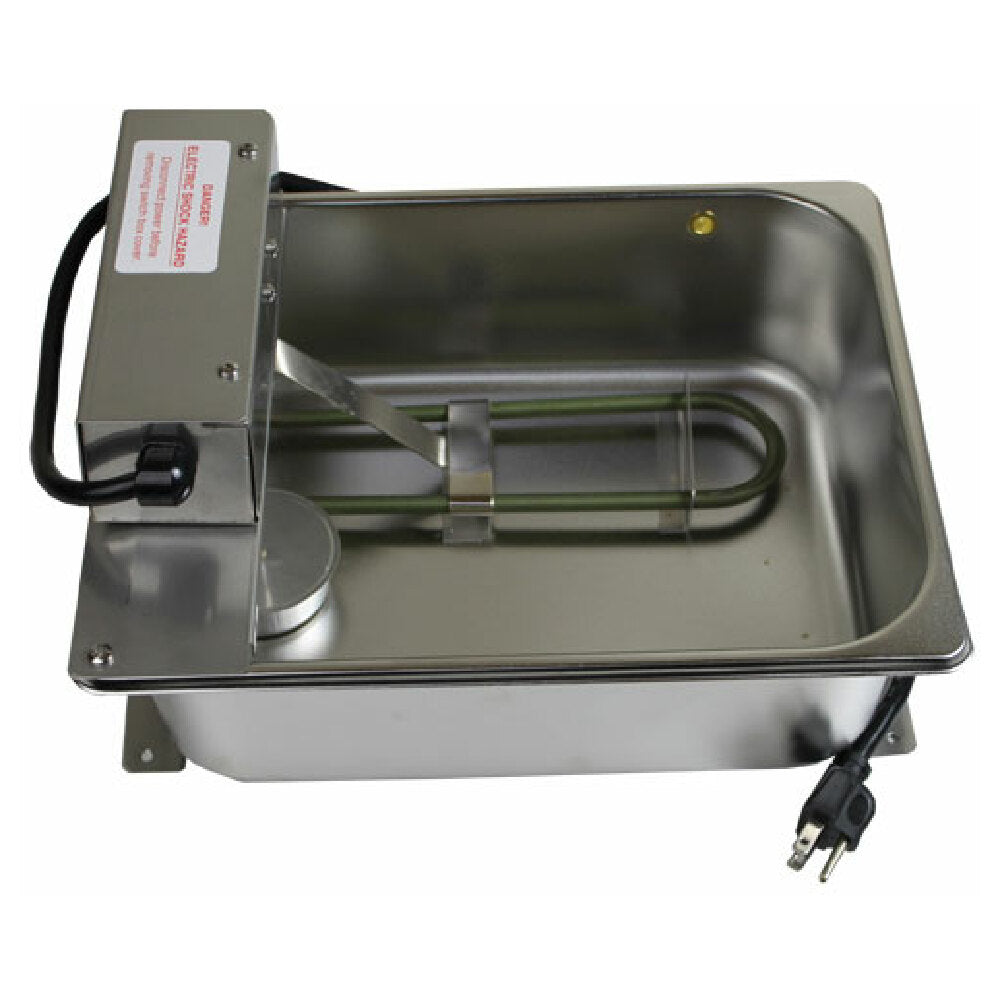

The Fisher Manufacturing FISDM10W1S Condensate Drain Pan is a commercial-grade evaporator pan designed for HVAC and refrigeration systems in foodservice environments. Crafted from durable 20-gauge stainless steel, this model features a capacity of 7-1/2 quarts and measures 13" x 10" x 4". It operates on 120V with a power draw of 1000W and 8.34 amps, supporting an evaporate rate of up to 10 gallons per day. Equipped with a high-limit float switch and a 3-foot cord, this drain pan provides reliable condensate management for efficient system operation while ensuring safety and ease of maintenance in high-demand commercial applications.
Top AllPoints FISDM10W1S Features
The FISDM10W1S condensate drain pan offers precise condensate collection with a 7-1/2 Qt capacity and stainless steel construction for longevity. Integrated with a float switch for automatic shutoff, it simplifies maintenance and installation in commercial refrigeration or HVAC units. The 13" x 10" x 4" dimensions ensure compatibility with medium-sized evaporator systems, making it ideal for foodservice establishments needing dependable condensate removal. Its UL and NSF approval support its use in food-related environments, providing efficient drainage in busy kitchen settings or refrigeration systems.
- Capacity: 7-1/2 quart stainless steel pan supports continuous operation
- Durability: 20 gauge stainless steel construction resists corrosion and impact
- Ease of Maintenance: Float switch and quick-access design simplify servicing
- Application Fit: Compatible with 13" x 10" evaporator outputs in commercial kitchens
- Workflow Optimization: Effective condensate drainage supports uninterrupted refrigeration operation
Suitable for medium-volume HVAC and refrigeration systems in foodservice facilities requiring reliable condensate management.
Fisher Manufacturing FISDM10W1S Technical Specs
The FISDM10W1S condensate drain pan features a 120V electrical requirement with a power consumption of 1000W and 8.34 amps, optimized for standard commercial electrical setups. Constructed from 20-gauge stainless steel, it measures 13 inches in width, 10 inches in depth, and 4 inches in height, with a weight of 4.75 lbs for easy handling and installation. The unit operates reliably in typical refrigeration and HVAC environments, supporting an evaporator rate of up to 10 gallons per day. Its UL and NSF approvals validate safety and suitability for use in kitchens and refrigeration systems, and it includes a high-limit float switch and a 3-foot cord for seamless integration. The drain pan is designed for easy cleaning with a straightforward disassembly process and is resistant to corrosion.
- Electrical Requirements: 120V, 60Hz, 8.34A, 1000W
- Construction & Finish: 20 gauge stainless steel with cleanable surface
- Dimensions: 13" W x 10" D x 4" H
- Production Capacity: 10 gallons per day evaporator rate
- Temperature Resistance: Suitable for typical refrigeration temperatures
- Operating Environment: Commercial refrigeration and HVAC systems in foodservice operations
- Food Safety & Compliance: Meets safety standards for use in food-related environments
- Weight: 4.75 lbs for easy installation and removal
- Electrical Integrity: Compatible with standard 120V building wiring and outlets
- Drainage Integration: Supports connection for condensate line removal.
- Installation Space: Fits in confined areas with its compact 13" x 10" footprint
- Maintenance Access: Designed for quick disassembly for cleaning or replacement
- Application Suitability: Ideal for HVAC units or refrigeration systems in commercial kitchens
What is a commercial condensate drain pan?
A commercial condensate drain pan is a vital component in HVAC and refrigeration systems designed to collect and drain excess condensation generated during cooling processes. It is typically constructed from durable materials such as stainless steel or coated metals to withstand continuous exposure to moisture and chemicals. These drain pans are installed underneath evaporator coils, condensers, or other cooling units in foodservice or hospitality environments, facilitating efficient drainage and preventing water damage or microbial growth. The Fisher Manufacturing FISDM10W1S condensate drain pan, in particular, serves as a robust solution for medium-volume refrigeration systems, providing precise condensate management in busy kitchens and service areas.
Top commercial condensate drain pans for foodservice settings
Designed for medium-volume refrigeration systems, the Fisher Manufacturing FISDM10W1S offers durable stainless steel construction, efficient condensate collection, and reliable operation, making it an essential component in commercial kitchens and HVAC setups. Its robust design and integration features support continuous workflow and system longevity in professional foodservice environments.
- Operation Type — ideal for foodservice HVAC and refrigeration units
- Kitchen Type — suited for compact and busy commercial kitchens
- Foodservice Category — supports restaurant refrigeration and cold storage
- Workload Qualifier — designed for moderate throughput operations
- Use Case — ensures proper condensate drainage in HVAC systems
Why Choose AllPoints FISDM10W1S?
The AllPoints FISDM10W1S condensate drain pan distinguishes itself through its heavy-duty stainless steel build, integrated float switch for automatic shutoff, and proven reliability in commercial refrigeration applications. Its compact footprint and NSF/UL approvals ensure seamless integration in foodservice environments, enhancing system efficiency and simplifying maintenance for busy operations.
- Compact footprint supports tight installation spaces in foodservice kitchens
- Self-contained, stainless steel design offers long-term durability and sanitation
- Float switch provides automatic condensate management reducing manual intervention
- Supported by NSF and UL approvals guarantees safety and compliance
- Designed for commercial HVAC and refrigeration systems in foodservice operations
