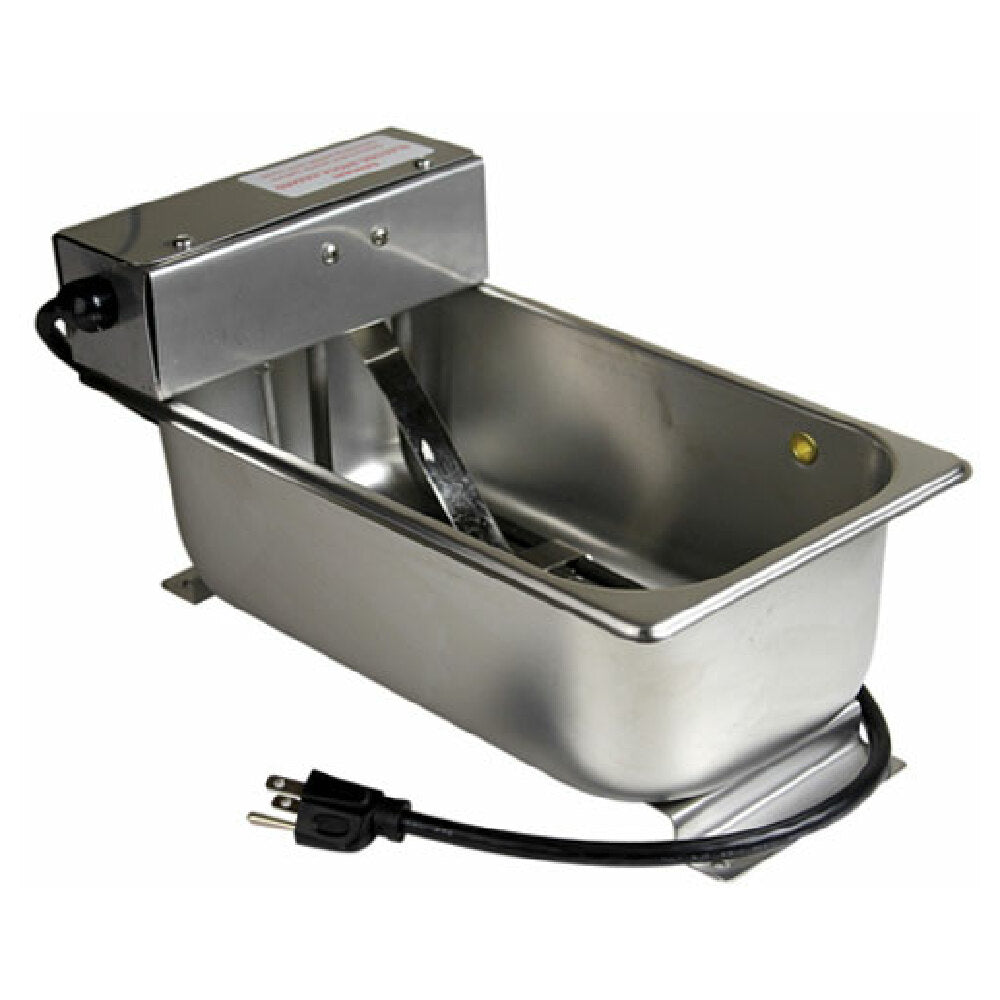

The Fisher Manufacturing FISDM10M1S Condensate Drain Pan is a commercial evaporator condensate collection unit designed for high-performance HVAC and refrigeration systems. Crafted from durable 22-gauge stainless steel, this drain pan measures 7 inches by 13 inches with a height of 8.5 inches, providing a capacity of approximately 4.5 quarts. Powered by a 120V, 1000W system, it features a high-limit float switch and a three-foot cord for reliable operation. This unit is engineered to efficiently manage condensate drainage in various foodservice and industrial environments, supporting systems that require continuous, safe moisture removal and preventing overflow issues in refrigeration equipment.
Top AllPoints FISDM10M1S Features
The condensate drain pan from Fisher Manufacturing FISDM10M1S offers precise fluid management with a robust stainless steel construction suited for commercial HVAC applications. Its high-limit float switch enhances safety by preventing overflows, while the UL & NSF approval ensures compliance with sanitation standards. Easy to install and maintain, this drain pan seamlessly integrates with refrigeration units, making it ideal for medium-volume foodservice environments that demand reliable moisture control.
- Corrosion-resistant stainless steel construction ensures longevity in demanding environments
- 120V, 1000W power input supports consistent operation in commercial systems
- High-limit float switch with 3ft cord simplifies overflow prevention and control maintenance
- Dimensions: 7" x 13" x 8.5" with a 4.5 Qt capacity provides effective condensate collection
- UL & NSF approved design guarantees suitability for foodservice and sanitary applications
Ideal for refrigeration systems in commercial kitchens and food processing facilities requiring efficient condensate management
Fisher Manufacturing FISDM10M1S Technical Specs
The FISDM10M1S condensate drain pan operates on a 120V, 60Hz electrical circuit, consuming approximately 1000W, which supports its continuous evaporator drainage function. Constructed entirely from 22-gauge stainless steel, it offers resistance to corrosion and ease of cleaning, ensuring durability in demanding environments. With a capacity of 4.5 quarts, it effectively handles condensate volume generated in moderate commercial systems. Its dimensions—7 inches wide, 13 inches deep, and 8.5 inches high—facilitate versatile installation under refrigeration or HVAC units. The unit weighs 3.75 pounds, contributing to straightforward handling. Features include a high-limit float switch and NSF/UL approvals for safety and sanitation compliance, making it suitable for installation in foodservice kitchens and industrial refrigeration setups.
- Electrical requirements: 120V, 60Hz, 1000W
- Material: 22-gauge stainless steel with corrosion resistance
- Capacity: 4.5 quarts (1.125 gallons)
- Dimensions: 7" W x 13" D x 8.5" H
- Weight: 3.75 lbs
- Approval: UL and NSF certified
- Temperature resistance: Suitable for typical refrigeration condensate temperatures
- Maintenance: Easy disassembly for routine cleaning
- Electrical compatibility and plug connection for seamless integration with refrigeration units
- Drainage plumbing setup compatible with standard condensate piping
- Proper airflow clearance around the unit for optimal operation
- Installation in refrigerated enclosures requiring reliable condensate removal
- Supported mounting options for versatile placement beneath evaporators
What is a commercial condensate drain pan?
A commercial condensate drain pan is a device used in HVAC and refrigeration systems to collect and channel condensate formed by evaporator coils. These pans, such as the Fisher Manufacturing FISDM10M1S, are typically installed beneath cooling units to prevent water overflow and ensure sanitation compliance. Designed with durable materials like stainless steel, they include features like float switches to detect overflow and facilitate automated drainage, supporting continuous operation in foodservice and industrial environments. These systems are vital for maintaining system efficiency and preventing water damage or contamination in applications ranging from restaurant kitchens to large-scale cold storage facilities.
Top Commercial Condensate Drain Pans for Foodservice Environments
Reliable condensate drain pans support effective moisture management in commercial HVAC systems, with Fisher Manufacturing FISDM10M1S providing durable, food-safe drainage solutions suitable for medium-capacity refrigeration environments, ideal for food processing, cold storage, and restaurant kitchen applications.
- Operation Type — supporting systems in moderate throughput refrigeration facilities
- Kitchen Type — suited for compact commercial kitchen setups
- Foodservice Category — optimal for refrigeration and HVAC condensate management
- Workload Qualifier — designed for continuous, dependable condensate collection
- Use Case — ideal for maintaining sanitation and preventing overflow in food processing environments
Why Choose AllPoints FISDM10M1S?
The AllPoints FISDM10M1S condensate drain pan stands out with its stainless steel construction, enhancing durability and sanitation for commercial refrigeration systems. Its integrated float switch and approved design improve safety by preventing overflow, while its compact, straightforward installation supports streamlined workflow in foodservice facilities without sacrificing reliability or safety.
- Self-contained design for quick installation and maintenance
- Corrosion-resistant stainless steel enhances longevity in demanding environments
- Designed specifically for commercial refrigeration condensate control
- Slim profile fits conveniently into tight kitchen spaces
- Advanced float switch offers reliable overflow detection and safety
