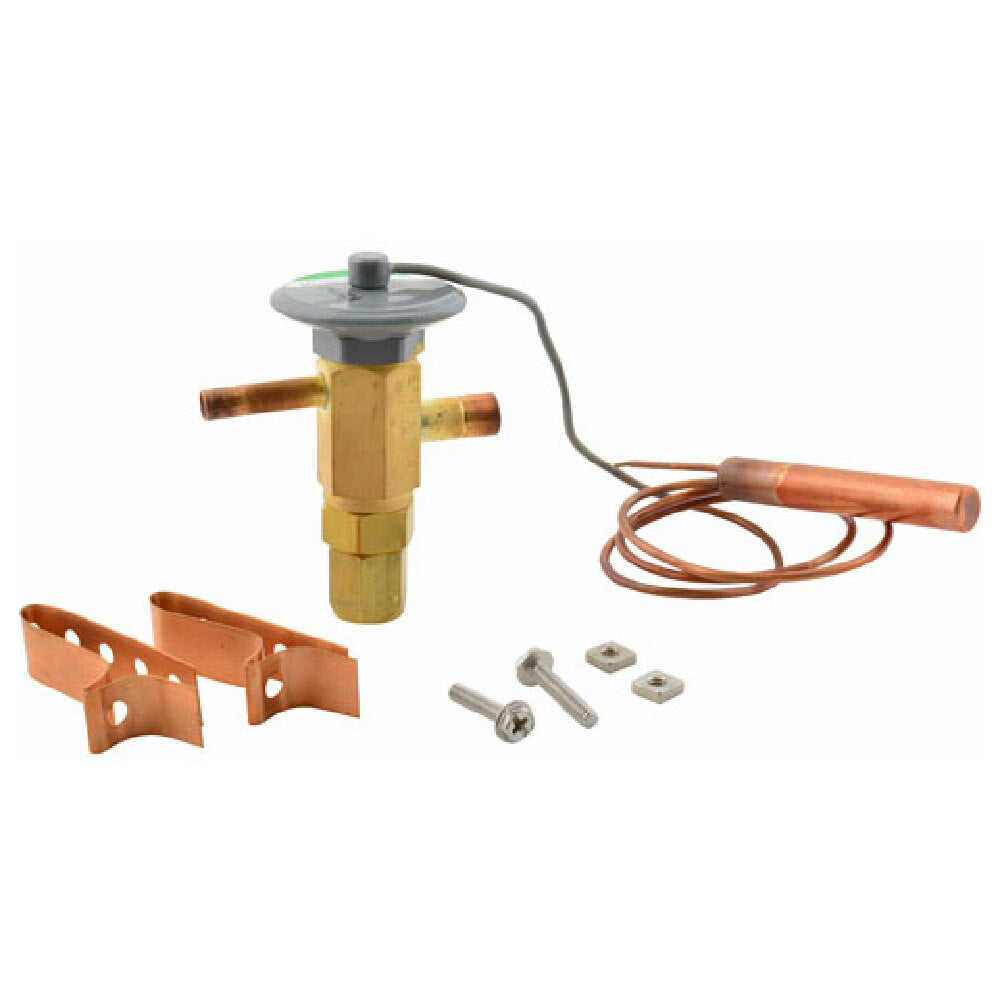

The Russell -EFS1/4Z-2538 Valve TXV R22 1/4"x3/8" Swt is a commercial refrigeration component designed for precise temperature regulation within HVAC and refrigeration systems. Manufactured by Russell under the AllPoints brand, this thermostatic expansion valve (TXV) supports R-22 refrigerant applications, featuring a 30-inch (762 mm) capillary tube, with inlet and outlet ODF connections measuring 1/4" and 3/8" respectively. Its robust construction and specific dimensions make it suitable for installation in mid-volume commercial refrigeration units, ensuring consistent flow control in specialized cooling setups.
Top AllPoints -EFS1/4Z-2538 Features
The -EFS1/4Z-2538 TXV by AllPoints offers accurate refrigerant flow regulation, thanks to its precisely calibrated 30" capillary tube. Its durable construction with high-grade materials ensures long-term performance in demanding commercial environments. Designed for ease of maintenance, the valve includes straightforward inlet and outlet fittings, facilitating compatibility with existing refrigeration lines. Its optimized dimensions support seamless integration into R-22 cooling systems, providing stability under moderate operational workloads—ideal for commercial refrigeration, HVAC systems, and cold storage units.
- Functionality: Precise flow control for reliable refrigeration performance
- Durability traits: Made from corrosion-resistant materials for long service life
- Ease of maintenance: Standard inlet/outlet fittings for quick installation or replacement
- Application fit: Compatible with R-22 systems in mid-sized commercial units
- Workflow benefit: Supports consistent temperature regulation for improved system efficiency
Suitable for refrigeration repairs, upgrades, or system tuning within commercial cold storage facilities.
AllPoints -EFS1/4Z-2538 Technical Specs
The -EFS1/4Z-2538 TXV features a 30-inch (762 mm) capillary tube designed for precise refrigerant metering, with inlet dimensions of 1/4" ODF and outlet of 3/8" ODF to match R-22 systems. Constructed in the United States from high-quality materials, it weighs approximately 1.03 lbs and measures 4" width, 4.25" depth, and 3" height, providing a compact profile suitable for integration into confined spaces. The valve is crafted to withstand standard operating conditions in commercial refrigeration, with temperature resistance tailored to typical HVAC environments. Its durable finish and OEM design ensure reliable performance over extended service life, reducing maintenance downtime.
- Refrigerant compatibility: Designed specifically for R-22 systems
- Material construction: High-grade, corrosion-resistant materials for longevity
- Dimensions: 4" W x 4.25" D x 3" H for space-efficient installation
- Weight: 1.03 lbs for easy handling and mounting
- Operating range: Suitable for standard commercial cooling temperatures
What is a commercial TXV?
A commercial thermostatic expansion valve (TXV) is a critical component in refrigeration and HVAC systems that precisely controls refrigerant flow to optimize cooling performance. The Russell -EFS1/4Z-2538 Valve TXV R22 1/4"x3/8" Swt is a specific model engineered for R-22 refrigerant applications, supporting stable temperature regulation in medium-capacity refrigeration units. Installed in systems such as cold storage, beverage coolers, and HVAC condensers, it ensures efficient refrigerant utilization, helping maintain consistent operational temperatures and system reliability under typical commercial workloads.
Top commercial refrigerant control solutions for HVAC and refrigeration
Reliable flow regulation in commercial cooling systems is achieved through high-quality components like the Russell -EFS1/4Z-2538 TXV. Built for moderate workload environments, this OEM refrigerant valve ensures precise system performance, durability, and installation flexibility, making it suitable for cold storage, retail refrigeration, and HVAC applications in mid-volume foodservice settings.
- Operation in moderate workloads — ideal for cold storage and HVAC
- Designed for commercial refrigeration space efficiency
- Constructed with durable materials for long-term use
- Supports R-22 refrigerant system upgrades
- Facilitates optimal temperature control in foodservice environments
