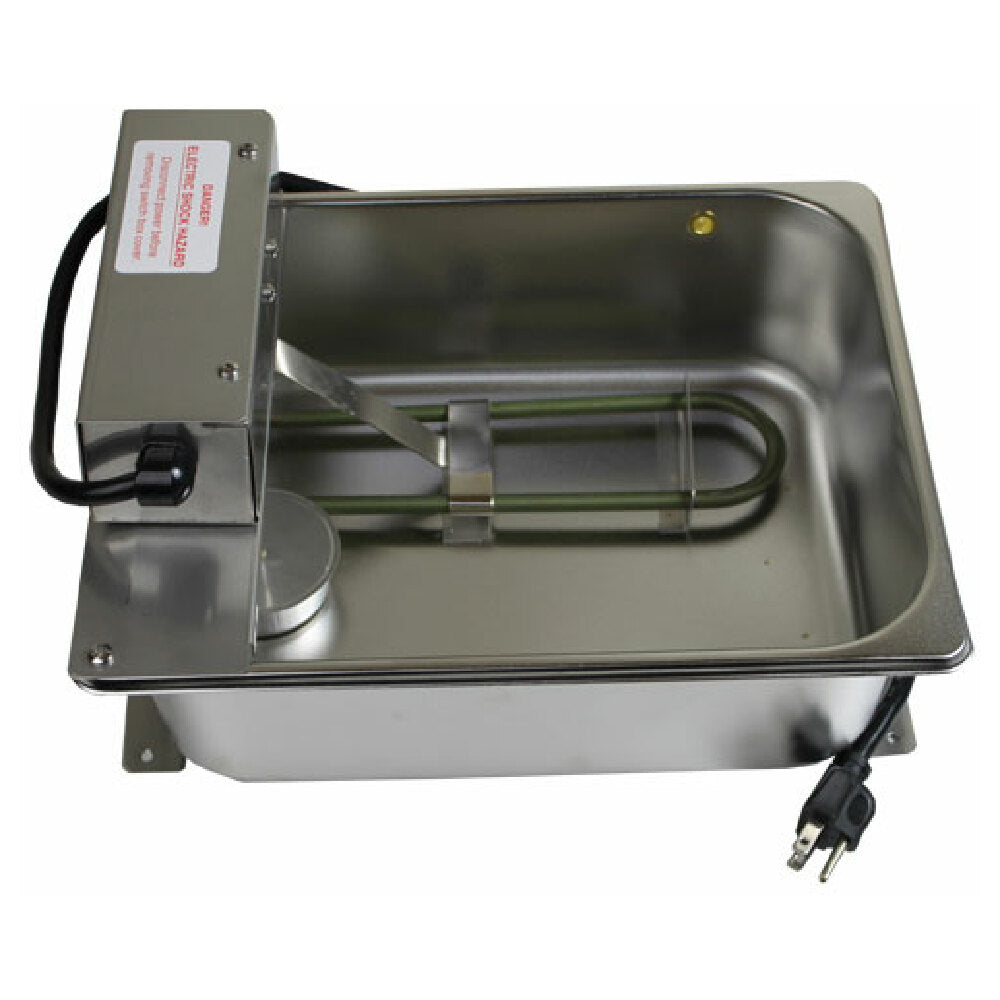

The Fisher Manufacturing DM10W1S Condensate Drain Pan is a commercial-grade evaporator pan designed for efficient moisture management in refrigeration and air conditioning systems. Constructed from durable 20-gauge stainless steel, this model features a capacity of 7-1/2 quarts with dimensions of 13" x 10" x 4". Powered by a 120V, 1000W, 8.34A motor, it supports evaporative rates up to 10 gallons per day. Equipped with a high-limit float switch and a 3-foot cord, the DM10W1S provides reliable condensate removal for industrial and commercial environments, ensuring optimal system performance and sanitation. Its robust stainless steel construction and precise specifications make it suitable for use in foodservice refrigeration, HVAC applications, and equipment requiring durable condensate management solutions.
Top AllPoints DM10W1S Features
The Fisher Manufacturing DM10W1S condensate drain pan offers a high-capacity stainless steel design with 7-1/2 quart volume, supporting continuous evaporative rates of up to 10 gallons per day. Its built-in high-limit float switch enhances system safety, while the 3-foot power cord ensures easy integration in industrial setups. The 20-gauge stainless steel construction guarantees longevity under demanding conditions, and its compact dimensions facilitate installation in tight commercial spaces. Designed for foodservice and HVAC industry applications, this unit simplifies condensate management, reduces maintenance, and improves workflow efficiency through reliable operation and corrosion resistance.
- Capacity: 7-1/2 quart stainless steel reservoir for continuous operation
- Material: 20-gauge corrosion-resistant stainless steel construction
- Performance: Supports evaporator rate of 10 gallons per day for moderate workloads
- Ease of Maintenance: Removable pan with easy access for cleaning
- Compatibility: Fits in standard commercial HVAC and refrigeration systems
Suitable for commercial refrigeration systems requiring reliable condensate drainage and safe operation in foodservice environments.
AllPoints DM10W1S Technical Specs
The AllPoints DM10W1S condensate drain pan operates with a standard 120V power supply, consuming 1000W and 8.34 amps, ensuring compatibility with typical commercial power sources. Its lightweight 4.75 lbs design, supported by durable stainless steel, translates to straightforward installation and longevity. Featuring a height of 8.5 inches, a width of 11.75 inches, and a depth of 4 inches, it fits seamlessly into compact refrigeration units and HVAC systems. The unit is NSF and UL listed, with an operating temperature range suitable for standard commercial environments. Its construction facilitates easy cleaning and inspection, while the included high-limit float switch provides added safety for continuous operation. Dimensions and technical features align with industry standards for commercial condensate management, making it ideal for foodservice and HVAC applications requiring consistent moisture control.
- Electrical Requirements: 120V, 60Hz, 1-phase, 8.34A, 1000W
- Construction & Finish: 20-gauge stainless steel for durability and corrosion resistance
- Dimensions: 11.75" W x 4" D x 8.5" H
- Weight: 4.75 lbs for easy installation and service
- Production Capacity: Supports up to 10 gallons per day
- Safety Features: High-limit float switch included for system protection
What is a commercial condensate drain pan?
A commercial condensate drain pan is a device used in HVAC and refrigeration systems to collect and remove condensation produced during refrigeration or air conditioning processes. Engineered from robust materials like stainless steel, it is designed for continuous operation with precise capacity to manage moisture output—such as the Fisher Manufacturing DM10W1S supporting up to 10 gallons per day. Installed in undercounter refrigeration, HVAC units, or commercial equipment, these pans facilitate safe drainage, prevent water accumulation, and support system sanitation. The DM10W1S model features an integrated float switch and compact footprint, making it suitable for foodservice settings and industrial environments requiring reliable condensate management for optimal performance.
Top condensate drain pans for commercial foodservice settings
Built for reliable moisture removal, the Fisher Manufacturing DM10W1S supports medium workloads in commercial refrigeration and HVAC systems, ideal for foodservice environments demanding durable condensate management and easy maintenance. AllPoints DM10W1S is designed for operation in foodservice and industrial kitchens, ensuring efficient condensate drainage and system safety during continuous operation.
- Operation for moderate workloads in commercial refrigeration and HVAC systems
- Compact design for tight kitchen spaces and equipment integration
- Durable stainless steel construction enhances longevity and sanitation
- Supports evaporative rates up to 10 gallons daily for consistent moisture control
- Self-contained system with float switch integration for safety and efficiency
Why Choose AllPoints DM10W1S Condensate Drain Pan?
The AllPoints DM10W1S condensate drain pan outperforms similar units with its stainless steel build, durable design, and integrated safety features. Its compact footprint and corrosion resistance make it ideal for continuous commercial kitchen or HVAC operation, reducing maintenance and supporting system sanitation. The unit’s robust construction and reliable performance contribute to streamlined moisture management in demanding foodservice environments.
- Self-contained with integrated float switch for enhanced safety
- Constructed from 20-gauge stainless steel for long-term durability
- Supports efficient moisture removal up to 10 gallons daily
- Compact size facilitates installation in tight commercial spaces
- UL and NSF listed for safety and industry compatibility
