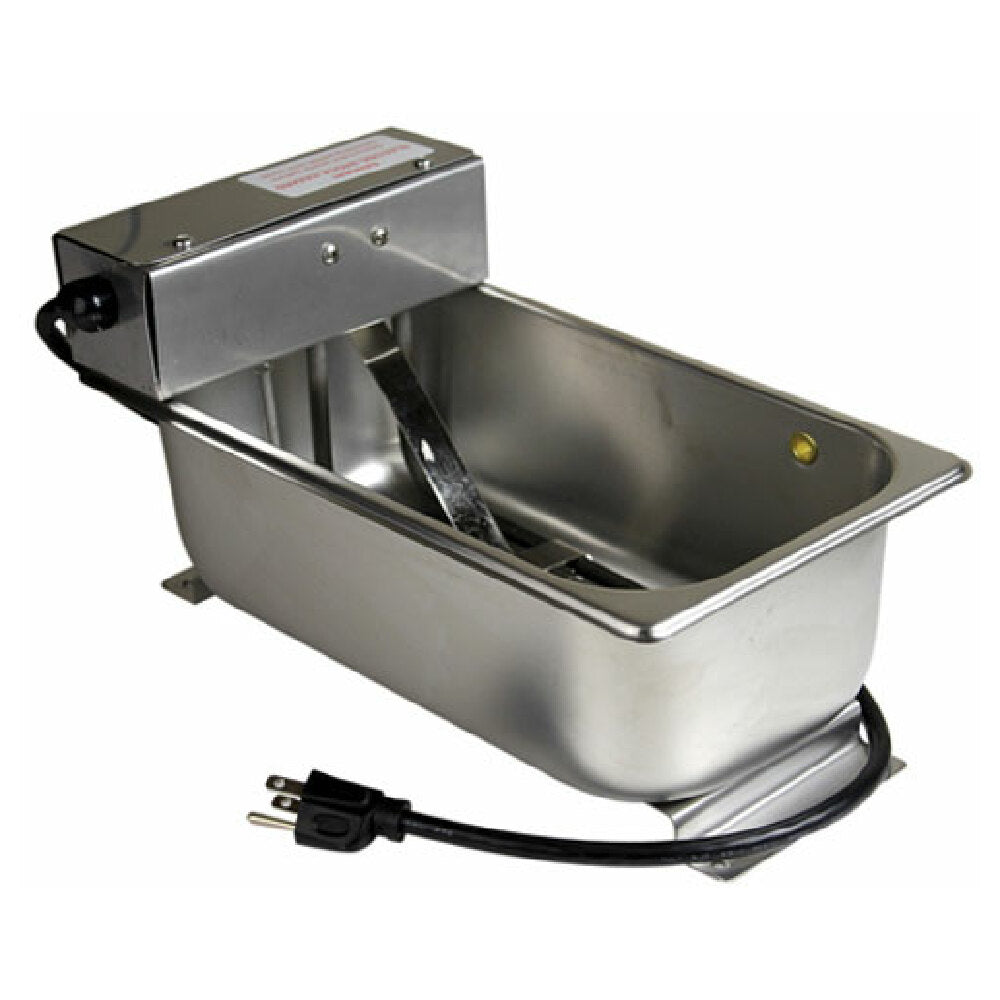

The Fisher Manufacturing DM10M1S Condensate Drain Pan is a commercial-grade evaporator pan designed for reliable condensate management in foodservice environments. Crafted from 22-gauge stainless steel, this unit measures 7 inches by 13 inches with a height of 4 inches, offering a 4 1/2-quart capacity. Equipped with a high-limit float switch and a 3-foot cord, it ensures efficient automatic condensate drainage, suitable for various refrigeration or HVAC applications. Its UL and NSF approval attest to its compliance with industry standards, making it a durable and precise component for commercial refrigeration systems. The model is engineered for consistent performance in demanding kitchen settings, facilitating optimal workflow and sanitation of condensate collection points.
Top AllPoints DM10M1S Features
The Fisher Manufacturing DM10M1S condensate drain pan offers a robust stainless steel construction with a 4 1/2-quart capacity, ideal for medium-volume refrigeration units. Its high-limit float switch integrates seamlessly with commercial systems to prevent overflow, while the 3-foot cord simplifies installation. The pan is designed for easy cleaning and maintenance, supporting quick removal and inspection. Suitable for use in HVAC dehumidification and refrigeration applications, it ensures reliable drainage management, improving system efficiency and operational safety.
- Capacity: 4 1/2 quart for steady condensate collection
- Material: 22-gauge stainless steel enhances durability and corrosion resistance
- Integration: Float switch guarantees reliable auto-drain function
- Ease of Maintenance: Hinged design simplifies cleaning and inspections
- Compatibility: Fits standard evaporator and refrigeration drain outlets
Designed for medium-throughput refrigeration systems, perfect for commercial kitchens seeking dependable condensate drainage.
AllPoints DM10M1S Technical Specs
The Fisher Manufacturing DM10M1S condensate drain pan operates on a 120V circuit with a power consumption of 1000W and a compact weight of 3.75 pounds. Constructed from 22-gauge stainless steel, it measures 8.5 inches in height, 8.5 inches in width, and 13.5 inches in depth, making it suitable for installation beneath evaporator coils in commercial refrigeration or HVAC units. The unit’s 8.5-inch height accommodates standard enclosures, while its durable finish ensures resistance to corrosion and moisture. It features a float switch that activates drainage at precise condensate levels, compatible with various refrigeration and dehumidification systems. The pan’s design supports efficient drainage with minimal maintenance, optimized for mid-volume foodservice operations that require reliable condensate management to prevent overflow and water damage.
- Electrical Requirements: 120V, 60Hz, single-phase, 1000W
- Construction & Finish: 22-gauge stainless steel with corrosion-resistant surface
- Dimensions: 8.5" W x 13.5" D x 8.5" H
- Weight: 3.75 lbs. (pan only)
- Temperature Resistance: Suitable for standard refrigeration operating conditions
- Operational Features: Float switch for automatic condensate drainage, UL and NSF approved
- Cleaning & Maintenance: Easily disassembled for routine cleaning and inspection
- Installation Compatibility: Fits standard evaporator drain outlets, supports quick replacement
Electrical Compatibility: 120V, 60Hz power supply required
Drain Connection: Standard drain port compatible with common restaurant equipment plumbing
Material: Durable stainless steel resists corrosion and staining
Size & Weight: Compact footprint with a shipping weight of approximately 4 lbs.
Safety & Compliance: Features UL and NSF approvals for food safety and electrical safety
What is a commercial condensate drain pan?
A commercial condensate drain pan is a specialized component designed to collect excess moisture from refrigeration, air conditioning, or dehumidification systems in foodservice and HVAC environments. These pans, such as the Fisher Manufacturing DM10M1S, are typically made from corrosion-resistant materials like stainless steel and feature integrated float switches for automated drainage. Installed directly beneath evaporator coils or refrigeration units, they serve to prevent water accumulation that could cause system overflow or water damage. Suitable for installation in commercial kitchens, cold storage rooms, or HVAC systems, condensate drain pans ensure efficient moisture management, maintain sanitation standards, and support continuous system operation in busy foodservice settings.
Top condensate drain pans for medium-volume commercial foodservice settings
Reliable and robust, the Fisher Manufacturing DM10M1S condensate drain pan offers durable stainless steel construction and integrated float switch for medium throughput refrigeration and HVAC applications. It is ideal for commercial kitchens, cold storage, and dehumidification systems, supporting consistent condensate drainage during demanding operations.
- Operation Type — suitable for medium-volume refrigeration systems
- Kitchen Type — optimized for compact commercial kitchen setups
- Foodservice Category — designed for cold storage and refrigeration units
- Workload Qualifier — handles typical system condensate in busy foodservice environments
- Use Case — ensures efficient condensate management during continuous operation
Why Choose AllPoints DM10M1S?
Compared to standard condensate pans, the AllPoints DM10M1S stands out with its stainless steel build, integrated float switch, and compact design tailored for commercial refrigeration environments. Its corrosion resistance, easy maintenance, and UL/NSF approval improve operational efficiency and system reliability, making it a practical choice for foodservice facilities seeking durable condensate management solutions.
- Robust stainless steel construction ensures longevity
- Integrated float switch enhances automatic drainage
- Compact size facilitates installation in limited spaces
- Designed specifically for commercial refrigeration systems
- Meets industry safety and sanitation standards for foodservice
