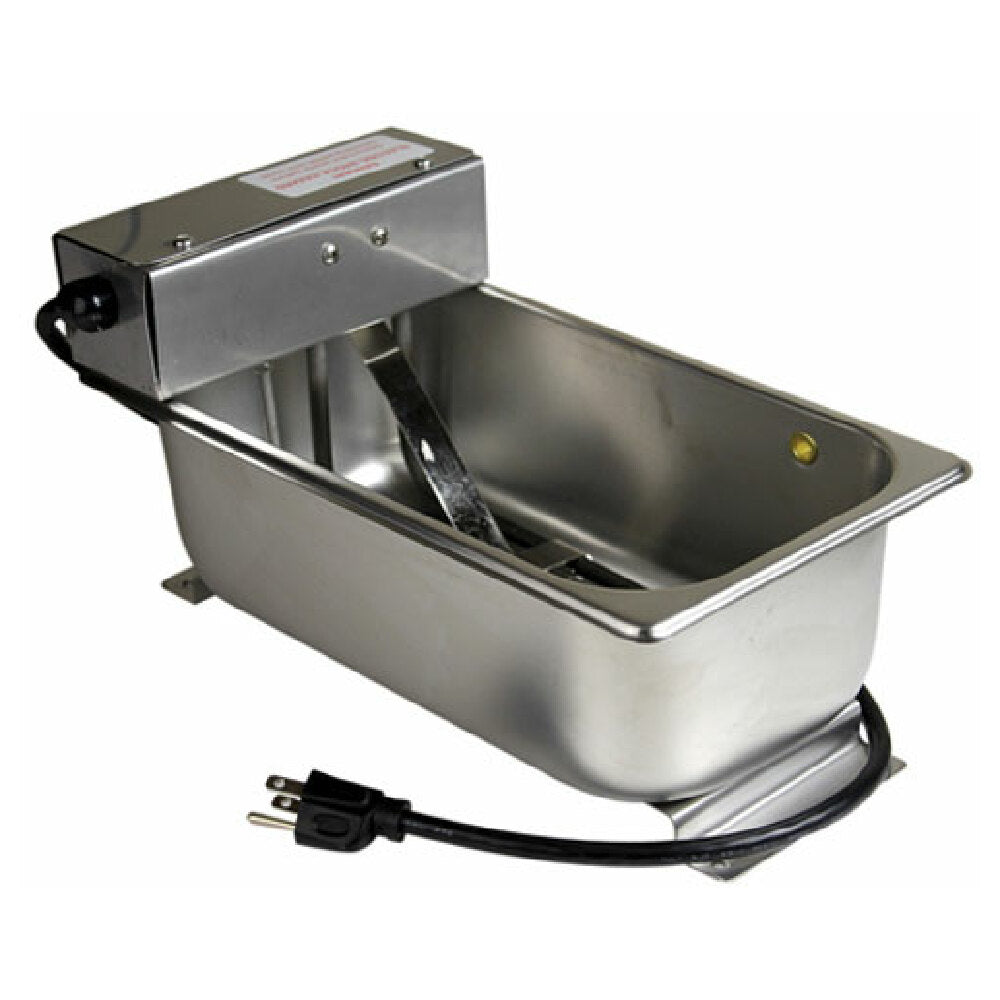

The Fisher Faucet DM10M1S Condensate Drain Pan is a commercial-grade evaporator pan designed for precise drip management in refrigeration and HVAC systems. Constructed from 22-gauge stainless steel, this drain pan features dimensions of 7" x 13" x 4" to ensure effective condensate collection in foodservice refrigeration units and commercial kitchen environments. Equipped with a high-limit float switch and a 3-foot cord, it provides reliable liquid level control and safe operation. The unit operates on 120V, 1000W, demonstrating high efficiency suitable for mid-volume applications. Its NSF and UL approvals affirm adherence to safety and sanitation standards for professional foodservice establishments. The drain pan’s durable stainless steel construction ensures long-lasting performance under continuous operation, making it ideal for restaurant, cafeteria, and institutional use.
Top AllPoints DM10M1S Features
The Fisher Faucet DM10M1S condensate drain pan offers targeted condensate collection with a 4.5-quart capacity, engineered for commercial refrigeration and HVAC systems. Its stainless steel 22-gauge body ensures durability in busy environments. The integrated high-limit float switch enhances liquid level control, simplifying condensate management and minimizing overflow risks in foodservice equipment. Designed for easy installation, it fits standard drain configurations and requires minimal maintenance, supporting efficient workflow in commercial kitchens. Its rugged construction and precise specifications make it suitable for high-traffic foodservice settings with continuous operation demands.
- Capacity: 4.5-quart condensate collection for medium workloads
- Material: 22-gauge stainless steel withstands corrosion and heavy use
- Float Switch: High-limit float detects overflows and triggers shut-off
- Ease of Maintenance: Simple disassembly for cleaning and inspection
- Compatibility: Standard 7" x 13" x 4" dimensions for multiple appliance fits
Ideal for refrigeration systems and HVAC units in commercial kitchens and foodservice facilities requiring reliable condensate management.
AllPoints DM10M1S Technical Specs
The Fisher Faucet DM10M1S condensate drain pan operates with a 120V, 1000W power supply, optimized for continuous commercial operation. Its dimensions are 7 inches wide, 13 inches deep, and 4 inches high, with a weight of 3.75 pounds, facilitating easy installation and handling. Made entirely of stainless steel, it provides corrosion resistance and durability suitable for busy foodservice environments. The unit features a high-limit float switch, integrated with a 3-foot cord, ensuring reliable liquid level detection and overflow prevention. It is UL and NSF approved for safety and sanitation compliance, fitting into standard drain setups for refrigeration and HVAC condensate collection. Its self-contained design minimizes maintenance and troubleshooting, making it a practical choice for foodservice operators.
- Electrical Requirements: 120V, 1000W, single-phase operation
- Construction & Finish: 22-gauge stainless steel provides corrosion resistance
- Dimensions: 7" x 13" x 4", lightweight at 3.75 lbs
- Float Switch & Cord: High-limit float with 3-ft cord for precise liquid detection
- Temperature & Safety: Suitable for standard refrigeration and HVAC condensation temperatures
- Usage Compatibility: Fits appliances with drain openings matching 7" x 13" dimensions
- Electrical Compatibility: Must be connected to 120V AC power supply
- Drain Connection: Compatible with standard drain fittings and plumbing setups
- Installation Space: Requires minimal clearance for maintenance and operation
- Drain Pan Placement: Designed for bench-mounted or integrated installation in refrigeration units
- Maintenance Needs: Easy disassembly for cleaning and inspection in daily workflows
What is a commercial condensate drain pan
A commercial condensate drain pan is a critical component used in HVAC and refrigeration systems to collect and manage excess condensation. Made from durable materials such as stainless steel, these pans are installed beneath evaporators or cooling units to prevent water buildup and potential damage. The Fisher Faucet DM10M1S condensate drain pan is designed for precise liquid collection with a capacity of 4.5 quarts, suitable for moderate workloads typical in restaurant kitchens, cafeterias, and foodservice establishments. Its high-limit float switch enhances safety by preventing overflows, ensuring smooth operation in foodservice environments that require consistent condensate drainage. Installed in undercounter or wall-mounted units, it supports efficient workflow and sanitation practices in commercial kitchens.
Top commercial condensate drain pans for foodservice environments
Reliable condensate management supports efficient high-volume refrigeration in commercial kitchens, with premium-grade models like the Fisher Faucet DM10M1S designed for mid-volume workflows. Constructed from durable stainless steel, these units withstand heavy use while ensuring sanitation. The included float switch provides enhanced safety and prevents overflow. Suitable for installation in undercounter or wall-mounted units, these drain pans are integral for maintaining operational efficiency in foodservice settings such as restaurants, cafeterias, and catering facilities. They facilitate seamless condensate removal and contribute to optimal kitchen hygiene and system longevity.
- Operation in moderate throughput foodservice kitchens
- Suitable for compact commercial spaces with standard drain fittings
- Designed for refrigeration and HVAC applications in foodservice
- Supports workflow efficiency with easy maintenance access
- Built with corrosion-resistant stainless steel for longevity
