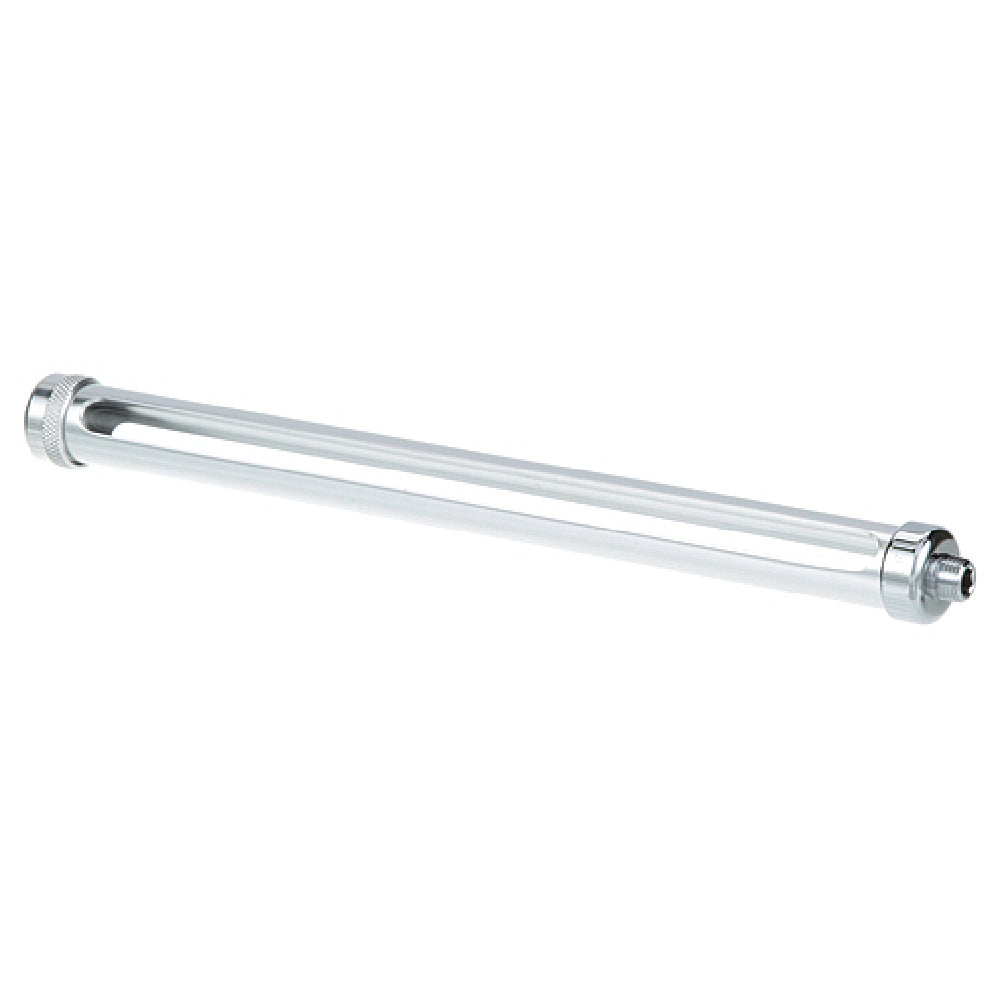

The Grindmaster D001F Gauge Shield Assembly by AllPoints is a essential component designed for commercial foodservice applications involving precise liquid level monitoring. It features a robust 5/8" glass tube encased within an aluminum shield, providing durability and clear visibility. The assembly includes a shield cap, cap washer, and base washer with a 1/8" NPT connection. Its overall length measures 9 inches, with an additional 3/8" increment for optimum fitment. This gauge shield assembly is suitable for foodservice operators requiring reliable measurement and protection of glass sight tubes in beverage, water boiler, or steam equipment, ensuring accurate readings and long-term performance in high-traffic environments.
Top AllPoints D001F Features
The Grindmaster D001F Gauge Shield Assembly is engineered for industrial-grade durability and ease of maintenance in commercial beverage and steam applications. Its aluminum shield protects the 5/8" glass tube from impact and contamination, while the easy-to-install 1/8" NPT base ensures secure mounting. Designed for quick inspection and replacement, it supports a consistent workflow in busy foodservice environments, facilitating operational uptime and measurement accuracy.
- Protects glass the tube from impact and contamination
- Aluminum shield enhances durability in high-use settings
- Easy to install with 1/8" NPT connection
- Fits 5/8" diameter glass tubes for precise monitoring
- Overall length of 9 inches, extendable by 3/8" for custom fit
Ideal for beverage controllers, boiler systems, and fluid level monitoring in commercial kitchens.
AllPoints D001F Technical Specs
The Grindmaster D001F gauge shield assembly features a 5/8" diameter glass tube housed within a high-quality aluminum shield, designed for resilience in demanding foodservice environments. The assembly has an overall length of 9 inches, with an added 3/8" extension for adaptable installation. It incorporates a 1/8" NPT base connection, ensuring secure attachment to various equipment. The unit weighs 0.24 lbs and is manufactured in the United States under strict quality standards. Constructed from corrosion-resistant aluminum, it resists impact and weathering, suitable for installation behind control panels or on beverage equipment requiring precise level visibility. Cleaning involves straightforward disassembly, with no special handling beyond routine inspection. Tested for temperature resistance, it functions reliably within typical equipment operating ranges, providing longevity and dependable measurement accuracy in both hot and cold environments.
- Electrical Requirements: Not applicable
- Material: Aluminum with 5/8" glass tube
- Dimensions: 0.88" W x 0.88" H x 9.63" D
- Weight: 0.24 lbs
- Connection: 1/8" NPT base
- Temperature Resistance: Suitable for typical foodservice operating ranges
- Construction Finish: Anodized aluminum for corrosion resistance
- Usage Compatibility: Compatible with beverage and steam equipment
- Cleaning & Maintenance: Disassembly for routine inspection
Capacity: Not applicable
Installation: Requires accurate clearance and airflow for maintenance
Compatibility: Designed for standard glass gauge tubes and NPT fittings
Durability: Aluminum housing withstands impact and corrosion
Use Case: Suitable for beverage boilers, water systems, and level monitoring
What is a commercial gauge shield assembly?
A commercial gauge shield assembly is a device used to protect and support sight glass tubes within industrial or foodservice equipment. It provides a secure housing that safeguards against impact, contamination, and environmental damage while allowing clear visibility of fluid levels. The Grindmaster D001F Gauge Shield Assembly is commonly installed in beverage dispensers, boilers, or water systems to ensure accurate level measurement and operational reliability. Its durable aluminum construction and precise NPT fitting make it suitable for high-use, commercial kitchen environments, supporting efficient monitoring and maintenance of critical fluid levels.
Top Commercial Gauge Shield Assemblies for Food Service Operations
Reliable and durable, the Grindmaster D001F Gauge Shield Assembly supports medium throughput environments, providing precise fluid level visibility in commercial beverage and steam systems. Crafted for easy installation and long-term performance, AllPoints D001F units are ideal for foodservice facilities with demanding monitoring needs in busy kitchens and service areas.
- Medium workload — suitable for standard foodservice beverage operations
- Compact design — ideal for tight installation spaces
- Corrosion-resistant aluminum construction for longevity
- Supports precise level monitoring in commercial equipment
- Engineered for straightforward maintenance and replacement
Why Choose AllPoints D001F Gauge Shield Assembly
The AllPoints D001F Gauge Shield Assembly offers enhanced durability with its aluminum housing and precise glass tube fitment, surpassing standard steel or plastic alternatives. Its straightforward installation, combined with reliable protection against impact and contamination, ensures longer service life and consistent accuracy in demanding foodservice environments. Designed for ease of maintenance, it supports efficient workflow in busy commercial kitchens, reducing downtime associated with gauge damage or failure.
- Constructed with corrosion-resistant aluminum for longevity
- Compact footprint suitable for tight spaces
- Protects glass tubes from impact and environmental damage
- Features a secure 1/8" NPT connection for reliable fitment
- Supports high operational uptime and measurement accuracy
