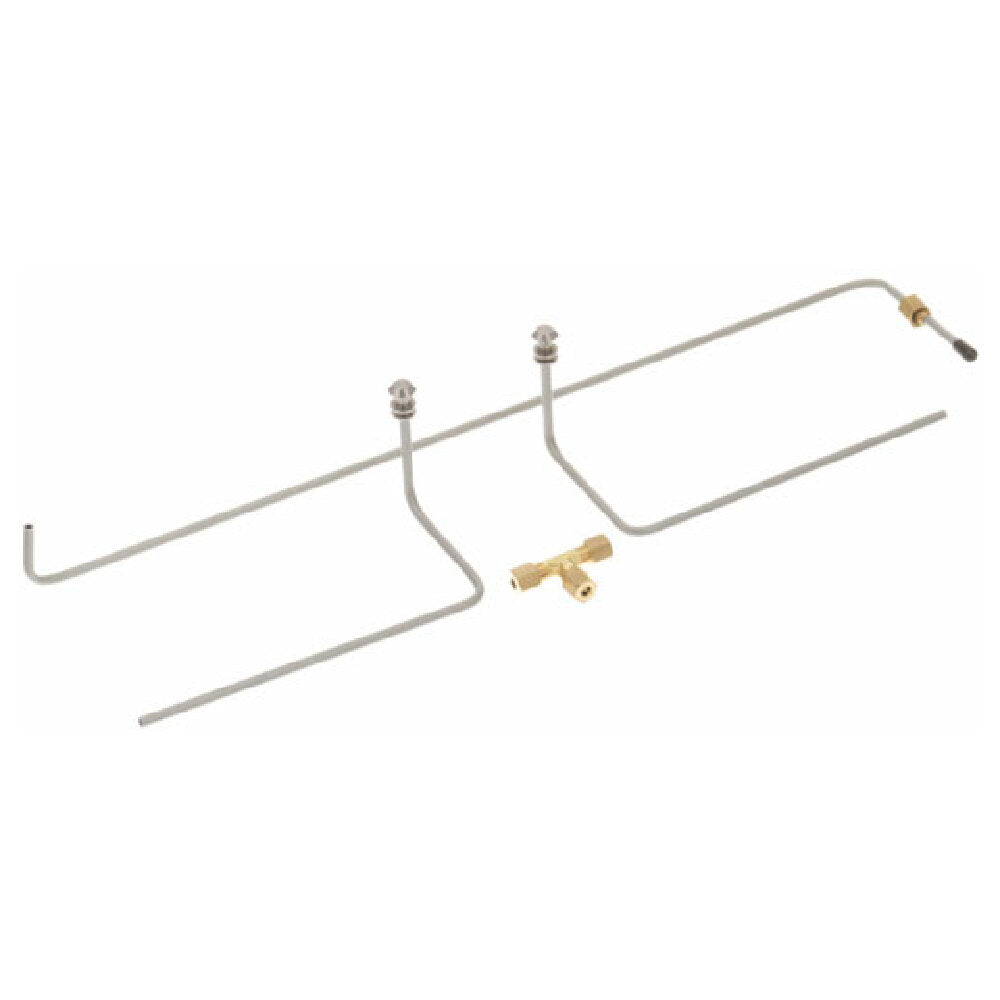

The Garland CK3049800 Pilot Tube Assy is a specialized open burner pilot tube assembly designed for commercial kitchen applications, particularly within Garland’s US Range Cuisine Series C2836-75-1 C836-2-1. Constructed with durable 3/16" tubing, it features a Tee Nut and Ferrule for secure attachment and reliable ignition. This pilot tube assembly provides precise and consistent gas flow essential for optimal burner operation and safety in high-volume foodservice environments.
Top Garland CK3049800 Features
The Garland CK3049800 Pilot Tube Assy offers a precise gas delivery system with corrosion-resistant materials, ensuring long-term reliability under continuous use. Its design facilitates straightforward installation and maintenance, reducing downtime. Suitable for open burner setups, it integrates seamlessly with Garland’s range of commercial cooking equipment, supporting consistent ignition and flame stability for medium-volume kitchen workflows.
- Accurate gas flow control: Ensures reliable ignition in commercial open burners
- Corrosion-resistant construction: Built with high-grade materials for durability
- Easy installation and maintenance: Features quick-connect fittings for serviceability
- Reliable performance in open flame applications: Designed for Garland US Range series burners
- Dimensional compatibility: Fits standard 3/16" tubing with secure Tee Nut and Ferrule
Ideal for replacement in Garland restaurant equipment requiring dependable pilot tube performance.
Garland CK3049800 Technical Specs
The Garland CK3049800 Pilot Tube Assy is a high-quality component built for demanding commercial kitchen environments. It features 3/16" tubing with a robust Tee Nut and Ferrule for secure connection. Crafted in the United States from corrosion-resistant materials, it supports consistent ignition in open burner setups. With overall dimensions of 4" width, 23.5" depth, and 3" height, it weighs only 0.29 lbs, making it easy to handle during installation or replacement. Designed to withstand standard operating temperatures, this assembly facilitates efficient gas flow at specified vapor pressures, ensuring safe and reliable ignition. The product does not include electronic components and is intended for use with Garland’s gas range series, emphasizing compatibility and precision in high-demand commercial kitchens.
- Electrical Requirements: Not applicable, purely mechanical gas connection
- Construction & Finish: High-grade stainless steel components
- Dimensions: 4" W x 23.5" D x 3" H
- Weight: 0.29 lbs product weight
- Operating Range: Suitable for standard gas pressure and flow conditions
Key integration considerations include ensuring proper tubing size, secure fittings for leak prevention, and alignment with the burner mounting configurations. Compatibility with Garland’s open flame gas burners and proper airflow clearance are essential for optimal performance in medium-volume commercial kitchens.
What is a commercial pilot tube assembly?
A commercial pilot tube assembly is a vital component of gas-fired cooking equipment, responsible for providing a reliable ignition source for burners. It consists of a precision-machined tube connected to the gas supply line, with a Tee Nut and Ferrule for secure attachment. Designed for use in open flame appliances like Garland’s gas range series, this assembly ensures consistent flame ignition essential for safe and efficient operation in restaurant kitchens, catering facilities, and institutional foodservice settings. The Garland CK3049800 Pilot Tube Assy specifically supports medium-volume cooking workflows, offering durability and precision required for sustained commercial use.
Top commercial pilot tube assembly for kitchen workflows
Designed for medium-volume Garland gas ranges, the Garland CK3049800 Pilot Tube Assy provides reliable ignition performance in commercial kitchen environments. Built with corrosion-resistant materials, it facilitates consistent burner operation in moderate throughput foodservice settings, such as restaurants and institutional kitchens. This assembly supports efficient workflow with straightforward installation and maintenance, ensuring minimal downtime for high-demand operations.
- Operation Type — suitable for moderate-volume restaurant kitchens
- Kitchen Setting — designed for Garland commercial range series
- Foodservice Category — ideal for open burner appliance applications
- Workload Qualifier — supports medium throughput cooking
- Use Case — maintains consistent ignition for high-volume foodservice production
Why Choose AllPoints CK3049800 Pilot Tube Assy?
AllPoints CK3049800 Pilot Tube Assy offers enhanced durability with high-quality stainless steel components, ensuring long-term reliability in demanding kitchen environments. Its simple installation process minimizes downtime, and its precise design delivers dependable ignition performance. Built specifically for Garland’s range of open burners, this assembly ensures operational efficiency and safety in medium-volume foodservice operations.
- Compact footprint optimized for space-constrained kitchens
- Corrosion-resistant materials extend service life
- Designed for seamless integration with Garland open burners
- Provides reliable ignition for consistent flame stability
- Facilitates quick maintenance and replacement
