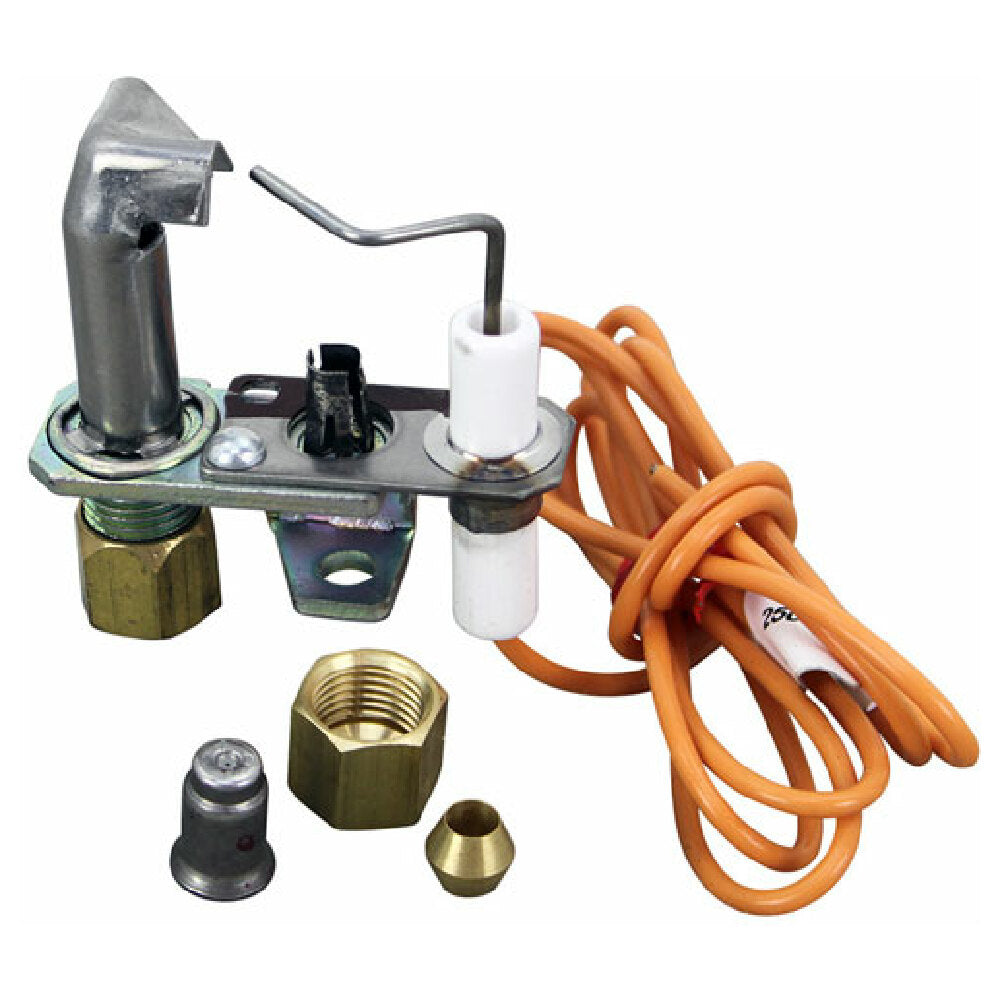

The Garland CK1758901 Pilot Assy W/lead is a precise and reliable pilot assembly designed for commercial gas appliances, particularly in foodservice environments requiring consistent ignition performance. Manufactured by Garland, this pilot assembly features a right-pattern flame igniter with a 3/16" tube size, compatible with propane and natural gas models. Its construction incorporates durable materials suitable for operational longevity and ease of maintenance. This assembly is ideal for high-demand bakery ovens, convection units, and range series, providing efficient ignition control and stable flame output essential for continuous cooking processes. The specific orifice configurations include #26-1554 for both LP and natural gas, ensuring optimal flame control and safety compliance in professional kitchens.
Top Garland CK1758901 Features
The Garland CK1758901 Pilot Assy W/lead offers seamless integration with Garland's oven and range models, enhancing ignition reliability and operational stability. Designed for medium-volume commercial kitchens, it ensures quick installation and straightforward maintenance with durable, corrosion-resistant components. The 24-inch wire facilitates flexible connection to ignition modules, supporting continuous operation in demanding foodservice applications. Its precision flame pattern and gas orifice compatibility optimize combustion efficiency, reducing downtime and ensuring consistent cooking performance.
- Reliable ignition performance – engineered for consistent startup ignition
- Corrosion-resistant materials – extends lifespan in commercial kitchen environments
- Easy wire connection – 24-inch wire facilitates straightforward setup
- Precise flame pattern – right-side flame for optimized combustion
- Gas orifice compatibility – includes LP and natural gas options #26-1554
Designed for professional kitchen operators seeking dependable ignition solutions for Garland ovens and convection units
Garland CK1758901 Technical Specs
This pilot assembly features a 0.5-inch height, 0.88-inch width, and 3.5-inch depth, with a weight of just 0.3 lbs, making it suitable for compact installation spaces. The component is constructed in Mexico from durable materials that withstand high temperatures and frequent use, supporting reliable ignition in commercial cooking environments. It operates with a clean, gas-only ignition system and is designed to be compatible with Garland’s Eco Ico Tg oven and Series Cg Performer II range series. The assembly includes a flame pattern orientation for right-side ignition and utilizes standardized orifice sizes #26-1554 for propane and natural gas. It requires a round post ignition terminal #85-1063 for proper connection, ensuring safety and consistency. The assembly is non-hazardous, with a typical shipping time of four to five days, and is available for immediate replacement or upgrade in existing appliances. Its corrosion-resistant, easy-to-clean design supports sanitary maintenance in busy foodservice settings.
- Electrical Requirements: Gas-powered ignition, no electricity needed for ignition operation
- Construction & Finish: Durable stainless steel and corrosion-resistant components
- Dimensions: 0.88" W x 3.5" D x 0.5" H
- Weight: 0.3 lbs
- Gas Compatibility: LP and natural gas with #26-1554 orifice
- Connection: Includes round post ignition terminal #85-1063
Suitable for direct replacement in Garland Eco Ico Tg and Performer II models
Requires minimal maintenance with straightforward disassembly
Designed for consistent flame quality and ignition reliability
Installation involves straightforward wiring and gas connection
Supports efficient combustion and energy use
What is a commercial pilot assembly?
A commercial pilot assembly is a critical component in gas-powered cooking and baking equipment, providing a always-on flame source to ignite main burners safely and reliably. The Garland CK1758901 pilot assembly, specifically, functions as an ignition system for Garland’s oven and range series, facilitating consistent flame initiation and stability. This assembly includes the ignition wire, gas orifice, and flame pattern controls, all designed for precise combustion and minimal maintenance. Installed in products like convection ovens, ranges, and specialty cooking units, it is rated for demanding commercial environments, supporting continuous operation in high-volume foodservice settings where reliable ignition is essential for safety and efficiency.
Top commercial ignition components for high-volume foodservice
Reliable ignition components like the Garland CK1758901 enable efficient operation and safety in commercial kitchens. Crafted for medium throughput environments, this pilot assembly ensures durable ignition solutions, supports quick maintenance, and integrates seamlessly with Garland appliances. Designed for professional-grade operation, it is well-suited for restaurant-scale cooking, bakery applications, and convection oven setups, enhancing workflow reliability with high-quality parts from AllPoints.
- Medium-volume operation suitable for bakery and commercial ranges
- Built with corrosion-resistant materials for long-term durability
- Supports quick installation and straightforward maintenance
- Compatible with Garland's standard gas orifices and igniters
- Ideal for continuous use in restaurant and industrial kitchens
