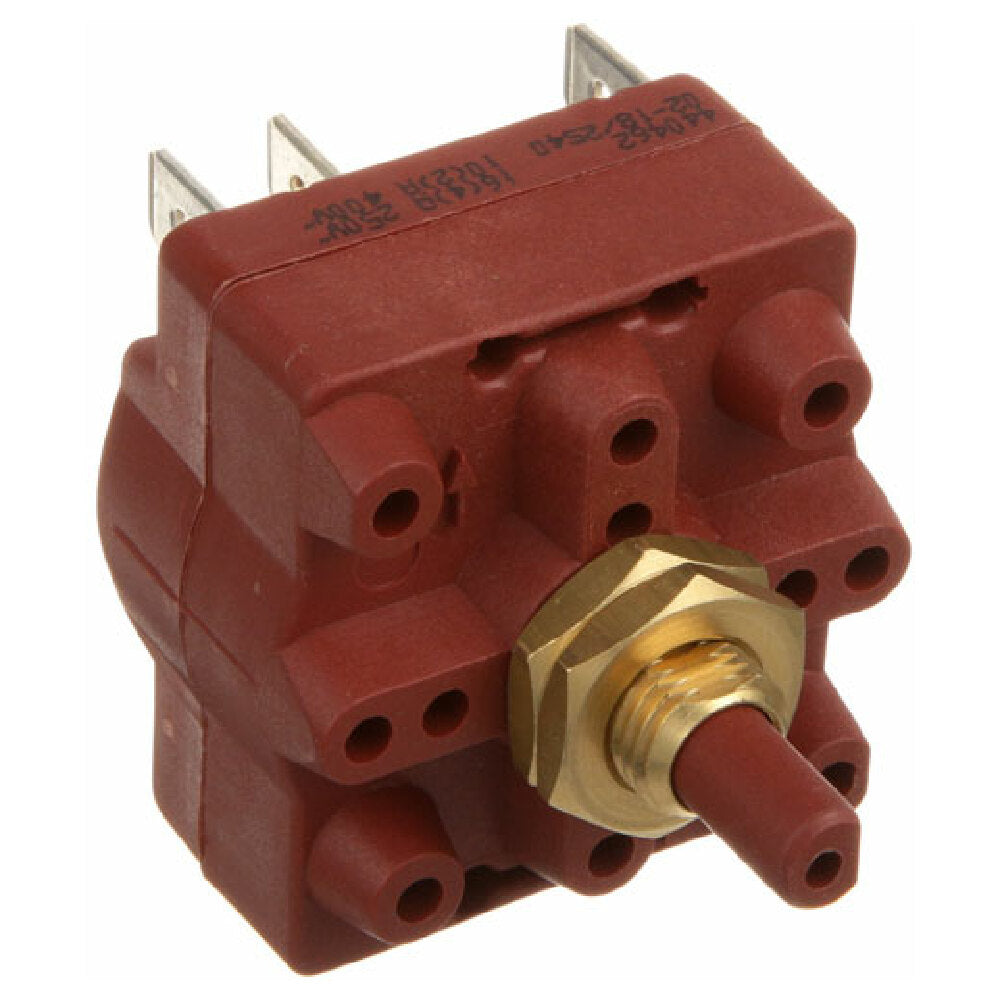

The APW 89503 Rotary Switch is a high-capacity industrial control component used predominantly in commercial foodservice equipment, such as toasters and small appliances. Manufactured by APW, this rotary switch features a 25amp current rating capable of handling 1 1/4 horsepower at 120V and up to 2 horsepower at 240V, making it suitable for medium-duty applications. Its plastic D-shaft, with a diameter of .198", ensures reliable operation and easy installation within control panels or switch kits, exemplified by its use in the Switch Kit #42-1171 for Belleco toasters. Designed for durability and technical precision, this switch provides a robust solution for managing electrical circuits in busy foodservice environments, promoting operational consistency and safety for commercial kitchen equipment.
Top AllPoints 89503 Features
The APW 89503 Rotary Switch offers precise control for medium workload commercial appliances, combining high electrical capacity with durable phenolic construction. Its 25amp rating ensures dependable circuit management, while the plastic D-shaft allows seamless integration into control assemblies. This switch is engineered for ease of maintenance and consistent performance in fast-paced foodservice settings, suitable for applications like high-volume toasters and food prep machinery.
- High electrical capacity: 25amp current handling with 1¼ Hp at 120V
- Durable construction: Phenolic plastic D-shaft for long-term reliability
- Ease of installation: 5 ea ¼" terminal tabs simplify wiring and replacement
- Optimized for commercial use: Suitable for medium workloads in busy kitchens
- Reliable switching performance: Designed for repetitive cycling in foodservice equipment
Ideal for replacing worn switches in commercial toasters or food prep equipment with switch kit compatibility.
89503 Technical Specs
The APW 89503 rotary switch operates at a voltage of 120V or 240V, supporting frequencies typical of North American power supplies. It is rated for 25amp current and can handle 1 1/4 Hp at 120V or 2 Hp at 240V. Constructed with a resilient phenolic plastic D-shaft measuring .198" in diameter, the switch weighs just 0.2 lbs, and measures approximately 1.3" in width, 1.7" in depth, and 2" in height. It is designed for easy installation in control panels, with a focus on durability and consistent electrical performance. This compact, high-capacity component is ideal for medium-duty controls in commercial kitchen environments, providing dependable switching in appliances like toasters and other small foodservice devices. It is originating from China and is non-hazardous, with a typical ship time of 4 to 5 days.
- Electrical requirements: 120V/240V, 25amp, 1¼ Hp at 120V, 2 Hp at 240V
- Construction & finish: Phenolic plastic D-shaft, black finish
- Dimensions: 1.3" W x 1.7" D x 2" H
- Weight: 0.2 lbs
- Operating Range: Designed to operate reliably within typical foodservice voltages and cycles
- Compatibility: Switch only, used with Switch Kit #42-1171 in commercial appliance controls
- Material safety: Non-hazardous, suitable for foodservice equipment environments
- Installation & maintenance: Terminal tabs accessible via wiring, straightforward replacement process
- Electrical compatibility: Supports 120V or 240V circuits with rated amperage
- Panel integration: Fits control panels with ¼" terminal connections
- Durability considerations: Phenolic construction resists heat and impact in busy kitchens
- Installation clearance: Requires minimal space—approximately 1.3" width for straightforward retrofitting
- Maintenance: Accessible wiring terminals facilitate quick replacement and troubleshooting
What is a commercial rotary switch?
A commercial rotary switch is a durable control device used in foodservice and industrial equipment to manage power circuits through a rotational actuation. The APW 89503 rotary switch is designed for medium-duty applications, featuring a high-amperage rating and precise switching capabilities. Installed in appliances like toasters and food prep machines, it ensures reliable operation and easy control of electrical functions, making it essential for safe and efficient kitchen workflows in high-volume settings.
Top Rotary Switches for Medium-Volume Foodservice Settings
Constructed for dependable operation, the APW 89503 rotary switch is ideal for medium-duty commercial kitchens, supporting consistent control in food preparation appliances. Designed by AllPoints, it ensures durability, reliable switching performance, and seamless integration into control systems, perfect for busy restaurant and institutional environments requiring robust control components.
- Medium-duty control — suitable for typical foodservice appliance workloads
- Compact footprint — integrates easily into control panels
- Durable phenolic material — withstands frequent use in commercial kitchens
- Reliable switching — supports consistent operation in restaurant equipment
- Designed for installation in commercial appliances — such as toasters and food prep devices
Why Choose AllPoints 89503?
The AllPoints 89503 rotary switch offers a dependable, high-capacity control solution tailored for commercial kitchen environments. Its phenolic construction ensures longevity and resistance to heat, while its compact design facilitates easy replacement and integration into existing equipment. This switch’s robust performance enhances kitchen workflow efficiency and operational safety in foodservice applications.
- Self-contained design: Fits seamlessly into appliance control panels
- Enhanced durability: Phenolic material resists impact and heat
- Optimized for restaurant-ready equipment: Reliable for daily industrial use
- Compact form factor: Minimal space requirement for Retrofit projects
- High-performance switching: Ensures consistent electrical operation under load
