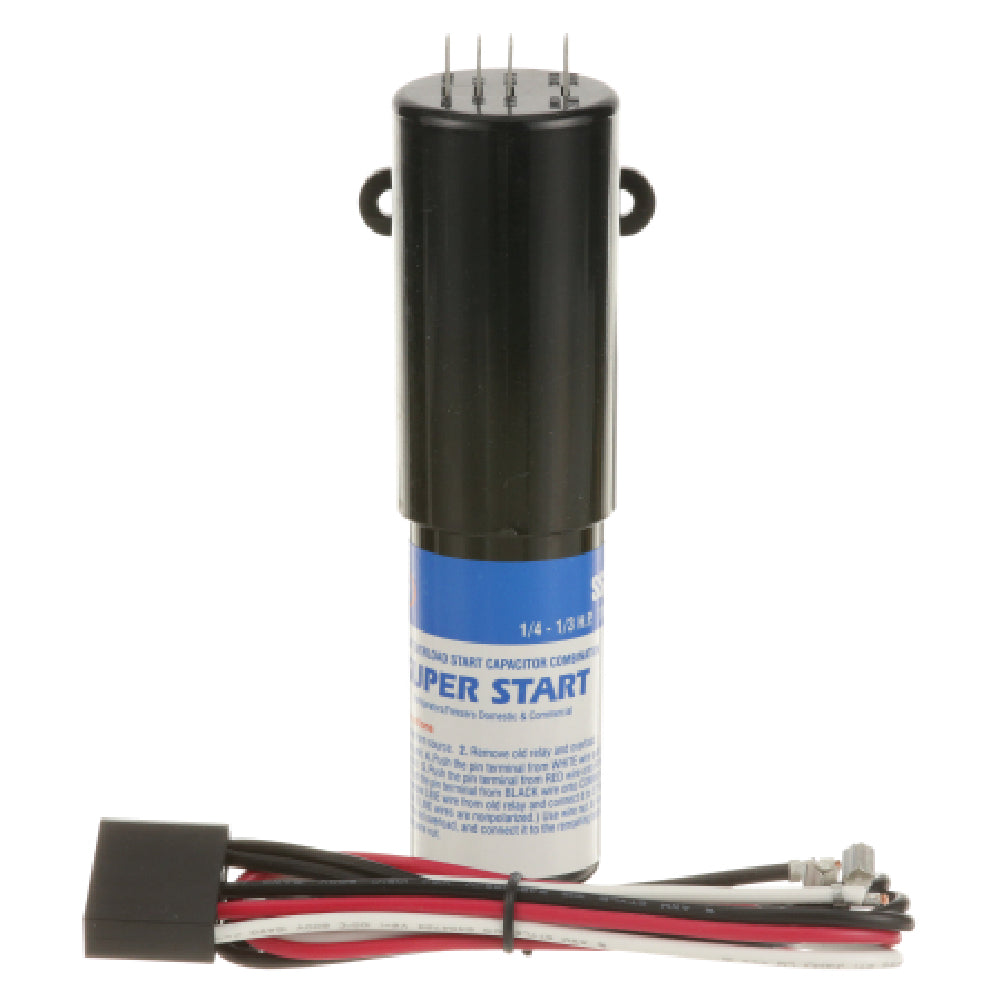

The AllPoints 881303 Super Start Overload And Relay Combo is a professional-grade electrical component designed for commercial refrigeration systems. As a crucial part of motor startup solutions, it combines a super start relay, overload protector, and a 255-micron start capacitor within a single assembly. This model replaces traditional relay overload units, providing enhanced boost to compressors, particularly in hard start or unbalanced load conditions, thereby minimizing low voltage starting issues and maximizing torque output. Suitable for compressors ranging from 1/4 to 1/3 HP operating at 115V, the unit supports reliable, high-efficiency operation in foodservice refrigeration applications, including walk-in coolers, display cases, and ice machines.
Top AllPoints 881303 Features
This combination relay overload enhances starting torque and system reliability by integrating a high-current electro-mechanical relay with a 255-micron start capacitor. Designed for easy installation and durable operation, it suits commercial refrigeration systems requiring reliable motor starts, reducing energy consumption and system downtime. Built with precision components, it ensures consistent performance and easy maintenance in high-demand foodservice environments, supporting the smooth operation of compressors in tight or unbalanced electrical conditions.
- Functionality: Boosts compressor start-up performance under unbalanced loads
- Durability: Constructed with high-quality electro-mechanical relay components
- Ease of Maintenance: Compact design simplifies installation and troubleshooting
- Application Fit: Suitable for 1/4 to 1/3 HP compressors in commercial refrigeration
- Workflow Efficiency: Improves system reliability, reducing downtime during rapid start cycles
Ideal for commercial refrigeration technicians and foodservice operators seeking reliable compressor startup solutions.
AllPoints 881303 Technical Specs
The AllPoints 881303 Super Start Overload And Relay Combo operates at 115 volts with a single-phase configuration, engineered for air-cooled compressor applications within commercial refrigeration equipment. Its compact dimensions—2.25 inches high, 5.25 inches wide, and 7 inches deep—facilitate straightforward installation in restricted appliance compartments. Weighing only 0.5 pounds, this model features durable construction suitable for continuous operation and temperature resistance from standard ambient conditions. Made in the United States, it includes a reliable, self-contained design with straightforward disassembly for maintenance. Its 255-micron start capacitor provides an optimal boost during compressor startup, ensuring maximum torque and system stability under typical foodservice workload demands. The unit supports operations where precise electrical parameters are critical for consistent system performance.
- Electrical Requirements: 115V, single-phase, 1/4 to 1/3 HP
- Construction & Finish: Durable plastic and metal components, corrosion-resistant
- Installation: Compatible with standard compressor mounting arrangements
- Temperature Tolerance: Operational up to typical ambient refrigeration environments
- Product Dimensions: 2.25" H x 5.25" W x 7" D
- Electrical Compatibility: Suitable for single-phase, 115V compressor circuits
- Clearance & Ventilation: Adequate airflow required for prolonged operation
- Wiring Setup: Easy connection to compressor motor terminals
- Maintenance Access: Disassembly straightforward for capacitor replacement
- Application Environment: Air-cooled units in high-traffic commercial kitchen equipment
What is a commercial overload relay and capacitor combo
A commercial overload relay and capacitor combination is an electrical device used to improve the starting performance and protection of compressor motors in foodservice refrigeration systems. This integrated assembly—such as the AllPoints 881303—features a super start relay, overload protector, and a high-capacity start capacitor designed for continuous operation in commercial kitchen environments. It is typically installed in refrigeration units like coolers, freezers, and ice makers to ensure reliable startup under varying load conditions, prevent low voltage issues, and extend equipment lifespan. Its precise design supports mid-volume foodservice operations requiring efficient cooling with minimal downtime.
Top commercial refrigeration relay and capacitor for foodservice environments
This reliable overload and relay combo ensures precise motor starting, durability, and ease of installation for commercial refrigeration units. Designed for moderate workloads, it is ideal for foodservice operations such as walk-in coolers, prep stations, and display cases. AllPoints 881303, as a robust component, provides optimal system function and reliable performance in busy commercial kitchen settings.
- Operation Type — Suitable for medium-demand commercial refrigeration systems
- Kitchen Setting — Ideal for compact, restaurant-ready refrigeration units
- Foodservice Category — Supports refrigeration in high-traffic food establishments
- Workload Qualifier — Designed for moderate throughput environments
- Use Case — Ensures consistent compressor startup and system protection
Why Choose AllPoints 881303 Super Start Overload And Relay Combo?
Compared to standard relay overload units, this combination model features integrated startup components that enhance compressor performance and system reliability. Its durable construction and efficient design reduce maintenance needs while providing a robust boost during startup, especially in unbalanced or low-voltage conditions. The compact footprint and straightforward wiring support quick installation and minimal disruption, making it a preferred choice for commercial kitchen repairs and refrigeration maintenance.
- Enhanced startup performance with integrated overload protection
- Compact, lightweight design for easy retrofit in existing systems
- Durable materials withstand demanding foodservice environments
- Unified assembly reduces wiring complexity and installation time
- Supports reliable operation in diverse refrigeration applications
