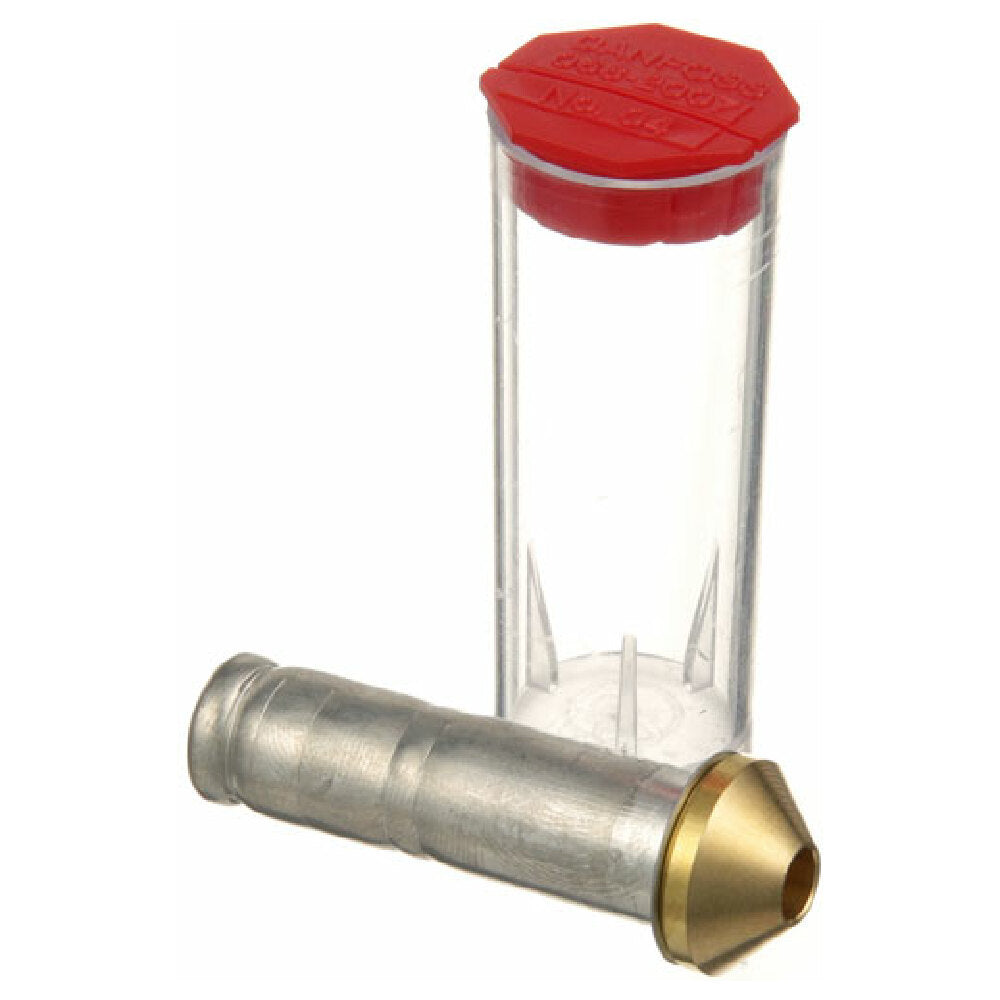

The AllPoints 881084 T2 Orifice Cartridge Orifice #4 is a precision component designed for commercial refrigeration systems, specifically serving as a critical part of thermostatic expansion valves (TXVs). Engineered for consistent flow regulation, this orifice supports R22, R134a, and R404a/r507 refrigerants, with capacities of 4-1/2, 3, and 2-1/2 tons respectively. Its precise dimensions, including a height of 0.75 inches, width of 0.75 inches, and depth of 2 inches, ensure reliable integration within commercial HVAC and refrigeration applications. Manufactured in Denmark by AllPoints, this high-efficiency orifice guarantees optimal refrigerant metering and improved system performance, making it a vital component for technician-maintained refrigeration units in foodservice, hospitality, and commercial cooling settings.
Top AllPoints 881084 Features
The AllPoints 881084 T2 Orifice Cartridge is tailored for commercial refrigeration systems where precise refrigerant flow and durability are essential. Its high-grade material construction ensures long-term reliability under operating conditions, simplifying maintenance with straightforward installation. Compatible with various refrigerants, it facilitates easy tuning of thermostatic expansion valves, supporting efficient system operation. Designed for medium workloads, this orifice enhances workflow stability in foodservice environments, including beverage coolers, display cases, and HVAC applications. Its standardized dimensions enable seamless replacement, reducing downtime and ensuring consistent performance.
- Precise refrigerant metering: Supports multiple refrigerants with accurate flow control.
- Durable construction: Made from high-quality materials for longevity in harsh conditions.
- Ease of installation: Compatible with standard TXV assemblies, simplifying replacement processes.
- Optimized for medium workloads: Suitable for typical refrigeration capacities in commercial kitchens.
- Consistent performance: Maintains stable refrigerant flow, improving cooling efficiency.
Ideal for maintenance of commercial HVAC and refrigeration units requiring precise TXV orifice control.
AllPoints 881084 Technical Specs
The AllPoints 881084 T2 Orifice Cartridge features a model number of 881084, manufactured in Denmark by AllPoints. It supports refrigerants R22, R134a, and R404a/r507 with respective capacity ratings of 4-1/2, 3, and 2-1/2 tons. Its dimensions include a height of 0.75 inches, a width of 0.75 inches, and a depth of 2 inches, with a shipping weight of 0.01 lbs. The orifice is constructed from high-quality materials designed for robust performance in commercial refrigeration environments. It is made without hazardous substances and complies with industry standards for durability and safety. Suitable for installation in various HVAC systems, it operates reliably within typical temperature ranges used in foodservice and hospitality facilities. The component does not require electrical requirements and is designed for straightforward integration into existing TXV configurations.
- Refrigerant support: R22, R134a, R404a/r507
- Capacity ratings: 4-1/2, 3, 2-1/2 tons respectively
- Construction material: High-grade durable materials
- Dimensions: 0.75" height, 0.75" width, 2" depth
- Weight: 0.01 lbs for unit, shipping weight as specified
- Origin: Denmark manufacturing
- Operational safety: Non-hazardous, compliant with industry safety standards
- Refrigerant line installation: Compatible with standard TXV fittings for quick replacement
- Temperature range: Suitable for typical commercial refrigeration operating environments
- Maintenance: Designed for minimal disassembly despite high durability
- Application suitability: Used in HVAC and refrigeration system tuning
- System compatibility: Fits standard thermostatic expansion valve setups
What is a commercial thermostatic expansion valve orifice?
A commercial thermostatic expansion valve orifice is a precision passage that regulates refrigerant flow within HV AC and refrigeration systems. Specifically, the AllPoints 881084 T2 Orifice Cartridge Orifice #4 is a high-accuracy component used in systems supporting refrigerants such as R22, R134a, and R404a/r507, helping to control cooling capacity efficiently. Installed in HVAC units, beverage coolers, and display cases, this orifice ensures consistent and stable refrigerant metering, which directly impacts system performance and energy efficiency. Designed for medium workloads, it provides reliable operation in foodservice and hospitality environments, supporting system tuning and maintenance needs with its standardized dimensions and durable construction.
Top Commercial Refrigeration Components for Refrigeration and HVAC Systems
High-quality thermostatic expansion valve orifices support precise refrigerant flow in commercial refrigeration, with AllPoints 881084 being ideal for medium-duty HVAC applications in foodservice. Manufactured to exact specifications for stable operation, it enhances system performance in hospitality and retail environments, with a focus on durability and ease of maintenance.
- Operation Type — supporting medium workload commercial refrigeration
- Kitchen Type — suitable for installed HVAC and cooling units
- Foodservice Category — optimal for beverage coolers and display cases
- Workload Qualifier — moderate capacity needs in foodservice environments
- Use Case — precise system tuning and maintenance in commercial kitchens
Why Choose AllPoints 881084 ?
The AllPoints 881084 T2 Orifice Cartridge Orifice #4 stands out for its durable construction, precise refrigerant metering, and compatibility with multiple refrigerants, ensuring reliable system tuning. Its compact design and Danish manufacturing quality provide a long-lasting, restaurant-ready component that enhances cooling efficiency and reduces downtime compared to standard alternatives.
- Self-contained design: Integrated to simplify installation and replacement
- Robust material quality: Ensures longevity in demanding environments
- Versatile refrigerant support: Supports R22, R134a, R404a/r507 systems
- Optimal for commercial kitchens: Supports HVAC and refrigeration system tuning
- Compact footprint: Fits easily within standard TXV assemblies, reducing space needs
