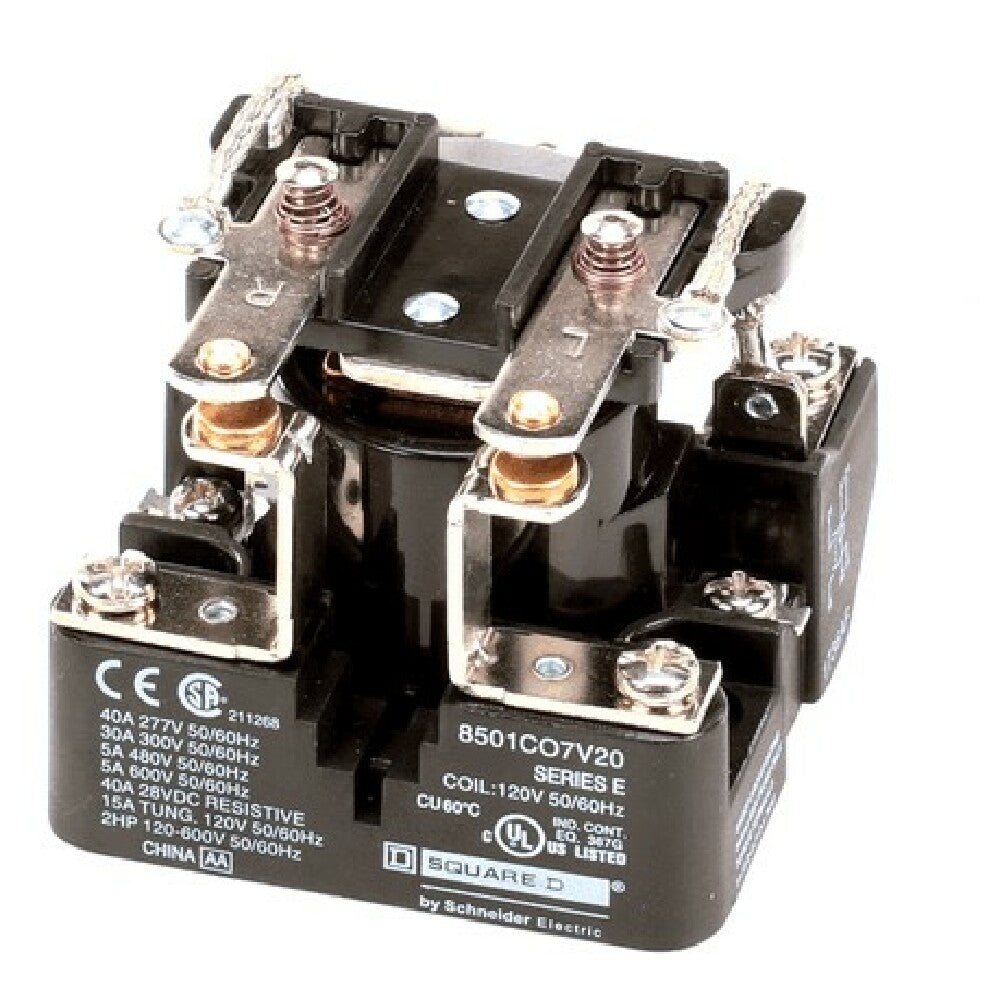

The AllPoints 8105185 Relay / Contactor 120v Dh65 S is a robust industrial switching component designed for controlling high-current electrical circuits in commercial kitchen environments. As a vital part of foodservice equipment systems, this relay is engineered to operate reliably under demanding workload conditions. It features a 120-volt power supply and is built with durable internal contacts to ensure consistent operation, making it suitable for controlling refrigeration compressors, ventilation systems, or other heavy-duty appliances in foodservice establishments.
Top AllPoints 8105185 Features
The relay offers precise electrical switching tailored for commercial kitchen systems, with rated voltage compatibility, high durability components, and ease of integration into existing control panels. Its compact 2.7" height and 3.05" width enable seamless installation in space-constrained environments. Designed for repetitive on/off cycles, the relay ensures reliable performance in high-demand workflows, making maintenance straightforward for technicians. It supports dual connection terminals for versatile wiring and provides consistent operation in refrigeration and HVAC control applications.
- Functionality: Delivers reliable switching for refrigeration compressors
- Durability: Constructed with high-grade electrical contacts for long life
- Ease-of-use: Compact design simplifies installation and maintenance workflows
- Use case fit: Suitable for switchgear in commercial kitchen refrigeration systems
- Workflow benefit: Enables seamless control integration in restaurant plumbing and electrical setups
Ideal for installations requiring dependable switching of foodservice refrigeration or ventilation systems.
AllPoints 8105185 Technical Specs
The AllPoints 8105185 relay operates on a 120V AC power source with a typical operating frequency designed for standard commercial environments. Its dimensions are 3.05" wide, 3.3" deep, and 2.7" high, crafted from durable materials suitable for prolonged use. This relay supports a wattage capacity consistent with control of high-current devices, ensuring stability under typical workload conditions. The unit is rated for non-hazardous environments and features a corrosion-resistant construction. Its design facilitates quick disassembly for maintenance, with terminal connections compatible with standard wiring practices. The relay is built with reliable internal contact materials to withstand repetitive switching cycles typical in commercial kitchens.
- Electrical requirements: 120V, 60Hz, single-phase, suitable for high-current control
- Construction & finish: Industrial-grade materials with corrosion-resistant surfaces
- Dimensions: 3.05" W x 3.3" D x 2.7" H
- Mounting & installation: Designed for panel-mounting in control enclosures
- Wiring compatibility: Dual terminal connections for flexible wiring options
- Temperature resistance: Operates safely between 32°F and 122°F (0°C to 50°C)
- Maintenance: Easy disassembly with accessible internal contacts
What is a commercial relay control component?
A commercial relay control component is an electronically operated switch used to manage high-current devices in professional kitchen and foodservice environments. It allows for precise automation of refrigeration, ventilation, and other equipment by converting low-voltage control signals into high-voltage operational power. The AllPoints 8105185 Relay / Contactor 120v Dh65 S is specifically designed for medium workload applications, installed in control panels of commercial food equipment such as refrigeration units and HVAC systems, providing reliable switch operation to support seamless workflow in foodservice operations.
Top Commercial Relays for Foodservice Operations
The AllPoints 8105185 relay offers robust, professional-grade switching performance, engineered for medium-duty control in commercial kitchens, refrigeration, and HVAC systems. Its design emphasizes durability, functional reliability, and ease of integration for operational efficiency in foodservice environments. Manufactured by AllPoints, model 8105185 is ideal for controlling refrigeration compressors and ventilation systems, supporting stable workflows in restaurant and institutional kitchens.
- Operation type — suitable for medium-volume refrigeration control
- Kitchen setting — designed for compact, space-conscious commercial environments
- Foodservice category — ideal for restaurant refrigeration and ventilation systems
- Workload qualifier — supports moderate throughput control applications
- Use case — effective in controlling high-current relays for kitchen HVAC equipment
Why Choose AllPoints 8105185 ?
Compared to similar relays, the AllPoints 8105185 model provides a high-quality, compact, and reliable switching solution tailored for commercial kitchen systems. Its durable construction with industrial-grade contacts ensures long operational life, while its straightforward installation in control panels simplifies maintenance. This relay enhances system reliability and control precision, ultimately supporting efficient and safe foodservice operations.
- Compact footprint for tight control panel spaces
- High-grade contact materials for extended wear resistance
- Designed specifically for restaurant refrigeration and HVAC controls
- Non-hazardous, corrosion-resistant construction for longevity
- Reliable switching performance under continuous operational cycles
