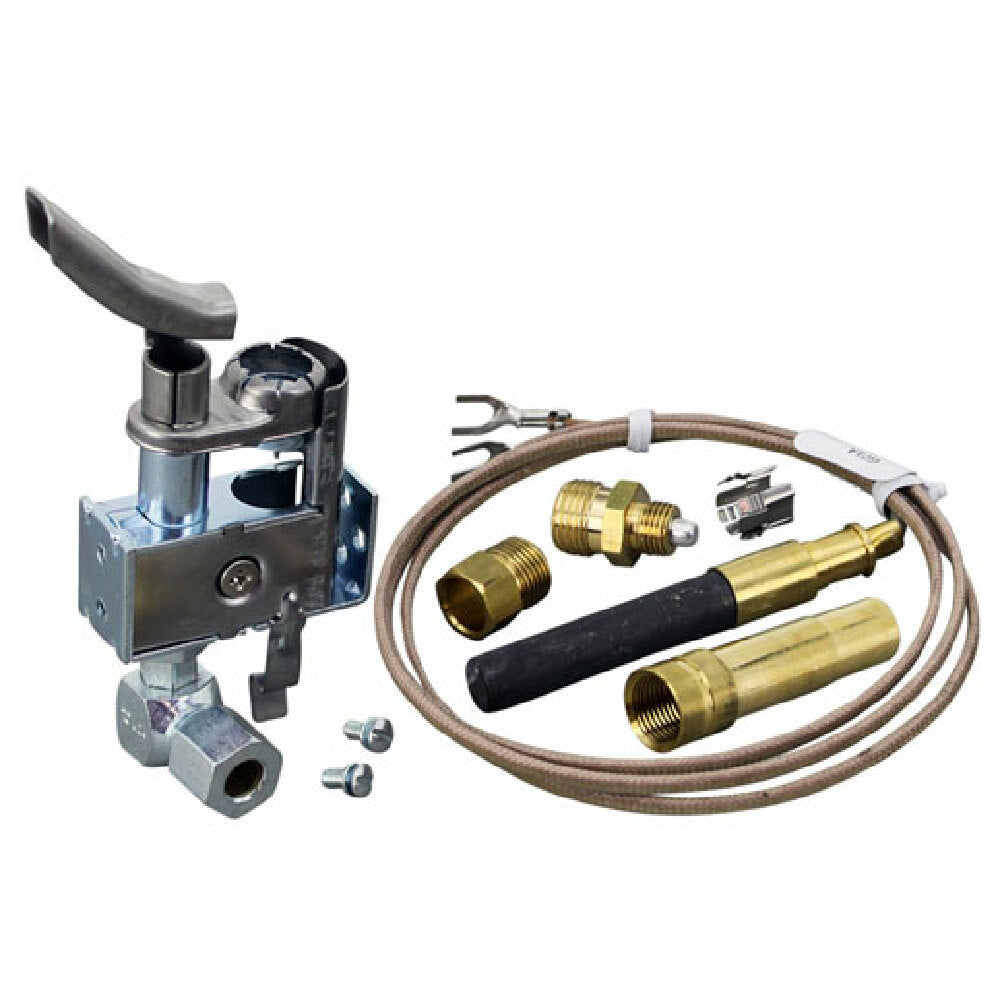

The Dean 8100156 Pilot Generator Assembly, manufactured by AllPoints, is a precision-engineered component designed for use in commercial gas appliance systems, ensuring reliable pilot operation. This factory-installed pilot assembly features a 1/4" tube connection, a right flame pattern, and an integrated Pg9 thermopile with a 36-inch lead wire, suitable for natural and LP gas applications. Its durable construction and exact orifice sizing (Nat # 26-1879, LP # 26-1680) facilitate precise flame control, making it ideal for commercial kitchen equipment, restaurant service, and industrial appliance maintenance. The assembly’s technical specifications support optimal performance and quick replacement in professional environments requiring high reliability and safety standards.
Top AllPoints 8100156 Features
The Dean 8100156 Pilot Generator Assembly provides precise flame ignition control with a durable thermopile and easy-to-install design tailored for commercial gas appliances. Designed for straightforward integration, it withstands high heat environments, simplifying maintenance in restaurant kitchens and foodservice facilities. Its robust materials and dimensions support dependable operation and ease of replacement, making it suitable for mid-volume appliance workflows.
- Reliable flame ignition: Tightly controlled right flame pattern for consistent sparking
- Durable construction: Heavy-duty materials resist heat and corrosion
- Simple installation: Compact form factor allows quick, tool-free replacement
- Compatibility: Fits with natural and LP gas systems using 1/4" tube connections
- Optimized thermopile: Integrated Pg9 thermopile with 36" lead wire enhances detection accuracy
Ideal for replacing pilot assemblies in commercial gas appliances requiring reliable ignition components.
Dean 8100156 Technical Specs
The Dean 8100156 Pilot Generator Assembly operates with standard gas supply connections, featuring a 1/4" tube inlet suitable for versatile commercial applications. Constructed primarily from high-quality materials in Mexico, it includes a right flame pattern thermopile with a 36-inch lead wire, designed to ensure consistent pilot flame detection. The assembly's dimensions—1.5 inches in height and 4 inches in width and depth—facilitate seamless integration into existing gas control systems, with a lightweight of 0.3 lbs that supports ease of handling during installation and replacement. Its non-hazardous, non-corrosive design aligns with typical commercial kitchen equipment standards, requiring minimal maintenance and offering reliable long-term performance.
- Electrical requirements: Compatible with standard pilot filament circuits
- Material): High-temperature resistant metals and thermopile components
- Dimensions: 4" W x 4" D x 1.5" H
- Weight: 0.3 lbs, facilitating easy handling
- Connection type: 1/4" tube inlet, suitable for quick installation in gas systems
- Operation environment: Designed for indoor use in commercial kitchen appliance environments
What is a commercial pilot generator assembly?
A commercial pilot generator assembly is a critical component in gas-powered appliances that generates the electrical signal necessary for igniting and detecting pilot flames. It typically consists of a thermopile, pilot flame port, and connection fittings, which work together to ensure safe and reliable operation of gas control systems. Installed in appliances such as ovens, water heaters, and fryers, these assemblies facilitate continuous pilot operation, supporting efficient heat and flame management in foodservice environments. The Dean 8100156 Pilot Generator Assembly exemplifies this function, providing precise flame detection for medium-volume commercial厨房 settings, ensuring operational safety and consistent performance.
Top Commercial Pilot Generator Assemblies for Foodservice Applications
Reliable pilot generator assemblies support safe and efficient gas appliance operation in commercial kitchens, with AllPoints 8100156 built for medium workloads. Crafted for installation in professional foodservice settings, these components ensure dependable ignition control for restaurant-ready gas systems, optimized for durability and ease of maintenance during intensive foodservice workflows.
- Operation type — suitable for moderate volume commercial kitchens
- Kitchen setting — optimized for restaurant and foodservice facilities
- Foodservice category — ideal for gas-fired cooking and heating equipment
- Workload qualifier — designed for typical appliance throughput
- Use case — supports pilot ignition in commercial gas appliances
Why Choose AllPoints 8100156 ?
The AllPoints 8100156 Pilot Generator Assembly offers a robust, factory-designed solution for reliable pilot flame detection, constructed with high-grade materials capable of withstanding demanding commercial environments. Its precise orifice sizing and thermopile integration ensure optimal flame sensing performance, reducing maintenance time and improving operational safety. Compact and easy to install, it enhances appliance reliability without compromising workflow efficiency in busy foodservice operations.
- Self-contained design: Simplifies replacement and reduces installation time
- Durable materials: Heat-resistant metals resist corrosion in kitchens
- Optimized for reliability: Precise orifice and thermopile integration ensure consistent ignition
- Compact footprint: Fits seamlessly into existing appliance configurations
- Restaurant-ready performance: Designed for continuous operation in professional kitchens
