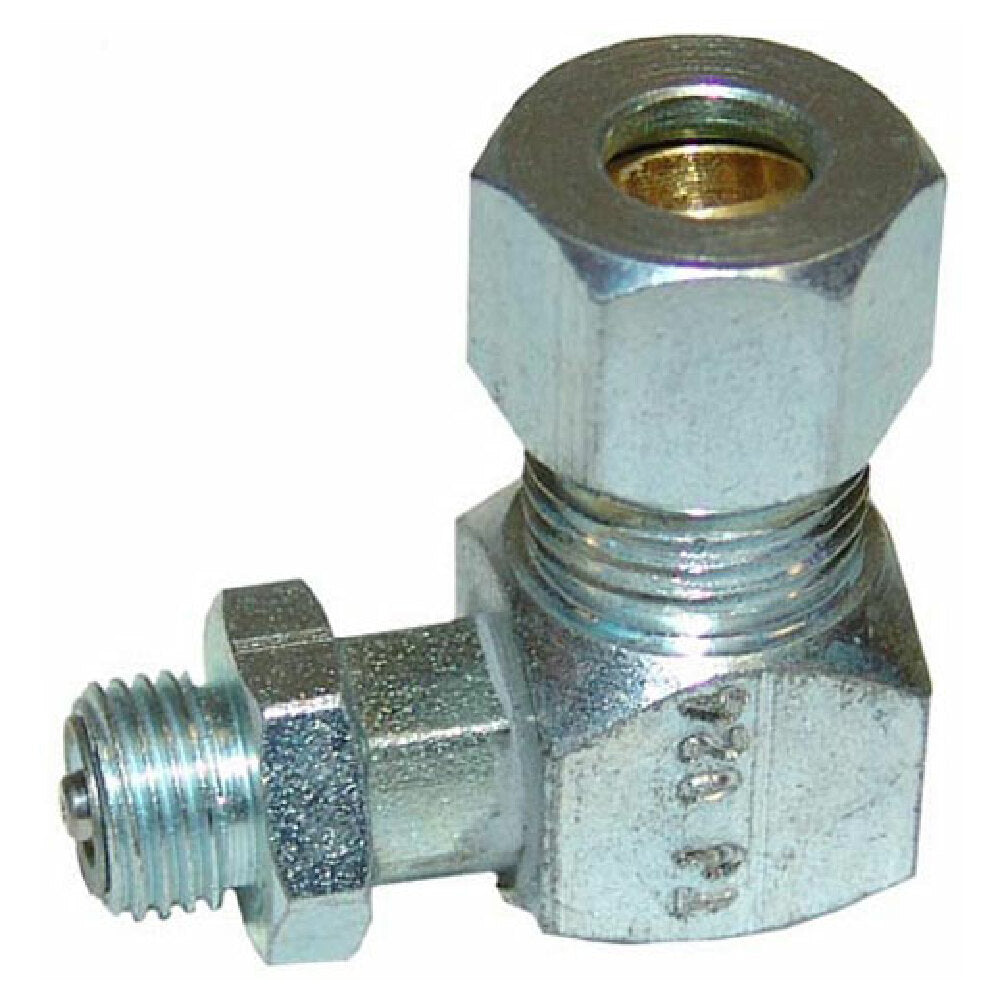

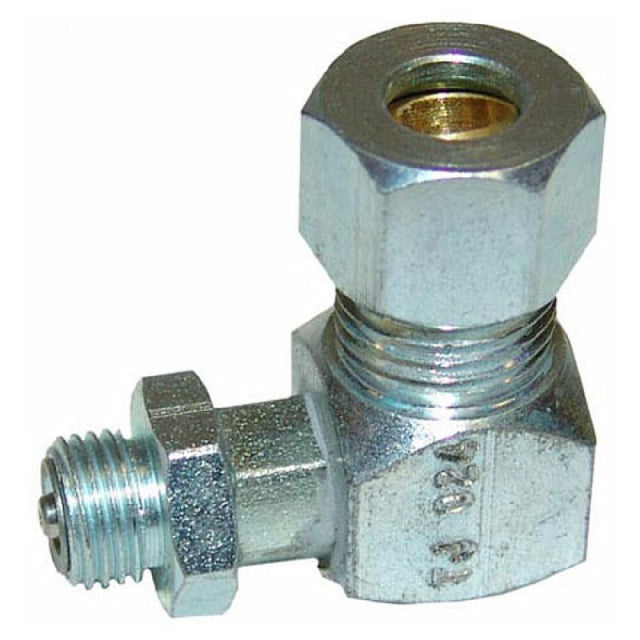

The Dean 8100149 Orifice Elbow (nat) 5/16 X 32 #77 is a precision fluid control component designed for commercial foodservice applications, notably in fryers by brands such as Frymaster, Garland, and Anets. Crafted from durable materials suitable for high-temperature environments, this natural pilot orifice elbow features a 1/4" complementary inlet with a 5/16-32 #77 configuration, ensuring accurate gas flow regulation in commercial fryer systems. Its robust construction enhances operational reliability in high-demand kitchen settings, facilitating precise atmospheric control for consistent cooking performance.
Top AllPoints 8100149 Features
The AllPoints Dean 8100149 Orifice Elbow offers precise gas flow management tailored for commercial fryer setups. Its high-quality material ensures resilience against thermal cycling, while its compact design allows seamless integration into existing industrial-grade gas lines. Easy to disassemble for routine maintenance, this component supports reliable operation in busy foodservice environments, ensuring consistent fuel delivery and burner performance.
- Functionality: Ensures accurate gas flow with a 5/16-32 #77 configuration.
- Durability: Made from corrosion-resistant materials for long service life.
- Ease of Maintenance: Designed for straightforward disassembly and cleaning.
- Use Case: Fits commercial fryers in high-volume kitchens.
- Workflow Benefit: Supports consistent burner ignition and combustion efficiency.
For professional fryer setups requiring reliable gas regulation components.
AllPoints 8100149 Technical Specs
The Dean 8100149 Orifice Elbow features a compact profile with dimensions of approximately 0.31" width, 1" length, and 1" height, complemented by a lightweight of just 0.1 lbs. Constructed from high-grade materials suitable for high-temperature environments, it supports secure fitment with a 1/4" complementary inlet and 5/16-32 #77 outlet. Its corrosion-resistant design ensures longevity in demanding kitchen conditions, while the component’s simple disassembly facilitates routine maintenance and cleaning. The unit is made in the United States and is compatible with a range of commercial fryer models, providing dependable performance for gas regulation needs. Key considerations include precise gas flow control, compatibility with gas lines, and durability under frequent use.
- Dimensions: Width 0.31 inches, length 1 inch, height 1 inch
- Weight: 0.1 lbs for ease of handling and installation
- Material: High-grade corrosion-resistant metal
- Configuration: 1/4" inlet and 5/16-32 #77 outlet for versatile fitting
- Construction: Designed for high-temperature, high-demand environments
- Compatibility: Suitable for a wide range of Frymaster, Garland, and Anets fryers
What is a commercial orifice elbow
A commercial orifice elbow is a critical component in gas-fired equipment, including fryers in the foodservice industry. Specifically, the Dean 8100149 orifice elbow directs and regulates gas flow from the supply line into the burner assembly, maintaining consistent flame characteristics for optimal cooking performance. Installed within fryer systems, these elbows facilitate precise fuel delivery, ensuring safety, efficiency, and reliable operation during high-volume service. They are constructed to withstand high temperatures and corrosive environments, making them a vital part of commercial kitchen fuel management systems.
Top natural gas orifice elbows for commercial foodservice settings
Designed for high-reliability operation, the Dean 8100149 natural pilot orifice elbow provides accurate gas regulation and seamless integration in commercial fryer systems. Its durable construction and compact design support efficient workflow in busy kitchens, making it ideal for mid-volume foodservice operations that require consistent burner performance with minimal downtime.
- Operation type — suitable for medium-duty commercial fryers
- Kitchen setting — optimized for compact commercial kitchens
- Foodservice category — ideal for restaurant-grade fryer installations
- Workload qualifier — supports moderate throughput applications
- Use case — ensures stable gas flow for consistent frying results
Why Choose AllPoints Dean 8100149
Compared to other gas orifice components, the Dean 8100149 offers superior durability through high-quality materials and precise manufacturing tolerances. Its compact profile and corrosion resistance streamline installation and long-term maintenance. Designed for compatibility with various fryer brands, this self-contained elbow promotes consistent flame performance, reducing troubleshooting time and operational interruptions—enhancing overall kitchen efficiency.
- Compact footprint suitable for space-constrained environments
- High-temperature resistant construction for longevity
- Designed for seamless integration into existing gas lines
- Provides dependable gas flow regulation for consistent operation
- Made in the United States for quality assurance
