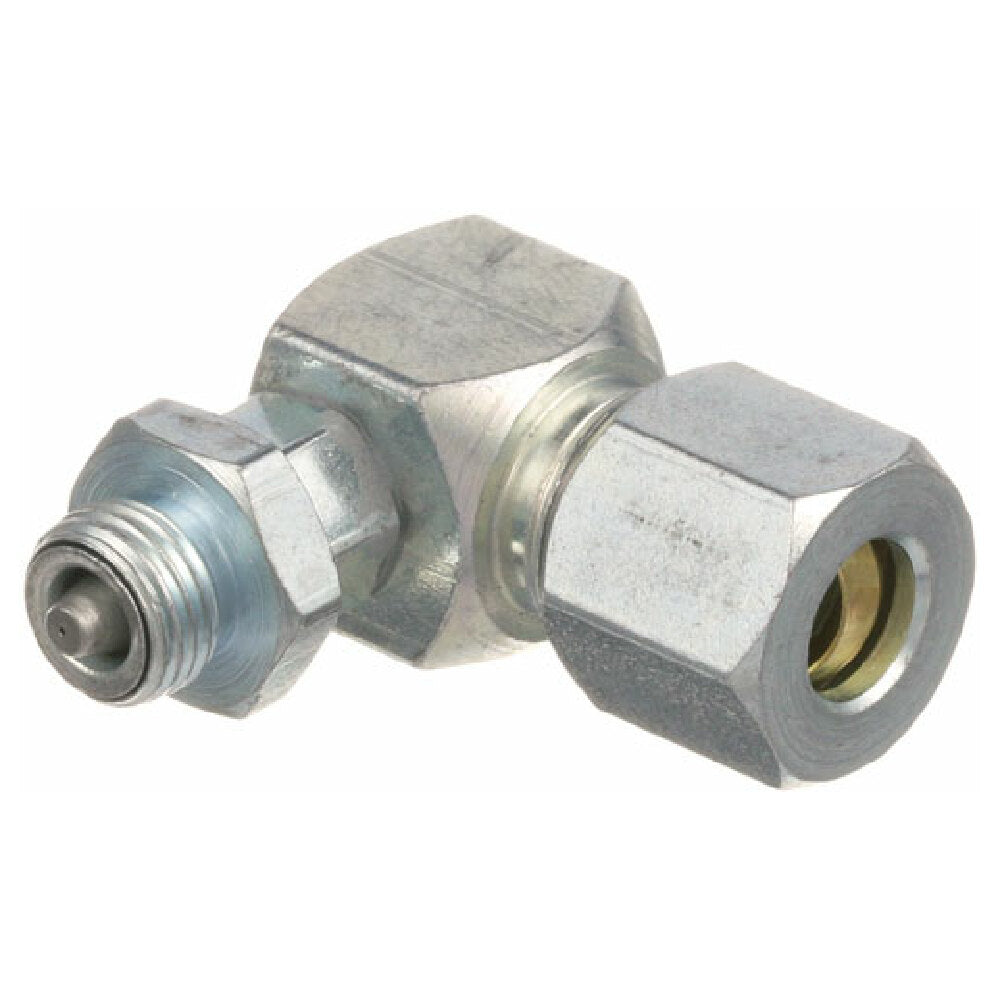

The Garland 8100148 Orifice Elbow (lp) 5/16 X 32 #.010 is a precision fluid connection component designed for commercial foodservice appliances. Manufactured by Garland, this LP pilot orifice elbow features a 1/4" contact inlet and a 5/16-32 #.010 fitting, facilitating accurate gas regulation in fryer systems. It is specifically compatible with Garland, Frymaster, and Anets fryers, serving as a critical part in low-pressure gas delivery setups. This component ensures consistent ignition performance and maintains optimal burner operation, making it essential for commercial kitchen environments focused on dependable equipment performance and safety in high-demand frying systems.
Top Garland 8100148 Features
The Garland 8100148 Orifice Elbow offers precise gas flow regulation in commercial fryer applications. Its durable brass construction resists thermal fatigue, ensuring longevity under continuous use. Designed for straightforward installation, it simplifies maintenance in busy kitchens, reducing downtime. Its compact size allows seamless integration with existing gas coupling setups, supporting efficient workflow. The component’s exact threading and inlet specifications enable reliable connection to a variety of gas appliances, aiding in consistent flame control and operational reliability.
- Functionality: Facilitates accurate gas regulation in fryers
- Durability: Made of high-grade brass for extended use
- Ease of maintenance: Simple installation and disassembly
- Application fit: Compatible with Garland, Frymaster, Anets fryers
- Workflow benefit: Ensures consistent ignition performance in high-volume kitchens
Designed for precise gas control in commercial frying lines, suitable for replacement in high-use equipment.
Garland 8100148 Technical Specs
This gas orifice elbow is constructed from durable brass, with dimensions of 0.5 inches in width, 1 inch in height, and 1 inch in depth, totaling a weight of 0.06 lbs. It features a 1/4" contact inlet combined with a 5/16-32 #.010 thread standard, compatible with low-pressure appliance connections. The component is manufactured in Mexico and designed specifically for high-reliability flame ignition in commercial fryers. Its threaded connection ensures a secure fit, minimizing leakage risk. The part operates efficiently within standard propane and natural gas pressure ranges, contributing to dependable burner performance. No certification information is provided other than compliance with general safety standards for foodservice equipment components.
- Electrical Requirements: Not applicable
- Material: Brass for corrosion resistance and durability
- Dimensions: 0.5" W x 1" H x 1" D
- Weight: 0.06 lbs
- Connection Type: 1/4" contact inlet, 5/16-32 thread
- Operating Range: Suitable for typical propane and natural gas pressures
- Proper installation clearance: Ensure sufficient space around connections for maintenance
- Gas supply compatibility: Connects seamlessly with low-pressure gas lines
- Ventilation considerations: Install in well-ventilated areas to prevent gas accumulation
- Cleaning setup: Regular inspection for debris or blockages
- Replacement interval: Periodic checks recommended for optimal performance
What is a commercial gas orifice elbow
A commercial gas orifice elbow is a vital component in restaurant and foodservice equipment that regulates and directs gas flow to burners. It serves as a precise connection point within the propane or natural gas delivery system, ensuring stable flame characteristics essential for consistent cooking results. Installed in fryers, ranges, or other gas-powered appliances, this part maintains accurate vessel ignition and combustion efficiency. The Garland 8100148 model specifically features a 1/4" contact inlet and a 5/16-32 #.010 outlet, making it ideal for use in high-demand kitchen environments requiring reliable gas flow control and durability for continuous operation.
Top commercial gas components for foodservice operations
Designed for continuous operation in commercial kitchens, Garland 8100148 ensures reliable gas flow regulation essential for mid-volume restaurant frying. Garland 8100148 is a robust, installation-ready LP pilot orifice elbow suits foodservice settings demanding precise flame control and long-term durability in commercial appliances.
- Operation Type — optimized for fryer systems
- Kitchen Type — ideal for high-capacity kitchens
- Foodservice Category — suited for commercial fryers and ranges
- Workload Qualifier — suitable for moderate throughput environments
- Use Case — replacement in gas burner assemblies for consistent ignition performance
Why Choose Garland 8100148?
Garland 8100148 stands out from similar gas orifice components due to its precision-machined brass construction, reliable threading, and compatibility with major fryer brands. Its compact, easy-to-install design streamlines maintenance and replacement, supporting operational efficiency. The component’s robust materials resist wear from thermal cycles, ensuring long-term performance and safety in demanding foodservice environments.
- Self-contained design tailored for restaurant-ready gas systems
- Compact footprint simplifies installation in tight kitchen spaces
- High-quality brass construction for corrosion resistance
- Enhanced durability reduces maintenance frequency
- Compatible with standard low-pressure propane and natural gas lines
