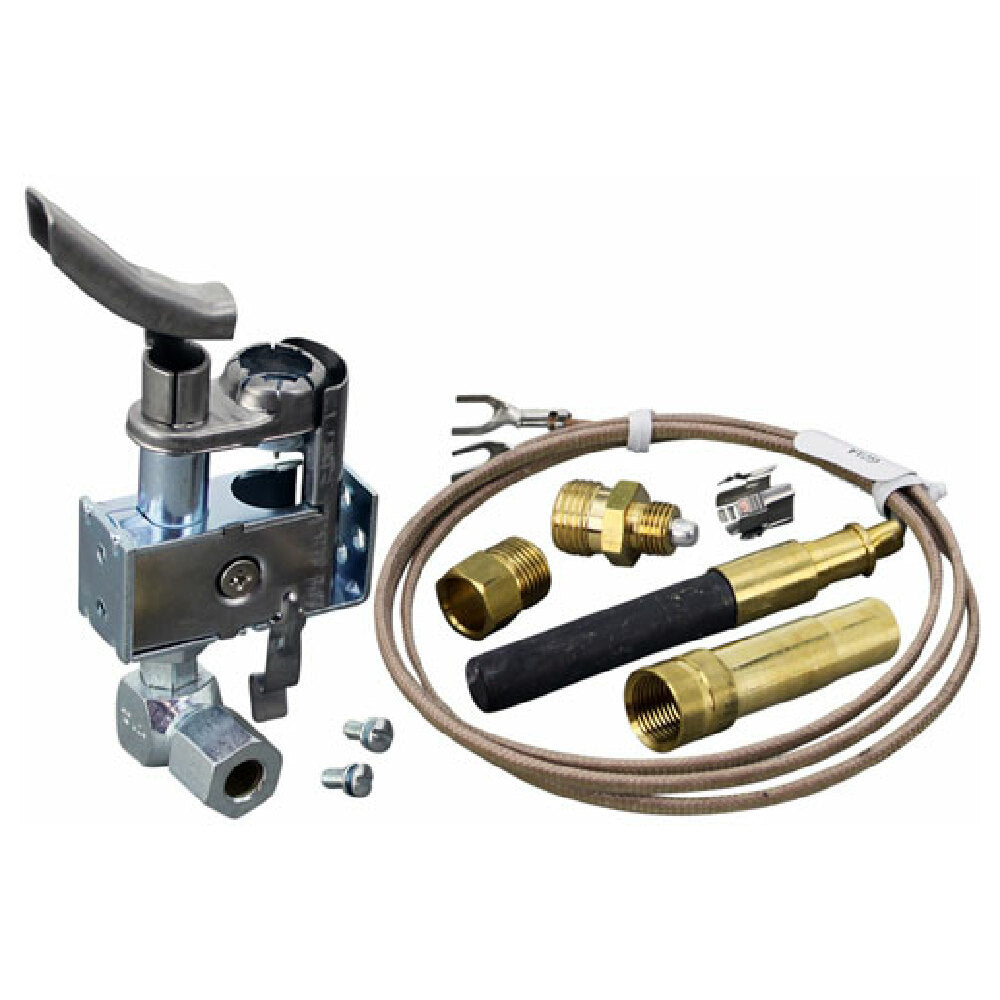

The Dean 810-0157 Pilot Generator Assembly is a high-precision component designed for commercial gas appliance systems, specifically integrating with natural and propane pilot controls. Manufactured by Dean, this assembly features a right flame pattern and includes a PG9 thermopile with a 36-inch lead wire, ensuring reliable pilot operation and safety functionality. Its specifications include a 1/4" tube size with precise orifice configurations—0.026-1879 for natural gas and 0.026-1680 for LPG—making it suitable for HVAC, water heating, and other commercial gas appliance applications requiring consistent pilot ignition performance.
Top Dean 810-0157 Features
The Dean 810-0157 Pilot Generator Assembly offers precise flame pattern control, durable construction with corrosion-resistant components, and straightforward maintenance access. Its thermopile offers reliable thermoelectric conversion for pilot safety, intended for integration in commercial gas appliances such as water heaters, furnaces, and boilers. Designed for medium-volume settings, it ensures stable ignition across fluctuating operational conditions and supports seamless workflow in professional HVAC and appliance servicing environments.
- Functionality: Ensures stable pilot ignition with accurate flame pattern control
- Durability: Constructed with corrosion-resistant materials for long-term use
- Ease-of-Use: Features simplified assembly with 1/4" tube connections for quick installation
- Use Case Fit: Ideal for commercial HVAC and water heater pilot systems
- Workflow Integration: Facilitates reliable ignition in multi-unit gas appliance configurations
Suitable for professional installation in commercial gas appliances requiring dependable pilot safety components.
Dean 810-0157 Technical Specs
The Dean 810-0157 Pilot Generator Assembly operates primarily with natural and LPG gases, with specific orifice sizing—#26-1879 for natural gas and #26-1680 for LPG—to optimize combustion performance. Its dimensions are compact, measuring 4" W x 4" D x 1.5" H, with a lightweight design of 0.3 lbs for easy handling during installation. The assembly is built with durable materials suited for continuous operation in commercial environments, featuring corrosion-resistant components designed to withstand demanding conditions. Model 810-0157 is intended for use in gas appliances with an operating temperature range suitable for typical HVAC and water heating systems, with straightforward disassembly and maintenance protocols aligned with industry standards. The unit's output supports consistent pilot light activation, contributing to safe and efficient appliance operation. The manufacturing origin is Mexico, ensuring adherence to industry norms for the component’s quality and reliability.
- Electrical Requirements: Not applicable; thermopile generates millivolt signals for pilot safety
- Construction & Finish: Corrosion-resistant metal and thermoplastic components
- Dimensional Compatibility: 4" width, 4" depth, 1.5" height
- Weight: 0.3 lbs for optimal handling and installation
- Orifice Size: #26-1879 (Nat), #26-1680 (Lp) for combustion regulation
- Operating Environment: Suitable for HVAC and water heater pilot systems
- Gas Compatibility: Natural and propane gases
- Installation Clearances: 1/4" tube connections compatible with standard piping
- Maintenance: Easily disassembled for routine inspection and repairs
- Safe Operation Range: Designed for continuous, reliable pilot ignition in commercial settings
What is a commercial pilot generator assembly?
A commercial pilot generator assembly is a critical component in gas-powered appliances that produces the thermoelectric voltage necessary for pilot flame safety and ignition stability. The Dean 810-0157 model, specifically, is engineered for reliable operation within HVAC, water heating, and commercial appliance systems. It features a corrosion-resistant thermopile, a precise flame pattern, and compatible orifices for natural and propane gases, making it suitable for mid-volume applications in professional mechanical systems. Designed for installation in gas controls, this assembly ensures consistent ignition and safety in high-demand environments, such as industrial water heaters and commercial boilers.
Top commercial pilot generator assemblies for HVAC and water heating systems
Reliable constructed for stable ignition in commercial gas appliances, top pilot generator assemblies like the Dean 810-0157 ensure safety and performance in HVAC and water heater systems. Dean 810-0157 offers durable materials, standardized connections, and proven ignition stability, supporting continuous operation in professional environments requiring dependable pilot safety components.
- HVAC system integration — optimized for reliable pilot ignition
- Commercial kitchen equipment — suited for water heaters and furnaces
- Water heating systems — supports mid-volume boiler applications
- Moderate workload — designed for steady, reliable operation in busy facilities
- Industrial use case — ideal for professional appliance maintenance and repair
Why Choose AllPoints 810-0157?
Compared to similar pilot generator assemblies, the Dean 810-0157 features a compact, rugged design built with corrosion-resistant materials, ensuring longevity and reliable performance in demanding environments. Its precise orifice sizing, easy installation, and maintenance access streamline operational workflows. Additionally, its compatibility with natural and LPG gases and its robust thermopile ensure safe, consistent ignition in commercial gas appliances, ultimately supporting efficient facility operation and reducing downtime.
- Compact footprint — optimizes space in crowded mechanical rooms
- Corrosion-resistant components — enhances longevity in humid environments
- Universal gas compatibility — flexible for natural and propane systems
- Proven durability — suited for medium-volume commercial applications
- Ease of maintenance — simplifies inspection and service routines
