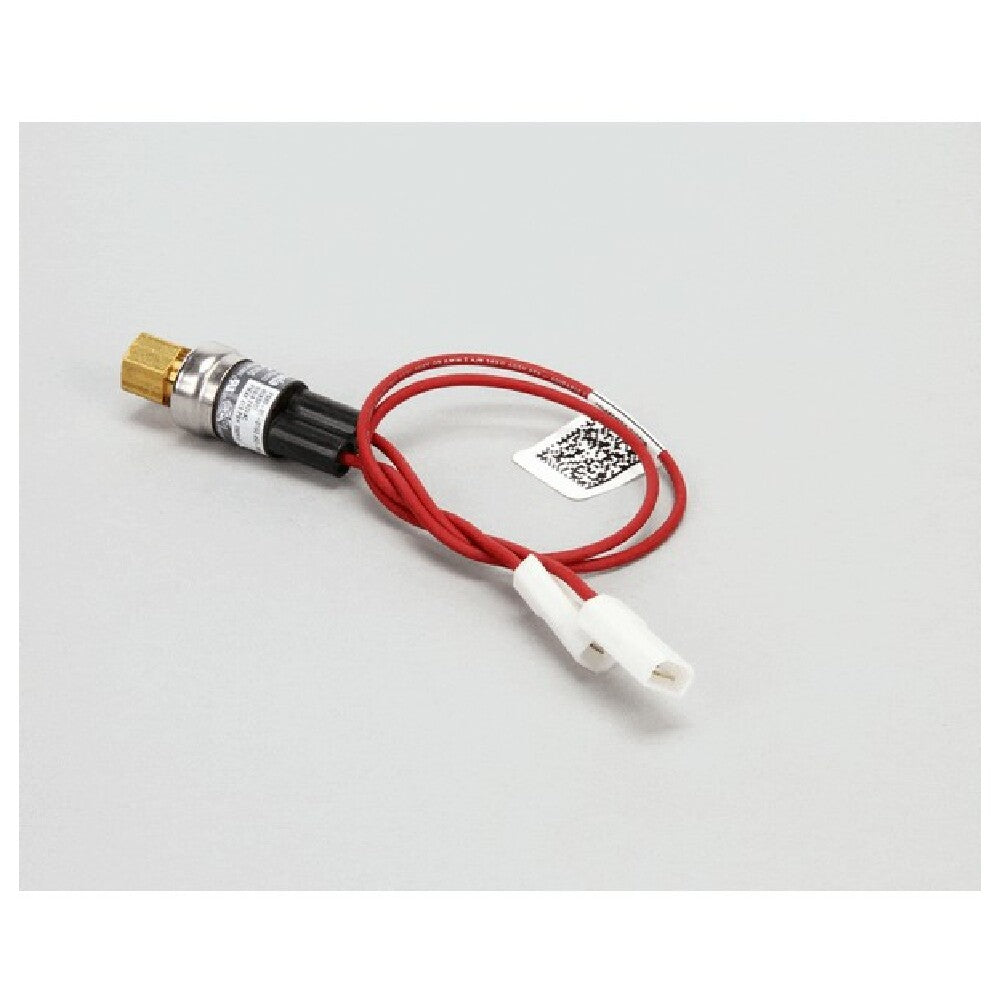

The AllPoints 8088409 Switch Pressure High R22 is a commercial pressure switch designed for precise regulation in refrigeration systems that utilize R22 refrigerant. Engineered for professional HVAC and refrigeration applications, this OEM component ensures accurate high-pressure control to prevent system overloads or failures. With a robust construction suitable for demanding environments, the device provides reliable pressure sensing with a set point calibrated for R22 systems, supporting optimal compressor protection and system efficiency. Its technical specifications include a maximum operating pressure of 600 PSIG, featuring stainless steel internals and durable diaphragms tailored for frequent cycle durability in commercial refrigeration equipment.
Top AllPoints 8088409 Features
This high-pressure switch from AllPoints offers precise pressure monitoring and quick responsiveness, ideal for commercial refrigeration installations. Its stainless steel construction enhances durability against corrosive refrigerants and frequent operation cycles. Designed for easy integration with existing systems, it facilitates seamless pressure regulation and maintenance, ensuring consistent system performance. Its compact profile allows for straightforward mounting in tight spaces, making it suitable for various commercial foodservice refrigeration and HVAC setups. The switch’s calibrated set point supports accurate high-pressure cut-off, improving system safety and longevity.
- Precise pressure regulation for system protection
- Constructed with corrosion-resistant stainless steel
- Easy connection with standard R22 refrigeration fittings
- Designed for quick installation and maintenance
- Supports high-cycle durability in commercial operations
Ideal for refrigeration technicians seeking reliable high-pressure control components.
AllPoints 8088409 Technical Specs
The AllPoints 8088409 pressure switch operates with a standard R22 refrigeration system, featuring an electrical requirement compatible with typical HVAC control circuits. It is a non-hazardous, OEM-rated device constructed with stainless steel internals, measuring 0.95 inches in height, 5.65 inches in width, and 6.25 inches in depth, with a shipping weight approximately 2 lbs. It accommodates system pressures up to 600 PSIG, with a set point optimized for high-pressure cutoff in commercial refrigeration. The switch is designed for installation in systems requiring high-pressure safety shutoff, supporting a temperature range suitable for common refrigerant operating environments. Its corrosion-resistant materials facilitate cleaning and maintenance within standard refrigeration procedures, and it’s rated for continuous use in demanding commercial HVAC applications.
- Electrical Requirements: compatible with standard control circuits in refrigeration systems
- Construction & Finish: stainless steel internals and housing for corrosion resistance
- Dimensions: 0.95" H x 5.65" W x 6.25" D
- Operating Range: up to 600 PSIG maximum pressure
- Temperature Resistance: suitable for typical refrigerant system ranges
- Food Safety & Cleaning: corrosion-resistant materials support standard maintenance routines
- Installs in: commercial refrigeration and HVAC high-pressure lines
What is a commercial pressure switch?
A commercial pressure switch is a control device used to monitor and regulate system pressures within HVAC and refrigeration equipment. The AllPoints 8088409 Switch Pressure High R22 is specifically designed for high-pressure cut-off in systems utilizing R22 refrigerant, installed within refrigeration lines or compressor circuits. Its primary function is to safeguard equipment by preventing excessive pressure buildup, supporting system safety and efficiency. Typically used in commercial refrigeration, HVAC systems, and cold storage units, this OEM component ensures stable operation and long-term performance, making it essential for infrastructure requiring precise pressure management and system protection.
Top refrigerant pressure control solutions for commercial foodservice setups
Reliable and robust, the AllPoints 8088409 pressure switch is engineered for medium-load refrigeration workflows in commercial kitchens and cold storage. Its durable construction and high-pressure set point make it suitable for HVAC and refrigeration environments requiring dependable system protection. Designed for installation in typical commercial foodservice refrigeration systems, it supports consistent operation for mid-volume operational demands and ensures system safety in food preparation and storage settings. AllPoints 8088409 offers proven performance tailored for professional HVAC and refrigeration applications.
- Medium-volume refrigeration—supports daily commercial cooling demands
- Compact and durable—fits tight installation spaces, withstands frequent cycles
- Supports system safety—protects compressors against high-pressure damage
- R22 refrigerant compatibility—optimized for specific refrigeration protocols
- Designed for refrigeration technicians—easy wiring and maintenance
Why Choose AllPoints 8088409 Switch Pressure High R22?
AllPoints 8088409 Switch Pressure High R22 stands out through its industrial-grade stainless steel construction and calibrated high-pressure set point, delivering reliable system safety for professional refrigeration and HVAC setups. Its durable design minimizes maintenance requirements and ensures long-term operation in demanding environments. Unlike generic pressure switches, this OEM component offers precise pressure sensing tailored for R22 refrigerant systems, enabling consistent system protection and efficiency. Its compact form factor supports versatile installation in various commercial refrigeration configurations, enhancing operational reliability without adding complexity.
- Constructed with corrosion-resistant stainless steel for longevity
- Supports precise high-pressure cut-off in R22 systems
- Compact design facilitates installation in tight spaces
- OEM-rated for guaranteed compatibility with commercial refrigeration
- Enhances safety and system uptime in professional HVAC applications
