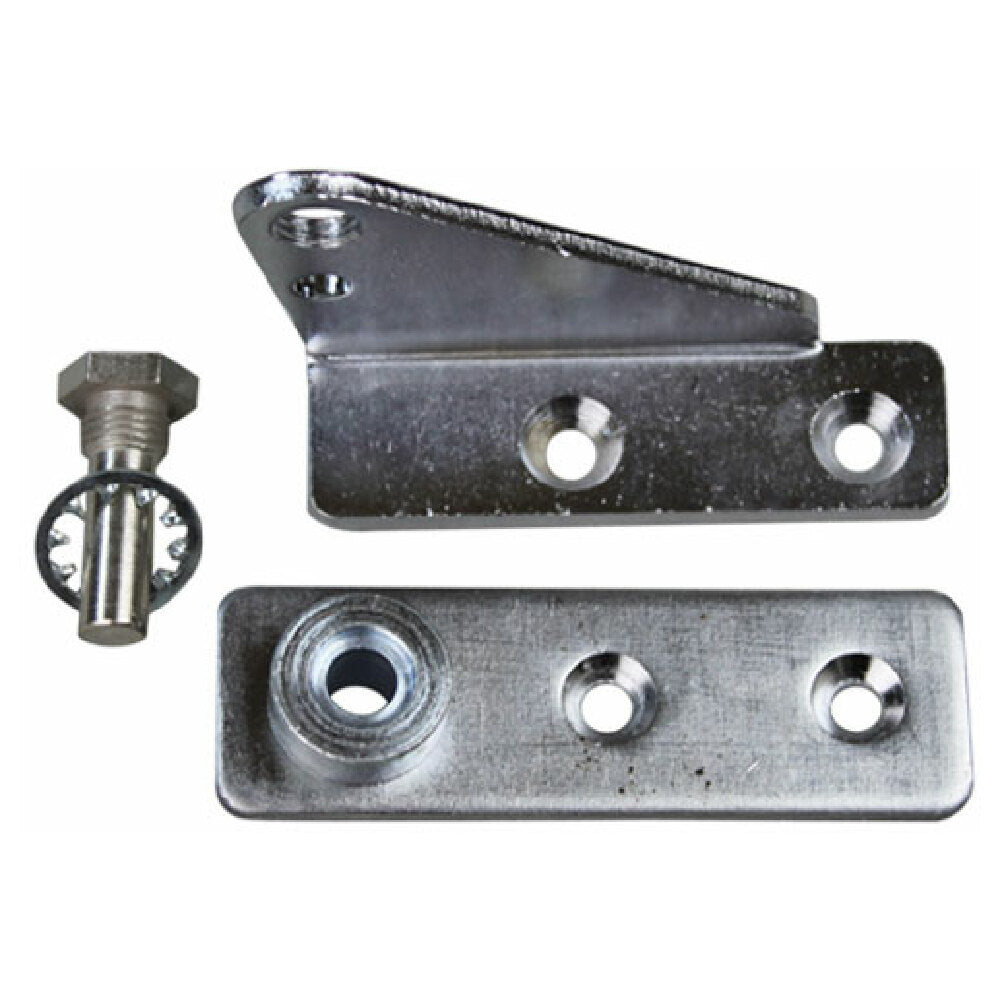

The Star Mfg 70601-07 Kason 11533000004 Pivot Hinge is a precision-engineered component designed for commercial kitchen applications, specifically in convection oven door assemblies. Manufactured by Star Manufacturing, this OEM pivot hinge features a durable construction with an angled bracket that provides 1-3/16" mount hole centers and a strap with 1" mount hole centers, ensuring reliable and smooth door operation. Its robust design and exact measurements make it suitable for high-usage environments such as commercial baking and roasting equipment, offering durable performance and ease of maintenance in foodservice settings requiring precise door alignment and handling.
Top AllPoints 70601-07 Features
The 70601-07 pivot hinge is optimized for commercial convection ovens, offering dependable pivoting performance with stainless steel components that withstand repeated use. Its precise mounting holes facilitate quick installation, while the angled bracket ensures secure attachment. Designed for heavy-duty kitchen environments, it provides seamless door movement and long-term durability. The hinge's compact form supports streamlined maintenance and reliable operation during high-volume baking cycles.
- Functionality: Facilitates smooth door pivoting in commercial ovens
- Material Durability: Constructed from corrosion-resistant stainless steel
- Ease of Maintenance: Simple to install and disassemble for quick repairs
- Fit and Compatibility: Compatible with convection ovens requiring precise hinge placement
- Workflow Integration: Supports efficient oven operation and door handling workflow
Ideal for restaurants, bakeries, and commercial kitchen equipment maintenance teams seeking reliable oven hinge replacements
AllPoints 70601-07 Technical Specs
The AllPoints 70601-07 pivot hinge offers a compact, lightweight design with a height of 1", width of 2", and depth of 3.5". Made in the United States, it features a stainless steel construction that ensures corrosion resistance and longevity in hot kitchen environments. Weighing just 0.3 lbs, it is an OEM component designed to support moderate-duty oven door operation. Its mounting holes are precisely positioned for quick installation, with the angled bracket accommodating mounting hole centers of 1-3/16", and the strap providing 1" spacing. The hinge is suitable for standard convection oven doors, supporting foodservice applications with continuous use and high hygiene standards. Maintenance involves simple disassembly for cleaning, with no hazardous materials involved. The component is propitiately rated for operating temperatures typical of commercial baking equipment, ensuring consistent performance without risk of component failure. It does not require electrical connection or complex installation procedures, making it a practical replacement part for OEM oven hinge assemblies.
- Electrical Requirements: None needed for mechanical hinge
- Construction & Finish: Stainless steel for corrosion resistance
- Dimensions: 1" height x 2" width x 3.5" depth
- Weight: 0.3 lbs
- Mounting Compatibility: Mount hole centers at 1-3/16" (bracket), 1" (strap)
- Temperature Resistance: Suited for typical oven operating ranges
- Food Safety & Hygiene: Made from non-toxic stainless steel, easy to clean
- Installation & Maintenance: Simple disassembly and cleaning without specialized tools
What is a commercial oven hinge?
A commercial oven hinge is a robust mechanical component designed to facilitate the smooth opening and closing of oven doors in high-demand foodservice environments. The AllPoints 70601-07 Kason 11533000004 Pivot Hinge is engineered for precise alignment, durability, and ease of installation, typically installed in convection ovens used in restaurants, bakeries, or catering facilities. These hinges support continuous operation, enabling reliable access to baked goods, with features that allow for easy maintenance and replacement, ensuring the efficiency and safety of commercial kitchen workflows. Such hinges are critical for maintaining proper door function and food safety standards under demanding operational conditions, making them a vital part of oven door assemblies in professional kitchens.
Top commercial oven hinges for professional kitchens
Built for high-volume foodservice environments, the AllPoints 70601-07 offers durable, precision-engineered hinge solutions suitable for commercial kitchen operations requiring reliable oven door movement. Manufactured by AllPoints, the pivot hinge supports efficient workflows in bakery, restaurant, and catering settings with a compact footprint and corrosion-resistant materials, ensuring long-term, maintenance-friendly performance.
- Operation Type — suitable for convection oven applications
- Kitchen Setting — ideal for bakery and restaurant environments
- Foodservice Category — supports commercial oven door assembly
- Workload Qualifier — designed for moderate throughput usage
- Use Case — replacement hinge for high-volume baking equipment
Why Choose AllPoints 70601-07?
Compared to standard hinges, the AllPoints 70601-07 offers superior corrosion resistance, precisely machined mounting points, and a compact profile that enhances oven maintenance and operation. Its stainless steel construction ensures lasting durability, reducing replacement frequency. Designed for OEM compatibility, it improves oven door alignment and sealing, optimizing workflow efficiency and product presentation in professional kitchens.
- Manufactured from stainless steel for enhanced longevity
- Designed for seamless OEM oven compatibility
- Compact form supports tight installation spaces
- Corrosion-resistant surface extends service life
- Supports reliable, smooth oven door operation to improve workflow
