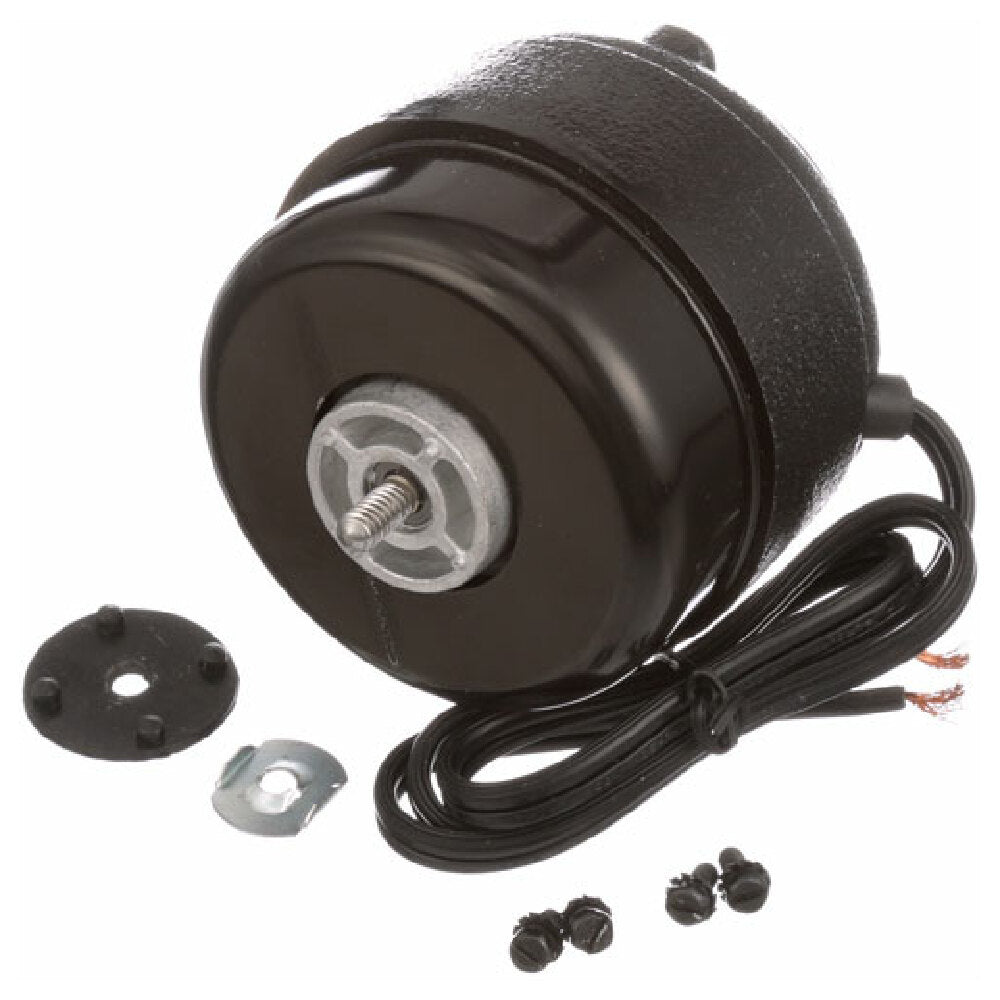

The AllPoints 681153 Fan Motor is a durable, commercial-grade HVAC component designed for precision airflow control in foodservice environments. Engineered with a 230V single-phase power supply, it features a high rotational speed of 1550 RPM and a clockwise shaft rotation, ensuring efficient cooling and ventilation. This fan motor's threaded shaft (1/4"-20 x 1/2") and versatile mounting options—including four threaded holes (#8-32) with 0.63" x 1.12" centers, as well as a rear mount with three holes spaced at 2.40" centers—facilitate seamless installation in various commercial kitchen cooling systems. Its robust construction and 23.5-inch wiring leads make it suitable for demanding culinary environments needing reliable airflow performance.
Top AllPoints 681153 Features
The AllPoints 681153 Fan Motor offers precise airflow management, durable construction with corrosion-resistant materials, and straightforward maintenance. Its high RPM ensures effective ventilation in commercial foodservice settings, while the threaded mounting points allow for quick installation. Designed for compatibility with industrial cooling systems, this motor enhances workflow efficiency and ensures consistent performance in moderate to high-demand applications such as prep stations and refrigeration units.
- High rotational speed: 1550 RPM enables effective airflow control.
- Corrosion-resistant materials: Prolongs operational life in food environments.
- Easy-to-mount design: Mounting foot with multiple threaded holes simplifies installation.
- Reliable shaft rotation: Clockwise shaft rotation for consistent airflow direction.
- Robust wiring leads: 23.5 inches facilitates flexible connections in complex setups.
Ideal for replacement in commercial HVAC systems and industrial cooling applications.
AllPoints 681153 Technical Specs
The AllPoints 681153 Fan Motor operates on a 230V single-phase electrical setup, delivering 9W of power with a speed of 1550 RPM, suitable for air-cooled environments in commercial kitchens. Its construction features durable materials, with dimensions measuring 4 inches in width, 4.7 inches in depth, and 4.5 inches in height, and it weighs 3.5 pounds. The motor’s mounting configuration includes four threaded holes (#8-32) at 0.63" x 1.12" centers and a rear mount with three holes at 2.40" centers, ensuring compatibility with various HVAC and ventilation systems. With a maximum safe operating temperature consistent with industry standards, it supports reliable, long-term performance with minimal maintenance. The component complies with safety standards, and its design supports efficient airflow and easy disassembly for routine cleaning and replacement.
- Electrical Requirements: 230V, 50/60Hz, single-phase, 9W
- Cooling Method: Air-cooled
- Product Weight: 3.5 lbs
- Construction Material: Durable, corrosion-resistant components
- Dimensions: 4" W x 4.7" D x 4.5" H
- Mounting Configuration: Four threaded holes #8-32, 0.63" x 1.12" centers + rear mount with three holes at 2.40" centers
What is a commercial fan motor
A commercial fan motor is an industrial component used to generate airflow in HVAC and refrigeration systems within foodservice and hospitality environments. The AllPoints 681153 Fan Motor is a typical example, featuring a high-speed 1550 RPM, 230V single-phase power operation, and a threaded shaft for secure mounting. Installed in cooling units, ventilation fans, or HVAC systems, it ensures efficient airflow management, supporting temperature regulation and air quality in moderate-volume foodservice settings such as prep stations or walk-in refrigeration. Its precise technical specs, including durable construction and versatile mounting options, make it suitable for integration into various commercial kitchen applications where reliable ventilation is critical.
Top HVAC Fan Motors for Moderate Foodservice Settings
Designed for commercial ventilation, the AllPoints 681153 Fan Motor features robust construction, reliable airflow, and easy installation. With a 1550 RPM speed and 230V operation, it is ideal for moderate throughput environments like prep kitchens and refrigeration systems. Manufactured by AllPoints, model 681153 is built for durability and consistent performance in foodservice applications requiring dependable cooling capacity.
- Operation in moderate-volume foodservice kitchens
- Suitable for compact commercial food prep spaces
- Ideal for HVAC and refrigeration units
- Handles typical airflow demands efficiently
- Supports reliable ventilation workflow in busy kitchens
Why Choose AllPoints 681153 Fan Motor?
What sets the AllPoints 681153 Fan Motor apart from similar solutions are its precise airflow capabilities, robust construction, and versatile mounting options. Its corrosion-resistant components and straightforward installation make it a preferred choice for commercial kitchen ventilation systems. The motor is engineered for durability and long-term reliability, contributing to minimized downtime and operational efficiency in HVAC applications across foodservice environments.
- Compact footprint: Measures 4” W x 4.7” D x 4.5” H for flexible installation
- Self-contained operation: Compatible with existing HVAC systems for seamless integration
- Restaurant-ready design: Built for durability and long-term performance
- Enhanced airflow control: 1550 RPM ensures consistent ventilation rates
- Heavy-duty mounting features: Easy to install with existing threaded holes
